Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jul 20, 2010 Robotic Beam Cutting and Scribing System automatically generates tool paths from CIS/2 part files for cuts, copes, holes, slots, notches, cutouts, and assembly markings on beams up to 40 ft long, 4-44 in. wide, and 4-18 in. high. Featuring servo-robot laser vision and FANUC ARC Mate® 6-axis robot arm, system is controlled by StruCIM® software that allows operators to load CIS/2 part files to generate code for robot to cut lengths, copes, holes, slots, notches, cutouts, and scribe for assembly.

Bilsing Automation North America    Clinton Township, MI 48036
Jun 02, 2010 With ability to exceed 1 million cycles, single-jaw Model GT30 provides clamping force of 650 N and piston diameter of 32 mm, while Model GT40 has 2 dynamic jaws with 1,000 N capability and 40 mm piston diameter. Both provide quick opening/closing at 0.2 sec/cycle. Available in rear or lateral mount configurations, grippers offer numerous choices in clamp tips and jaw shapes. For added precision, optical or induction sensor can be included.

Schunk    Morrisville, NC 27560

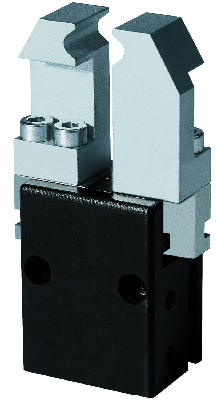

Apr 20, 2010 Available in 3 different opening angles of 30, 60, and 90°, PRG 2-Finger Radial Gripper features single-pin guide rail, which ensures constant closing moment throughout gripping range. Multifunctional gripper offers adjustable stroke to fit individual application and is available with gripping force safety device. Dampening function, directly integrated in drive rod, allows short cycle times while maximizing admissible finger length.

SAS Automation, Ltd.    Xenia, OH 45385

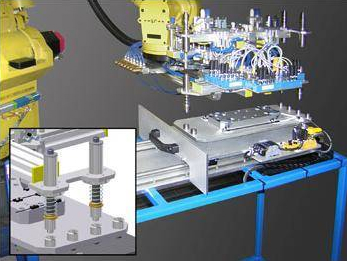

Apr 13, 2010 Designed for insert molding applications, Spring-Loaded Docking Pins provide accuracy of ±.001 in. and can dock on existing mold locators. Units are sized to fit end-of-arm tools, robots, and molds. Available in custom lengths, strokes, and diameters, docking pins provide precision required in complex and low tolerance applications.

PHD, Inc.    Fort Wayne, IN 46899
Apr 08, 2010 Available in 4 sizes and metric or imperial models, Series GRK Gripper maintains precision jaw movement over entire life using rigid, wear-compensating jaw guidance system. Total grip force ranges from 86-378 lb for longer jaw travels (.472-1.024 in. min) and 159-805 lb for shorter jaw travels (.256-.492) at 87 psi. Available with spring assist open or close as well as 2-position teachable magnetic switches, gripper offers repeatability of ±.0004 in. of original position.

Schunk    Morrisville, NC 27560

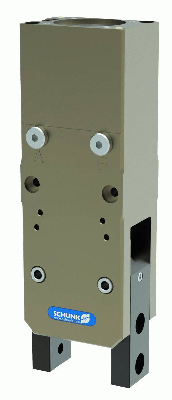

Apr 07, 2010 Available in sizes 240 and 300, 2-Finger-Parallel Gripper DPG-plus offers actuation via oval piston and multitooth guidance for precision and fail-safe handling. It is IP67-rated and no material can get inside device from work environment. Mounting pattern is identical to PGN-plus and PGB grippers, allowing for interchangeability. It is suited for loading/unloading grinding, turning, and milling machines and for applications in paint shops, powder processing, and underwater.

Techno Sommer Automatic    New Hyde Park, NY 11040
Mar 09, 2010 Available in 8 sizes ranging from 12 x 10 x 20 mm to 48 x 38 x 77 mm, MGP800 Series features grip force up to 90 lbf and 1-12 mm stroke per jaw. Magnetic sensors can be mounted to sense jaw position, allowing for positive feedback. Possibility of manifolding through bottom mounting surface eliminates need for air fittings. Able to grip and pick up small items in tight spaces, grippers are suitable for small medical, electronic, and packaging applications.

ABB Inc.    Auburn Hills, MI 48326
Feb 23, 2010 Consisting of 5-axis overhead robot arm mounted on linear gantry, Model IRB 6620LX is suited for machine tending, material handling, and assembly operations. Robotic arm features IP67 rating and can be mounted either upside down or sideways on linear axis. Ranging in height from 8-13 ft and in length from 6-108 ft, linear axis can support up to 2 robots, and provides ability to serve several stations or machines simultaneously or in programmed coordination.

Techno Sommer Automatic    New Hyde Park, NY 11040
Jan 25, 2010 Designed for use in small electronic and packaging applications, MGW800 Series are available in 8 sizes beginning at 12 x 10 x 26 mm. Design allows manifolding through bottom mounting surface, eliminating side air fittings. Offering up to 39.36 lbf-in. grip torque and 37.5º stroke per jaw, series is suited for assemblies and multiple pick-and-place applications. Jaw position, opened or closed, can be sensed via magnetic sensors, providing positive feedback.

SAS Automation, Ltd.    Xenia, OH 45385

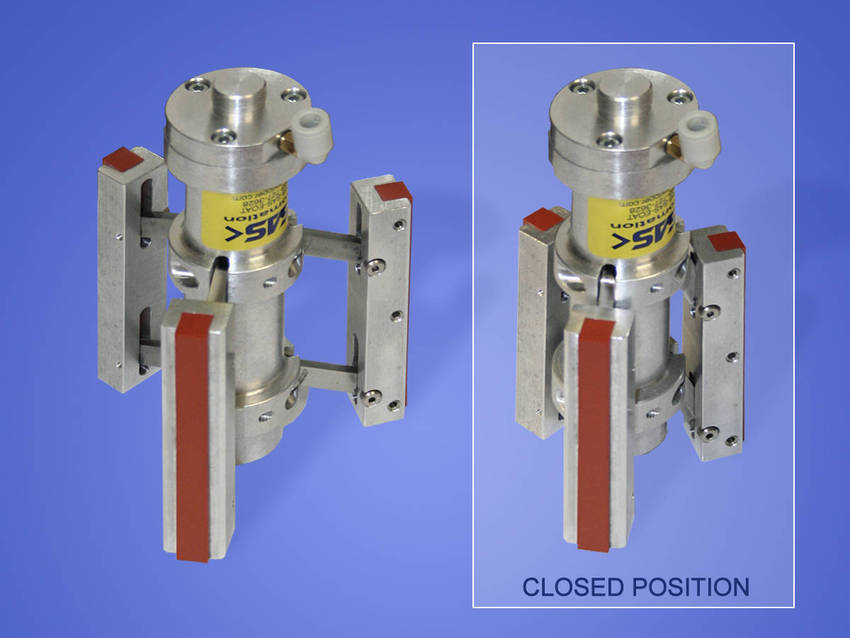

Jan 06, 2010 Able to grip and release on command, Internal Diameter Gripper (IDG) is suited for use with parts that are heavy/fragile or have irregular shape. Design distributes force evenly over entire contact area, replaceable rubber strips ensure secure grip, and nose adapter can be customized for locating or part stabilization. Product offers alternative clamping method to bladder grippers and automated or magnetic clamps.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Employing rare earth magnets, GRM Magnetic Gripper is suited for lifting and moving steel sheets, blanks, stamped parts, and completed assemblies in automated press-to-press transfer, robotic pick-and-place, and manual/automated machine loading and unloading applications. Heavy-duty solution grasps odd-shaped or perforated parts and operates effectively in any orientation. Operating up to 140°F, gripper de-stacks without double-blanking when appropriate magnet is selected.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Consisting of hybrid between circular tubing profiles and rectangular profiles, HX Series is specifically designed for heavy and bulky part applications as well as press tending and metal stamping. Model HX-40 features outside diameter of 40 mm, while Model HX-60 has outside diameter of 60 mm. Both include circular channels that allow for direct mounting of pneumatic fittings.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Featuring heavy-duty stainless steel fingers, Custom Robotic Bag Gripper Tool is capable of lifting 25-60 lb bags off roller conveyors. Tool requires one pivot point with one cylinder to rotate fingers, reaching in between rollers to secure bag underneath. Unit solves difficulty in securing bags that deform due to heavy contents, such as salt, food products, and dry concrete mixtures.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Featuring standard box cutter knife, protected by safety guard and attached to adjustable elbow arm, Static Cutter can be mounted to articulating robot, statically mounted, or mounted directly to End-of-Arm Tool. Knife blade can be replaced by turn of locking handle. With lightweight design, cutter arm assembly can be moved around workcell as cutting applications change.

SAS Automation, Ltd.    Xenia, OH 45385

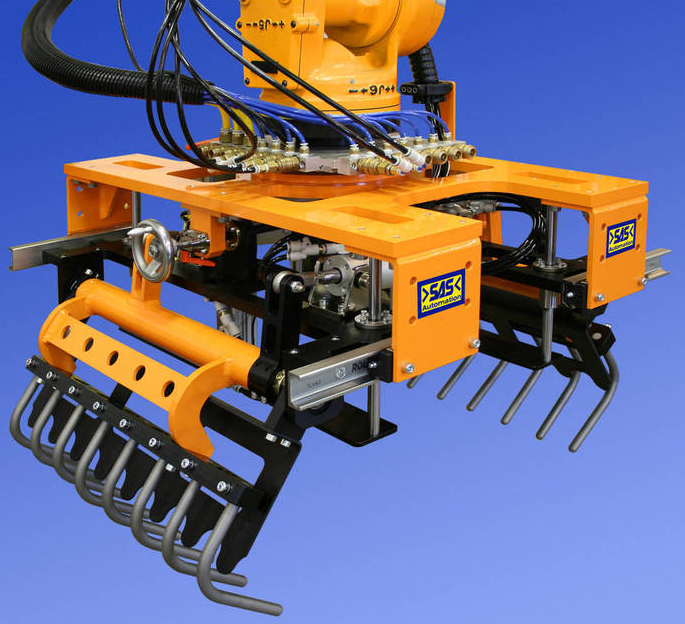

Jan 06, 2010 Adjustable using hand wheel, Adjustable Bag Gripper handles bag weights from 5-100 lb and bag sizes from 12 x 12 x 3 in. to 21 x 35 x 6 in. Unit uses 5/8 in. diameter stainless steel fingers to withstand harsh manufacturing environments. Automated deck plates center bags on conveyor and ensure accurate bag drops for tight packing on pallet. To accommodate mixed loads, gripper can be fitted with servo drive to automatically adjust while on-the-move.

SAS Automation, Ltd.    Xenia, OH 45385
Dec 14, 2009 Able to handle bag weights to 110 lb and sizes from 12 x 12 x 3 in. to 35 x 21x 6 in., bag gripper eliminates need for custom tooling and can be adjusted in minutes for different production runs using hand wheel. Its 5/8 in. dia stainless steel fingers lend to strength and withstand harsh manufacturing environments, while decker mechanism facilitates accurate bag drop once positioned over pallet. In less than 30 sec, tool's bag width can be changed from 12-21 in.

Schunk    Morrisville, NC 27560
Dec 02, 2009 Used in production and assembly of very small components, miniaturized RP gripper rotary unit is comprised of RM rotary module with MPG-based pneumatic parallel gripper. Rotary module sizes 08 and 10 can be combined with gripper sizes 12, 16, and 20, and gripper can also be equipped with 2 types of ID or OD gripping force safety devices. Angle of rotation is 190°, end position accuracy reaches ±0.05°, and drive torque is 0.107 Nm (RM 08) or 0.224 Nm (RM10).

Techno Sommer Automatic    New Hyde Park, NY 11040
Nov 03, 2009 Available in 8 different sizes starting at 12 x 10 x 26 mm, MGW800 Series is suited for assemblies and multiple pick-and-place applications. Grippers offer grip torque up to 39.36 lbf-in. and stroke per jaw of 37.5°. Miniature size allows manifolding through bottom mounting surface, eliminating side air fittings. Jaw position, whether opened or closed, can be sensed through use of magnetic sensors, providing positive feedback.

SAS Automation, Ltd.    Xenia, OH 45385
Oct 30, 2009 Distributing force evenly over entire contact area, Internal Diameter Gripper (IDG) is designed for heavy, fragile, and irregular shaped parts. Product grips and releases on command. Rubber strips ensure secure grip, while customizable nose adapter can be used for locating or part stabilization.

Schunk    Morrisville, NC 27560
Oct 05, 2009 Available in sizes 40 and 50, Compact Class JGP 2-Finger Parallel Gripper and JGZ 3-Finger Gripper feature oval piston and round piston, respectively, plus rigid T-slot guidance for precise and fail-safe handling. Monitoring for both grippers can be carried out with inductive proximity switches or magnetic slot switches.
