Hunter Products Inc.    Bridgewater, NJ 08807-1802
Jun 04, 2002 Micro-Metallizer system utilizes disposable marker-type pens based on environmentally friendly plating compounds. System offers bench-top plating convenience, and completely eliminates preparing and handling solutions. Pens can be safely used anywhere. Pens are available in gold, copper, tin, zinc, nickel, black nickel, silver, chrome-color, rhodium, and palladium.

Schmidt Marking Systems, Inc.    Niles, IL 60714 3401

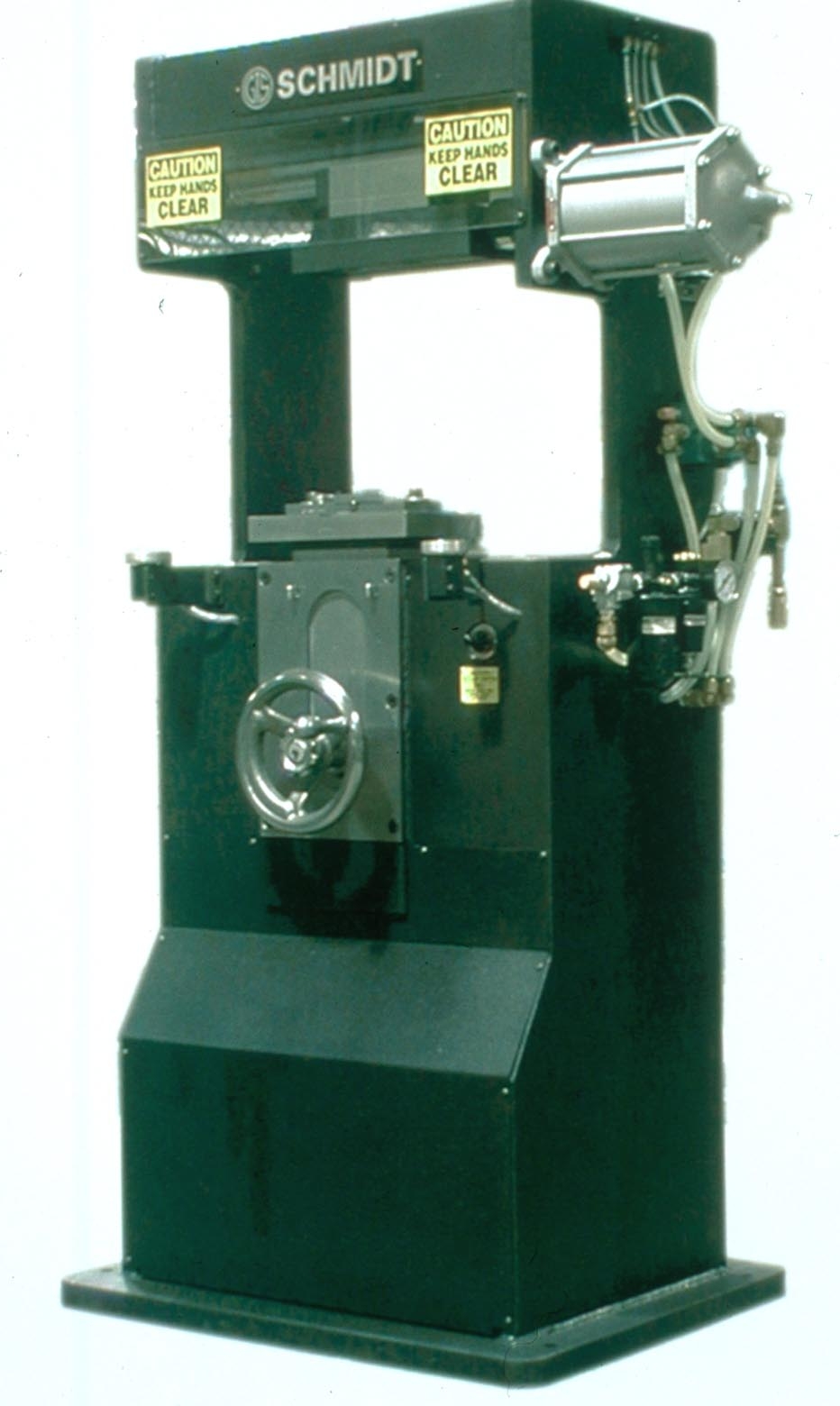

May 16, 2002 Series 12 combines 3 tons of marking pressure into compact 30 x 24 in. floor-mounted unit. In addition to working as a press marker, Series 12 can apply up to 4 lines of 1/8 in. characters per line of information in single roll marking cycle. No electrical connections are required. Anti-tie down dual palm buttons have pneumatic controls. Pressure is achieved with 100 psi source.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407

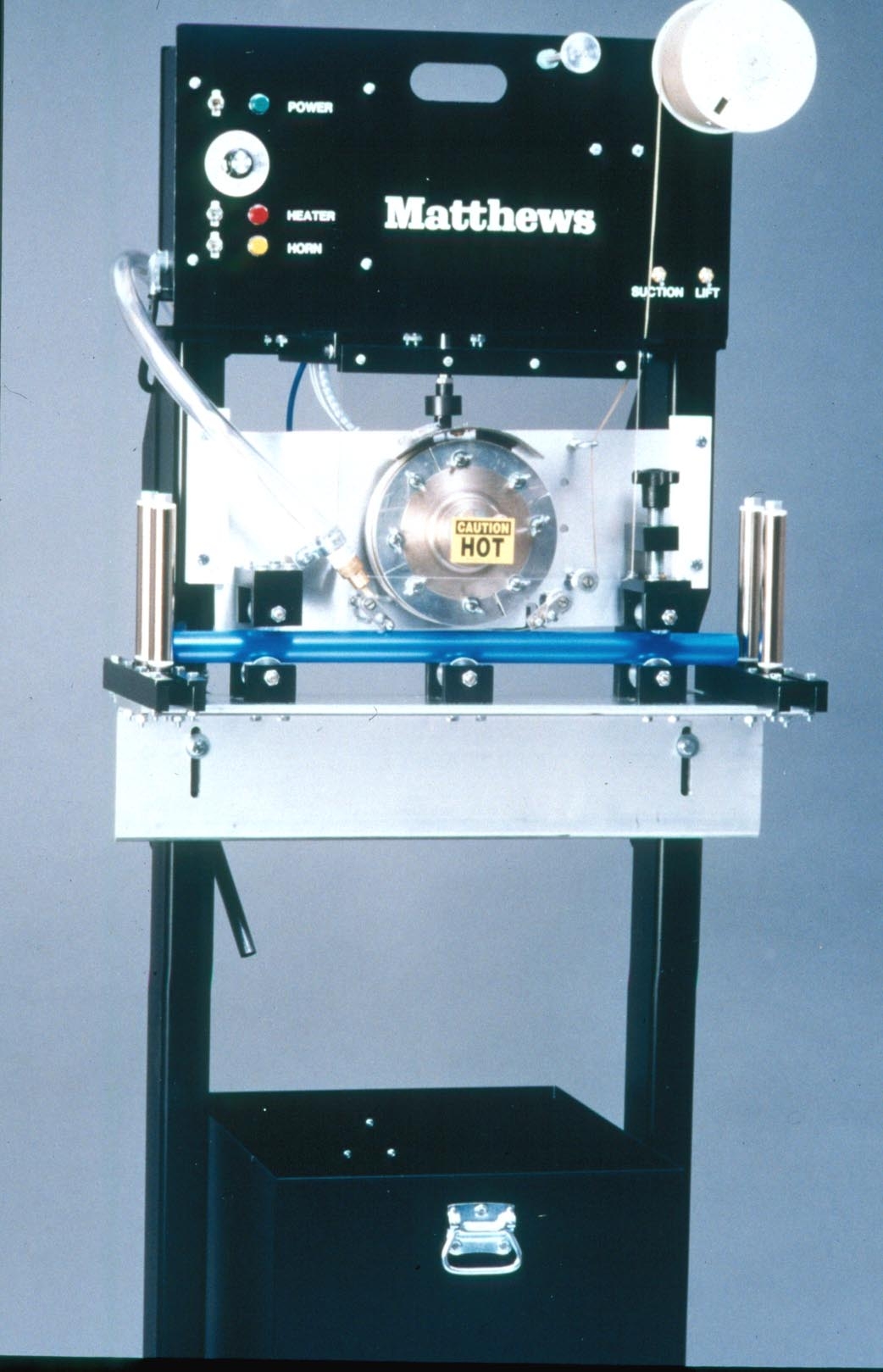

May 14, 2002 Model 4015 Hot Print Brander provides permanent marking of products such as plastic pipe with code information, logos, trademarks, and dimensional data. It uses heated steel type on print wheel, and adjusts type temperature to extruded product's melting point. As product moves under print wheel, heated steel type indents single line of characters into product. Sequential and manual numbering heads permit marking lengths, batch, and date codes.

Unitek Miyachi Lasers    Monrovia, CA 91017 7133

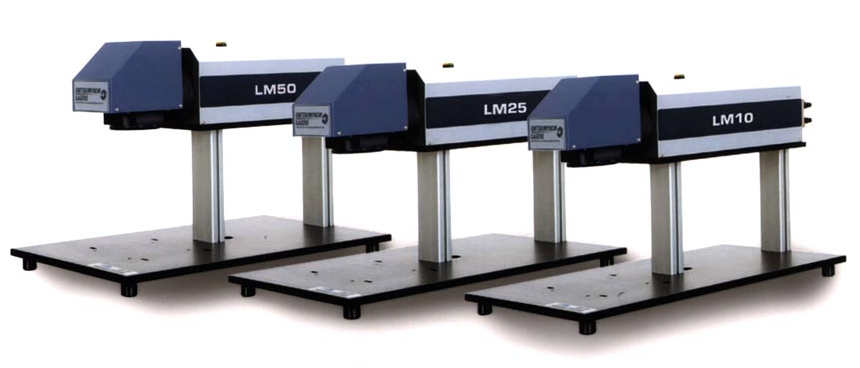

May 07, 2002 Model LM10 and LM25 laser markers, built on LM50's technology platform, provide capabilities such as minute marking and sharp scribing. Rated at 7 W average power, and running at or near TEM00 (single) mode, LM10's beam quality makes it suitable for minute marking applications of ID Matrices down to 20 thousandths. Model LM25 has 25 W of average power and Multimode rated beam.

Schmidt Marking Systems, Inc.    Niles, IL 60714 3401

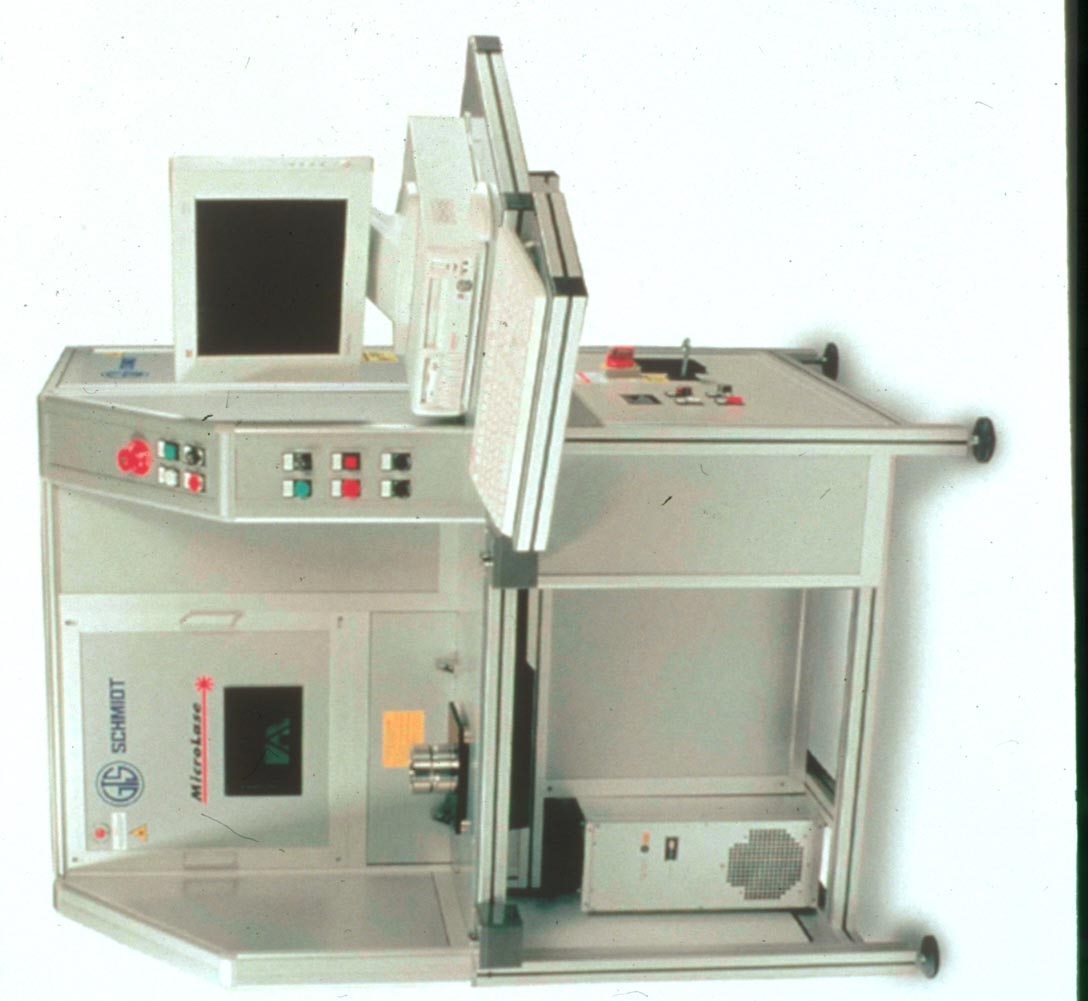

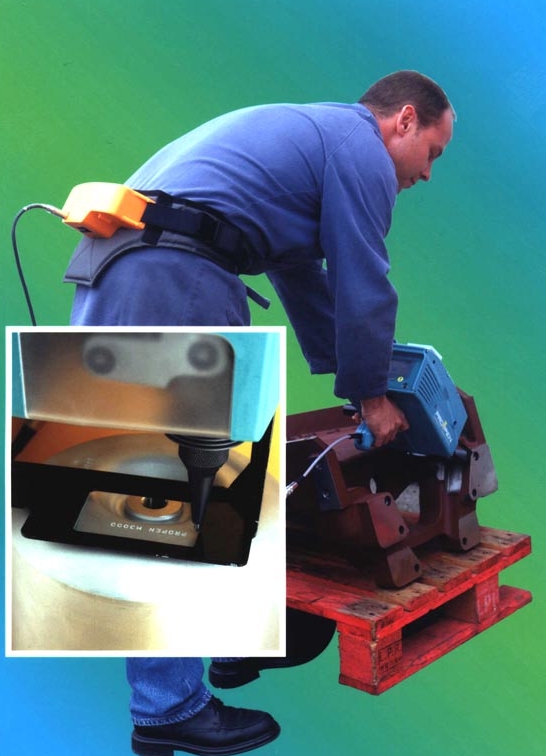

Apr 10, 2002 MicroLase system uses diode-pumped Nd:YAG laser to provide non-contact marking. Laser operates at low temperatures, eliminating need for external chillers. It offers 10,000 hours of operation. Stinger(TM) hand-held, portable stylus marking unit marks deep and legible characters up to 1 in. high in 5 standard fonts. It includes hand-held marker, controller, operator interface, and air regulator.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407

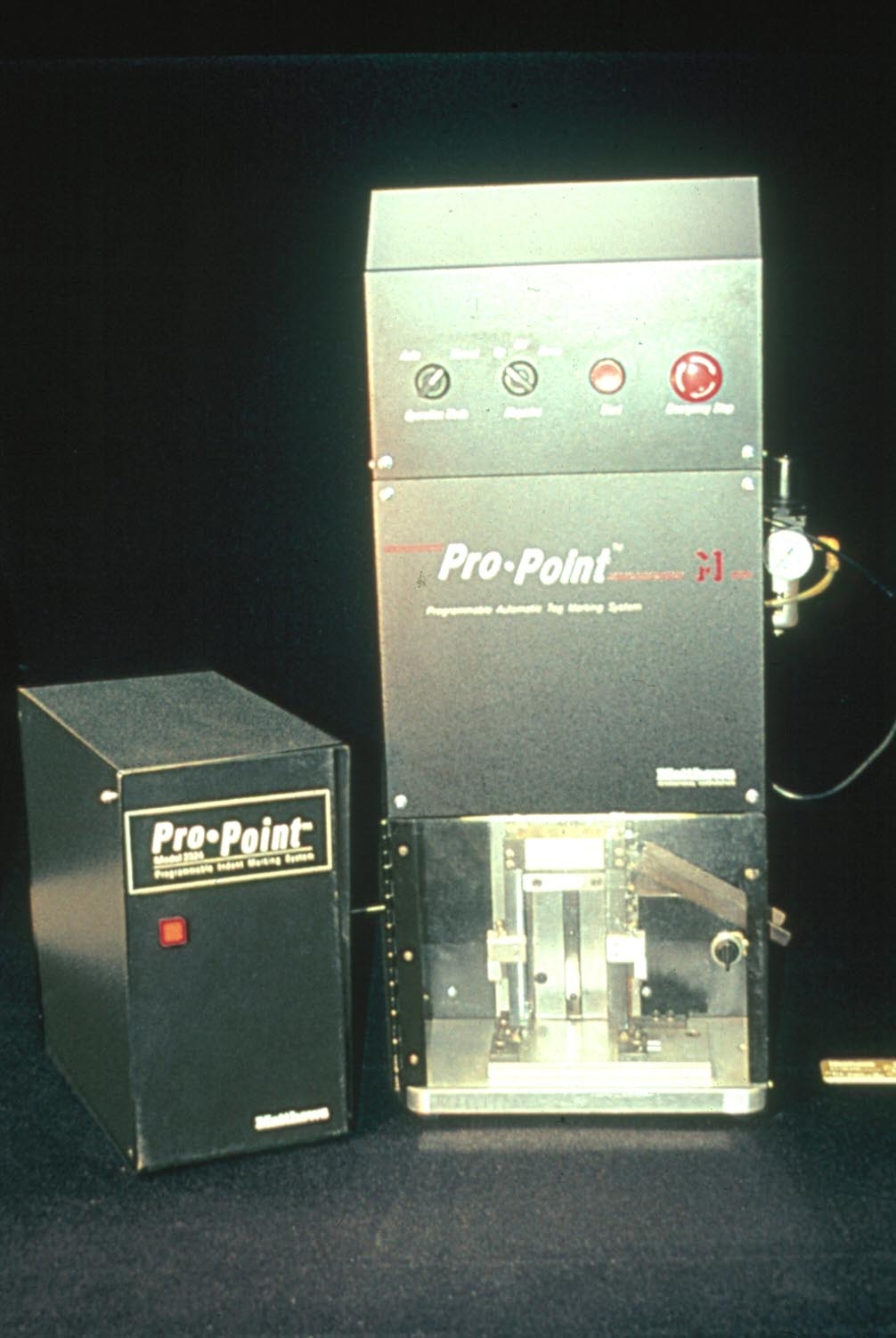

Apr 10, 2002 ProPoint(TM) Tag Marking System automatically feeds, marks, and ejects metal tags. It has conveying system that eliminates tag jamming, magazine capacity ranging from 90 to 225 tags, and can handle steel, stainless steel, brass, and aluminum materials. System marks area measuring 2 x 4 in. on tag sizes from 1 x 3 to 2 x 4 in. with print speed of three 0.125 in. dot-matrix font characters/sec. It can mark date, time, and serial number.

Vision Computerized Engraving & Routing Systems    Phoenix, AZ 85023

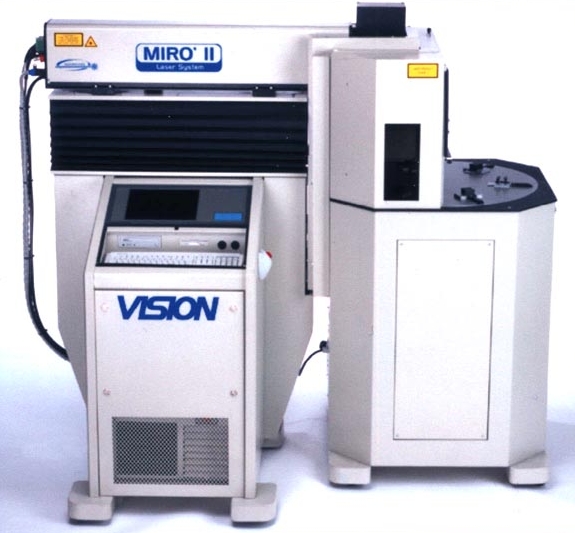

Mar 15, 2002 Miro'll 2-axis, diode-pumped, solid state, Q-switched galvo laser is available with motor-driven fixtures for marking parts in volume. Fixtures include X-Y positioning tables and rotary attachments. Vision rotary attachment can be customized for engraving multiple lines on batches of cylindrical items. Available in 10 through 100-watt models, Miro'll combines PC, laser chiller, and class 1 enclosure.

Marking Methods, Inc.    Alhambra, CA 91803-1531
Feb 05, 2002 Portable Pro-Pen marks wide variety of materials and surfaces including machined, flat, concave and circular, and is capable of marking horizontally or vertically. Areas up to 2.4 x 1.6 in. can be marked with characters from .04 to 1.2 in. in .01 in. increments. System is supplied with battery pack and can run off 110 or 220 Vac wall current. It is self-contained and equipped with view screen, detachable keyboard and software.

Columbia Marking Tools, Inc.    Chesterfield, MI 48047
Jan 31, 2002 EasyMarker(TM) machines include EM100, EM300, EM400 and EM500. EM100 bench-top marker is designed for hand loading and has 100x100mm marking window. EM300 includes internally installed I/O board and 8 I/O ports on rear of controller. Marking window is 100x100mm. EM400 is designed for harsh environments. Marking head has cover to prevent debris from gathering around x-y components. It produces up to 7 character per second and has marking window of 70x60mm. EM500 is same as EM400 except it includes integrated I/O board with 16 I/O ports.

Rofin-Baasel Inc.    Boxborough, MA 01719
Jan 29, 2002 PowerLine E laser marker offers short-pulse laser design operating in high brightness mode, which makes it suitable for photo-quality marking applications employing metals, plastics, ceramics, or composite materials. Unit includes Windows®-based VLM Software and standard operational features. It incorporates company's in-house diode technology, and its cabinetry is IP54 compliant.

Columbia Marking Tools, Inc.    Chesterfield, MI 48047

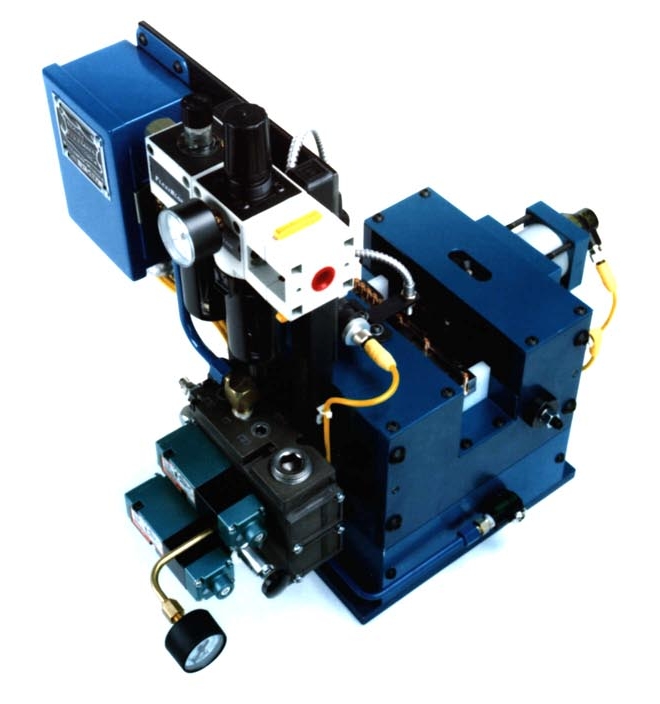

Dec 03, 2001 Mite-E-Roll high-speed pneumatic unit is available in three models for marking round parts from 1/8 to 2 in. dia. Three power options are available to cover variety of legend and material requirements and ensure proper marking pressure. Typically, as part diameter gets smaller, surface in contact gets smaller, requiring less power to imprint mark. Unit can be provided as separate stand-alone machine or as part of manufacturing system.
