Industrial PC suits space-constrained applications.
Advantech Automation Corp.
Cincinnati, OH 45240
Aug 17, 2006
IPC-603MB industrial-grade compact 2U rack-mountable chassis is 12.2 in. deep and supports ATX and micro ATX motherboards and up to 3 half-sized PCI cards. Chassis includes diagnostic LEDs for power status, HDD activity, and reset, with front 1U-high 300 W ATX power supply and two 47 CFM cooling fans. Streamlined airflow design supports LGA775 Pentium 4 CPU of up to 3.8 GHz. Shock resistant disk drive-bay holds slim CD-ROM and internal 3.5 in. HDD.
Track Ball utilizes laser technology for precision.
CH-6039 Root Switzerland
Aug 15, 2006
Self-contained mini-tracking ball incorporates VCSEL (vertical cavity surface emitting laser) with resolution up to 1,600 dpi to ensure smooth and precise cursor movement with minimal finger motion. Used in electronic devices that require scrolling to obtain key information, product offers navigation speeds up to 50 ips. One finger use reduces stress and fatigue related to using multiple tiny buttons.

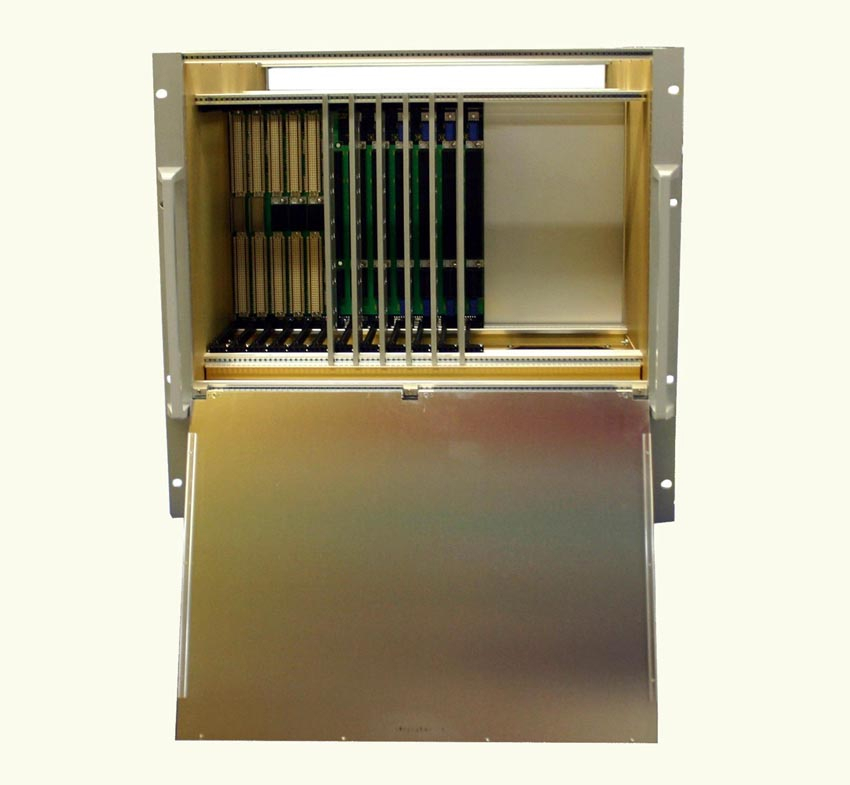

Chassis is designed for VXS Processor Mesh architecture.
Elma Electronic Inc.
Fremont, CA 94538
Aug 08, 2006
VXS Processor Mesh Chassis features 12 slots and comes in 9-12U heights, each available with various cooling options. Backplane features combination of VXS mesh and payload slots, central I/O, and legacy VME64x slots. Power supply options include 2 x 350 W (N+1) to 750 W to 3 x 600 W (N+1), and 19 in. rackmount chassis enclosure is scratch-resistant and power coated with alodined aluminum. Rear I/O, drives, and system monitoring are optional.
Processor Core powers 8-bit-compatible, 32-bit MCUs.
AUSTIN, TX 78735-8598
Aug 08, 2006
For optimal system utilization, 68K/ColdFire® V1 core powers 8-bit compatible 32-bit devices and facilitates migration between architectures. Products based on V1 core will use same peripheral modules and development tools as products based on S08 architecture, including CodeWarrior® 6.0 development studio. Along with built-in ColdFire architecture registers, product uses S08 bus structure to enable use of similar peripheral and memory modules.
Cable Carrier routes power to storage and retrieval systems.
East Providence, RI 02914 0349
Aug 04, 2006
Energy Chain System®, micro Speed-E-Chain, can be used to combine data, copper, and fiber optic cables with power cables or pneumatic hoses. It provides cable protection while operating safely and silently at speeds up to 20 fps. Suited for rack control devices, product consists of Energy Chain installed in aluminum guide trough with rolling attachment on underside through which cables are fed down to machine. Trough top is closed to protect against dirt, dust, and contaminants.
USB 2.0 nanoPHY IP is suited for handheld electronics.
Mountain View, CA 94043 4033
Aug 04, 2006
DesignWare® USB 2.0 mixed signal nanoPHY intellectual property (IP), built for Taiwan Semiconductor Manufacturing Company's (TSMC's) Nexsys 90 nm low-power (LP) process, is tunable for optimal yield by enabling adjustments in key PHY performance parameters. Hi-Speed USB logo-certified product has single-port, on-the-go (OTG) configuration that takes up 0.6 mm² and consumes less than 30 mA of current during data transmission.
Thermoset Composite provides wear resistance.
Postville, IA 52162
Aug 01, 2006
MC844G pure black thermoset composite features flexural strength of 20,000 psi, 48,800 psi compressive strength, and maximum operating temperature of 130°C. Constructed of black paper substrate and black phenolic resin, material is designed for architectural and construction applications requiring pure black surface. Composite develops patina with age and use, and can be used in functional and decorative parts for musical instruments.

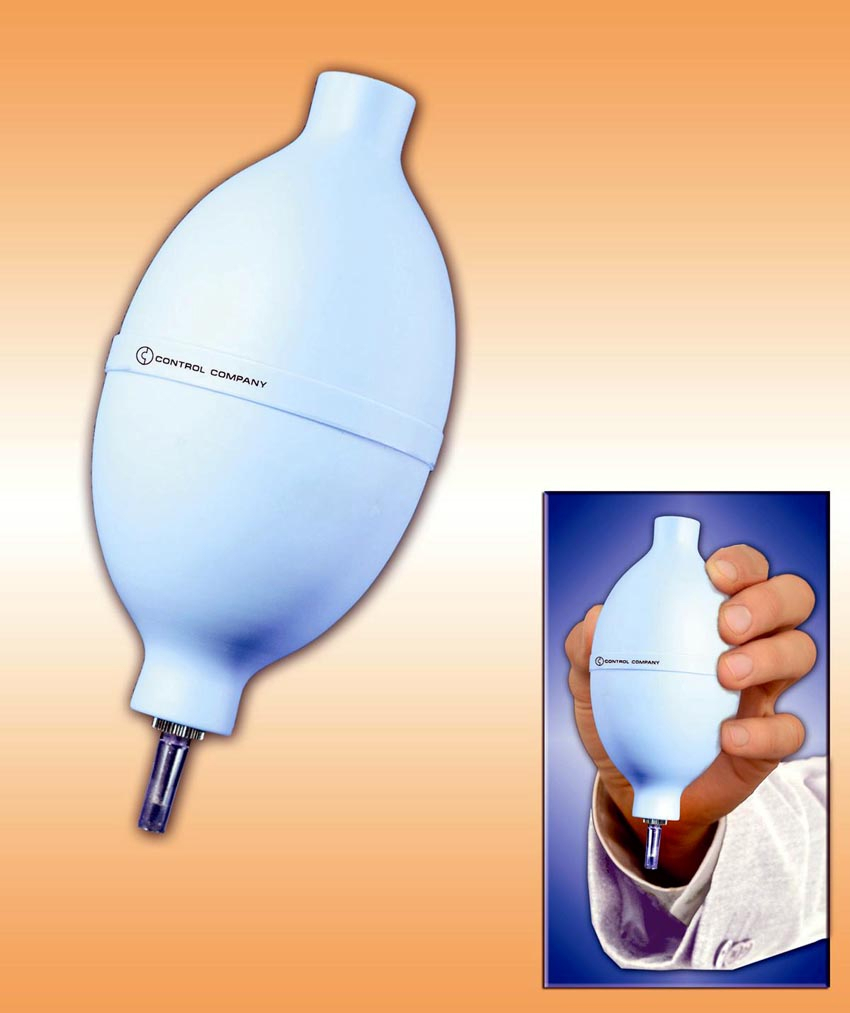

Bulb Duster blows away dust, lint, and dirt.
Friendswood, TX 77546
Aug 01, 2006
By varying squeeze to control delivery, Dust'it(TM) Blower provides high-pressure, pinpoint jets of air where desired. One-way inlet valve on top stops air and dust from drawing through non-conductive plastic sleeve-tip, which is designed to prevent scratches to optical lenses, slides, and circuit boards. Blower measures 2¼ x 5 in., weighs 2 oz, and suits laboratory, industrial, medical, manufacturing, and HVAC applications.

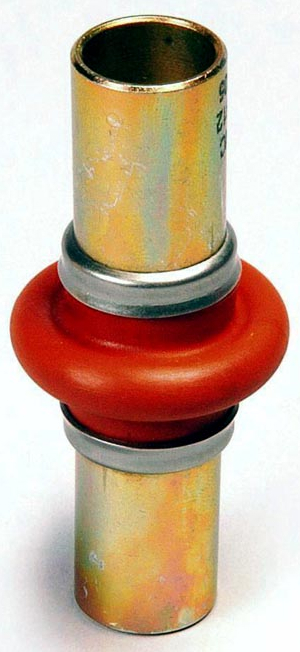

Universal Joint meets/exceeds MIL-J-6193 specification.
Broadview, IL 60155
Jul 31, 2006
Requiring minimal in-field maintenance, heavy-duty MS 271 military standard universal joints withstand demanding operating conditions and harsh working environments. Products meet or exceed requirements of military specification MIL-J-6193 and are suited for government/military and aerospace applications. Pin and block design can be modified into materials such as aircraft 17-5 and 15-5 as well as marine-grade 316 and 316L stainless steel for use in extreme corrosive environments.
Coaxial Coupling Closures seal out environment.
TE Connectivity Ltd.
Berwyn, PA 19312
Jul 28, 2006
Designed with 1-piece clamshell housing, CERTI-SEAL Closures are intended for direct buried splicing or demarcation of Series 59, 6, 7, and 11 coaxial cables as well as long-body F-81 sealed connectors. Featuring gel-filled construction, closures provide environmental seal that can withstand 14-day immersion without signal degradation. Units have operating range of -40 to +60°C and are designed to meet Telcordia specification TR-NWT-000975.
C-Cores come in 32 sizes ranging from 5 VA to 5 kVA.
Bridgeport, CT 06608
Jul 26, 2006
Made from M5 silicon steel, C-Cores are suitable for single-phase transformers with single coils, both single loop and double loop, as well as double coil and double loop. They can be bobbin-wound and require no assembly or stacking of laminations. Rectangular tubes of phenolic or laminated paper required for winding cores are available for all sizes.
IP Core supports PCIe specifications.
Denali Software Inc.
Palo Alto, CA 94301
Jul 26, 2006
Incorporating technology for IP configuration and design verification, Databahn(TM) PCIe Core provides hardware developers with comprehensive, silicon-proven solution for deploying PCI Express technology. Dual-link, dual-mode core features 8-lane interface at physical layer. In single link mode, core may be configured as PCIe Endpoint or Root Complex. In dual-link mode, both links can be configured as EPs, or one link can be configured as RC and one as EP.

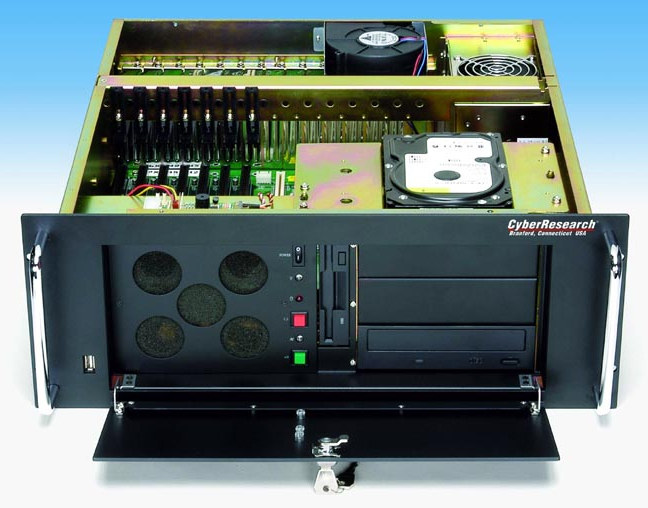

All-Steel PC Chassis measures under 18 in. deep.
Branford, CT 06405 2932
Jul 25, 2006
Featuring 2 mm, all-steel construction, military-style RDM chassis suits intensive mobile applications as well as high shock and vibration locations. Seven of 14 expansion slots accommodate full-length cards, which are supported by adjustable-height hold-down clamps, and all 5 drive bays are shock mounted. Along with 40 W, fault-tolerant power supply, fan-cooled chassis includes temperature monitor that alarms when fan fails or when temperatures exceed set point.
PEEK Beading features 14,065-14,500 psi tensile strength.
Parker Hannifin Corp.
Oxford, MI 48371
Jul 19, 2006
Offering alternative to glass, stainless steel, and other metals, TexFluor(TM) PEEK(TM) Beading is USP Class VI compliant and can repeatedly withstand sterilization with E-Beam/Gamma, ETO, or Steam Autoclave. It is available in sizes from .005 in. ID, with tolerances of ±.0005 in., up to .250 in. ID with tolerances of .005 in. Extruded in clean room manufacturing facility, beading offers abrasion resistance and max service temperature of 500°F.
Linear Guides withstand harsh industrial environments.
Pittsburg, CA 94565 0209
Jul 14, 2006
Designed for linear motion manufacturing applications, UtiliTrak PW Series Linear Guides feature polymer overmolded wheels carrying loads to 311N with up to 1.5 m/sec of travel. Anodized aluminum track comes in V-style for DualVee® wheels and U-style for MadeWell(TM) crowned rollers, and is available in lengths to 12 ft. Built-in lubricator wiper caps clear debris and lubricate track surface at both ends. Wheel plates are available in 3, 4, and 5-wheel configurations.
Silicon IP Cores support AES/LRW and AES/GCM algorithms.
IP Cores, Inc.
Palo Alto, CA 94303
Jul 14, 2006
Starting at 30K ASIC gates and delivering up to 10 Gbps throughput, GLM1 and GLM2 enable System on Chip (SoC) vendors to build compact processors that support AES/LRW and AES/GCM cryptographic algorithms. Advanced Encryption Standard (AES) protects data in storage media as well as inside network, and both products support 128- and 256-bit keys. While GLM1 is designed for throughput of 12.8 Mbits per MHz, GLM2 delivers 25.6 Mbits per MHz.
DSP Cores suit converged mobile multimedia applications.
San Jose, CA 95134
Jul 14, 2006
Utilizing OSEck RTOS, StarCore SC1000 and SC2000 provide high-speed control, signal processing, and media processing capabilities. Both families feature VLES instruction set to minimize power consumption. Software enables message-based LINX interprocess communications services, which facilitate design of complex mobile infrastructure applications spanning multiple DSP cores. OSEck delivers preemptive, event-driven real-time response with context switching speed of 300 nsec.
IP Bridge enables migration to AMBA 3 AXI protocol.
Mountain View, CA 94043 4033
Jul 13, 2006
DesignWare® Bridge Intellectual Property enables designers using serial PCI Express interface to interconnect system-on-chip (SoC) designs to migrate standard on-chip bus to AMBA 3 AXI protocol. Maintaining full bus bandwidth, bridge allows designers to add PCI Express external connectivity to their SoCs. Bridge results in networking, embedded, storage, and computer application designs capable of connecting multiple PCI Express-based systems and peripherals.
Sideswing Tailgate Guide Ramp aids dump trailer closure.
East Manufacturing Corp.
Randolph, OH 44265
Jul 11, 2006
Offered as standard on all East dump trailer sideswing gate option packages, sideswing tailgate ramp guide is constructed of aluminum and features self-lubricating UHMW roller. Included roller, made from synthetic material with ultra high molecular weight (UHMW), prevents top pin misalignment by guiding gate and top pin back into position during closing. This accelerates and facilitates gate closure.

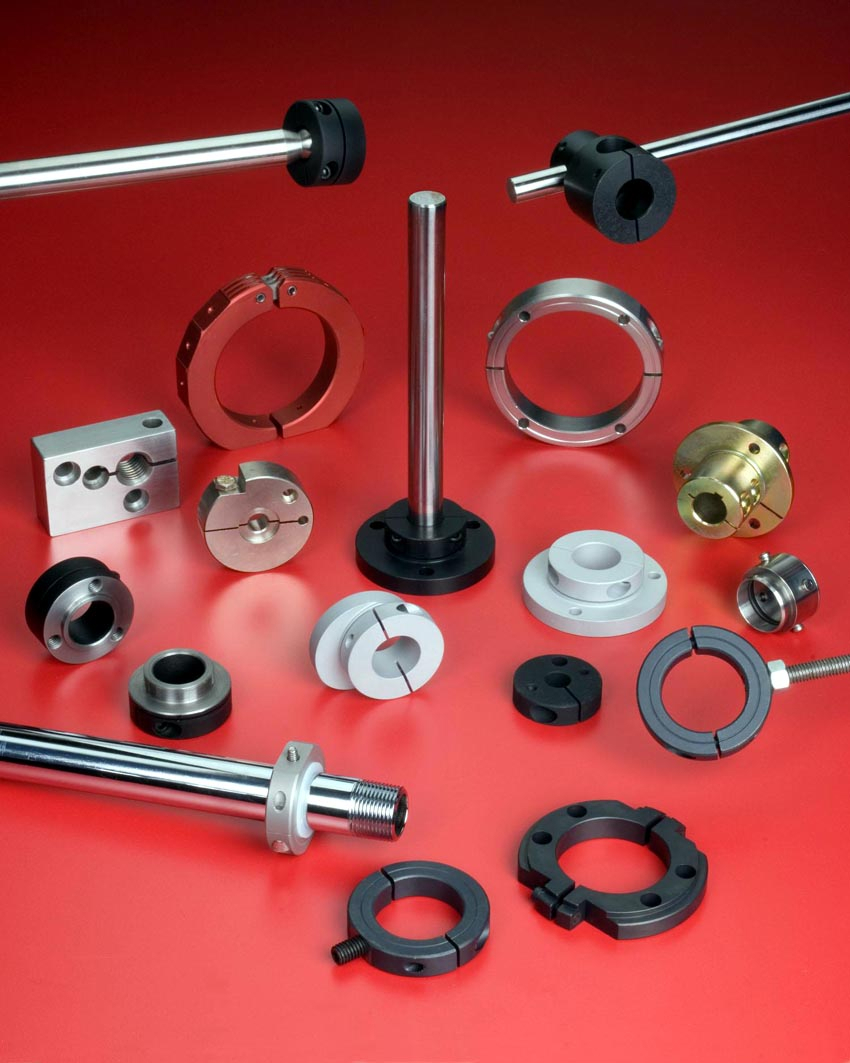

Shaft Collars are manufactured to customer specifications.
Stafford Manufacturing Corp.
Woburn, MA 01888
Jul 10, 2006
Manufactured in prototype to production quantities with tolerances to 0.0005 in., Custom Shaft Collars feature smooth, hex, square, metric, radiused, keyed, and threaded bores, and are available in 1- and 2-piece, hinged, or set-screw styles. Bore sizes are from 1/8 to 16 in. ID, and materials include various metals, alloys, and engineering plastics. They can be machined with drilled and tapped face holes; OD flats, grooves, or knurls; and can be supplied with special fasteners.
