Fusion Inc.    Cleveland, OH 44094-4630
Jan 07, 2003 Fusion #1131 contains Blockadeâ„¢ filler metal, consisting of atomized copper, phosphorous, tin, and silicon. Copper/copper, copper/brass, and brass/brass parts can be joined with alloy when using gas/air, gas/oxygen, or induction heat methods. Paste, with liquidus temperature of 1247°F, can be automatically dispensed in premeasured amounts and features reduced brazing temperatures and improved joint ductility over traditional BCuP-2 filler metals.

RTP Co.    Winona, MN 55987
Jan 07, 2003 Long Fiber Reinforced Thermoplastics are available in over 15 different resin systems and various different fibers, and are supplied in 50 lb bags, 1,000 lb gaylords, and bulk trucks. They can be formulated to provide secondary properties such as wear resistance, flame retardancy, and conductivity, and can also be colored.

Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379

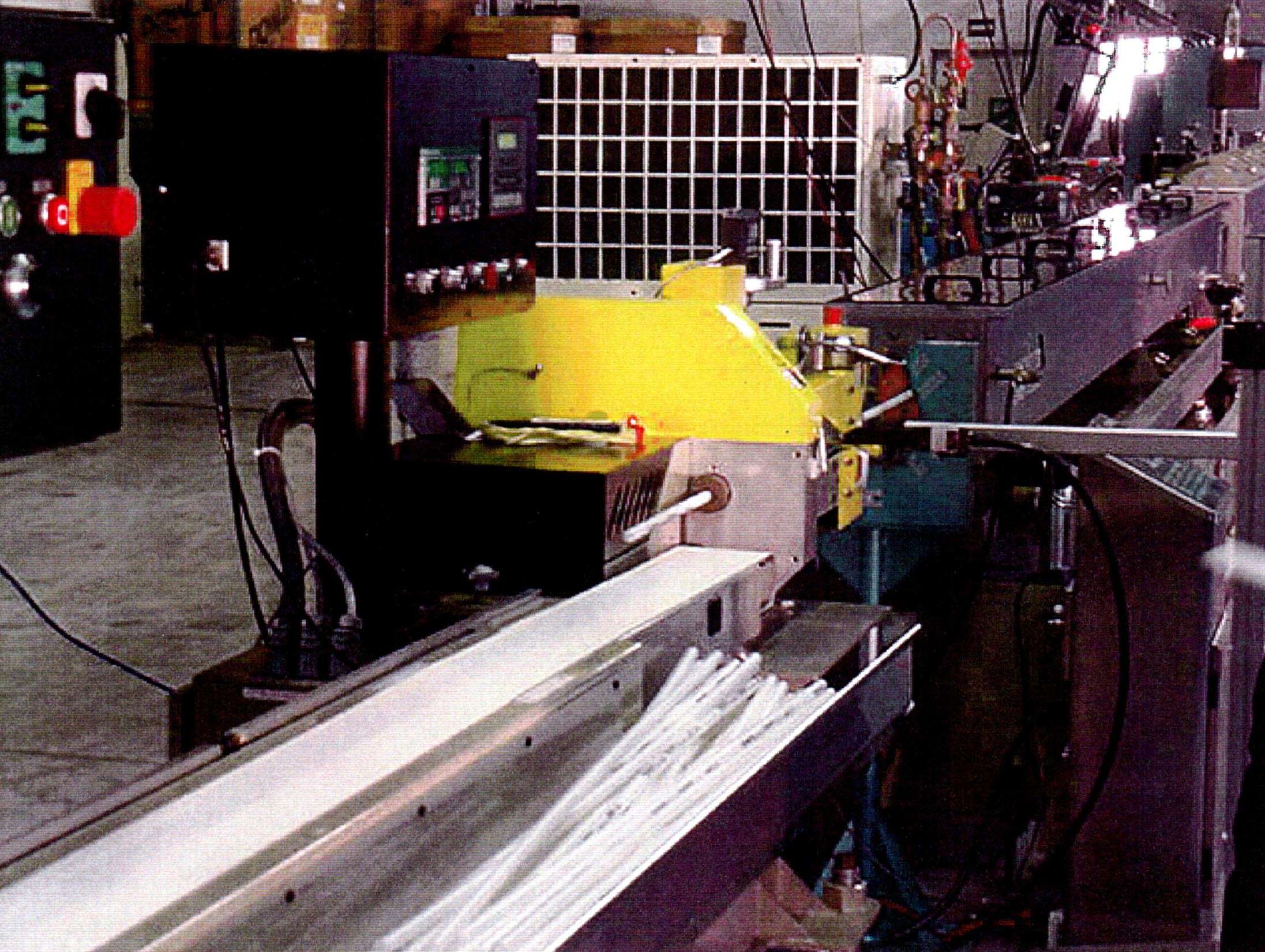

Jan 02, 2003 Extrusion Package utilizes silane liquid blend, which is absorbed on porous resin during material feeding and introduced with main resin to extruder, allowing for continuous formation of extruded pipe. System includes 3-component drying system, 4-component dosing station, 75 mm 32:1 air cooled extruder with feedscrew and 1.5 L/D grooved feed section, 25 ft vacuum tank, 25 ft spray tank, puller/cutter, cutter/blow-off and OD/wall measurement. Line outputs 80 fpm at 225 lb of material/hr.

Garon Products, Inc.    Wall, NJ 07719 1924
Jan 02, 2003 De-Icerâ„¢ non-corrosive, pure white crystalline pellets create radiant heat that is unleashed spontaneously upon contact with ice and snow. It is 24 times more effective than rock salt at 0° and is effective down to -60° when rock salt doesn't work at all. OSHA compliant pellets keep walkways clear and safe with no messy salt slush to clean up. They can be applied shortly after snowfall to prevent heavy accumulation.

Aremco Products, Inc.    Valley Cottage, NY 10989
Dec 30, 2002 Ceramacastâ„¢ 589 2-part, silicon-dioxide based, silicate-bonded, chemically-setting ceramic compound is suitable for applications to 2400°F. Dielectric strength and volume resistivity are 100 V/mil and 10⁹ ohm-cm, respectively. Compressive strength is 4,500 psi and coefficient of thermal expansion is 5.5 in./in./°F. Ceramacastâ„¢ 589 is pneumatically dispensed and reaches full cure by heat curing for 10–15 min at 200°F.

Conserv-a-Therm Corporation    Union, NJ 07083
Dec 26, 2002 Deep pocket design prevents snow from clogging air filters and diminished air flow into buildings. Design also provides constant drainage, prevents refreezing of snowmelt, and eliminates stagnant water pools. Extracting snow flakes from air as it enters buildings, product installs into factory built air handlers and field built HVAC systems. It is available in various panel sizes for 3,000–30,000 cfm range; multiple panels can handle over 100,000 cfm.

Hosokawa Bepex Corporation    Minneapolis, MN 55413-2810
Dec 26, 2002 Twin Rotor Hydramix operates in continuous flow without clogging. Self-cleaning design features close tolerances between rotor paddles and container walls to reduce material buildup. Unit has adjustable mixing speed and provides production rates up to 10 tons/hr. Rotors operate at 10 rpm, preventing particle damage during residence times of 20–30 min. Applications include hydration of phosphates and soda ash, or blending of feed supplements, fertilizers, and pesticides.

Riveer Co.    South Haven, MI 49090
Dec 23, 2002 Semi-enclosed Space Saver has 6 x 8 ft footprint. Stainless steel filtration system can be placed in separate room or outdoors. Wash pad, 6 in. off ground, provides safe, easy access. Automatic system offers clear, polycarbonate walls and ceiling, built-in pressure washer, and 24/7 ozone filtration and recirculaton. Portable, PLC-controlled unit includes regenerative blower for vacuum recovery, fan with carbon filters, and 10 micron absolute industrial filter.

Sartorius Corp.    Edgewood, NY 11717 8315
Dec 23, 2002 Model isi20 performs batching of different chemicals by percent when compounds require specific ratio or percentage of several chemicals to create accurate mixture. Platform scale connected to unit deduces proper percentage when user places container filled with primary component and enters proportion into indicator. User then adds second ingredient into tared container until unit reads 100%. Tool includes applications such as counting, check weighing, and preset-tare.

Almco, Inc.    Albert Lea, MN 56007 2751
Dec 23, 2002 Cabinet-style Model RCW-30E features spray system arrangement for maximum coverage of parts and 2 removable parts baskets. Top door permits loading of 30 in. turntable from overhead hoist. Electric-powered unit features 32 in. x 36 in. work opening with load height of 31 ½ in. Oil-wheel collection tank, adjustable spray-pressure control, NEMA 12 electrical enclosure, adjustable wash cycle timer, and electric immersion heater are standard.

CS Unitec, Inc.    Norwalk, CT 06850
Dec 23, 2002 Hand-held Model EHR23/1.2R is equipped with galvanized paddle that can mix concrete, mortar, and epoxy in batches up to 176 lb. Variable-speed, 100–275 rpm motor eliminates splash back. Ergonomic handles ensure comfortable operation and protect mixer motor from dirt. Paddle has helical design that mixes batches from bottom up, preventing splash and keeping air from being sucked into material.

MARKEM Corp.    Keene, NH 03431-7100
Dec 20, 2002 Hot-melt Model 5200SC prints real-time and variable information as well as readable bar codes. Capable of printing 400+ ft/min, it has print swath of 2.56 in. and multiple time and date formats. Touch Dry® 5106 ink adheres to films, rigid plastics, shrink wraps, and coated inner cartons. Non-toxic, environmentally friendly ink contains no solvents. Touch Dry 5005 and 5106 offer smudge and abrasion resistance as well as package-to-package offset resistance.

Textron Automotive Co    Farmington, NH 03835
Dec 12, 2002 Metal Extrusion System consists of 2,000 ton stamping press equipped with computerized controls that adjust instantly to 100 different component designs. It combines stamping, deep drawing, and cold forming to produce fully integrated automotive components. Fasteners become part of single component, eliminating need for weld nuts, stamp-in nuts, and self-piercing nuts. Applications include suspension systems, drive trains, seat belt anchors, and transmission mounts.

Meller Optics, Inc.    Providence, RI 02940
Dec 12, 2002 Custom optics include balls, plano convex and plano concave lenses and windows, rectangles, squares, and cones. Design characteristics include steps, wedges, precision holes, and radical curves. Optics exhibit Moh 9 hardness, diameter tolerances to ±0.001 in., and thickness tolerances to ±0.0005 in. With surface finishes to 10–5 scratch-dig, products have better than 2 arc-sec. in./in. parallelism. Units transmit UV to IR with up to 99% transmission.

Retsch, Inc.    Irvine, CA 92614
Dec 12, 2002 Model SR 300 processes materials with feed sizes up to 15 mm to fineness below 80 micron. Batch output is up to 30 L or 360 kg/hr in continuous mode. Mill achieves circumferential speed of 18,000 rpm. Circular screens, with hole diameters from 0.08–10 mm, determine final fineness of sample. Metal conidur filter provides for convenient handling. All parts in contact with sample are made of stainless steel. Applications include chemical, agricultural, pharmaceutical, and mineral.

Martin Engineering    Neponset, IL 61345 9766
Dec 11, 2002 MICRO series, which includes M3/4, M3/20, and M3/45 vibrators, offer IP65 mechanical protection, aluminum alloy casing, and stainless steel weight covers. Lamellar eccentric weights can be regulated in steps by changing actual number of weights mounted. Three-phase models are supplied with power flex (2 meters), while single-phase models are also supplied with condenser installed in casing along flex. Centrifugal force can be adjusted from 0 to max indicated value.

OI Analytical    College Station, TX 77842
Dec 10, 2002 LAN 9000 measures content of sugar (Brix) or Diet and CO₂ in soft drink bottling operations. With infrared optical filter/detectors and digital electronics, unit identifies components by allowing only spectra of aforementioned ingredients to pass through detector. Amount of each is determined by absorption of unique spectra. Product includes single detection technology, built-in Ethernet connectivity, and on-line instrument control via 6.4 in. color LCD touchscreen.

Wayne Machine & Die Co.    Totowa, NJ 07512 1825
Dec 09, 2002 Yellow Jacket Direct OEM Replacement extruders are available in 3½, 4½, 6, and 8 in. sizes. Design allows users to replace extruder in less than one day of installation time. Units are customized to match overall outside dimensions, hopper locations, center distances, power drop and utility connections, vent stack location, barrel flange, and screw design. They include digital, auto-tuning temperature control and AC Flux Vector drives.

Milacron Inc.    Cincinnati, OH 45206
Dec 05, 2002 Magna V vertical injection molding machines (IMMs), based on C-frame platform, measure 15 x 7 ft. Vertical IMMs are available in stationary, shuttle, or rotary table versions. With 3-sided access, units provide tandem variable volume and fixed-volume pump systems, infrared light curtain, and XTREEM PC-based, open-architecture control. Units have maximum daylight of 35 in. and accept molds up to 24 x 36 in. (2-station). They suit insert, over-molding, and multi-component applications.

Carpenter Technology Corporation    Wyomissing, PA 19610-1339
Dec 05, 2002 High-temperature alloys in strip form are used in making parts and components that require heat resistance in environments up to 2000°F. Strips range from 0.003–0.24 in. thick in widths from 3/8–13 1/2 in., depending on alloy. They are offered in tempered or annealed condition. Applications include aerospace fasteners, turbine blades, jet engine components, heat shields, mechanical seals, flexible bellows, stampings, and heat treating equipment.
