Norplex Micarta    Postville, IA 52162
May 05, 2006 Used to separate and isolate electrical contacts, oil-resistant NP613 maintains mechanical strength when used in oil-filled transformer equipment. It also maintains dimensional stability at elevated operating temperatures, guaranteeing contact will be separated and engaged as needed. Constructed from electrical grade of kraft paper and modified resin, NP613 has flexural strength of 27,000 psi, compressive strength of 40,000 psi, and max operating temperature of 140°C.

Group4 Labs LLC    Menlo Park, CA 94025
May 04, 2006 GaN-on-diamond semiconductor wafer features single GaN layer atomically attached to freestanding, 25 micron thick, polycrystalline CVD diamond substrate. Nanometer proximity of chip's active region to diamond reduces heat build-up by extricating heat from core at instant of generation, permitting high temperature resilience for high-power, high-frequency electronic, solid-state white lighting, military, and photonics applications.

Solvay Advanced Polymers, L.L.C.    Alpharette, GA 30005-3914
May 04, 2006 Formulated to optimize surface quality, thermal resistance, impact, and flow, RADEL® LTG-3000 polyethersulfone (PES) withstands temperatures to 205°C and exhibits tensile strength of 12.0 kpsi, while UDEL® LTG-2000 polysulfone (PSU) withstands temperatures to 175°C and has tensile strength of 10.2 kpsi. Capable of direct metallization, polymers are targeted for use in manufacture of headlamp bezels and reflectors, fog lamp reflectors, and park-and-turn reflectors.

Opal-RT Technologies    Montreal, QC H3K 1G6  Canada
May 03, 2006 Combining RT-LAB software with COTS PC and XILINX FPGA technologies, RT-LAB MX Station delivers rapid prototyping of power electronic controllers and simulation of motor drives used in electrical hybrid vehicles. PC component supports dual-core Pentium M or Pentium 4 HT processors, while Opal-RT OP5110 XILINX VIRTEX IIPro FPGA board handles I/O management. Able to be deployed remotely, station is fully integrated with Simulink(TM), Real-Time Workshop(TM), and SimPowerSystem Blockset(TM).

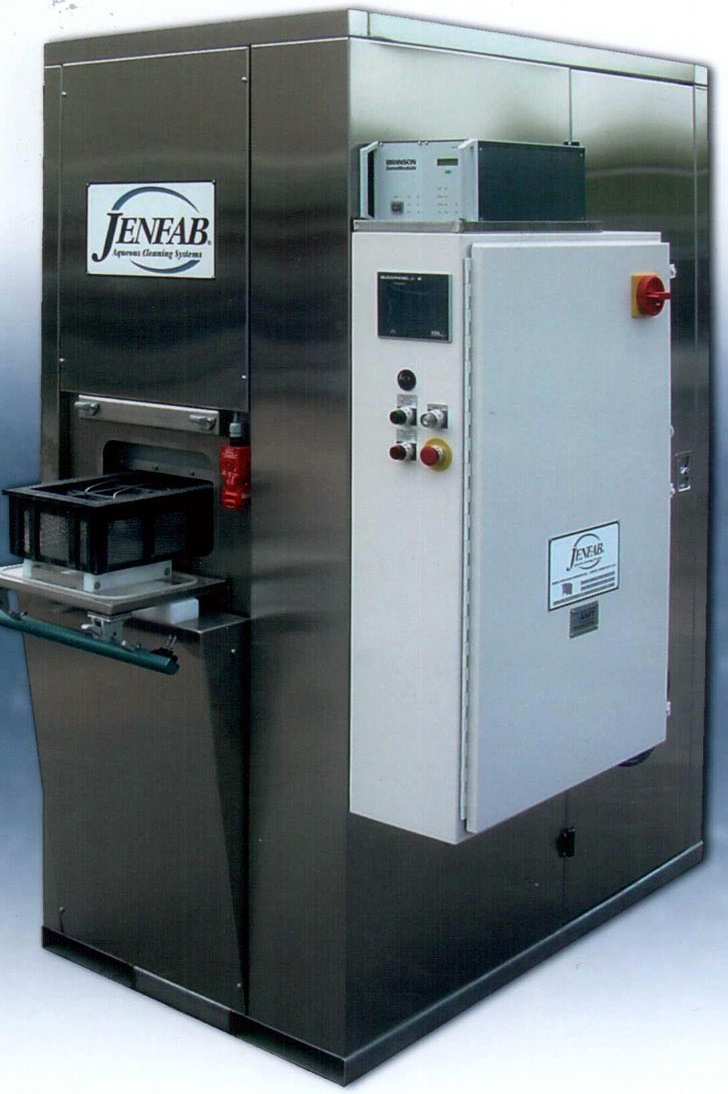

Jensen Fabricating Engineers, Inc./JENFAB    Berlin, CT 06037
May 01, 2006 Utilizing continually filtered and recirculated cleaning solutions, cellular Lean Clean 360 series cleans parts in rotating baskets with environmentally safe, aqueous cleaning solutions. Combined Spray, Immersion, and Spray-Under-Immersion action removes chips, oils, and coolants; ultrasonics are available for precision cleaning applications. Delicate parts that cannot be rotated can be gently rocked back and forth in cleaning solution.

Emitec, Inc.    Fountain Inn, SC 29644
May 01, 2006 Diesel Oxidation Catalyst contains flat layers made from perforated foil and corrugated layers made from foil with longitudinal structure. PE foil facilitates exchange between individual channels, while longitudinal structure facilitates mass transfer, which is important for lower carbon monoxide and hydrocarbon emission levels of diesel engines.

Saelig Co., Inc.    Pittsford, NY 14534
Apr 28, 2006 Offering ADWG (Arbitrary Digital Waveform Generator) and logic analyzer capabilities, GP-22050-BASE(TM) PC-controlled USB 2.0 pod enables stimulation and analysis of digital interfaces. It lets users access virtually any port that fits in 16 address/data lines and 6 control lines up to 50 MHz, reaching max of 100 MB/sec burst performance over 16 kB internal memory depth. Max continuous throughput is 48 MB/sec, while actual continuous flow through is at ~11 MB/sec.

Emerson Process Management - Daniel Measurement and Control, Inc.    Houston, TX 77055
Apr 28, 2006 ControlWave ExpressPAC pre-engineered automation system includes Express RTU, compact Nema 4X rated enclosure, power supply, and solar panel options with battery backup, operator display/keypad input options, and wireless communication options. Suited for use in energy, water, and wastewater industries, ControlWave offers operating temperature range of -40 to +70°C for remote sites, and low power consumption for solar applications.

JM Science, Inc.    Grand Island, NY 14072
Apr 27, 2006 With 6 built-in calculation modes to accommodate solid, liquid, and gas samples, AQV-300 AQUACOUNTER® Volumetric Karl Fischer titrator includes statistics package with one-touch calculations. Four files with preset conditions can be stored in memory and data can be recalled for up to 20 samples. Built-in detector monitors titration status, while direct key access allows entry of titration parameters. Titrator has balance and computer interfaces for GLP and ISO documentation.

Huron Technologies, Inc.    Leslie, MI 49251
Apr 26, 2006 Specifically formulated for low gloss in-mold-painted applications, water-based Release Coating 7307 optimizes scuff and mar surface characteristics. Molded surfaces have uniform, low gloss appearance over entire surface area along with dry surface feel. Available in 5 gal pails and 55 gal drums, agent is effective at spray outputs up to 180 g/min.

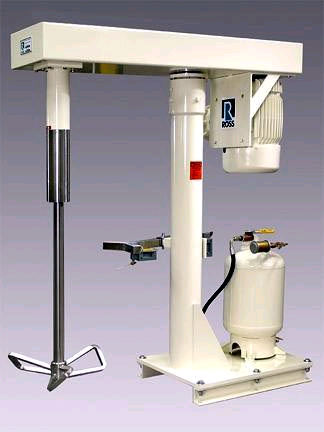

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Apr 25, 2006 Available with bow tie or 4-blade turbine, High Viscosity Disperser comes in variety of models to handle volumes up to 500 gal. Units feature Type 304 stainless steel wetted parts, hydraulic lifts, stainless steel shafts, explosion-proof safety switches, and explosion-proof, VFD capable motors. Dispersers are suited for mixing and blending pigmented pastes, inks, epoxies, polyesters, and colorants.

Intelligent Compression Technologies, Inc.    Quincy, MA 02169
Apr 25, 2006 AcceleNet(TM) 3.0 Enterprise provides branch offices, telecommuters, and mobile users with feature set for network optimization and application acceleration. To promote WAN and remote access functionality, program scales from one remote mobile user to thousands of users and intelligently adapts among access environments. Grand Slam feature set includes application accelerators, compression engines, network optimizations, and AcceleVPN.

French Technology Press Office, Inc.    Chicago, IL 60601
Apr 25, 2006 Consisting of spherical particles of monocrystaline tungsten carbide rated between 1,800-4,000 Vickers Hardness, Spherotene Hard Facing Powder forms metallurgical bond with base metal on part to protect against wear and impact. Particles are applicable by welded-on cast-nickel cord, thermal spray, special castings, or precision laser. Specific to food industry, each type of hard facing powder has FDA approval and is suited for use on stainless steel parts.

GE Advanced Materials    Wilton, CT 06897
Apr 24, 2006 Suited for automotive applications, 2-component LSR 2670 addresses exposure of parts, particularly gaskets, to continuous high temperatures up to 190°C. Its mold-filling characteristics make it possible to mold complex parts such as charge-air cooler gaskets with just one injection point. Additional applications include components and seals for healthcare, and insulators and cable accessories for high voltage applications in electrical industry.

Quiet Solution, LLC    Sunnyvale, CA 94089
Apr 21, 2006 Designed for use in Sensitive Compartmented Information Facilities and commercial applications, QuietRF offers STC values of 52-74 and RF shielding from 0-10 GHz with 60-80 dB of attenuation. Rooms built with these fire rated, Type X equivalent, 5/8 in. panels can block cell phones, Blackberry, wireless PDA's, and other wireless devices in both directions while meeting high levels of acoustic isolation.

Xenon Corp.    Woburn, MA 01801 1057
Apr 20, 2006 CoolCureXL RC-801 Curing System employs pulsed UV light that provides 1,000 w/cm² peak pulse power to penetrate and completely cure 100 µm thick transparent protective layer on Blu-ray discs. Featuring spiral lamp to match footprint of 12 cm dia. discs, modular system can be integrated into any in-line process for manufacturing 3G optical storage media. System, comprised of lamp housing, separate controller, and power supply, produces under 300 µsec pulses.

TECNIFOAM, Inc.    Circle Pines, MN 55014
Apr 19, 2006 Open-cell Fireflex Foam is resistant to chemicals and useful for installation in high temperature harsh environments. It withstands heat up to 482°F and continuous temperatures up to 320°F. Panels can be custom engineered meet specific requirements and are suited for welding cells, power generating areas, robotic assembly stations, or anywhere noise control is needed.

Wilmington Machinery, Inc.    Wilmington, NC 28406 7308
Apr 19, 2006 Lumina LP (Large Platen) Series structural plastics injection molding machine is designed for large part molding using gas assist and structural foam. Versafil independent nozzle control facilitates configuration for sequential filling of large parts, while 5-cylinder clamping system allows machine to convert from structural foam to gas assist processing. Machine offers platen sizes up to 110 x 200 in. and shot sizes up to 300 lb.

Blasch Precision Ceramics, Inc.    Albany, NY 12204
Apr 18, 2006 InVinCer(TM) advanced silicon carbide products include reaction bonded (SiSiC) and recrystallized (RSiC) materials with respective max working temperatures of 1,380°C and 1,610°C. SiSiC material is wear-, chemical-, oxidation-, and thermal shock-resistant and comes in several products as well as custom shapes. RSiC material exhibits thermal shock, oxidation, and abrasion resistance and is suited for low mass kiln furniture applications.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Apr 17, 2006 Designed for in-line surface preparation of long profiles, rod, bar, and tube materials, Model RC-800 can be used with variety of grit, shot, and bead media to produce different surface textures or finishes. Powered rubber rollers at entry and exit sides of blast cabinet grasp work and steadily feed it at controlled and adjustable speed. Inside finishing enclosure, up to 8 suction-blast guns are locked in fixed position on multi-adjustable brackets to provide uniform 360° coverage.
