BASF Corp.    Belvidere, NJ 07823
Nov 11, 2008 Suited for galvanized steel sheets, non-toxic Lugalvan(TM) Passivation is compatible with common forming lubricants, meets resistivity requirement of 1 mW for electronic applications, and allows direct paintability. RoHS compliant product is occupational and environmentally safe as it does not contain any Cr VI, Cr III, other heavy metals, or hydrofluoric acid. It is ready to use in existing plant configurations for spray-squeegee and chem-coater lines.

Sensor Products Inc.    Madison, NJ 07940

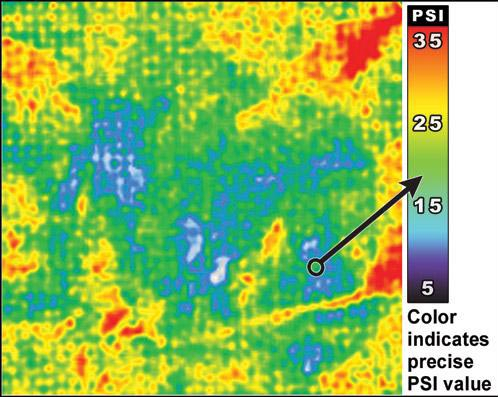

Nov 07, 2008 Featuring measuring range 7.2-28 psi, Pressurex Zero® tactile pressure-indicating sensor film can be placed between contacting/mating surfaces to instantly measure and map pressure magnitude and distribution. Variations in contact surface pressure are immediately visible by impression made on film. Available as thin clear plastic sheet, product conforms to curved spaces, and comes in 8 different pressure ranges with highest measuring impact up to 43,200 psi.

ITW Dynatec    Hendersonville, TN 37075

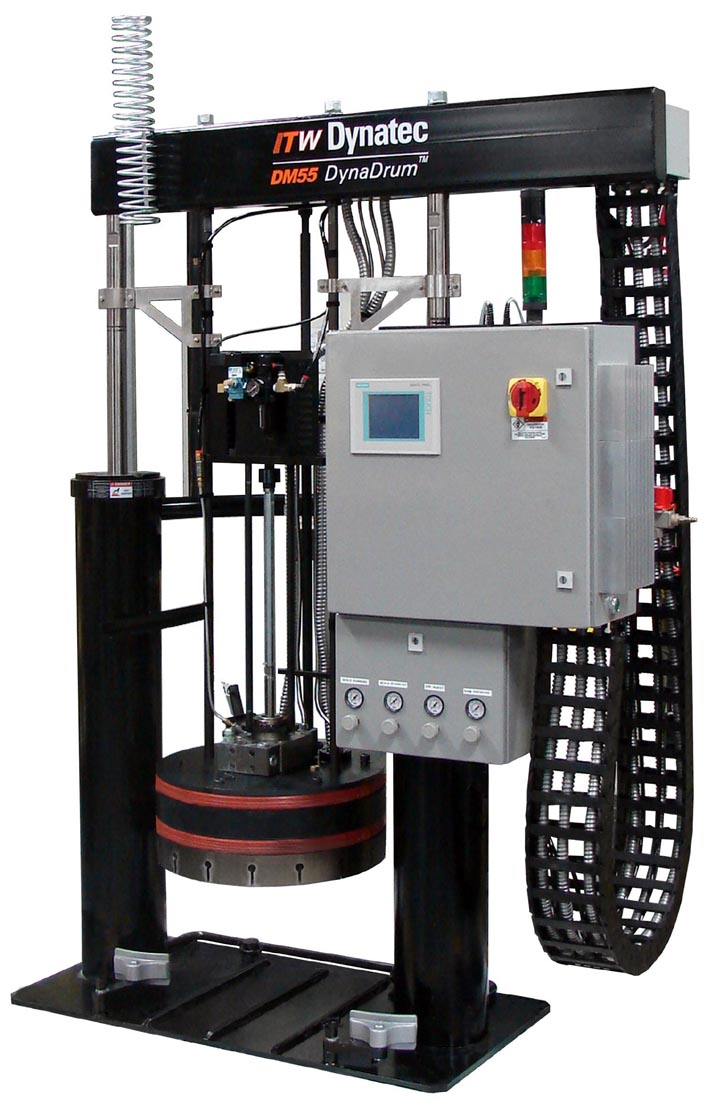

Nov 07, 2008 Featuring touch-screen PLC HMI, DM55 DynaDrum(TM) offers adhesive flow rate of up to 600 lb/hr, and up to 25,000 lb of platen force. It incorporates modular heated platen offering heat capacity of 35 kW at operating temperature of 400°F, and features fully adjustable drum retention system, 7-day timer, self-diagnostics, and drum low and empty indicators. Unit utilizes standard 240 Vac, 3-phase power to operate PLC, platen, and optional 2 hose, head and auxiliary zones.

Cliplight Manufacturing Company    Toronto M3J2J1  Canada
Nov 06, 2008 To prevent sludge and corrosion breakdowns, DRY-R(TM) eliminates H2O in air conditioning/refrigeration (AC/R) systems by changing its chemical composition to low-viscosity, non-oily, soluble, and residue-free liquid. It then flows freely throughout system without chemically attaching to commonly-found contaminants. Biodegradable and environmentally friendly, product is compatible with all refrigerants/oils and applied to low-pressure service port of fully-charged, operating system.

Dynamic Conveyor Corp./Dyna-Con    Muskegon, MI 49441 6031
Nov 06, 2008 DynaCon Modular Powered Roller Conveyors utilize 1 motorized roller per module, which is activated only when required. Modules are available in short sections consisting of 5, 7, 9, and 11 roller sections, with 1 roller energized in each section. Rollers on 4 in. centers convey containers weighing 0-100 lb and DC brushless motors provide variable speeds from 0-200 fpm. Conveyors are available in widths of 18, 24, 30, and 36 in.

Philadelphia Mixing Solutions    Palmyra, PA 17078 9518
Nov 06, 2008 Momentous Flow(TM) provides mixing for anaerobic digestion in wastewater, biofuels, and agricultural markets. It uses single Z/T=3.0 axial impeller and no baffles in upper part of vessel to create centrifugal force, which pushes membrane methane bubbles from anaerobic digestion to center of rotation. Methane then coalesces and escapes from liquid into collection cap. Mixing system also features cone-shaped bottom.

Indium Corporation    Clinton, NY 13323
Nov 05, 2008 Colophony/rosin free, no-clean, cored wire solder, CW-501 comes in variety of alloys and wire diameters. Compatible with wave fluxes and Indium8.9, it provides wetting and solder spread with minimal smoking and low odor.

Cook Composites and Polymers    Kansas City, MO 64141-6389
Nov 04, 2008 Maintaining interlaminar strength between layers, NuTack® HAP-free products include reactive sites built into tackifier polymer backbone that chemically bonds with infusion-based polyester or vinyl ester resins. Solutions adhere to gel coats, barrier coats, glass fiber, carbon fiber, rolled goods, and coring products and do not interfere with resin flow. Tackifiers come in non-dyed, neutral color version (NuTack 046-4066) as well as blue-dyed versions (NuTack-BLU 046-4061/4062).

OK International    Garden Grove, CA 92841
Nov 03, 2008 Coupling SmartHeat® Technology with 80 W of power, Metcal MX-5000 Series provides instantaneous response to load conditions, ensuring system will not overshoot while recovering in seconds. Microprocessor-controlled systems also incorporate built-in digital power indication display, providing users with continuous feedback. Available with choice of 4 different hand-pieces, systems offer Metcal TipSaver(TM) Workstand with Auto-Sleep to minimize power use and extend tip life.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Nov 03, 2008 Featuring rotor/stator that creates high flow and shear rates, PreMax mixer eliminates need for added secondary processing. Constructed with stainless steel, mixer is available in sizes up to 200 hp. It is provided with air/oil hydraulic lifts and includes variable speed drives. Unit is also offered as component of dual or triple shaft mixers.

Newson Gale, Inc.    Lakewood, NJ 08701
Oct 31, 2008 Using intrinsically safe circuitry, Earth-Rite TELLUS detects positive ground connection in common types of flammable and/or combustible gases. Unit enables compliance with guidelines of NFPA 77 and CENELEC 50405 for controlling static circuitry, by ensuring equipment is monitored to levels recommended by these standards. Earth-Rite TELLUS is suited for grounding applications where flammable or combustible liquids or powders must be transferred, mixed, or blended.

Vitronics Corp.    Stratham, NH 03885
Oct 30, 2008 With wave height measurement system, mySelective 6748 ensures specific predetermined wave height for every PCB by automatically adjusting solder pump rpm. Closed-loop system uses laser-based sensor to detect, measure, and monitor SelectWave height. It prevents loss of cycle time and stores individual PCB settings in system's Management Info Database for later recall. With mySelective 6748, each joint can be soldered under optimum process parameters.

LRM Industries International, Inc.    Rockledge, FL 32955
Oct 30, 2008 STF Sheetless ThermoForming(TM) produces large thermoformed parts on 3-5 trolleys in circular track architecture, coating molten polymer directly onto onboard traditional thermoforming molds in one process cycle. Pre-manufactured sheets are not required, and array of polymers can be used. Additionally, thermoplastic composite thermoformed parts and structures can be molded using long fiber reinforcement with this same one-step process technology.

Aremco Products, Inc.    Valley Cottage, NY 10989
Oct 30, 2008 Resistant to operating temperatures of 2,200ºF in vacuum and 1,200ºF in oxidizing atmospheres, Aremcolox(TM) 502-1800 is machinable aluminum nitride and boron nitride ceramic composite. Aluminum nitride improves abrasion resistance, while calcium-stabilized binder system provides resistance to moisture pickup, spalling, and cracking. Properties include dielectric constant of 6.4 at 1 MHz, volume resistivity greater than 1,015, and 3.1 ppm/ºF coefficient of thermal expansion.

OK International    Garden Grove, CA 92841
Oct 29, 2008 Used for thermally demanding applications, MFR-1100 Series Single Output Soldering and Rework System is powered by SmartHeat® Technology. MFR-H1-SC Cartridge Hand-piece offers soldering and rework cartridges that provide fine access, SMD rework, and pad clean-up, while tip-equipped MFR-H2-ST delivers soldering performance required by lead-free and production soldering environments. Also available, MFR-H4-TW Precision Tweezer Hand-piece is capable of removing small discrete components.

Precision International Corp.    Bloomfield, CT 06002
Oct 29, 2008 Available for Coborn RG9 CNC 8-Axis Grinding Machine, Robot Automatic Loading System offers 6-axis operation and is capable of 4.5 lb payloads, 36 in. programmable reach, and positioning accuracy of ±0.0001 in. System features 2 pneumatic grippers and hydraulic clamping system for rotary tools, as well as 2 insert trays, 2 insert plates, and 1 toolholder for ISO insert type tools. Grinding machine includes vision system for tool measurement, automatic wheel dressing, and wear compensation.

Ampac Packaging, LLC    Cincinnati, OH 45246
Oct 29, 2008 Available in clear or opaque versions, Apex 3739 MW multilayer film features printing base for lamination to reverse printed PET or PP. Low seal initiation temperature, high seal strength, and broad sealing window optimize packaging speeds on vertical form fill seal machines. PureFlex(TM) MW laminated rollstock is self-ventilating, FDA-compliant for all food types, and available in 1- or 2-side sealable versions. Both products are designed for freezer-to-microwave applications.

Scapa North America    Windsor, CT 06095
Oct 29, 2008 Featuring release liners on both sides for optimal firmness, Scapa 707 is made up of polyester film double-coated with silicone adhesive on one side and acrylic adhesive on other. Conformable tape contours to intricate parts and provides chemical resistance. Pressure sensitive adhesive (PSA) film adheres to silicone gaskets, foams, and sponges over operating temperature range of -20 to +350°F, and acrylic adhesive also bonds to plastic, glass, and metal substrates.

Sugino Corp.    Itasca, IL 60143
Oct 29, 2008 Designed to wash and remove machining chips from simple and complex shaped parts, single station Spa-Clean Jet provides travels of 23.62, 25.59, and 17.72 in. in X, Y, and Z axes. System combines Fanuc 21iMB control system and 5-axis robot, enabling all sides of part to be addressed at pressures from 500-3,000 psi. Suited for pre-cleaning and final wash applications, machine is equipped with closed loop filtration to 5 microns and is fully programmable using g-code and m-code format.

Modern Process Equipment, Inc.    Chicago, IL 60623
Oct 28, 2008 Utilizing Gran-U-Lizer(TM) technology, metallurgical silicon grinding system, MPE Si Process, is designed to grind 98% pure metallurgical grade silicon to ideal size required for high-purity silicon purification reactors. It accepts large chunks of metallurgical Si and discharges fine ground Si with typical particle size ranging from 50-200 microns, or as required, for post reactor purification.
