Vista System    Sarasota, FL 34234
Jul 29, 2011 To cover all signage needs of any healthcare facility, Vista System Healthcare Line is comprised of directories, suspended signs, table stands, wall frames, and projecting signs as well as triangular, post, double-sided, and illuminated pylons. These wayfinding products accept array of substrates and inserts, from plastics, metals, and paper to laminates, veneers, and more, to facilitate in-house upkeep.

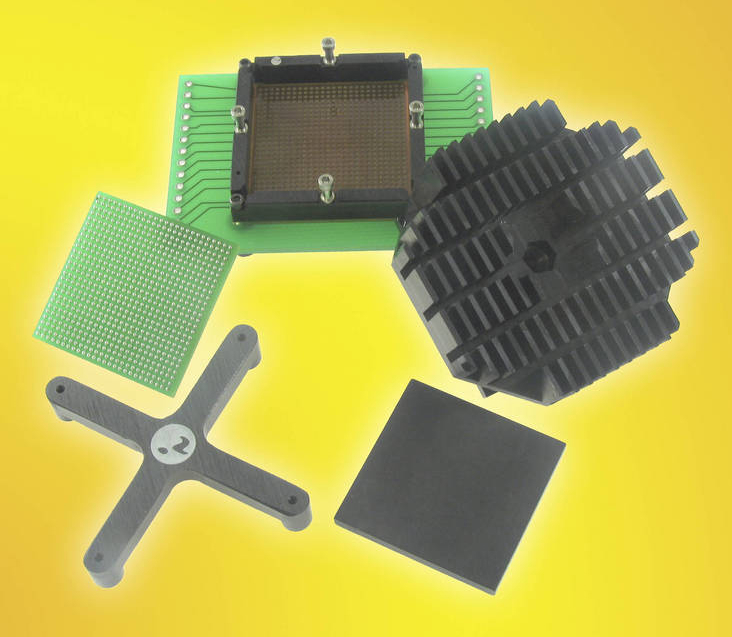

Ironwood Electronics, Inc.    St. Paul, MN 55121
Jul 29, 2011 Designed to socket 27 x 27 mm, 1 mm pitch, 616-pin BGA ICs on any PCB, SG-BGA-6346 operates at bandwidths up to 8 GHz with less than 1 dB insertion loss. Socket dissipates 4.5 W with passive heat sinking and 40 W with active. Contact resistance is 20 mohms typ per pin, and mounting to target PCB is accomplished without any soldering. Socket is constructed with shoulder screw and swivel lid, which incorporates quick insertion method for accelerated ICs change-out.

SIC Industrial Marking Canada, Inc.    Boucherville J4B2X2  Canada

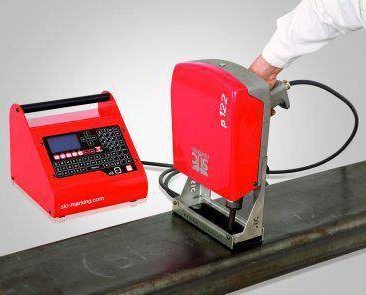

Jul 29, 2011 When parts are too heavy or too large to be moved, pack cart+P122/P62 can carry P62 and P122 marking systems to job. Design facilitates access to marking gun and its controller, while battery makes system completely autonomous. Reinforced, mid-sized wheels are filled with foam to eliminate flat tire problems, while foam handle, together with cart's weight distribution, enables one-handed handling. Featuring oversized sections, chassis also has rigid base and low center of gravity.

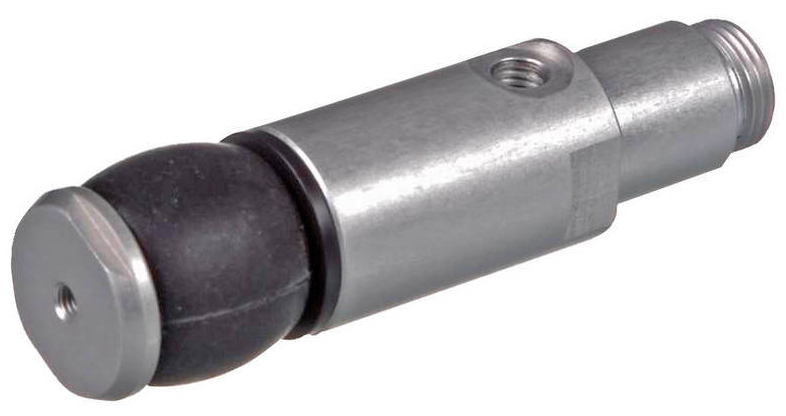

FIPA, Inc.    Atlanta, GA 30318
Jul 29, 2011 For applications where contact surface is too small for vacuum cups or grippers could cause damage, Expander grippers plunge into workpiece and increase in size to provide tight and secure grip with lifting force range of less than 1 kg to 65 kg. Aluminum design features 14-30 mm clamping shafts and does not have any steel components. Gripping force can be controlled by input pressure, and 11 sizes are available, with IDs from 4.5-85 mm, to suit wide variety of applications.

Reelcraft Industries, Inc.    Columbia City, IN 46725
Jul 29, 2011 Featuring carbon steel, fully welded spool and frame construction, Ultimate Duty Jetter Hose Reels hold up to 500 ft of 1½ in. diameter jetter hose. Design gives reels strength of single piece of metal and allows for optimal bearing support. Precise engineering allows for exact alignment without need for adjustment.

Deprag Industrial    Lewisville, TX 75057
Jul 29, 2011 Ensuring parts or screws are presented for assembly at correct feed rate, 6 Series includes 1.2 L capacity version with self-regulation of vibration amplitude independent of fill level in feed bowl. Oscillation magnet with alternating current, spring assembly, and built-in regulator transport screws along bowl spiral via micro-throwing motions. In manual screw assembly, system can be adapted to individual pace of worker via RFID Interface System.

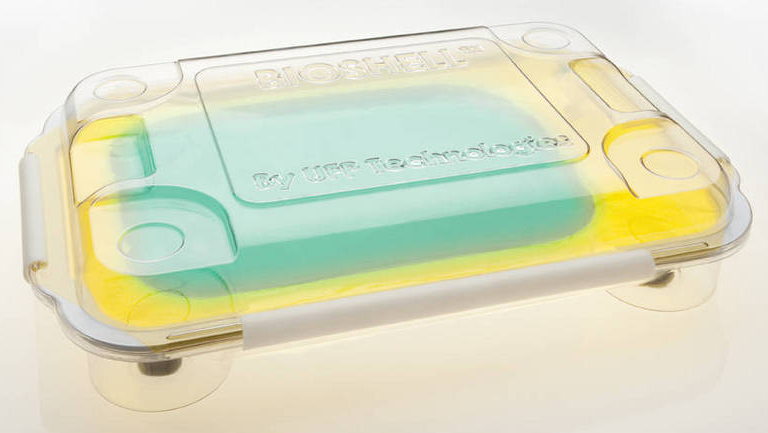

UFP Technologies, Inc.    Georgetown, MA 01833 2107
Jul 28, 2011 BioShell(TM) Suspension Pack envelops liquid and frozen biopharmaceutical bags in durable film for suspension within cushion of air inside polycarbonate shell. Film absorbs shocks during impact, preventing damage to bag by eliminating contact with outer shell. All contents are in plain sight through UV-protective shell and film, and design allows for use with varying number of tubes, tube lengths, data loggers, clamps, or filters without sacrificing protection.

Westfalia Technologies, Inc.    York, PA 17402
Jul 28, 2011 Storage and Retrieval Machine (SRM) features employee lift cabin that is independent from vertical pallet lift and load carrying device. Ability to transport one person in lift cabin up mast avoids practice of climbing up service ladder, enhancing safety and flexibility of warehousing staff during maintenance. Available in 2 models, one has regular cabin with controls in dead man's mode, while the other operates via mobile control panel.

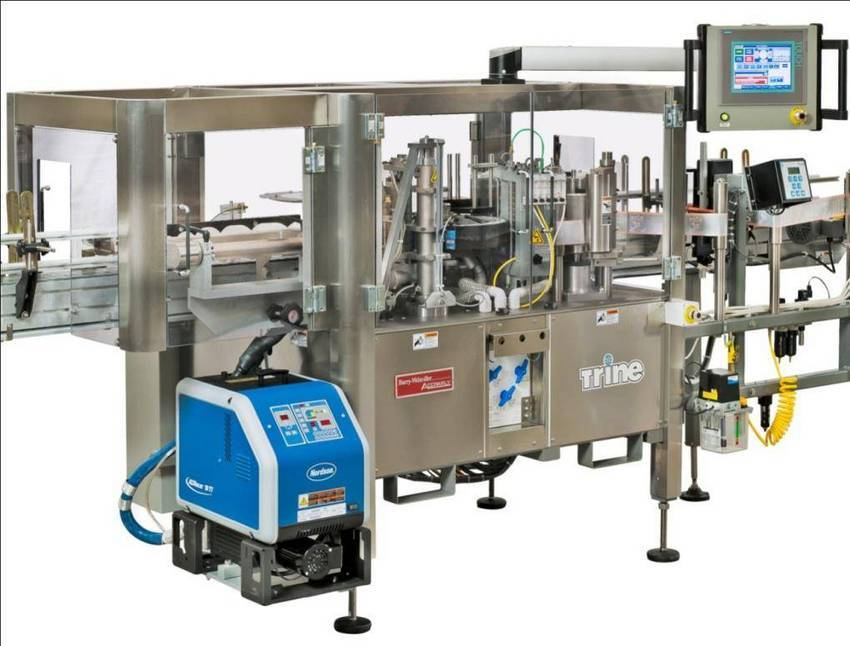

Accraply, Inc.    Plymouth, MN 55447-1269
Jul 28, 2011 Accommodating extensive range of product sizes, Trine Model 4800 offers 15 minute changeover from smallest to largest size. System's advanced container control gently accelerates and decelerates bottle velocity for smooth transitions in and out of labeler. In addition to stainless steel guard, Model 4800 is equipped with Allen Bradley or Siemens PLC and segmented vacuum drum, which eliminates need for re-padding. Optional automatic splice unit supports uninterrupted production.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Jul 27, 2011 Designed to dampen shock and vibration, V12Z06MA Series features metric housing made of zinc plated steel and isolator made of nitrile rubber compound, which offers pliability and elasticity. Max isolation load of 6 isolators in series ranges from 1,124-3,598 lbf. With durometers ranging from 45-60 ±5, rectangular mounts are suited for controllers, large pumps, fans, motors, compressors, and other medium load equipment.

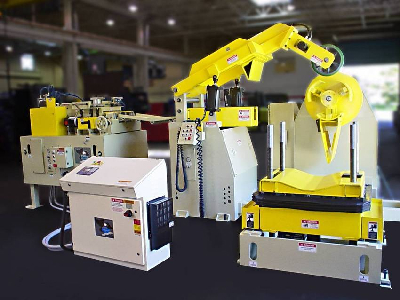

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Jul 26, 2011 Developed to serve press lines handling heavy coils in widths from 12-36 in., 10,000# Series can be combined with traveling coil car to provide modular unwinding solution. Unit can be configured to work in pull-off application with power straighteners and rollforming equipment or as motorized pay-off reel with drive mechanism to unwind coil built into machine. Standard features include heavy-duty welded construction, 3-pad mandrel design, and manual hand crank expansion.

Kardex Systems, Inc.    Marietta, OH 45750
Jul 26, 2011 With interchangeable carrier design, Megamat RS Vertical Carousel lets industrial equipment operations mix, match, and change storage configurations at any time. Standard multipurpose carrier allows organizations to add partitions, dividers, intermediate shelves, rollout drawers, as well as various front lip height and depth clips to customize unit to meet specific storage needs. Changing carrier configurations requires only removal of stored goods and addition of carrier insert.

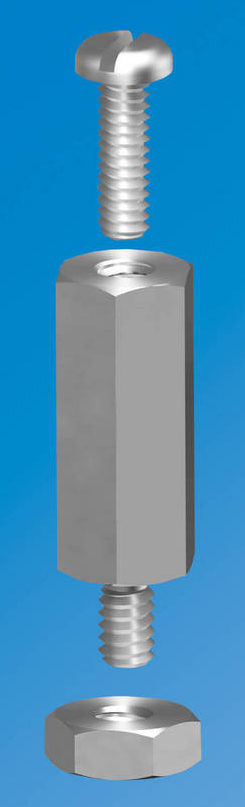

Keystone Electronics Corp.    Astoria, NY 11105
Jul 25, 2011 Suited for limited-space design/installation applications, PC/104 and PC104-Plus Bus Drive Hardware Mounting Kits are engineered to facilitate assembly of modules and multi-board stacks. Each PC/104 hardware mounting kit includes all hardware required to mount single board and comes with 4 each of No. 4-40 threaded spacers .600 in. length, No. 4-40 x 1/4 screws, and nuts. Kits with specifically brass, aluminum, stainless steel, and Nylon components are available.

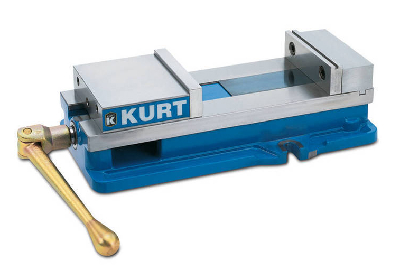

Kurt Manufacturing Company    Minneapolis, MA 55413
Jul 22, 2011 Designed to replace Model D675, Anglock® D688 features 8.8 in. jaw opening and repeatability to within 0.001 in. Unit produces up to 7,968 lb of clamping force with 80 lb-ft input torque. Designed with high-precision roller bearings, alloy steel screw mechanism, and porosity-free 80,000 psi ductile iron body, vise is suited for boring, tapping, drilling, and finishing. Other features include removable, hardened jaw plates and GrooveLock® workstops that store in vise body.

Zep Mfg. Co.    Atlanta, GA 30318
Jul 22, 2011 Safe2Dose(TM) closed-loop concentrated chemical dispensing system meets needs of facilities that have concerns about employee and environmental safety as well as waste. Chemicals are packaged to reduce spills, while color-coding and numbering on labels and caps facilitate setup and operation. Also, wall-mounted dispenser completely encloses chemicals. To compliment multiple selectable dilution levels and flow rates, system offers consistent and accurate portion and dilution control.

Helwig Carbon Products, Inc.    Milwaukee, WI 53224 9008
Jul 22, 2011 Available with optional wear indicator devices, Brush Holders for industrial motors come in 3 sizes of .750 x 1.5, .875 x 1.5, and 1.00 x 1.5 in. With no screws to remove or replace, quick-disconnect terminals and mounts facilitate changing of brushes. Terminals and mounts handle 200 A continuously and snap together in tight positive locking action. Electrical connection remains secure in rough conditions, and styles and sizes can be threaded to fit most existing equipment.

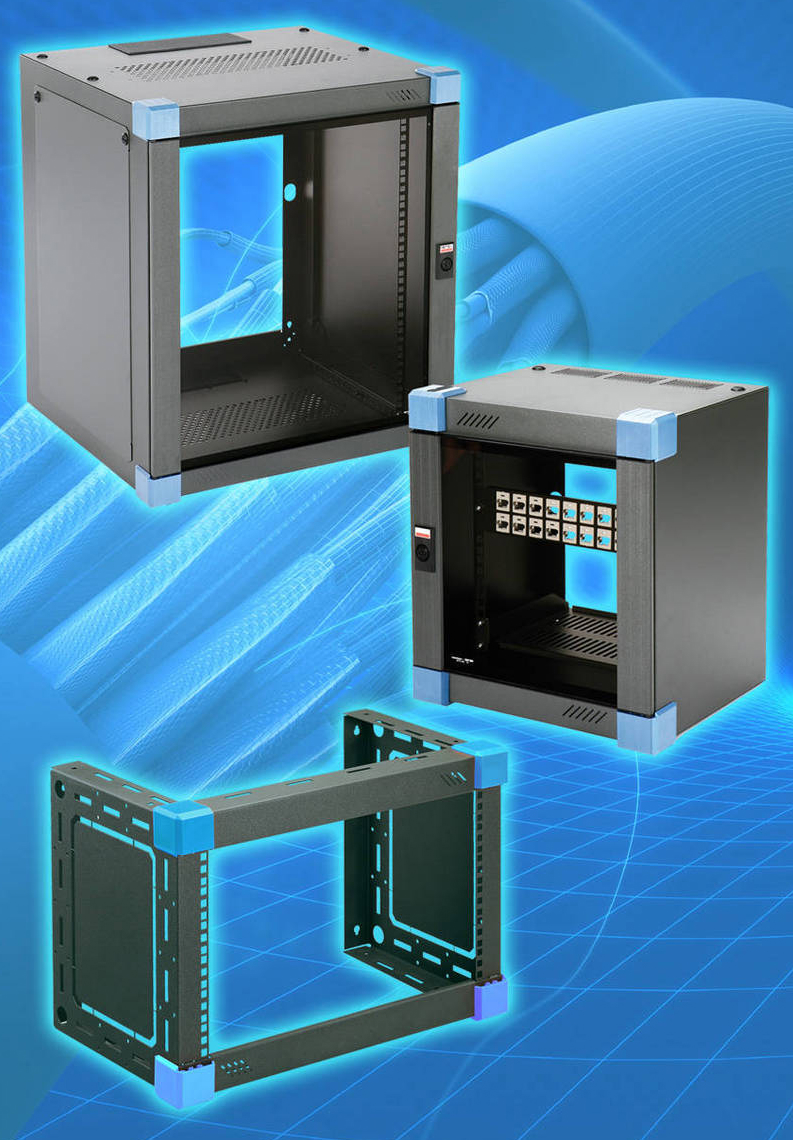

OKW Enclosures, Inc    Bridgeville, PA 15017
Jul 21, 2011 RETEX EASYRACK 19 in. wall-mount racks facilitate installation of network cabling and electronics equipment in data centers, offices, or home offices. Standard racks come in 6U, 9U, 12U, 15U, and 18U panel sizes in 3 depths and have glass front door and adjustable 19 in. panel mounts. At 15 in. wide, SOHO cabinet has 7U adjustable panel mounts and glass front door. Once mounted on wall, 6U open FRAME rack optimizes access to cabling and equipment.

Interstate Products, Inc.    Sarasota, FL 34233
Jul 21, 2011 Manufactured to fit seamlessly into warehouse racking systems without impeding on adjoining rack storage areas, Ultra-Rack Sump accommodates up to four 55-gallon drums positioned on standard 40 x 48 or 48 x 48 in. wooden shipping pallets. Sump is molded from polyethylene, which is chemical resistant and will not rust or corrode. Designed to prevent hazardous liquids from leaking onto floors and equipment, 66-gallon rack sump complies with EPA, SPCC, and UFC spill containment regulations.

Metalfab, Inc.    Vernon, NJ 07462-0009
Jul 20, 2011 Ruggedly built for continuous operation, Bulk Bag Dump Hopper provides virtually dust-free way of dumping and filling process systems with material received in paper bags. Design incorporates baffle and bin vent, which can be attached to central dust collector, or optional bin vent filter over dump area. Hinged door keeps foreign materials from falling into process material when not in use, while expanded metal grid prevents bag pieces from getting into system.

Schunk    Morrisville, NC 27560

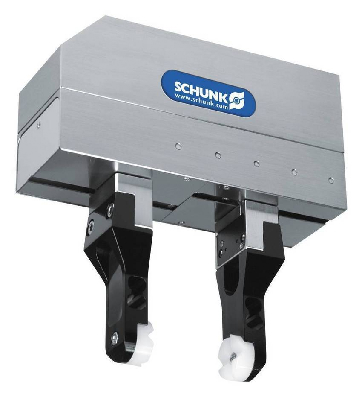

Jul 19, 2011 Controlled via Ethernet TCP/IP or Profibus DP, Model WSG 50 features 110 mm stroke, variable gripping force of 1-120 N, and gripping speed of 850 mm/s. Integrated web server facilitates programming, operation, remote maintenance, and updating, while internal MicroSD card saves programs and documents. With sensors in gripper jaws, WSG 50 can measure forces that occur during gripping, making it suited for handling sensitive samples in laboratories, pharmaceuticals, and research facilities.
