Ermanco, Inc.    Spring Lake, MI 49456 9652
Jan 31, 2003 XenoPRESSURE® provides true, non-contact accumulation and electronic sensing with built-in preset functions. Zero-pressure zones prevent products from touching one another during accumulation to protect fragile products from damage. CRUZcontrol features integral photoeye, solenoid valve, and control module, all pre-piped and pre-wired at factory. Electronic sensing and control logic are built-in, reducing field wiring and implementation time.

Snap-on Industrial    Kenosha, WI 53141 1410
Jan 31, 2003 Commemorating 10 seasons partnering with Richard Childress Racing, four special edition models of auto shop equipment are being offered. Model YA3625ARCR Abrasive Blast Cabinet offers 135 cfm dust-collection system and fluorescent lighting. Model PBD3222RCR Parts Washer features 2-part filtation system. Model JC23BRCR Low Profile Padded Creeper features 1 in. padded bed and 2 in. padded headrest in 17 x 40 in. frame. Model JC24BRCR Padded Seat Creeper has 2.25 in. seat cushion, fastened to tubular steel frame.

Genie, a Terex Company    Redmond, WA 98052
Jan 31, 2003 Electric, self-propelled model GS(TM)-2632 rolls through single access doors with 26 ft platform height and platform width of 31 in. Able to fit into tight, narrow areas, unit offers 90° turning radius, non-marking tires, and low noise level.

Parker Hannifin Corp., Cylinder Division    Des Plaines, IL 60016 3198
Jan 31, 2003 Series CHH and CHL hydraulic high-pressure clamping cylinders are offered with NPT or SAE ports and have double rod end option. Extruded steel Series CHH is available in 20-80 mm bore sizes with through bolt or foot mounts. Extruded aluminum Series CHL is offered in bore sizes from 32-80 mm. For mid- to end-of-stroke position sensing, reed or Hall effect switches are available.

Parker Hannifin Corp., Cylinder Div.    Des Plaines, IL 60016 3198
Jan 31, 2003 Series SRX features internal feedback device that allows end user to continuously monitor cylinder's position throughout working stroke length. Controllers enable 4–20 mA output, or 0–10 Vdc output from feedback device. Corrosion resistant, stainless steel cylinders are offered in bore sizes of 1 1/16, 1 1/2, 2, 2 1/2 and 3 in. Mounting styles include nose and pivot mount, front block mount, and nose mount.

Dixon Valve & Coupling Co.    Chestertown, MD 21620 1135
Jan 30, 2003 Model 3030 SQ 3 in. valve, for flow reversal prevention in dry-bulk transfer carriers, protects food-grade and sensitive contents at temperatures up to 350°F. Valves provide low-resistance and full-flow performance with cast-aluminum construction that includes elastomer, permanently bonded to metal flapper. Sealed, compartmentalized cartridge contains all functioning components and allows quick replacement.

ARO - Ingersoll-Rand Fluid Products    Bryan, OH 43506
Jan 30, 2003 Module/Air® 3000 units are offered in piggyback filter/regulator model and piggyback filter/regulator/lubricator configuration. Both include site gage, polycarbonate bowls with metal guards, and mounting hardware. Automatic drain has pipe connection for draining away contaminates. Push-pull, non-rising adjustment knob avoids unwanted or accidental adjustment. Components protect against mechanical failure caused by oil, water, and particle contaminants in air line.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jan 30, 2003 Handheld, pneumatic, spray applicators dispense adhesive in 1.75 in. diameter areas. Hysol® 175-SPRAY achieves 180°C temperatures for dispensing EVA hot melts, while Hysol® 175-SPRAY-HT achieves 195°C temperatures for polyamide hot-melt dispensing. Both 500 W units feature adjustable flow controls and automatic end-of-cycle purge. Dispense rate is controlled by 45-100 psi air pressure, and timing is restricted with trigger mechanism.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Jan 29, 2003 Fluid Caddy, model LDC-1, transports 30-gallon transparent polyethylene drums while performing fluid level monitoring. Unit incorporates battery powered pump with meter, ergonomic handle design that provides maneuverability, and turning radius suited for compact areas. Spill containment frame includes battery and charger in lockable 16-gauge cabinet, which offers additional space for tool and document storage as well as sloped desk area for recording and charting.

Clyde Materials Handling Inc.    Milford, OH 45150
Jan 28, 2003 RotoFeed® incorporates volumetric or gravimetric feeder, provides accuracy of ±0.5% by weight, and conveys up to 1,650 ft. Feed rate change capability with 300 weighments/sec ensures rapid response to process variations. Most powder and granular products are handled directly into pressurized environments to 300 psi, with feed rates up to 100 tons/hr. System handles variety of products with total moisture content in excess of 10% and temperatures to 300°F.

Fiber Optic Center, Inc.    New Bedford, MA 02740 6322
Jan 28, 2003 Part Number FO-2091-SB 3cc syringes, for polymer systems, utilize Leur Lock ends so they can be used with any desired dispensing tips. They can be supplied individually, or with 18, 20, or 23 gauge dispensing needles. Syringes are suitable for medical, electronic, optical, and fiber-optic use.

Sellick Equipment, Ltd.    Harrow, ON N0R1G0  Canada
Jan 28, 2003 Pneumatic-tire 6,000 lb capacity Teletruk can reach over and lift 3,500 lb loads from the other side of a truck, trailer, or rail car, saving time and space with one side loading/unloading. Telescopic boom switches amongst attachments via quick-disconnect auxiliary hydraulics and carriage with 111° of tilt. Truck incorporates diesel or LPG power plant, coupled to hydrostatic drive system with TCR, and is available in full time 4-wheel drive model.

Edmund Optics    Barrington, NJ 08007
Jan 27, 2003 Manual positioners employ positive spring-loaded carriage that provides smooth motion with no backlash. Offered with 80 thread/in. lead screw drives and covered rails, they can combine to create 2- or 3-axis positioners. Size A stages travel 0.125 in. with max runout of 1 µm, return force of 113-312 g, and direct top or side load capacity of 0.25 kg. Size B stages travel 0.500 in. with max runout of 1.5 µm, return force of 170-567 g, and direct top or side load capacity of 0.34 kg.

Atlas Welding Accessories, Inc.    Troy, MI 48099
Jan 27, 2003 Compressed Gas Cylinder Enclosures come in 3-sided wall mount unit or 4-sided floor mount unit, which are 7 ft high with roof panel. They feature 3½ in. sweep gap and 3 ft wide door with built-in key lock. Standard sizes are 5 x 3 ft or 10 x 3 ft. Enclosures are constructed of 1 x ½ x 1/8 in. channels and 10 gauge wire, woven into 1 x ½ x 1½ in. diamond mesh, and securely clinched into channel frames. Custom sizes can be supplied.

Sesco Products Group    Sterling Heights, MI 48310
Jan 27, 2003 Model CSF handles coil weights from 10,000–60,000 lb and up to 120,000 psi yield material. It accommodates material thicknesses of .040–.750 in. Main unit consists of 1 set of feed rolls, 7 straightening rolls, and 1 set of input threading rolls. Multi-pitch gear train directly drives upper and lower feed rolls throughout feeding process. Solid steel 2-roll coil rest supports and pays off material.

Monroe Engineering Products Inc.    Bloomfield Hills, MI 48304
Jan 27, 2003 UltraGuard coated products defend against spreading of mold, mildew, and fungi. Antimicrobial compound combines silver with inorganic ceramic that permits continuous, controlled release of ionic silver, which stops growth and kills all bacteria within 3–4 hr. Suited for medical, pharmaceutical, and purification facilities, products are EPA- and FDA-approved for food contact.

Indco, Inc.    New Albany, IN 47151

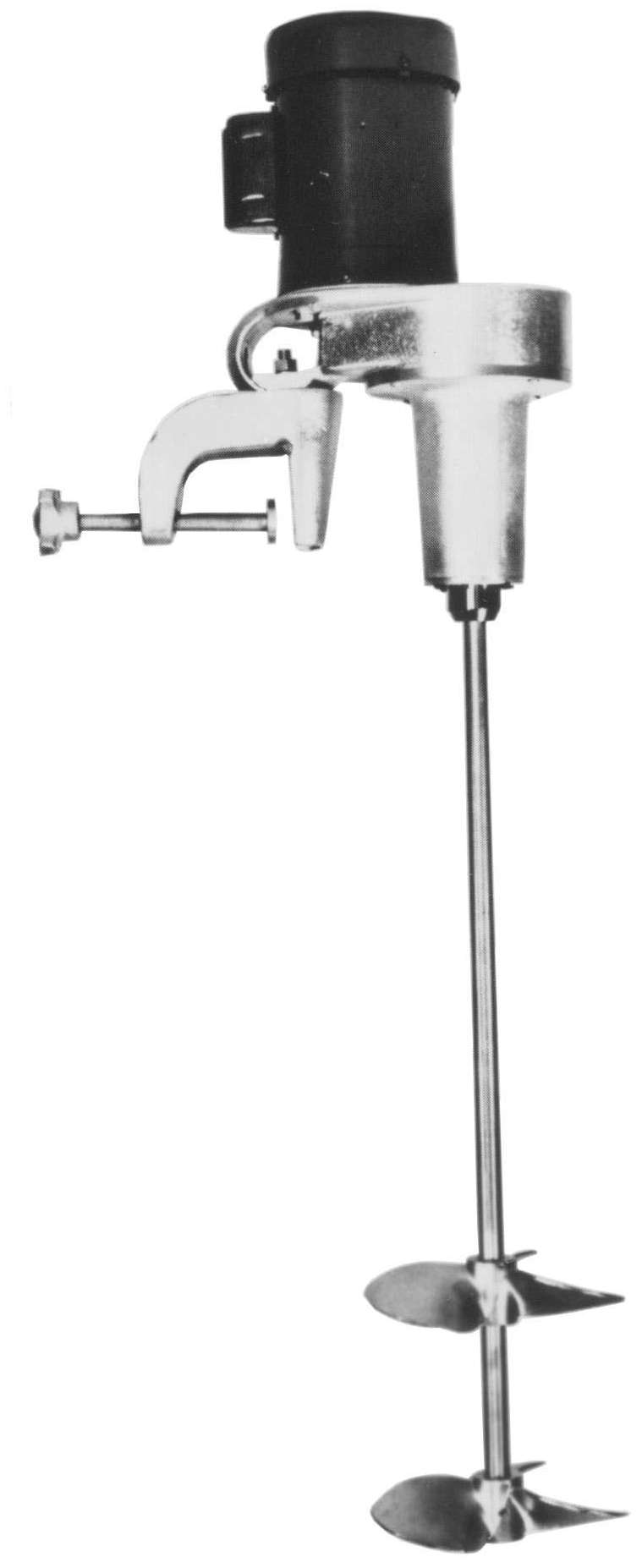

Jan 24, 2003 Mixers incorporate heavy-duty clamp mount that allows 90° vertical and 360° horizontal adjustments. Clamp and motor mount are made of aluminum, while mixing shafts and propellers are 316 stainless steel. Available with variable speed air motors or single speed and variable speed electric motors, products offer hp ranges from 1/3 to 4 hp. Max rpm for electric and air motors is 420 and 700 rpm, respectively.

Webex, Inc.    Neenah, WI 54957 1026

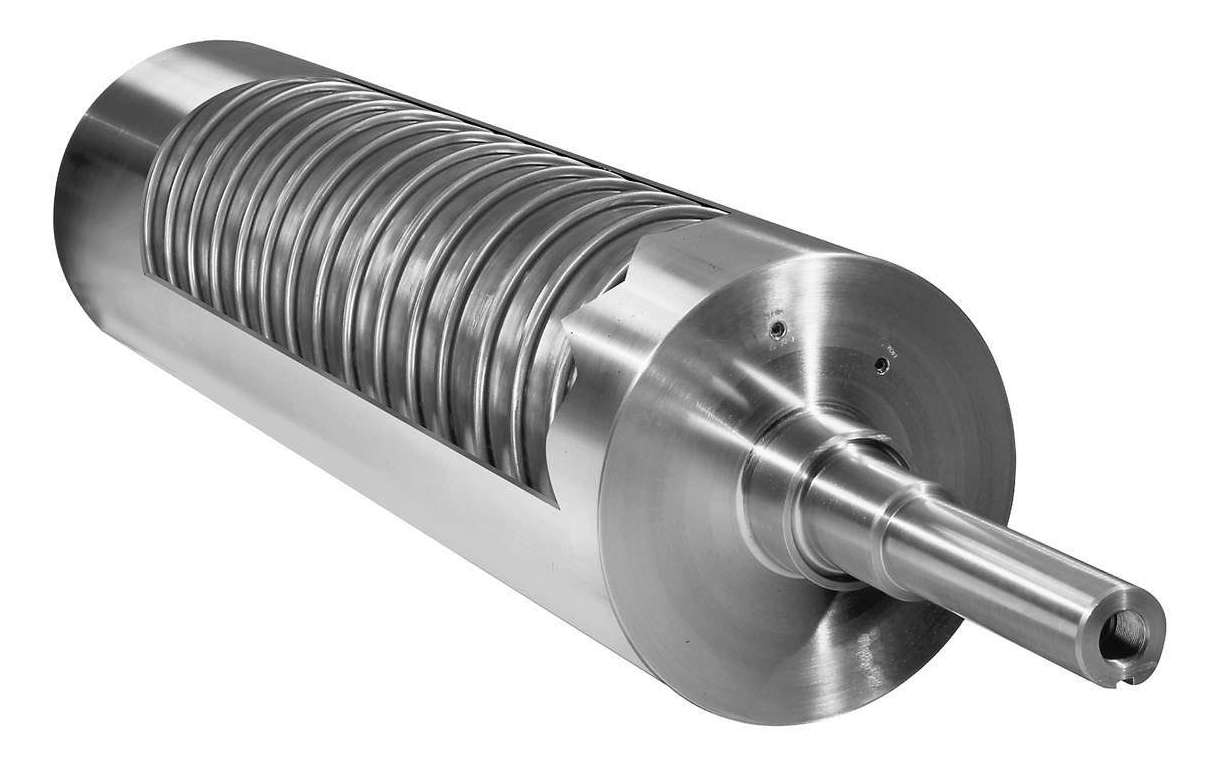

Jan 24, 2003 ThermExâ„¢ provides accurate temperature control for applications such as laminating multiple webs in a nip; creating multi-layered, multi-material webs; and cooling webs following extrusion, casting and/or drying processes. Computer analysis software ensures consistent temperatures across roll face to within ±1°F. Offered with various coatings and finishes, roll can be designed with load-bearing inner shell.

TKF, Inc.    Cincinnati, OH 45203

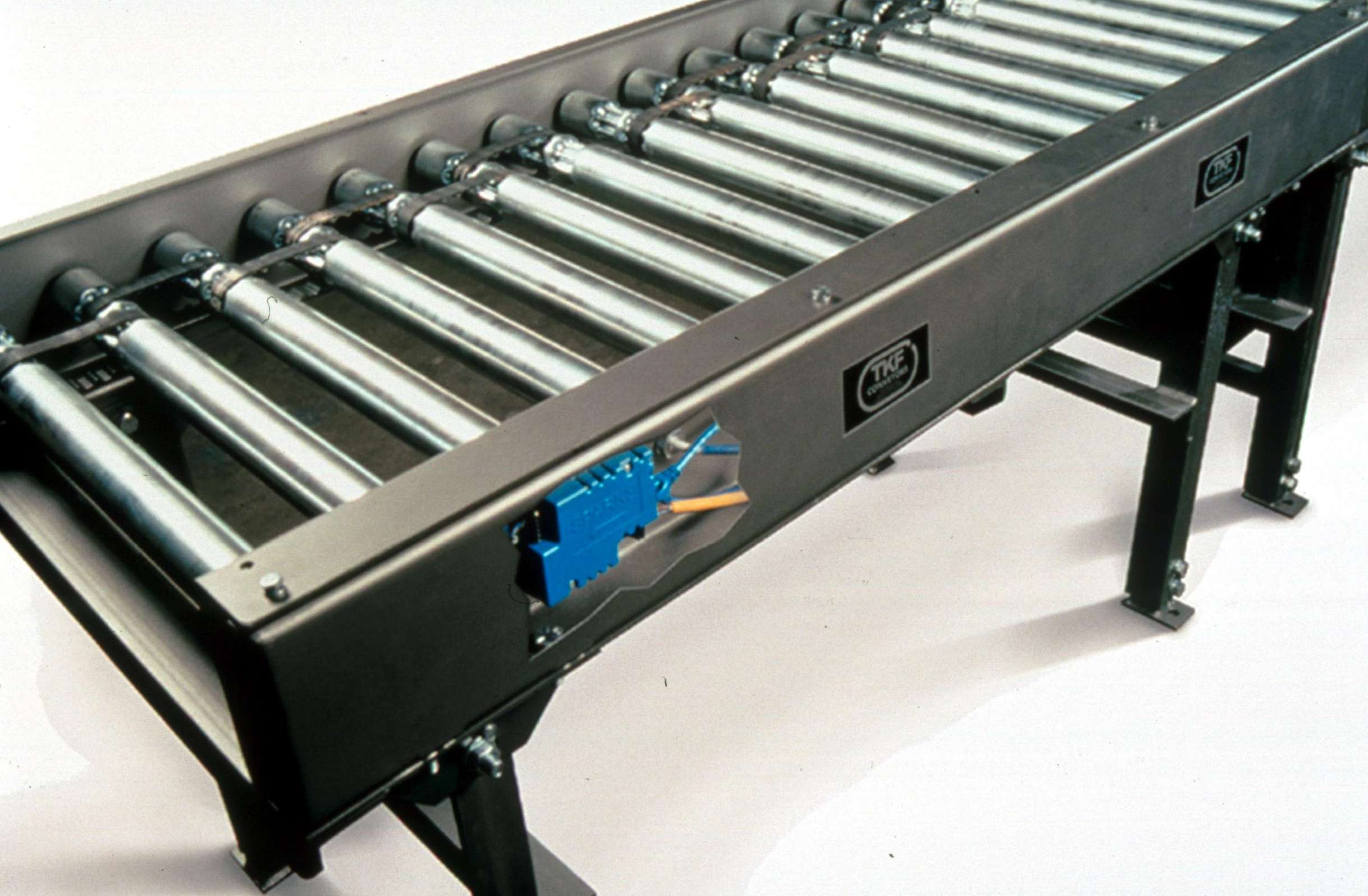

Jan 24, 2003 PosiGrip Accumulation Conveyor features roller-drive gear teeth formed directly into rollers and powered by synchronous belting in positive drive. There are no separate sprockets or gears and no welded drive components. All electrical components are self-contained within side frames. Conveyor handles products with unit loads up to 150 lb in each zone. Zones can be individually controlled for specific assembly areas and are available up to 5 ft long and 48 in. wide.

EnerSys, Inc.    Reading, PA 19612-4145
Jan 23, 2003 Valve-regulated PowerSafe DDm, for telecommunications, power generation, and UPS applications, has integral racking system. Cells have welded-epoxy, dual-post seals that are 100% water bath tested. Each provides from 200–2000 Ah. Lead-cast terminal posts, with large, threaded, copper inserts, provide maximum conductivity. Steel cans provide uniform compression for transport and installation. Modules come in configurations of 2, 3, 4, and 6 cells wide and up to 8 cells high.
