Caldwell Group, Inc., The    Rockford, IL 61109
Jul 29, 2002 Extended Barrier Grabs handle barriers with widths from 6 to 12 in. at the top and, with Extending Kit, handle barriers up to 40 ft in length. Low-headroom lifting beam and 2 barrier grabs bolt together to handle barriers up to 29,000 lbs. Lifters conform to ASME B30.20 standards.

Buschman, An FKI Logistex Co.    Cincinnati, OH 45246 4845
Jul 26, 2002 Photo-Eye Accuglide Plus Conveyor, operating at standard speeds of 240 fpm, provides quiet operation. It has UHMW track for roller chain, with urethane driver pad allowing for zero-pressure accumulation and smooth, continuous product flow. Non-contacting, photo-eye sensors eliminate noise created by product impact against mechanical sensors and allow rapid, damage-free handling. Sensors have no minimum weight limitations and minimum product height of only 1 in.

ID Technology Corp.    Fort Worth, TX 76106
Jul 26, 2002 Model 250 uses thermal transfer technology to print and apply variable information labels with print speeds up to 12 in. per second and print resolution up to 300 dpi. It can be mounted for top, bottom, or side label application and is available with Zebra, Datamax, or Sato print engines. Conserve Air option shuts off airflow to applicator when it is not needed. Status menu allows operator to view machine's set-up configuration for troubleshooting.

Asyst Technologies, Inc.    Fremont, CA 94538
Jul 26, 2002 Axysâ„¢ FastSwap atmospheric robot uses dual-yaw wrist architecture enabling wrist/end effectors to rotate 360° and operate independently of each other. It can be used for cassette transfer applications, handling 2 wafers at same time and reducing time required to transfer load of wafers from 1 cassette or front-opening unified pod to another. FastSwap design supports both vacuum and edge-grip types of end-effectors. Robot can operate in stand-alone or track configurations.

Nikon, Inc. Instrument Group Div.    Melville, NY 11747
Jul 26, 2002 NRM-3000 provides automatic measurement of overlay and NSR focus marks. Illumination system is bright and optically matched to imaging system. It employs fiber optic delivery system to quartz-halogen lamps. System utilizes actively damped stage and EGA alignment control technology to assure correct measurements. Software offers recipe management functions. Waferless recipe creation offers automatic recognition of stepper alignment marks and other unique patterns.

Asyst Technologies, Inc.    Fremont, CA 94538
Jul 26, 2002 Plusâ„¢ Portal XT incorporates IsoPortâ„¢ 300 mm load port, which includes configurable front-opening unified pod latch-key mechanism, multiple info pad and mechanical pins, and multiple E-84 ports. It also includes FastSwapâ„¢ wafer-handling robot, which uses dual-yaw wrist architcture to conduct rapid wafer exchanges in and out of OEM's tool. Smart-Plusâ„¢ control system interface ensures overall system extendibility.

Interroll Corp.    Wilmington, NC 28405
Jul 24, 2002 Series 1100 combines polypropylene or acetyl plastic bearing housings and stainless steel balls with variety of lightweight tube materials for free-rolling, corrosion-proof conveyor applications. Bearings offer double labyrinth seal to protect against dirt and dust, and may be washed or steam cleaned at temperatures up to 150°F without damaging roller. Tubes are available in .62, .75, .78, 1.12, 1.18, and 1.90 in. diameters.

Bussmann Div. Of Cooper Industries    St. Louis, MO 63178
Jul 24, 2002 Optima® OPM-NG modular fuse holder features 45 mm design which matches 32 A IEC motor circuits. Integral DIN-rail spring allows for easy installation. Low-profile handle is part of integral fuse carrier that acts as built-in fuse puller. Auxiliary contact block provides status indication of fuse carriage position. Comb-style busbar provides fast line side wiring. Holder is padlockable and dual-wire rated. It accepts 10 x 38 or class CC fuses.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Jul 24, 2002 Constructed of 12 and 16 ga steel, with black powder coat finish, PW Series reel mounts to almost any pressure washer. Rated for pressures up to 4000 psi, it handles product temperatures from 20 to 250°F. Its 1/2 in. schedule 80 pipe hub delivers flow rates of more than 12 gpm at 15 fps. Features include adjustable split-bearing brake assembly, captive hose-guide roller assembly, and direct crank rewind, with permanently attached crank.

Multiton MIC Corp.    Richmond, VA 23223
Jul 23, 2002 Intermediate-duty model SW22 with separately excited, 1.8 kW motor, provides controlled top speed, controlled speed on ramps, and programmable operating speeds. Steering handle head has two butterfly levers for forward and reverse movement and separate lever that actuates lifting and lowering. Stacker is offered with single mast for 62 in. lift or telescopic masts for lifts up to 112 or 128 in. Maximum load capacity is 2,200 lbs with load center of 24 in.

Lee Industries, Inc.    Philipsburg, PA 16866
Jul 23, 2002 Tri-Mix Turbo-Shear, for bio-pharm and cosmetics industries, combines scraped-surface, counter-rotating, double-motion agitator and independent, bottom-center mounted, homogenizer head. Agitator handles products up to 2,000,000 cp. Head accepts various disperser designs. Unit handles products up to 10,000 cp alone and viscosities to 50,000 cp and beyond with scraper agitator.

FANUC Robotics America, Inc.    Rochester Hills, MI 48309 3253
Jul 22, 2002 Model M-420iA four-axis, modular construction robot has 40-kg payload and remote mechanical and control unit. It palletizes 48 x 40 in. pallets at heights to 40 in. Model M-421iA (two-axis variant of M-420iA) does not include waist and wrist axes, and handles payloads to 50 kg. Each model includes PalletTool off-line pallet creation software. PalletPRO palletizing simulation software verifies system throughput, robot reach, cell interference, and pallet configuration.

Alemite Corporation    Charlotte, NC 28226 3515

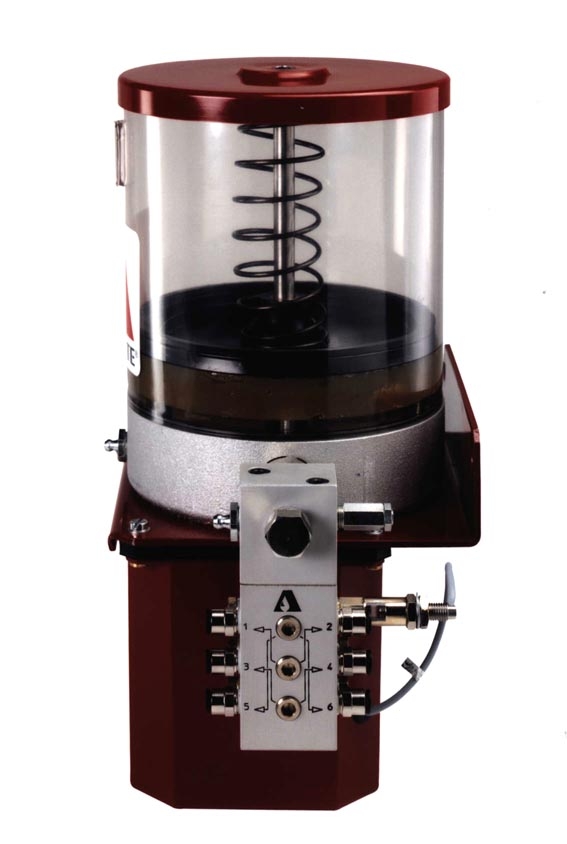

Jul 22, 2002 Automated Grease System (AGS) controls lubricant delivery to multiple bearing points on machinery and mobile equipment. It is pre-assembled into one package containing pump, controller, and metering valve. Metering valve houses series of pistons, which precisely dispense lubricant to 6, 12, or 18 outlets. Block can be configured to meet lubrication requirements of variety of bearings.

Beta Max Hoists, Inc.    Melbourne, FL 32902
Jul 22, 2002 Portable Hoist has maximum lifting capacity of 2,000 lbs and travels up to 110 ft. It can be attached to I-beams using adjustable trolleys, and can be equipped with motorized trolleys for horizontal as well as vertical movement. Non-rotating cable helps keep loads from spinning while lifting and lowering. Push button pendant and upper limit switch enable safe up and down movement. Fail-safe brakes hold load securely when not lifting or lowering.

ID Technology Corp.    Fort Worth, TX 76106

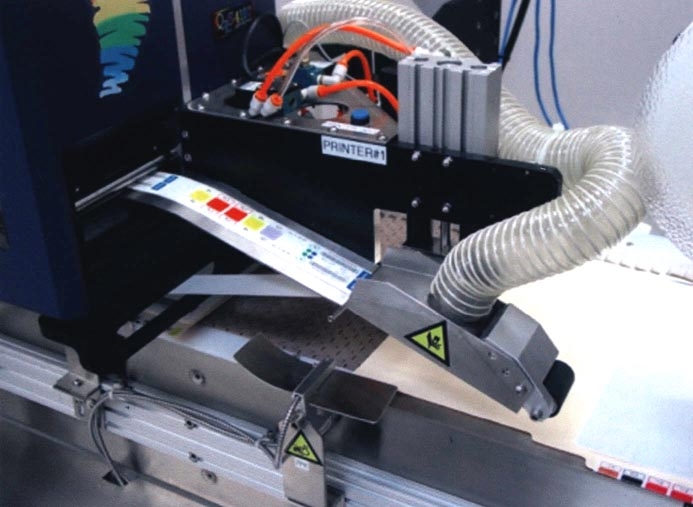

Jul 19, 2002 System reads barcoded documents to create barcodes and labels for collateral material such as file folders. Labels are applied and folded to adhere to both sides of folder tabs. Four-color print and apply system has two print and apply labeling stations. Each station prints and applies one label to alternating folders. Verifier at end of line checks that barcode on file label and file contents match.

ConProTec Inc.    Salem, NH 03079 2060
Jul 18, 2002 MIXPAC® S SYSTEM offers dispensing of 1:1, 2:1, 3:2, 4:1, and 10:1 volumetric ratios within one dispenser. Cartridge design incorporates separate cylinders and attachment flange. Interface with separated outlets between cartridge and mixer or cap eliminates possibility of cross contamination and avoids plugged cartridges. Color-coding system helps users identify appropriate cap and mixer combination.

National-Spencer, Inc.    Wichita, KS 67201 0057
Jul 18, 2002 RAASM Model 1461 Open Hose Reel is suitable for oil applications and offers heavy duty construction. Hose stop and 1/2 in. dia x 50 ft long hose are included. Model 1459 Closed Hose Reel swivels for convenience and is designed for air and water transfer. It includes bayonet coupling, mounting bracket, outlet swivel joint and 3/8 in. x 33 ft service hose with hose stop.

Air Technical Industries    Mentor, OH 44060
Jul 18, 2002 Husky-Master Crane with barrel lifter-dumper lifts and dumps 55-gallon metal drums and plastic tapered drums. Design features gripper with safety hook, telescopic boom, powered lift cylinder, and 12 in. polyurethane wheels. Dumping is activated by 180° rotation of barrel to inverted position. Rotation can be operated five different ways: manual-free 360°, hand-crank controlled, continuous full chain, electrically operated push button control, and air operated rotation.

SpaceRak, A Div. of EWCO    Marysville, MI 48040
Jul 18, 2002 Selective pallet rack system provides years of continuous service in rugged environments. Upright frames are 50,000 psi steel with one-piece welded construction. Beams are of continuously welded tubular construction, each with 3 or more heavy-duty load bearing studs. They are designed to snap and lock securely to frame in one step. Replaceable spring safety locks prevent accidental beam dislodgement.

Perma-Tech Industrial Coatings    Cleveland, OH 44128

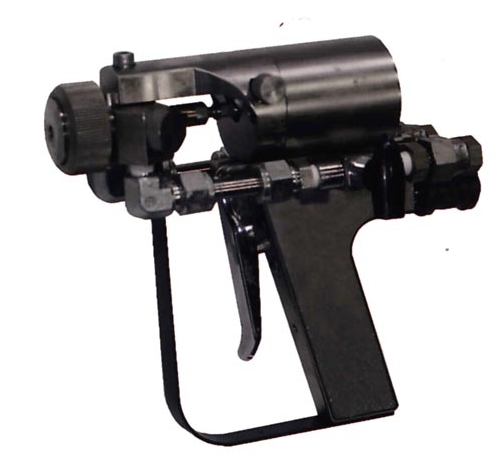

Jul 17, 2002 Spray gun is designed for low volume spray applications with polyurea, polyurethane, or other dual component coatings. Its design allows for precise control of amount of material applied. User can achieve between 7 to 10 mils of coverage at discharge rate of less than 1 lb/min. Nozzle design with air ports and 360 deg coverage ensures consistent spray pattern and coverage. Gun also features material filters and mechanical purge rod.
