DJ Products, Inc.    Little Falls, MN 56345
Mar 20, 2003 PartsCaddy Work Positioner 1000 (PWP 1000) eliminates strains, pains, and injuries to employees arising from lifting objects or working on projects not properly positioned for optimum working height. Capable of horizontal/vertical positioning, PWP2000 maneuvers and handles loads up to 1000 lb and offers variable speed twist grips that allow operator to travel forwards and backwards at speeds of 0-3 mph. Heavy-duty, 24 V motor is powered by two 12 V batteries.

Genie, a Terex Company    Redmond, WA 98052
Mar 20, 2003 Superlift Contractor(TM) includes fixed steel base and safely lifts up to 650 lb with 6 different load handing attachments available. Loads are lifted by aircraft-quality cable controlled by heavy-duty winch. One-speed or optional 2-speed winch incorporates silent ratchet system. Non-marking Performa(TM) casters prevent marking floors or picking up debris that could otherwise damage floor. Four in. front casters and 5 in. rear casters with side brakes are standard.

Dualdraw    Commerce City, CO 80022

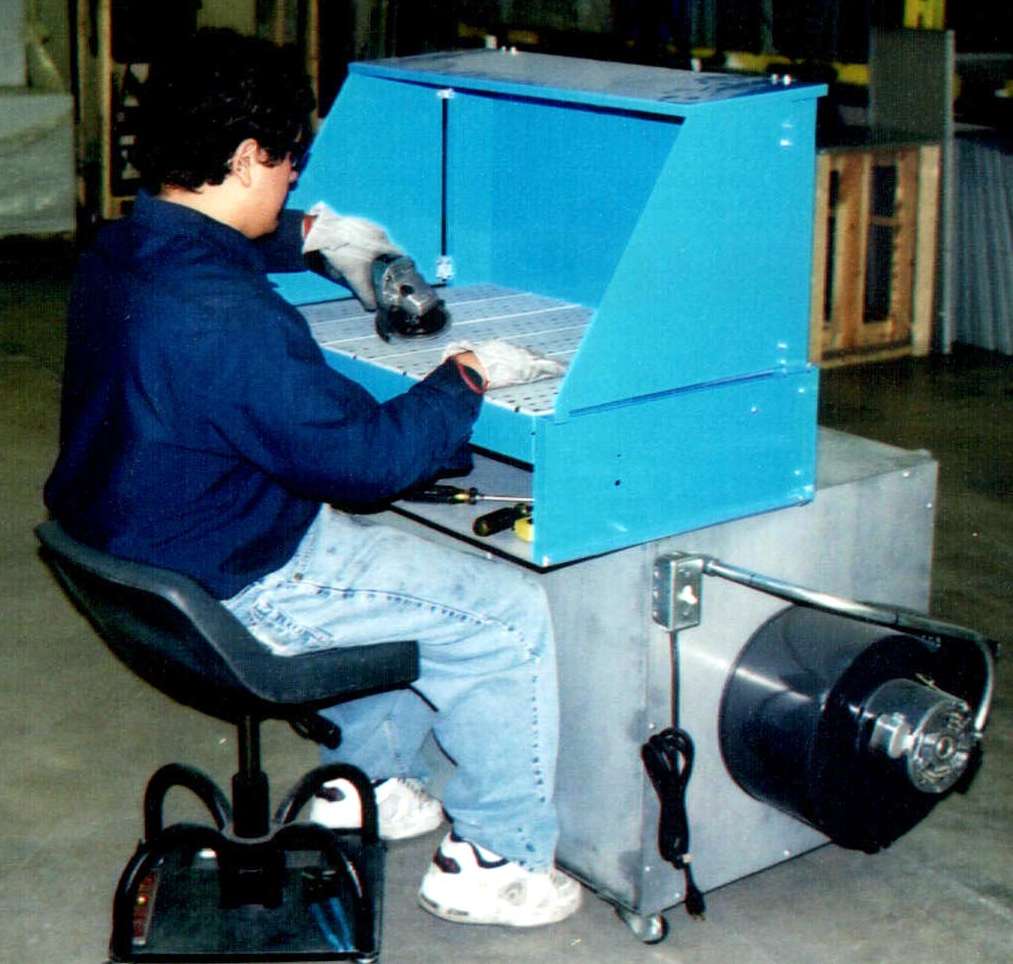

Mar 19, 2003 Model PT2032, suited for polishing applications, includes table top that draws fumes, dust, and smoke away from operator. With footprint of 32 x 33 x 35 in., unit has 32 x 20 in. downdraft table that affords knee room for operator. Unit also includes casters and 1,200 nominal cfm filter system, which contains 24 x 24 x 4 in. pre-filter and 24 x 24 x 4 in. final filter that are 95% efficient to 0.5 microns with 115 V motor.

Arbor International, Inc.    Ann Arbor, MI 48103
Mar 19, 2003 Felco Low Lift Precision Hydraulic Jacks are small, lightweight and portable. They fit under heavy machinery and equipment in tight areas that are hard to reach. Lifting height can be adjusted within few thousandths of an inch. Jacks come in 10, 20, and 30 ton capacities. Ten ton model weighs only 8 lb. Each includes height adjusting spacers in wooden box.

Henkel Loctite Corporation    Rocky Hill, CT 06067

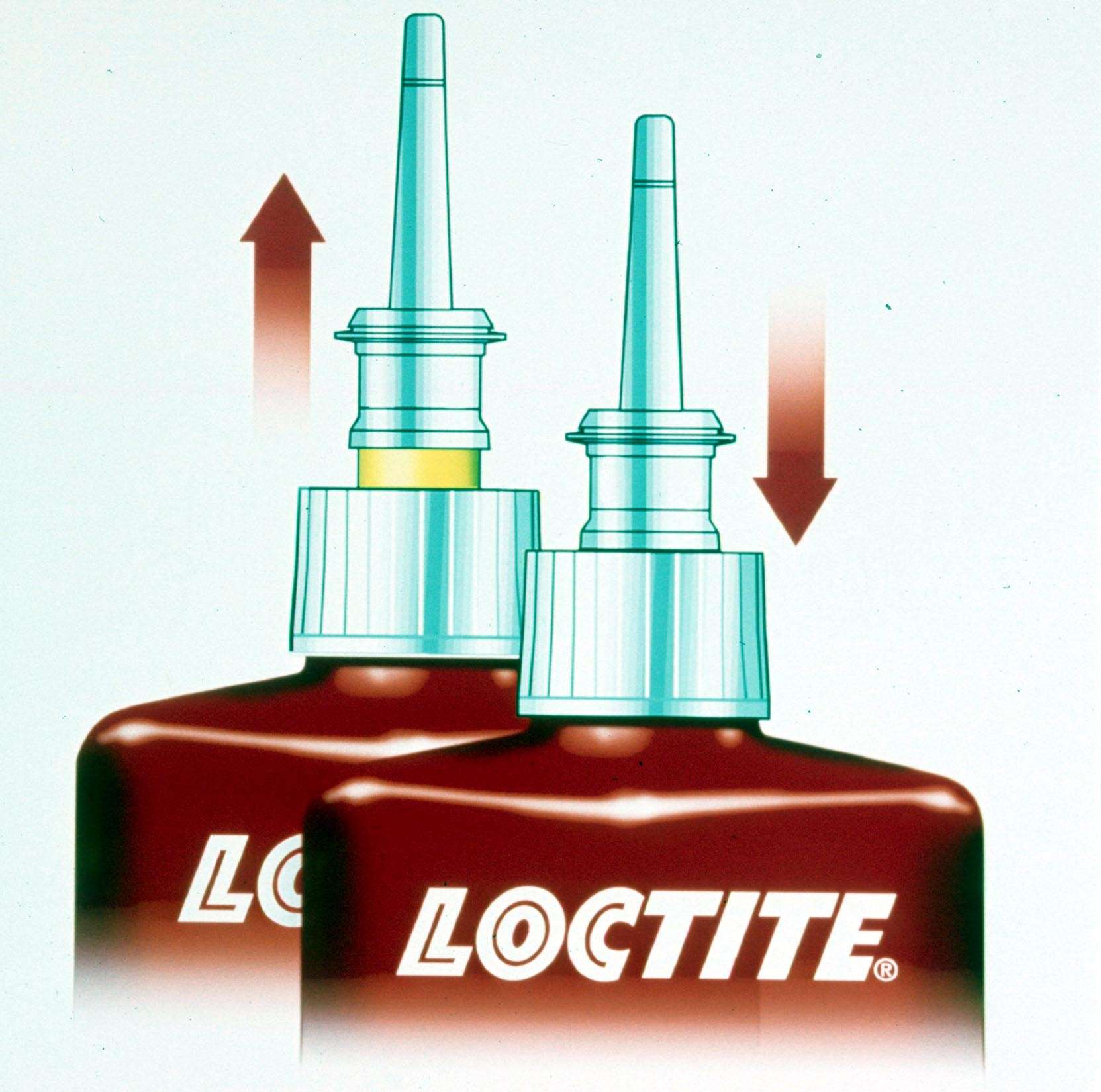

Mar 19, 2003 Nozzle is used on threadlocking, thread sealing, and retaining compounds packaged in 50 ml and 250 ml red bottles. Translucent application tip offers visual indication of product when dispensed. Pull/open, push/close nozzle features built-in reservoir, which prevents product from dripping down bottle. With orifice of 0.7 mm, nozzle eliminates need for snipping tip; however it can be trimmed to 3.0 mm to accommodate higher viscosity products.

J. W. Winco, Inc.    New Berlin, WI 53151
Mar 18, 2003 Used as detent, positioner, or for clamping with spring pressure, positioning elements' noses can be used for push-on or push-off operation. At pulling end, female thread accepts pulling rods or operating knobs. Products offer steel, zinc-plated threaded body and plunger pins and pin casings of hardened and blackened steel. Positioning elements are available with tapped holes, pointed nose, semi-spherical nose, or prism nose.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Mar 17, 2003 Nanomekâ„¢ Liquid Transfer Module pipettes volumes from 50 nanoliters to 20 microliters and is integrated directly on Biomek® FX workstation, for automated nanoliter dispensing in 96-, 384- and 1536-well plate formats. It incorporates Allegro Technologies' spot-onâ„¢ liquid handling technology, providing dispensation control, precision, and accuracy. Module enables miniaturization of assays in genomics, proteomics, and high-throughput screening applications.

ID Technology Corp.    Fort Worth, TX 76106

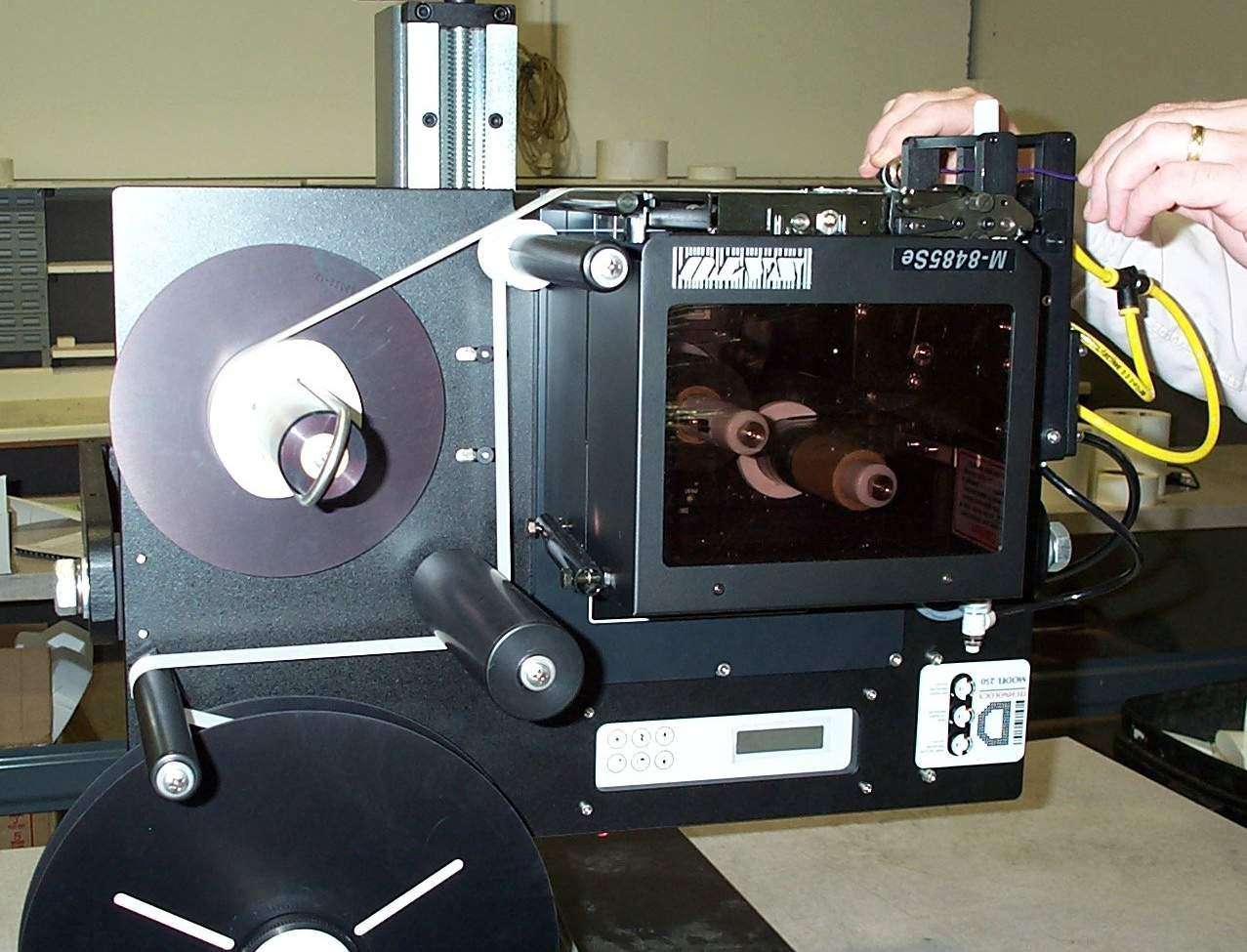

Mar 17, 2003 Model 250 prints and applies variable information labels using thermal transfer process. Semi-automatic system uses jig fixture to hold product in place during labeling process. Product and label sensors can be used to specify where label is to be applied with accuracy up to 1/8 in. Applicator is available with Sato, Zebra, or Datamax thermal transfer print engines and can print up to 12 ips with up to 300 dpi print resolution.

Fisnar Inc.    Wayne, NJ 07470
Mar 17, 2003 Variable-ratio gear-pump machines offer precision gear pumps and electronic interlock to ensure selected ratio is fixed and password protected. Metered shot and flow range is from 0.75 ml per shot to 250 liters/min, depending on selected system. Ratio ranges vary from 1:1 to 50:1, and viscosities of 150-100,000 cps can be accommodated. Systems are suited for RIM and doming applications that require constant flow.

LMT-Fette    Cleveland, OH 44135
Mar 17, 2003 Wash-In-Place (WIP) tableting systems include alpha-beta valve, tablet press, deduster, metal check, automatic tablet check, and tablet bin, all contained with isolators in one system in one process room. i-Series machines, capable of producing 1.5+ million tablets per hour, offer multiple tooling options from 32–113 stations and from 6–59mm tablets. Units also offer single-, double, and triple-layer production capability and bi-layer production with core insert.

Columbia Machine Inc.    Vancouver, WA 98661

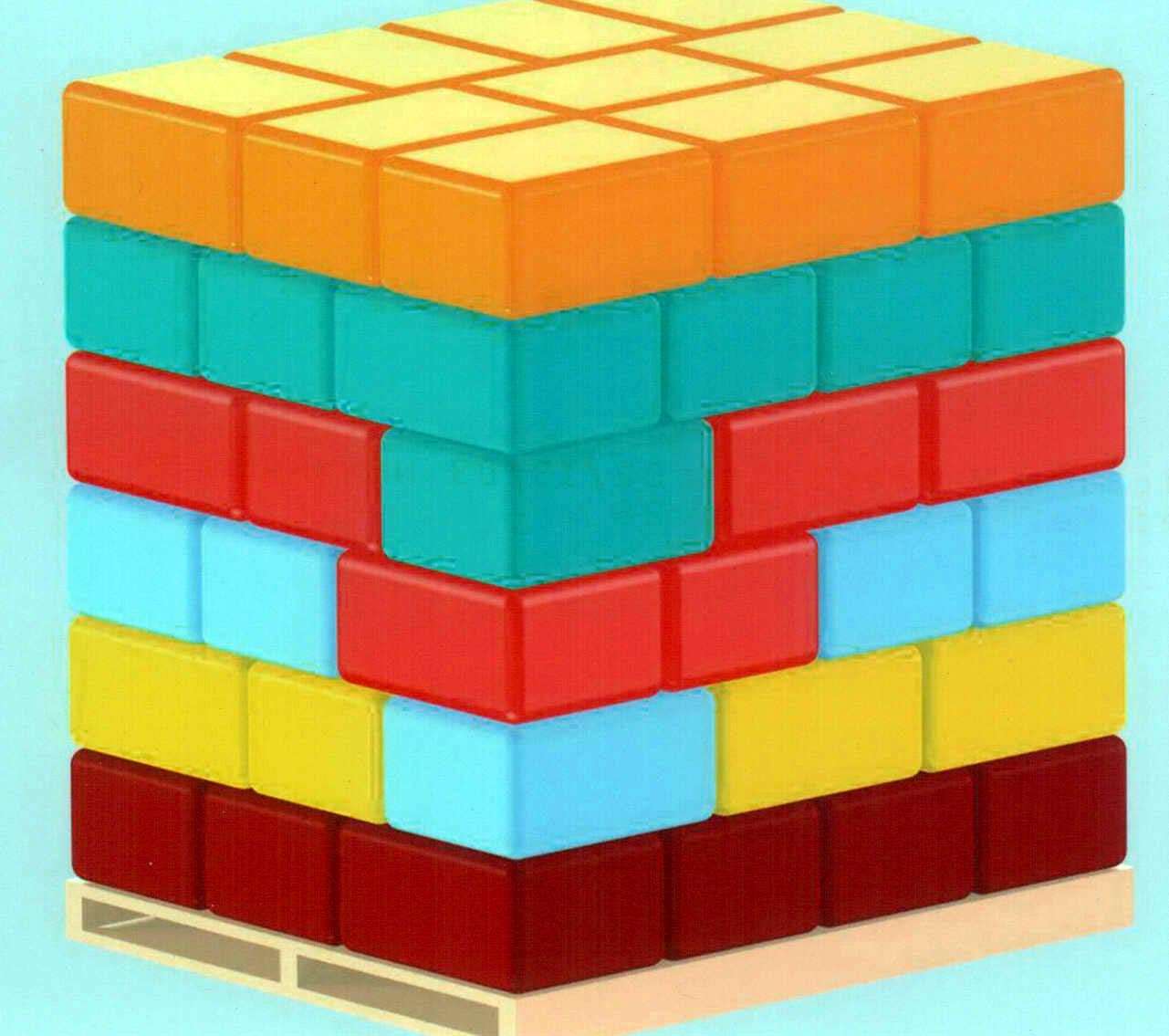

Mar 14, 2003 Available for floor-level and high-level palletizers, conveyors and controls enable users to stack loads with alternating product layers or different products within each layer. Technique gives smaller retailers more cost-effective inventory options, such as purchasing less-than-pallet-load quantities, and simplified re-stocking.

Norma Products, Inc.    Wixom, MI 48393
Mar 13, 2003 Stainless steel NORMACLAMP® Cobra hose clamps have one-piece design that can be closed around hose using manual or pneumatic pliers. Available in 7, 8, and 9 mm bandwidths with various diameters, units are color coded for identification. Maintenance-free, reusable products are suited for automotive air and fuel systems, washing machines, food processing, and irrigation systems.

Advance Lifts, Inc.    St. Charles, IL 60174
Mar 13, 2003 Truck levelers used to align truck bed with raised concrete loading dock have capacities of 50,000 and 60,000 lbs. Units have platform sizes of 10 x 14 ft up to 11 x 20 ft and come with approach ramp, 5 hp power unit, metal safety skirting, and push button controls. Units have dual hydraulic pressure feed lines and anti-interflow hydraulic system to prevent oil from transferring between the cylinders.

Waddington Electronics, Inc.    Cranston, RI 02920

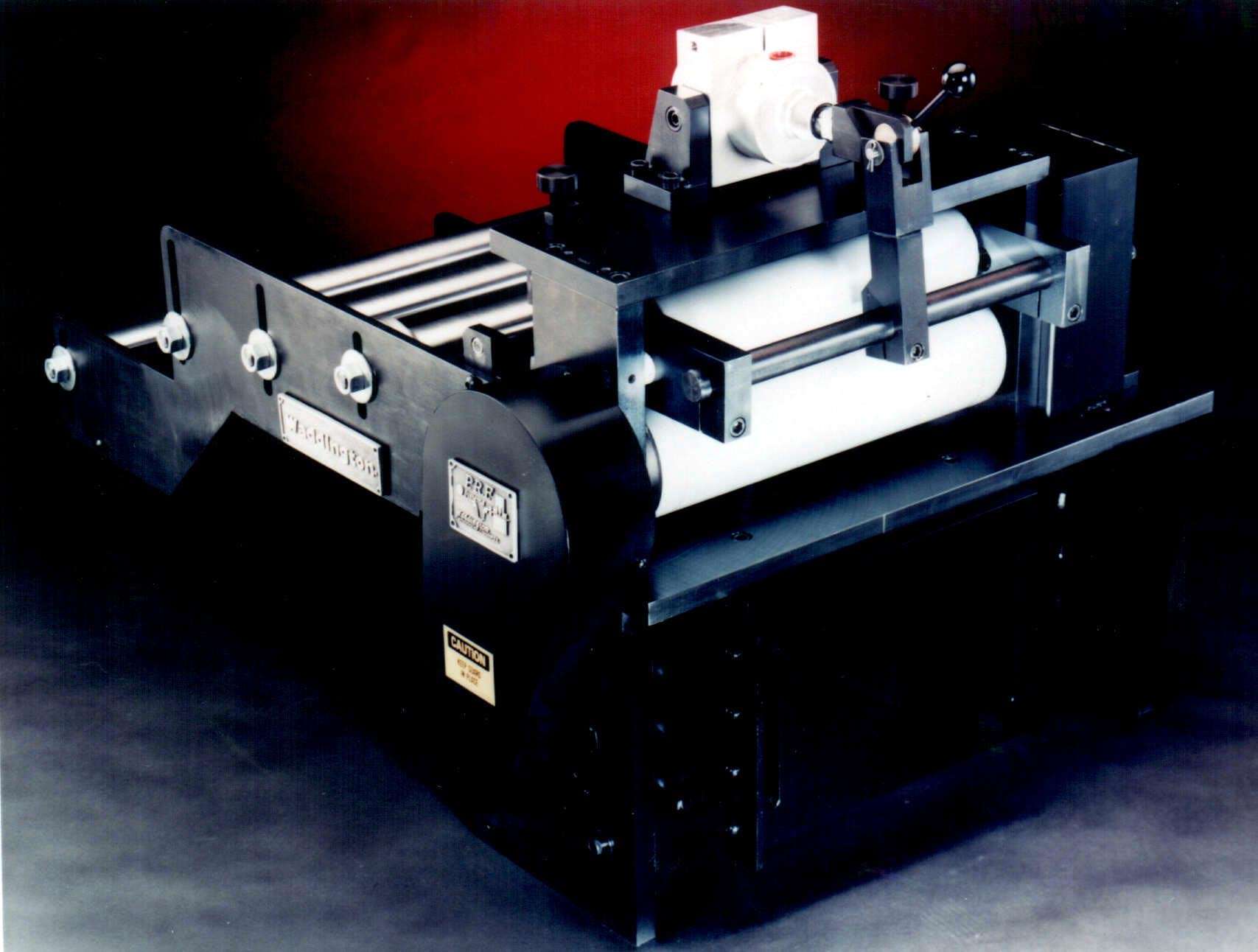

Mar 13, 2003 Servo-Driven Roll Feeds include control panel and software that lets users perform press adjustments in 0.0001 in. increments while feed is running. Additional offerings include cut-to-length cycle, kerf-cut cycle, and 14 gag outputs and programmable patterns. Capable of storing up to 200 jobs, products are available from 0.002–0.315 in. thick and come in push, push-pull, or pull configurations. Software includes timed outputs and maximum length feature.

SmartMove(R) Conveyors    Fall River, MA 02720

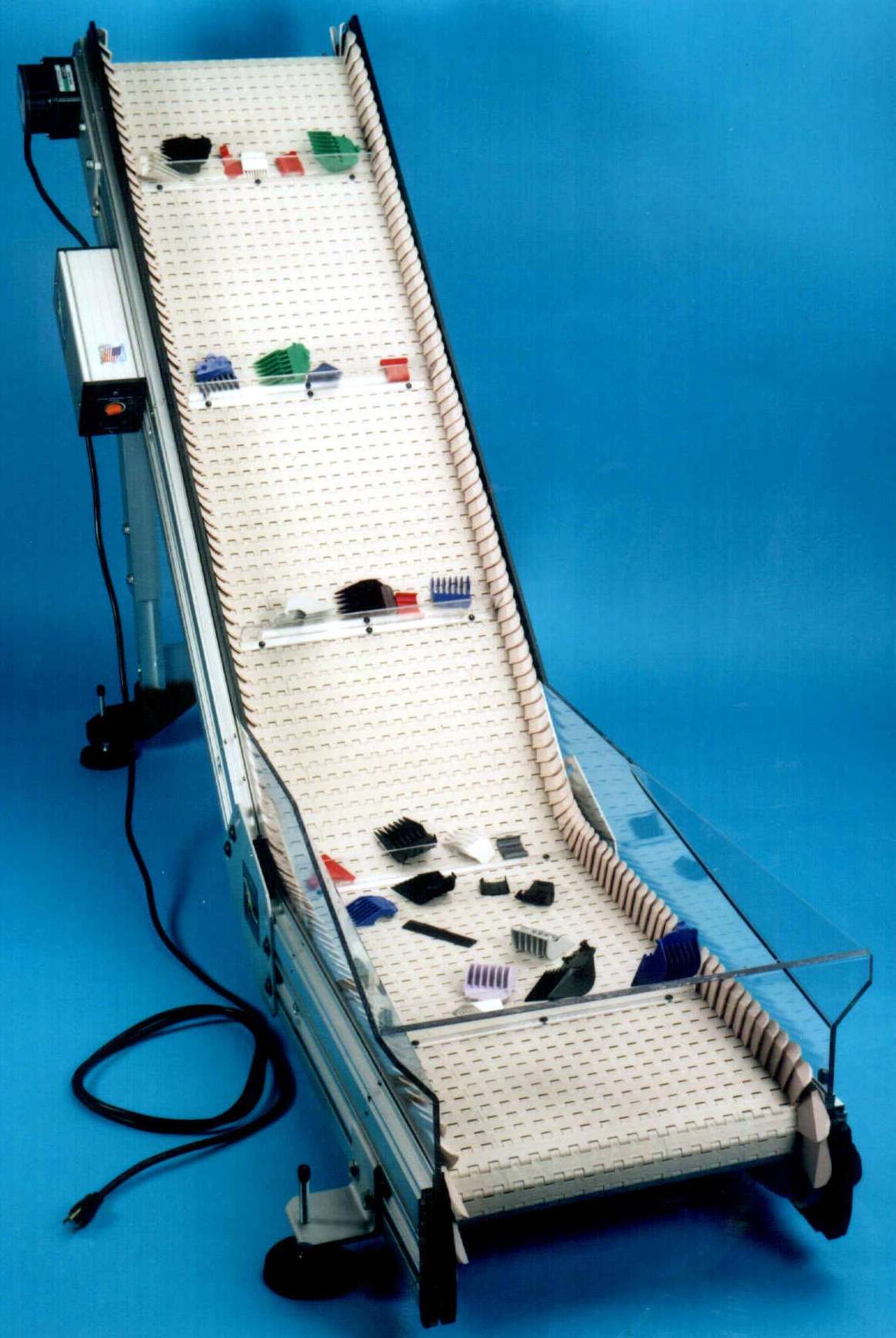

Mar 13, 2003 SmartMove® Z-Rex® incline conveyor features Beveledgeâ„¢ plastic belt that incorporates beveled vertical flights at both edges to safely guide small parts. Designed for water fall style parts transfer applications, conveyor series includes variable speed, direct-drive brushless DC motors that run on 115 Vac and 2 A. Available with three inclines up to 60° and belt widths from 5–23 in., all-plastic belting snaps together by hand and is self-lubricating.

ITC Mfg. Inc.    Phoenix, AZ 85009

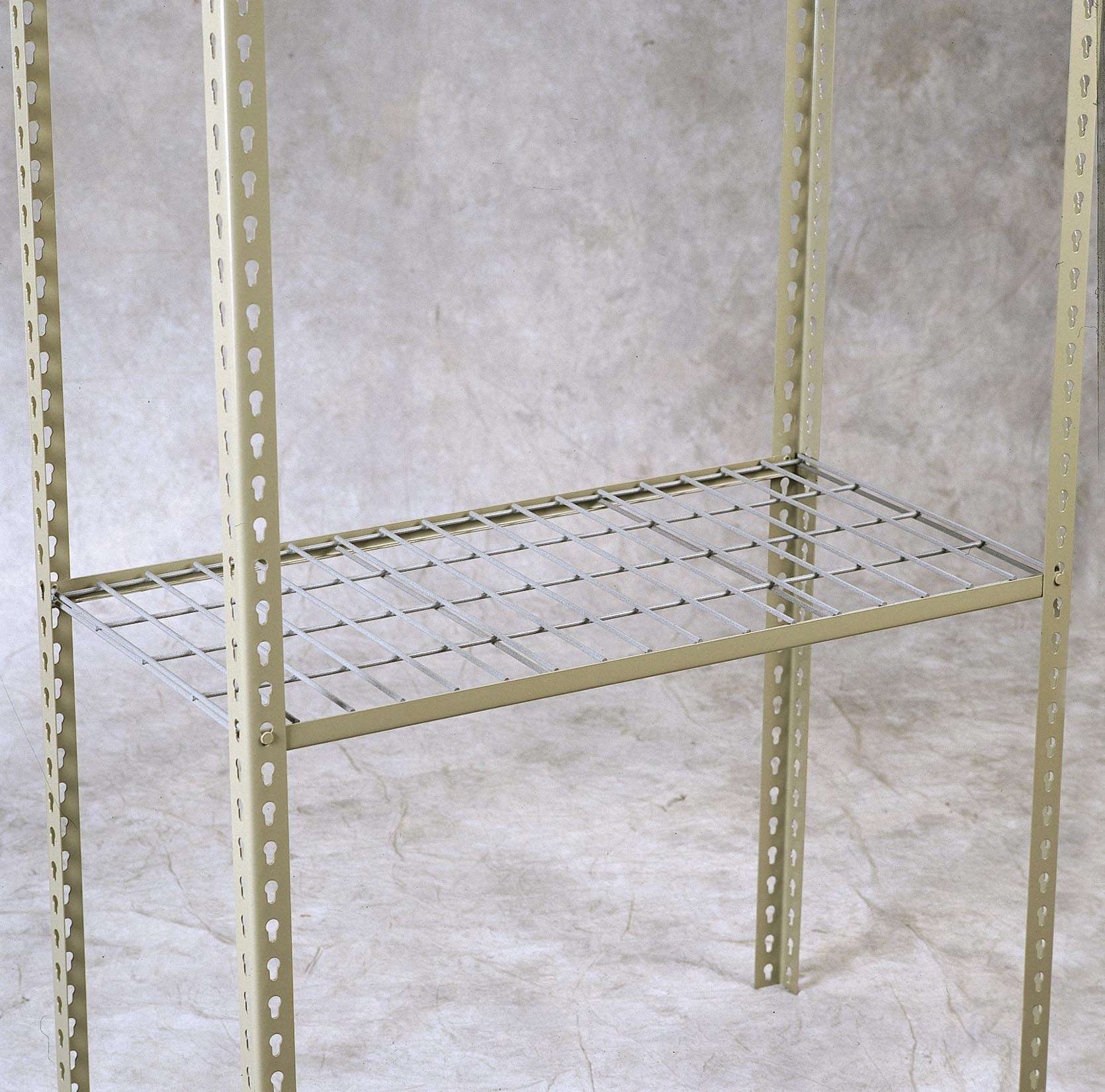

Mar 13, 2003 Light-duty wire shelving fits securely into standard storage racks and can also be used with boltless, bulk, and Z beam racks. Additional Sandwich wires are placed every 12 in. for additional support. Shelving provides product visibility and allows sprinkler water to flow through shelving and storage racks for OSHA compliance. Standard product comes in nine sizes with speckle gray powder coated finish. Custom sizes and other colors are available.

Liquid Control Corp.    North Canton, OH 44720

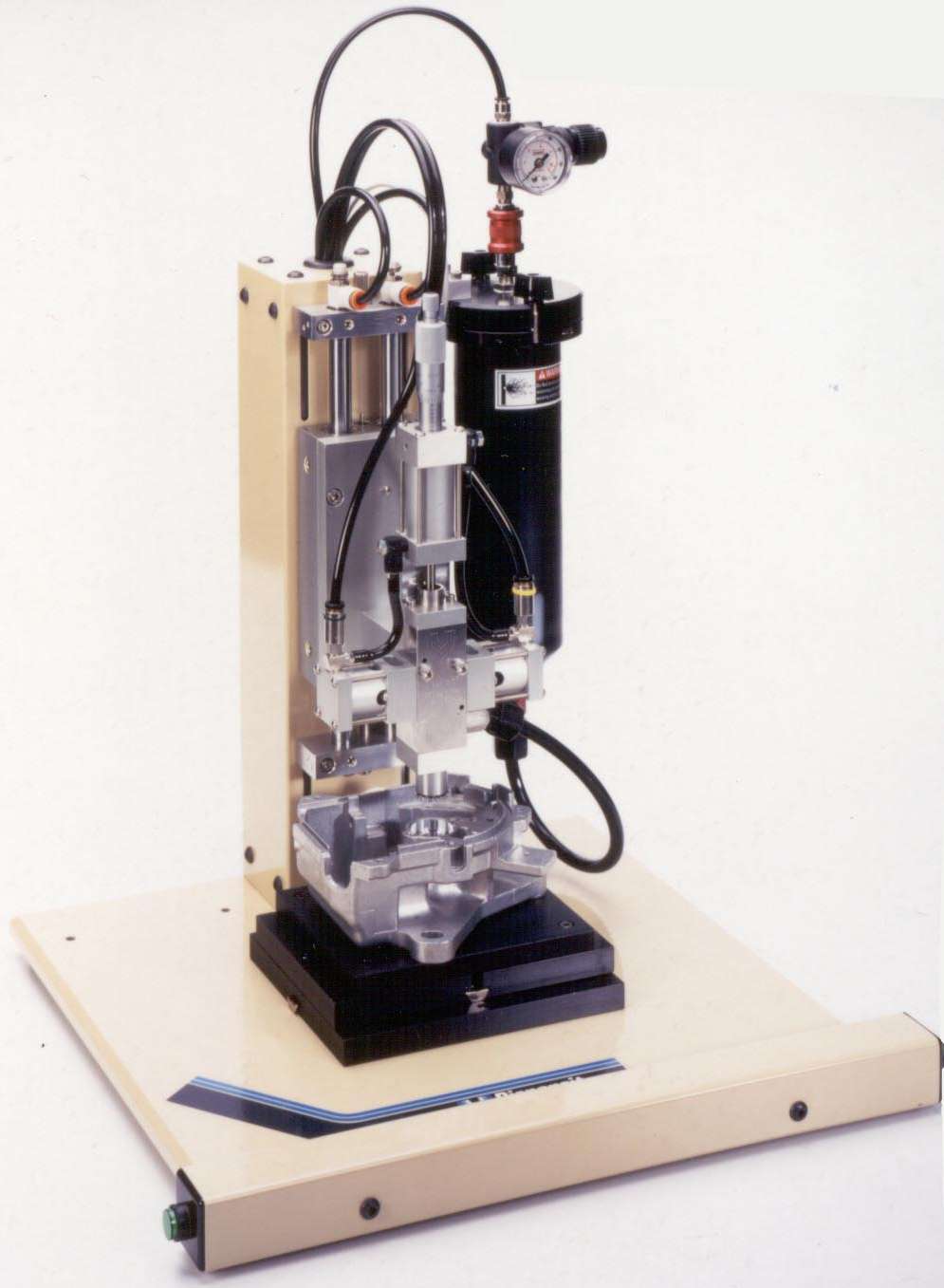

Mar 12, 2003 Measuring 16 x 16 x 17 in., semi-automatic Dispensit® 490-Z accepts single- and plural-component dispense valves. Bench-Top unit requires 120/1/50-60 electrical and 70 psi compressed air to operate and comes equipped with pneumatic Z lift, dovetailed tooling plate, parts nest, Dispensit dispense valve, material supply system, and controller with anti-tie down cycle start. Product suits dispensing applications for multi-tasking/cellular manufacturing processes.

Liquid Control Corp.    North Canton, OH 44720

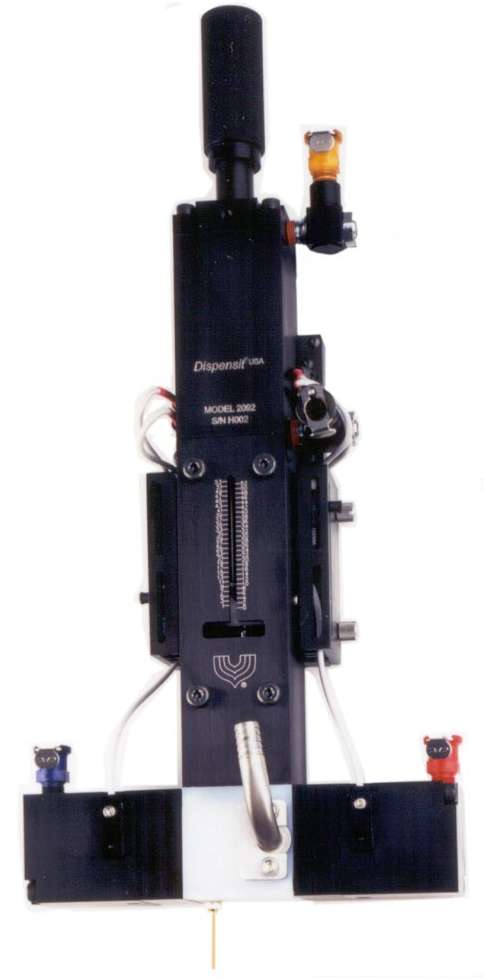

Mar 12, 2003 Precision, positive displacement Dispensit® Model 2092/2093 is suited for use with highly filled and abrasive materials such as thermally conductive adhesives, greases, and electrically conductive adhesives. Available in pneumatic and electric drive modules, unit incorporates abrasion-resistant wetted components and modular design for dispensing precise single shots or continuous beads.

Liquid Control Corp.    North Canton, OH 44720

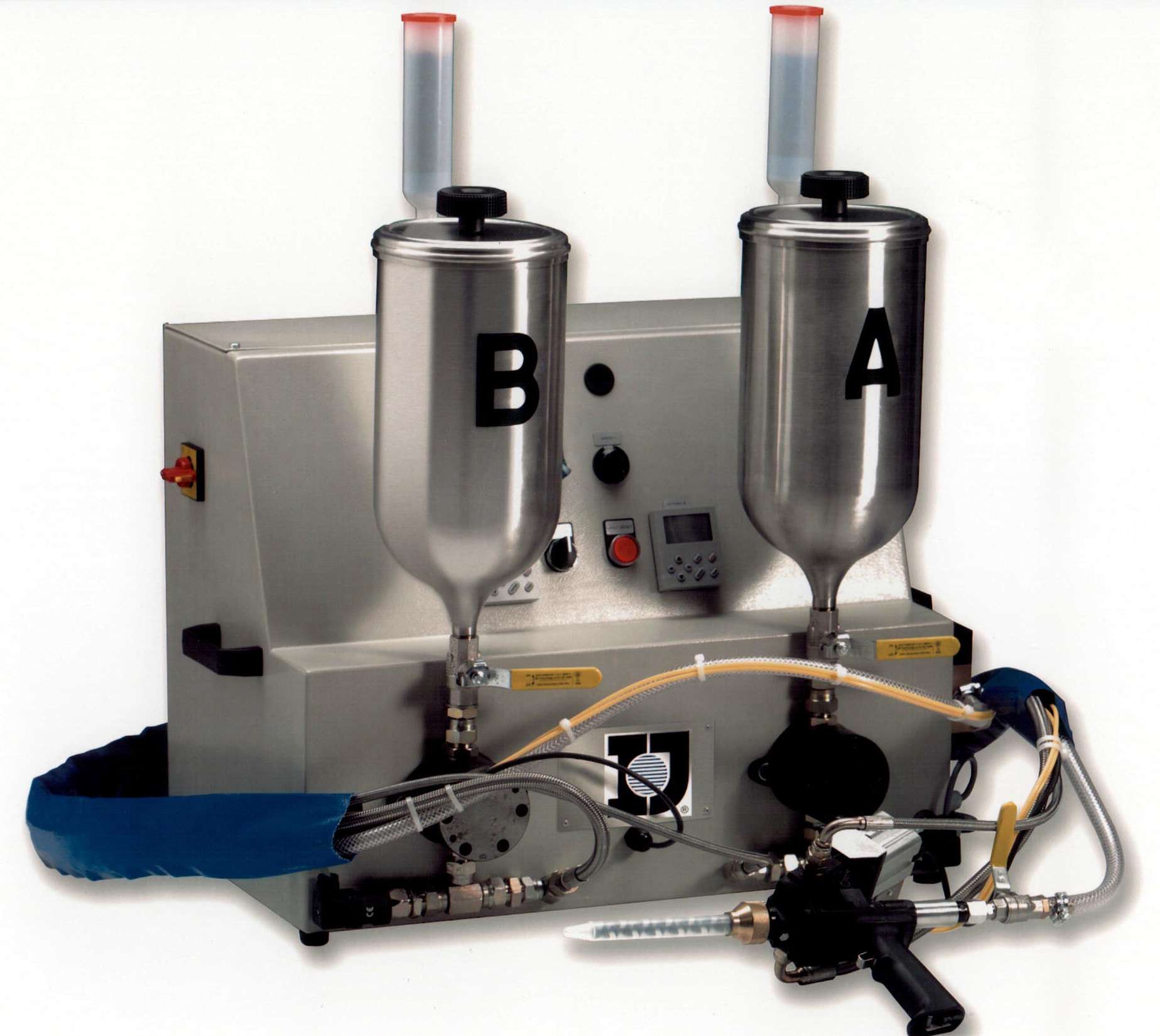

Mar 12, 2003 Able to perform low-pressure processing without use of solvent flushing, ParaDyne is equipped with non-drip feature that minimizes mixed material dripping during indexing sequence. Pull- or snuff-back action decompresses mixer chamber and holds material inside mixer until mix head can be indexed to next part. Product incorporates 2-component mix head that utilizes servo, hydraulic, or air-driven motors. Optimal mix occurs when unit is set at 2,000–5,000 rpm.

Production Basics, Inc.    Watertown, MA 02472

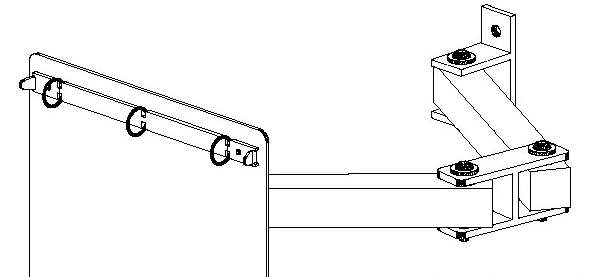

Mar 12, 2003 Binder Holder utilizes double swing arm to ergonomically position instructions and quality documentation that production operators use. Arm may be moved out of way when not in use. Measuring 12 in. wide and 9 in. tall, unit is constructed of 12-gauge steel and comes with 1 in. ring. It is suitable for use in assembly lines, laboratories, warehouses, shipping departments, and data entry stations.
