Mol Industries    Grand Rapids, MI 49504
Aug 18, 2004 ThermoDrive(TM) Sprocket-Driven, Hygienic Belting is 100% homogenous thermoplastic, minimizing chance of micro-organism contamination. Smooth hingeless top surface and radial profile drive design facilitate product release. Belts run on existing modular conveyor systems but have no modules or crevices that can harbor bacteria. Non-chordal sprocket wrap is scraper-friendly and allows smooth running, surge-free operation.

Martin Engineering    Neponset, IL 61345 9766
Aug 17, 2004 MARTIN® SQC2â„¢ is composed of individual 5.88 in. wide blade segments assembled on mainframe to remove residual material from belt’s load-carrying width. Each segment incorporates individual rubber buffer or cushion to absorb impact and allow splices to pass without damage. Cleaner is suited for use on conveyors with belt speeds up to 1,000 fpm, with mechanical belt splices, or that reverse or suffer rollback.

K-Tron Process Group    Pitman, NJ 08071
Aug 17, 2004 Available in gravimetric, volumetric, and loss-in-weight models, Bulk Solid Pump (BSP) feeders utilize positive displacement to feed free-flowing materials. They offer uniform discharge, consistent volume, and gentle handling. Vertical rotating discs create product lock-up zone, smoothly conveying material from storage hopper to discharge outlet and achieving true linear mass flow. Feed rates range from 0.07-7 to 1.6-160 cubic ft/hr.

Linde Lift Truck Corp.    Summerville, SC 29483-9621
Aug 16, 2004 With capacities from 3,000-5,500 lb, Series H internal-combustion, cushion-tire lift trucks are equipped with hydrostatic drive technology. They have no torque converters, clutches, mechanical transmissions, friction brakes, or differentials. VW OHC 4-cylinder engine powers all functions while governed at low rpms. Intended for continuous stop/go/forward/reverse-duty cycles, trucks include protective chassis belly pan and sealed, pressurized hydraulic sump.

NEUMATIC SHOPPE    Andheri (East), MUMBAI - 93   India
Aug 16, 2004 Filter unit is provided with sintered-bronze element, which varies in micron as per degree of purity to be achieved in filtration. Shield and separator arrangement ensure separation of condensed water/oil particles. Diaphragm-operated, self-relieving regulator has balanced poppet and flow-sensing venturi. Mist-type lubricator enables proportionate lubrication of airflow. Both filter and lubricator are provided with bayonet-type bowl guards for added safety.

Uniloy Milacron, Inc.    Manchester, MI 48158

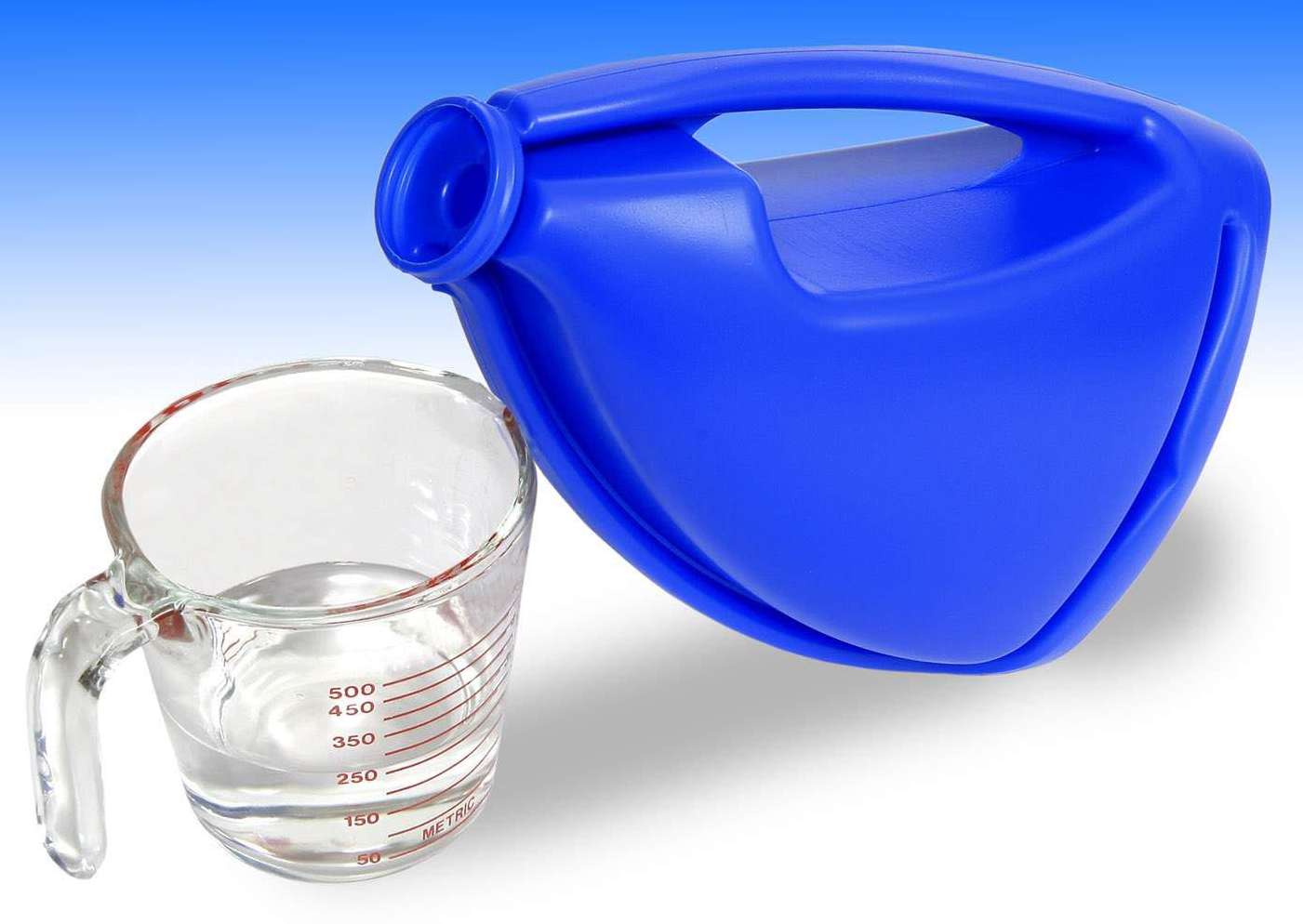

Aug 13, 2004 Molded from single parison, Precision Pour bottle design combines main chamber with measuring cavity in base, eliminating need for measuring cup. It incorporates vent channel running inside bottle handle and pour channel running inside rib on opposite side. Measuring cavity is separated from main chamber, except at base of handle. This ensures that measuring cavity refills only when bottle is set upright after pouring.

Advance Lifts, Inc.    St. Charles, IL 60174

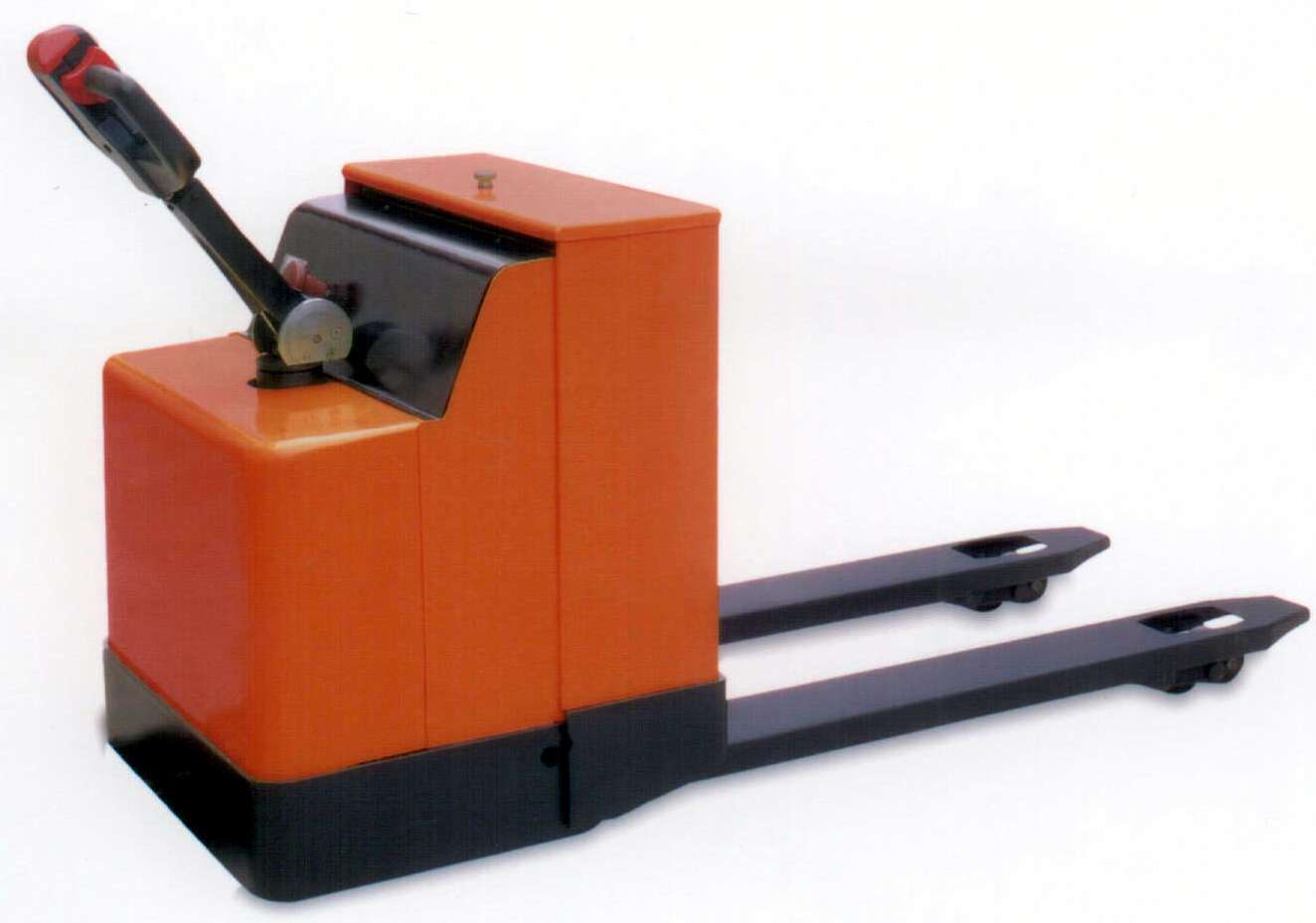

Aug 13, 2004 Included in Advantage line of mobile material handling equipment, Model ZEPWRPT44 is equipped with 43¼ in. forks and variable-speed drive. It incorporates 2½ hp lift motor, 1½ hp drive motor, and 24 Vdc battery operating system along with MOSFET controller for efficient battery use.

Weiler Corporation    Cresco, PA 18326 0149
Aug 12, 2004 Suited for medium and high production environments, Tiger® flap wheels are made of Egyptian cotton and premium aluminum oxide grain for high cut rate. Intended for low to medium production environments, Vortecâ„¢ flap wheels have cotton backing and standard aluminum oxide grain. Applications include cleaning; edge blending; deburring and mismatch removal on machined parts; finish prior to painting and plating; and smoothing metal, plastic, and wood.

Baker Co., The    Sanford, ME 04073
Aug 12, 2004 IsoGARD® Series Class III glovebox, designed for research involving agents assigned to BSL-3 or -4 facilities, features plug-and-seal, canister-style HEPA exhaust filters. Supply HEPA filter, protected with 316L stainless steel diffuser, covers entire ceiling of primary working chamber. Offered in 3 models with 2-, 3-, and 4-glove primary working chambers, product has front-opening, glass-panel door and stainless steel gloveports with single-piece, sleeve-and-glove assembly.

Almco, Inc.    Albert Lea, MN 56007 2751
Aug 12, 2004 Suited for use in metal deburring and finishing applications, Model 142 includes rotary, 4-compartment hopper that drops finishing media into as many as 4 round-bowl or tub-type machines. Oscillator/screener separates finished parts from media, which returns by conveyor to hopper for reuse or storage. Features include compact size, ease of serviceability, and minimal required maintenance.

Tri-Mer Corp.    Owosso, MI 48867
Aug 12, 2004 Made from polypropylene, polyethylene, PVDF, and Halar, impact-resistant Roto Mold Tanks are available with or without insulation in .25 or .50 in. gage. Standard tanks come in vertical, horizontal, open top, domed, and rectangular shapes with up to 10,000 gal capacity. They are suited for chemical storage, wastewater storage, marine applications, and high-temperature uses. Tanks using FDA-approved, UV-stabilized, flame-retardant, or anti-static resins are available.

Labelmate    Henderson, NV 89014-2002
Aug 11, 2004 Automatic Model LD-100-RS has no mechanical switches to adjust. Reflective sensor sits below label and accurately senses leading edge. As user picks up label, next one is automatically advanced. Design presents label at front of machine, providing convenience for both left-handed and right-handed operators. Supply roll of labels up to 4½ in. wide slices onto Core Holder, which accepts up to 8½ in. roll size and any core diameter from 1½â€“3 in.

Unex Manufacturing, Inc.    Jackson, NJ 08527

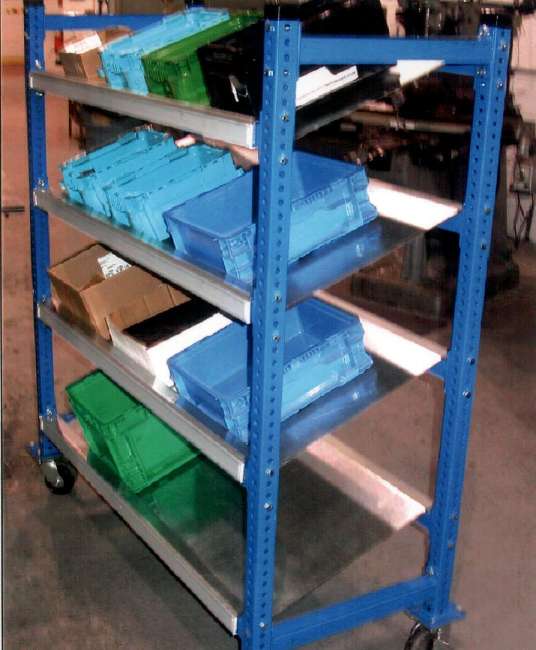

Aug 11, 2004 Flow Cell with Tilted Pick Shelf includes pre-punched posts, beams, and drop-in shelf. Offering 1,000 lb capacity, shelf is 18 or 24 in. deep with widths from 1–6 ft in 6 in. increments. It is angled at 22° to maximize view and access of picks. Made of 12 gauge galvanized steel, workbench is 12 or 18 in. deep with left and right brackets and total capacity of 3,000 lb. Casters are 4 in. dia x 2 in. wide, swivel or rigid with brakes.

Albion Industries, Inc.    Albion, MI 49224
Aug 11, 2004 Never-Flat Tire is available in standard 10 and 8 in. sizes with offset and centered hubs or tire only. It has 400 lb heavy duty load capacity and is available with standard ball, roller, or precision bearings. Several different caster styles/sizes are offered. Tire is manufactured from urethane foam, does not absorb water, and is non-marking for floor protection. Radial, sawtooth tread allows for easy maneuverability and improved traction.

Progressive - Ruesch Machine Co. Inc.    Ringwood, NJ 07456
Aug 10, 2004 Suited for payout of traverse wound wire and strip from up to 1,250 lb reels, Model 605 Rim Drive maintains consistent line height and permits flexibility in stock orientation by allowing material to be paid out from top or the bottom of reel. Unit offers choice of 3 speed and tension control devices, each of which automatically monitor and compensate for payout reel's decreasing diameter while maintaining constant line speed.

Fluid Metering, Inc. (FMI)    Syosset, NY 11791

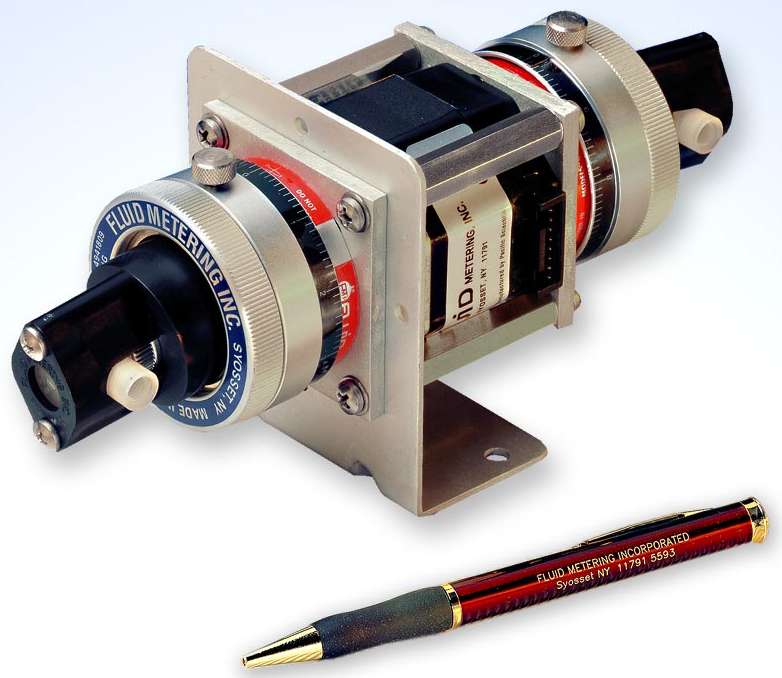

Aug 10, 2004 Ratio:Matic® Series Dual Head Dispensers and Metering Pump consists of 2 FMI independently adjustable pump heads direct coupled to variable-speed drive. Single rotating and reciprocating ceramic piston accomplishes both pumping and valving functions without valves. Pump-head size combinations allow dispensing ratios from 1:1 to 1,000:1. Product enables dispensing as low as 2 µL per dispense, as well as proportional metering of 2 fluids into one fluid stream at up to 4 Lpm continuous flow.

ITWRansburg Electrostatic Systems    Toledo, OH 43612
Aug 10, 2004 Made of stainless steel/Teflon®, TurboDisk2 Rotary Atomizer is virtually impenetrable to all fluids. It features serrated edge design and dual feed fluid system. High flow regulators and fluid valves allow for simultaneous paint push out while solvent washes feed tube and disk. Fluid section can be exchanged in minimal time due to quick disconnect features. TurboDisk2 is suited for wide range of coating materials, including waterbornes and high solids.

SMC Corporation of America    Tustin, CA 92780

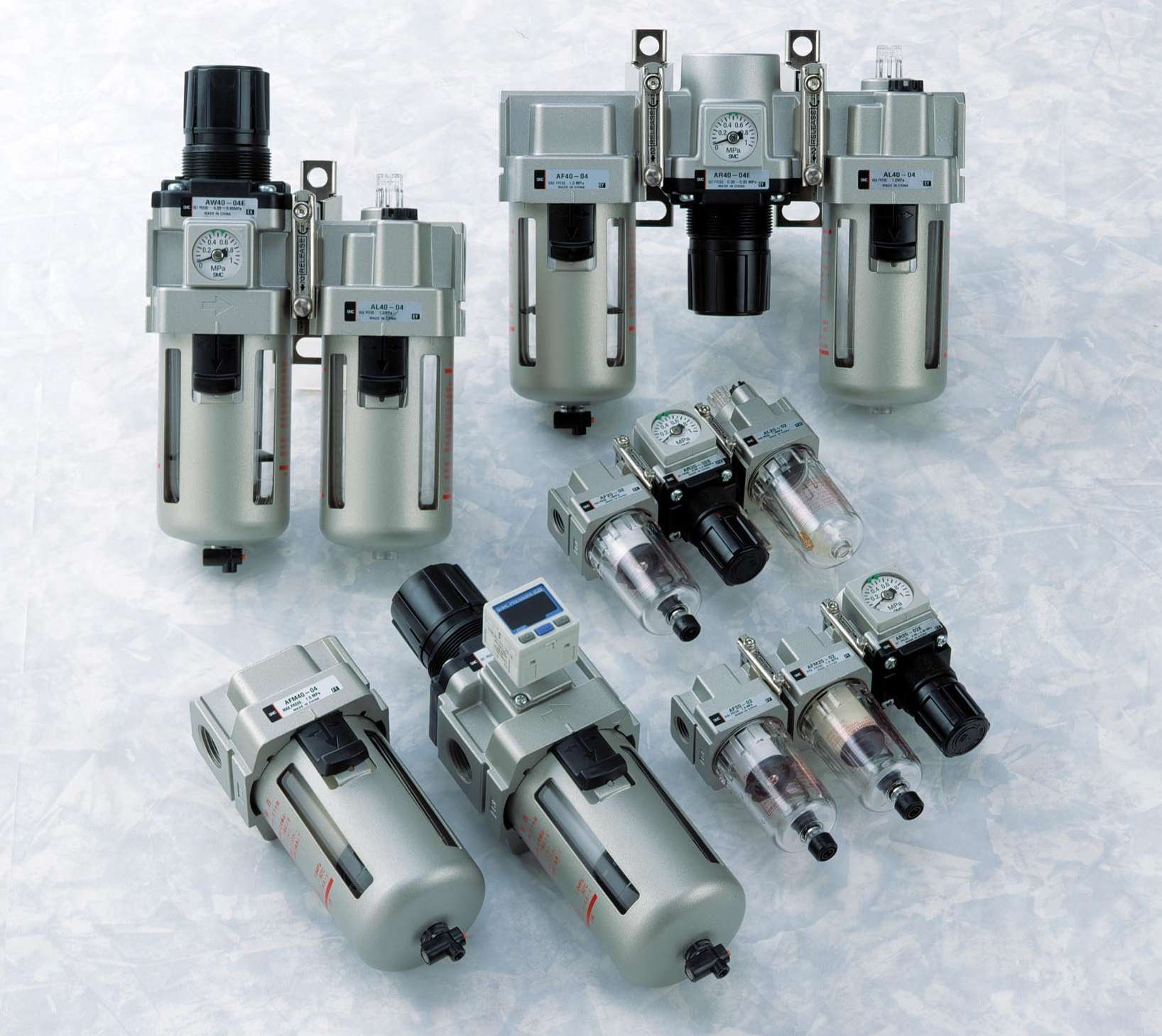

Aug 09, 2004 Modular Filter/Regulator/Lubricator (FRL) Series features port sizes ranging from 10/32 unf through 1 in. in NPT, metric, and G threads. Standard operating pressures are 0–145 psig with proof pressures of 215 psig. Regulator improves relief sensitivity from 14.5 psi to less than 5 psi, while increasing resistance to ozone. Built-in pressure gauge is standard. Lubricator has combination sight glass and graduated drip rate adjustment knob for setting lubrication rates.

American Stress Technologies, Inc.    Cheswick, PA 15204

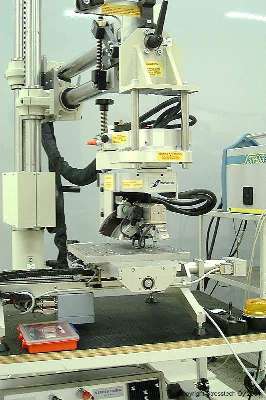

Aug 09, 2004 Used with XStress 3000 System, PC-controlled X, Y, Z Table positions parts and maps test information from part. User programs movement between each measurement and stores it as template. To retest, user opens template.

BT Prime-Mover, Inc.    Muscatine, IA 52761 8800
Aug 09, 2004 Eagle Series RTX features hydraulic design and Feather Control Reach and Retract Systemâ„¢, allowing operator microscopic control. Double Reach Model RTX30 has 3,000 lb capacity with 180° steering and max lift height of 360 in. Model RTX35 has 3,500 lb capacity and 270 in. max lift height, while Model RTX45 delivers 4,500 lb capacity and 360 in. lift height. All feature 3-stage, clear-view mast with nested channels and side-mounted cylinders for visibility.
