Techno Sommer Automatic    New Hyde Park, NY 11040
Aug 04, 2004 Suited for pick and place operations, SM series aids in handling of ferrous sheet materials when used with magnetic grippers. Cups can be molded of neoprene; blue silicone, which is heat resistant to 200°C; or white, tempered silicone. Ranging in diameter from 1-130 mm and height from 26-73 mm, products can be attached to robot arm with included hollow mounting stud. Torroidal, oval, bellow, and knobbed vacuum cups are also offered.

Strong Hold Products, Div. of Fabricated Metals LLC    Louisville, KY 40209-0043
Aug 04, 2004 All-welded, 12-gauge, Portable Construction Job Site Box includes lifting eyes for transporting by crane, and welded channels for lifting with forklift or pallet jack. Upper portion is provided with 2 adjustable shelves and gas shocks to aid in lifting. Lower portion has adjustable shelf on each side and shelf pockets located on each door.

Binks ITW Industrial Finishing    Glendale Heights, IL 60139
Aug 04, 2004 Stainless Steel and Zinc Tank is suitable for waterborne coatings when used with disposable tank liner. Lid and all wetted parts in lid assembly, including fluid tube, outlet elbow and fitting, and agitator shaft are 300 grade stainless steel. Zinc-Plated Tank features all zinc-plated parts and is intended for solvent-based coatings. Both feature 2.8 gal capacity and meet NFPA33 and OSHA regulations for flammable and combustible materials.

TAWI USA    Willowbrook, IL 60527
Aug 03, 2004 VacuCobra uses vacuum force from oil-free, air-cooled, rotary vane vacuum pump with vacuum of 150 mbar to create constant upwards striving motion. Operator uses fingertip control to move VacuCobra down to attach suction cup to load and can flip suction cup upwards to attach to side of load if necessary. Unlimited horizontal rotation of goods while being lifted is possible using bottom swivel. VacuCobra handles goods weighing up to 80 lb with lifting heights up to 70 in.

Raymond Corporation, The    Greene, NY 13778 0130
Aug 03, 2004 Facilitating pallet entry and exit, Model 112XD incorporates extended tip forks that are enclosed from underneath to provide smoother transition over bottom boards. It travels at 6.4 mph while loaded and 8.8 mph, unloaded. Features include 4-point lift system, shock dampening brushings, component-free undercarriage, and quick-change drive tires. Unit also has adjustable, heavy-duty casters; solid steel pull rods; and box-rail fork construction.

DeVilbiss , ITW Industrial Finishing    Glendale Heights, IL 60139
Aug 03, 2004 Able to attach to standard air and fluid hoses, MSHTE Spray Gun offers feathering capabilities with tapered needle. Spray method produces low pressure atomization with low particulate travel velocity for maximum transfer efficiency and minimal overspray and bounce back. Product is designed for wood finishing applications that require even distribution of body stains, wipe stains, sealers, and top coats.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jul 30, 2004 Digitally-controlled, Power Feedâ„¢ 10M features 4 drive rolls and optional push-pull capability for aluminum welding. Using Nextweld Waveform Control Technologyâ„¢, each weld mode meets standards for low spatter, weld bead profile, and arc shape. MSP4 user interface panel controls all parameters including weld mode selection, arc control adjustments, weld sequence, limit setting, and lockout. Infrared port allows transfer of data via Palm® OS based systems.

Asymtek    Carlsbad, CA 92008
Jul 30, 2004 DispenseJet® DJ-9000 utilizes method for applying solder ball reinforcement material to semiconductor packages that eliminates need for dispensing secondary underfill in PCB assembly. Unit shoots fluid stream of underfill adhesive as small as 100 µm wide between balls on CSPs and other BGA packages during semiconductor packaging process. Cured reinforcement material relieves stress at ball-substrate interface by reducing geometric stress concentration factor at that point.

Dadco, Inc.    Plymouth, MI 48170-2598
Jul 29, 2004 Compact Model SLN.090 Micro Nitrogen Gas Lifter has double-keyed guide rod, preventing rotation and eliminating need for additional guidance components. Micro 90™ gas spring, housed inside guide rod, provides reliable lifting force and facilitates repair. Forces on contact range from 40–200 lb and may be adjusted to meet individual requirements. Stroke lengths vary from 25–125 mm.

Anver Corp. - Anver.Com    Hudson, MA 01749
Jul 29, 2004 Utilizing foam vacuum pads, custom built Job Site End-Effector Systems bolt onto outdoor mobile cranes and boom extensions to handle tile, concrete, and glass panels that measure up to 10 x 40 ft and weigh up to 10,000 lb. Items are picked up from top surface without slings or blocking, facilitating alignment and installation processes and preventing damage. They employ fully redundant vacuum systems and are constructed with 4:1 safety factor.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Jul 29, 2004 Designed to facilitate withdrawing last 2–3% of liquid out of drum bottoms, dolly provides tilt pedal that raises one edge of drum 3 in. In tilting drum 10°, remaining liquid flows to lower side of drum where drum pump can be used to extract it. Steel drum dolly is suited for use with 55 gal drums and is available with capacities of 900 lb with hard rubber casters and 1,200 lb with steel casters.

Nederman, Inc.    Westland, MI 48185
Jul 29, 2004 Suited for use with central or portable high vacuum systems, Series 881 provides practical solution for hose storage. Usage reduces occurrence of hose scattered across floor, decreasing risk of tripping. Heavy-duty design, available with or without hose, includes ratchet function that locks hose in desired out-drawn position. Unit comes with automatic valve and microswitch and carries various lengths of 1.5 or 2.0 in. vacuum hose.

Newport Corp.    Irvine, CA 92606
Jul 29, 2004 Fabricated from U-16 polyurethane, NewDamp ND60 provides vibration-isolation support for low-load applications, such as breadboards, optical rails, laser systems, and workstations. Use of multiple-cone geometry yields isolation performance that is load-independent. Isolator does not require electronic circuitry, air hoses, or other supporting hardware. U-16 material is fully cleanroom compatible and meets NASA spacecraft outgassing specifications.

Autologik    Hartland, WI 53029-0616
Jul 29, 2004 Using vacuum approach to pick books from top of stack and place them on flat conveyors, Gemini book module offers continuous flat feeds rates to 70 books/min. Dual side-by-side loading trays allow operator to simultaneously load one side of module while dispensing from other. Able to handle books from 4 x 4 x .125 in. to 21 x 14 x 4 in., product is suited for order fulfillment applications.

Spantech, LLC    Glasgow, KY 42141
Jul 28, 2004 Sprocket-driven MicroSpan® Transfer features tight-knit MicroSpan chain, providing stable, flexible base for smooth transport of small, delicate products. Featuring stainless steel construction, plastic chain transfer is suited for washdown applications and can be either slave-driven by another conveyor or independently driven. It maintains product orientation and has max speed of 140 fpm. Both ends have profile height of .55 in., ensuring smooth transfers.

Snap-on Industrial    Kenosha, WI 53141 1410

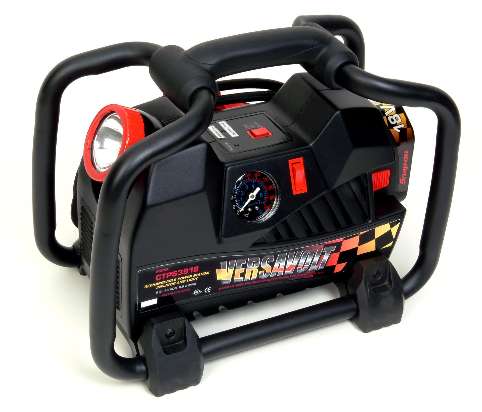

Jul 27, 2004 Battery-powered, Versavolt CTPS3918 eliminates need for multiple lines of air or external tanks when inflating vehicle tires and other inflatable objects. Fully charged 18 V battery pack can inflate 4 SUV tires to 32 psi in less than 18 min. Portable compressor includes large gauge that provides inflation information, glass-filled nylon housing and roll cage, rubber feet, and built-in light that illuminates night-time and dimly-lit workspaces.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Jul 27, 2004 Material Masterâ„¢ safely unloads bulk bags of non-free flowing powders and fills drums to programmed set point. System includes bulk bag discharger with flow enhancement, dust control, and discharge gate technology. It also incorporates inclined screw conveyor with variable-frequency drive, rotating sieve with magnet, dust-tight gain-in-weight drum filler, and auto/manual system controls. Product can be customized to meet application requirements.

Ameripack Corp.    Cranbury, NJ 08512
Jul 27, 2004 Double-entry, 24 in. Roto Shock Rack Cases are available in 10U, 12U, 14U, and 16U units. They protect electronics and instrumentation for shipment and deployment in virtually any environment. Frame has threaded steel rails and aluminum cross components forming H-shaped rigid configuration. All sizes come with 8 in., HM-245 elastometric shock mounts with load range of 40–150 lb. Standard rack depth front to rear rail is 24 in. and each lid is 4.5 in. deep.

Blacoh    Riverside, CA 92507
Jul 27, 2004 Available with polished and bead blasted 316L stainless steel surfaces, SENTRY Pulsation dampeners reduce pump pulsation, pipe vibration, and shaking up to 99%. FDA compliant products, suited for any application that requires sanitary pumping conditions, feature tri-clamp inlets and autoclave safe wetted parts. They are available from stock with pressure ratings to 80 psi and capacities from 4 cu in. to 5 gal. Custom models are also available.

Amer-Con Industries    Montville, NJ 07045-9737
Jul 27, 2004 Made with non-rusting materials, holder allows fishermen to enjoy beverage of choice during fishing, even while tending to rod and reel. Hands-free design clips onto clothing and features stainless steel rings that hold cans and bottles in place. Folding action allows lightweight item to fit into tackle-box, and snap action holds product closed when not in use.
