Snap-on Industrial    Kenosha, WI 53141 1410
Aug 31, 2004 Tool Wagon with Extended Cab System, Model KRLP7022 transports, organizes, and stores tools and equipment. With 90,000+ cu in. of storage space, roll cab and lockers feature 11 drawers. Top-drawer system has two 50 in. wide drawers with depths of 3 and 5 in. Front door rises to reveal stainless steel workbench. Anti-scrub steering system facilitates turning tight corners, allowing 150 in. outside turning radius, while twin cam disc brake system locks wheels in place.

JVI Vibratory Equipment    Houston, TX 77240-0564
Aug 31, 2004 Dual-drive, vibratory dosing feeder and storage hopper features infinitely adjustable potentiometer, which offers 0-100% feed rate control and allows extremely fine trickle of material. It is suited for spreading applications and processing of dry bulk food products, feed/grain, and chemicals. Feeder can be engineered to specific application requirements.

Waddington Electronics, Inc.    Cranston, RI 02920

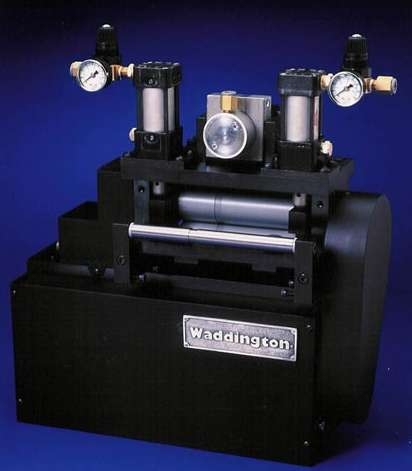

Aug 27, 2004 Waddington LD Series features brushless, low-inertia servo motor and closed-loop brushless feedback for absolute position feedback. Coupled with 2 in. dia smooth steel finish rolls; heavy-duty dowel pinned frame; permanently lubricated, anti-friction bearings; and anti-backlash gears between top and bottom rolls, products handle thin stock at speeds to 1,000 SPM. They come in sizes for stock measuring 3–25 in. wide and 0.125 in. thick, max.

Bud Industries, Inc.    Willoughby, OH 44094
Aug 25, 2004 With internal PCB card guides and single-piece aluminum bodies, boxes are finished in silver-colored powder coat. They feature black plastic bezels at front and rear as well as natural finished end panels that can be modified. Boxes range from 1.34 x 2.91 x 3.15 in. to 2.95 x 5.91 x 8.66 in. Suited for use for equipment designed in-house, prototypes, or small production runs, product applications include instrument and meter cases, junction boxes, and switch boxes.

Kinetic Systems, Inc.    Boston, MA 02131

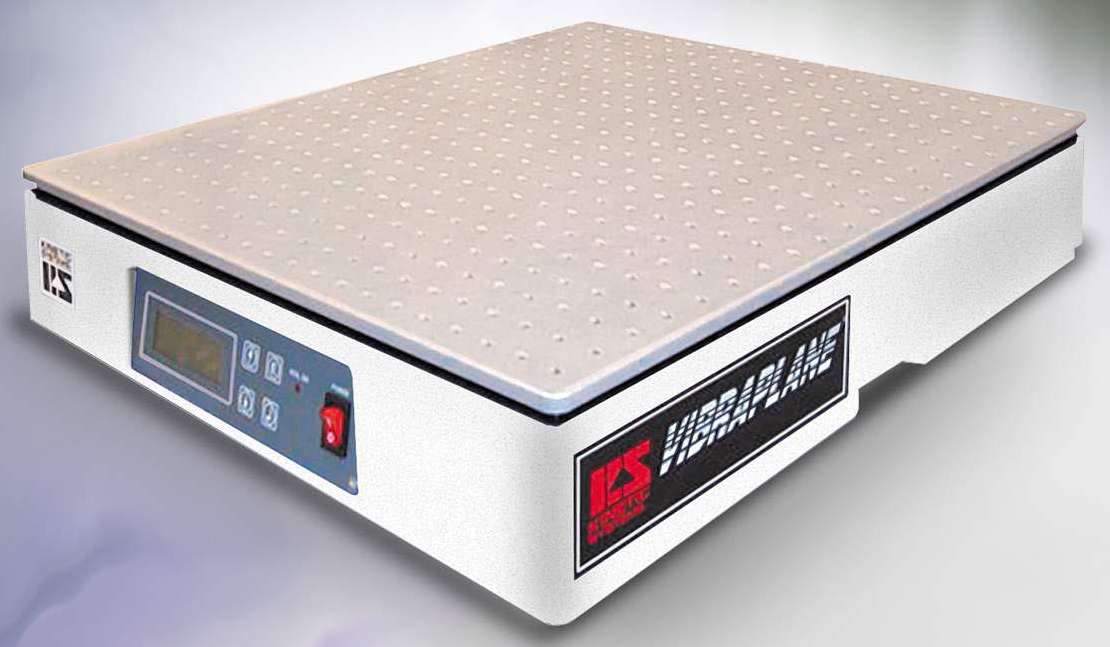

Aug 24, 2004 Available in 4 sizes, Series 8001 Active Electronic Vibration Isolation Platform isolates instruments from 6 translational and rotational modes of vibration. Portable unit features microprocessor control, has natural frequency of less than 1 Hz, and incorporates automatic leveling mechanism. Using active feedback, it damps vibrations from 1.0–1,000 Hz. For vibrations above 1000 Hz, unit provides passive vibration control. Load capacities are 330–600 lb.

LINPAC Materials Handling    Georgetown, KY 40324

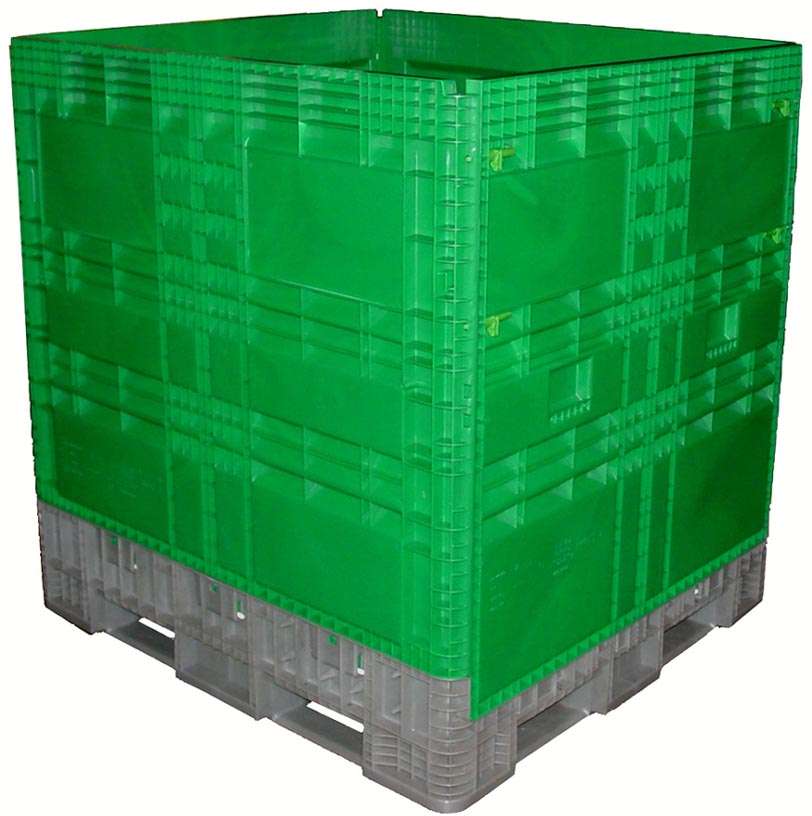

Aug 24, 2004 Returnable, polypropylene pallet T-PAKâ„¢ MAX3â„¢ has design that maximizes transportation cube efficiency and interior volume capacity. FDA-approved, RFID-ready product has dimensions of 44 x 48 x 50 in. Pallet offers 4-way fork entry and is designed with non-sequential folding action that enables container to collapse to 11 in. high. Max dynamic capacity is 1,000 lb.

New Pig Corporation    Tipton, PA 16684 0304

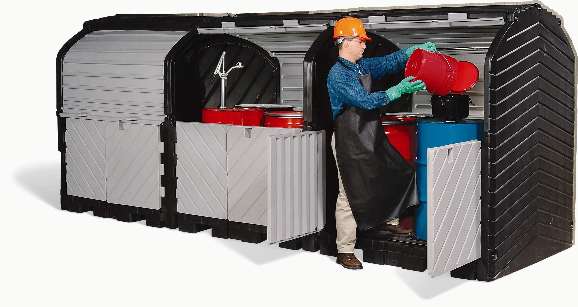

Aug 23, 2004 Suited for storage, dispensing, and waste collection applications, PIG® 8- and 12-Drum Hardcover Units have headspace for drums with pumps and funnels in place. Independent center walls allow 4-drum covered containment units to be placed side-by-side, forming larger units. Segregated sumps allow spilled liquids to be reclaimed from each 4-drum section for reuse or recycling. Lockable swing-open doors and roll-top covers open from both sides of units.

Schroff, Inc.    Warwick, RI 02886
Aug 23, 2004 With cold roll steel frame and reinforced structural steel corner angles, Tecnorack Series customizable seismic Zone 4 cabinets protect contents against shock and vibration. Products, available in heights from 15-47 U, widths to 1,200 mm, and depths to 1,000 mm, feature static load capacity of 2,000 lb and dynamic load-carrying capability of 1,600 lb. Options include vented sides, custom cut-outs, and shielded EMC/RFI version.

Blacoh    Riverside, CA 92507
Aug 23, 2004 Through utilization of PTFE diaphragm, TEF-GUARD® Pulsation Dampener is rated with working pressure of 2,000 psi and meets needs of pulsation control where aggressive chemicals are pumped. Available in 316L stainless steel, Alloy 20, Hastelloy C, and carbon steel, unit is suited for any type of small, high-pressure reciprocating pump including metering and dosing pumps.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Aug 23, 2004 Loctite® Analog Syringe Dispenser consists of pressure-time-vacuum system for 10, 30, 55, and 300 ml syringe packages. Unit can be operated in manual or automatic timed dispense mode to dispense dots or beads, or fill syringes. Features include 0-100 psi adjustable pressure regulator, 4 selectable timer ranges, vacuum suck-back, momentary or timed dispense cycles, and illuminated function switches.

Myton Industries, Inc.    Pembroke Park, FL 33009 2013
Aug 20, 2004 Model RTC-4829H6 provides more than 34 cubic ft of mobile shipping and storage space. Mounted on 6 in., heavy-duty casters, unit measures 48 x 29.5 x 57 in. It is available in 10 colors and can be customized with optional equipment such as doors, shelves, handles, dividers, casters, bases, and locks.

Autosplice    San Diego, CA 92121
Aug 20, 2004 Multi-Pick Feeder enables standard placement cells to pick and place multiple discrete interconnect pins in one cycle. It translates 24 mm tape carrying discrete pins from horizontal to vertical orientation, while ejector uses single motion to push multiple pins into retainer. Feeder mechanism can also make pitch adjustments up to 1–2 mm as pins are transferred from tape to retainer. Feeder waits on machine, and not vice versa.

Datum Filing Systems, Inc    Emigsville, PA 17318

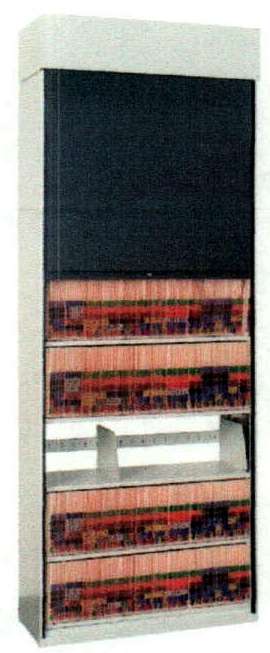

Aug 18, 2004 TambourDoorâ„¢ converts existing open shelf filing systems into lockable units in order to meet HIPAA mandates. Compatible with ThinStak®, Vu-Stakâ„¢, and 4Postâ„¢ Shelving systems, as well as systems from other manufacturers, product is available with 24, 36, and 48 in. wide shelving. Each side-mounting rail is of one-piece construction, and built-in handle facilitates opening/closing of door. Sliding door recesses back into housing unit and locks in place when closed.

Eagle MHC    Clayton, DE 19938

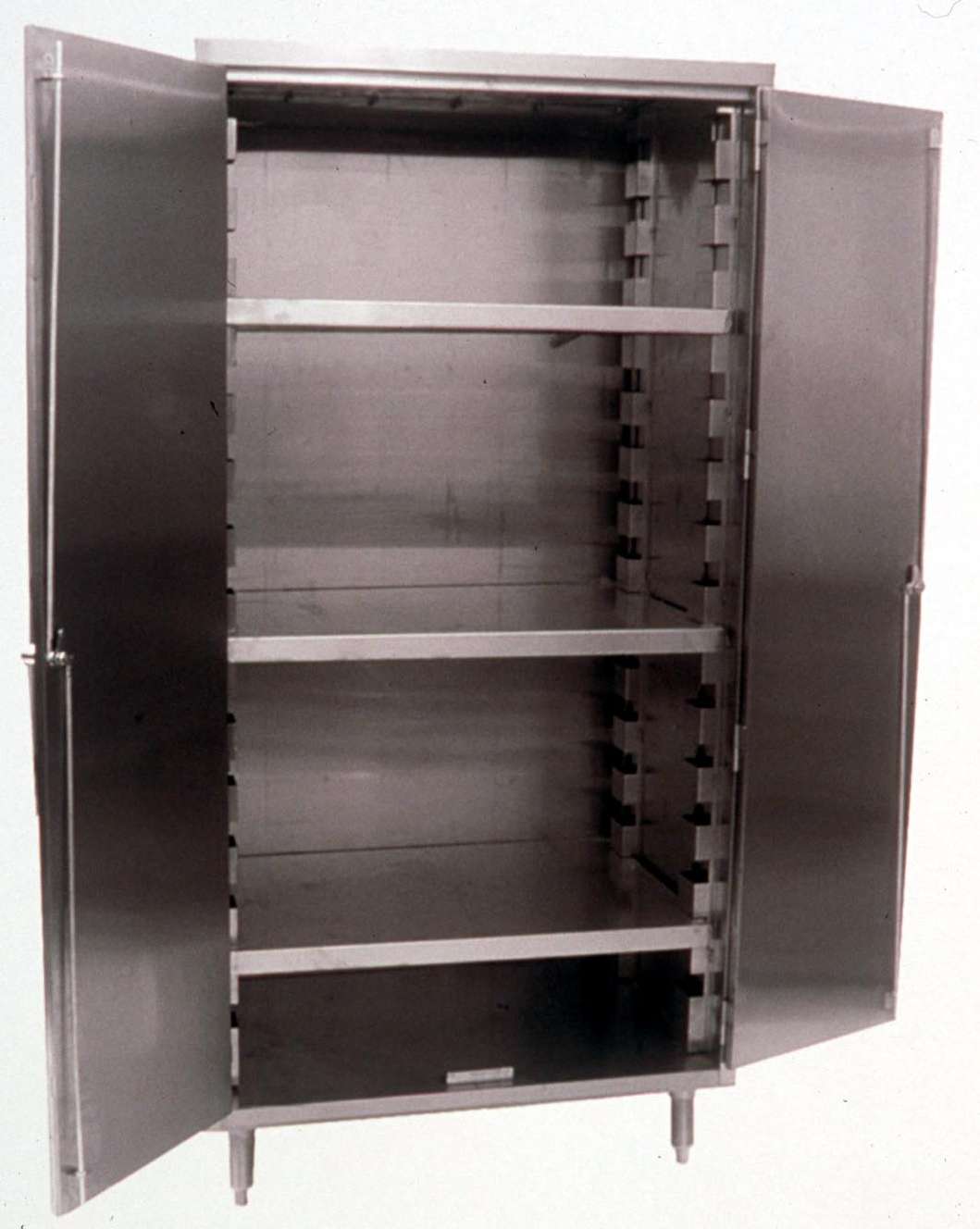

Aug 18, 2004 NSF-approved cabinets feature chemically resistant exterior made of 18-gauge stainless steel. Interior stainless steel shelves are adjustable in 4 in. vertical increments, while double-pan, 20-gauge stainless steel, hinged key-locking doors provide secure, dust-free protection of contents. Enclosed vertical storage shelves are available with flat or sloped top, and units come in stationary and mobile versions that measure 72 in. high and 36 or 48 in. long.

Colormax    Pitman, NJ 08071
Aug 18, 2004 Pulsomax series, which includes models C1E, C1K, and D1K, provides means of loading small quantities of materials directly into process equipment. Available with electric and pneumatic options, series incorporates site glass for viewing of material status. Unit is mounted directly at throat of machine and offers throughput of 650 lb/hr. Series includes Polymax plastic dust filter and control box with illuminated power switch and operation light with alarm function.

Mol Industries    Grand Rapids, MI 49504
Aug 18, 2004 ThermoDrive(TM) Sprocket-Driven, Hygienic Belting is 100% homogenous thermoplastic, minimizing chance of micro-organism contamination. Smooth hingeless top surface and radial profile drive design facilitate product release. Belts run on existing modular conveyor systems but have no modules or crevices that can harbor bacteria. Non-chordal sprocket wrap is scraper-friendly and allows smooth running, surge-free operation.

Martin Engineering    Neponset, IL 61345 9766
Aug 17, 2004 MARTIN® SQC2â„¢ is composed of individual 5.88 in. wide blade segments assembled on mainframe to remove residual material from belt’s load-carrying width. Each segment incorporates individual rubber buffer or cushion to absorb impact and allow splices to pass without damage. Cleaner is suited for use on conveyors with belt speeds up to 1,000 fpm, with mechanical belt splices, or that reverse or suffer rollback.

K-Tron Process Group    Pitman, NJ 08071
Aug 17, 2004 Available in gravimetric, volumetric, and loss-in-weight models, Bulk Solid Pump (BSP) feeders utilize positive displacement to feed free-flowing materials. They offer uniform discharge, consistent volume, and gentle handling. Vertical rotating discs create product lock-up zone, smoothly conveying material from storage hopper to discharge outlet and achieving true linear mass flow. Feed rates range from 0.07-7 to 1.6-160 cubic ft/hr.

Linde Lift Truck Corp.    Summerville, SC 29483-9621
Aug 16, 2004 With capacities from 3,000-5,500 lb, Series H internal-combustion, cushion-tire lift trucks are equipped with hydrostatic drive technology. They have no torque converters, clutches, mechanical transmissions, friction brakes, or differentials. VW OHC 4-cylinder engine powers all functions while governed at low rpms. Intended for continuous stop/go/forward/reverse-duty cycles, trucks include protective chassis belly pan and sealed, pressurized hydraulic sump.

NEUMATIC SHOPPE    Andheri (East), MUMBAI - 93   India
Aug 16, 2004 Filter unit is provided with sintered-bronze element, which varies in micron as per degree of purity to be achieved in filtration. Shield and separator arrangement ensure separation of condensed water/oil particles. Diaphragm-operated, self-relieving regulator has balanced poppet and flow-sensing venturi. Mist-type lubricator enables proportionate lubrication of airflow. Both filter and lubricator are provided with bayonet-type bowl guards for added safety.
