Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 28, 2005 Designed for use with ½ or 5/8 in. wallboard, 22.5 in.³ Steel and Wood Stud Boxes accept eleven No. 14, ten No. 12, and nine No. 10 wires. Bracket countersink allows for No. 8 wafer head or dry wall screws with minimal wallboard bow. Classified for 2 hr wall and ceiling fire resistance, products have Height Site alignment guide and box levelers. Wood Stud Box offers hands-free positioning with EZ Grip(TM), and box dimensions are 3.75 x 2.25 x 4 or 4.25 in.

Rexnord Industries, LLC    Milwaukee, WI 53214
Nov 25, 2005 LPC® 1050 and LPC® 1055 TableTop® chains have low pin centerline design (LPC) that eliminates product tippage on multi-strand conveyors, without need for magnetic corner tracks. Pitch length and top plate thickness resist chipping and breaking via LPC corner retention technology, and chains can be lifted up anywhere in carry track for cleaning and maintenance. Offered in 0.34 and 0.50 in. flight thicknesses, chains come in PS(TM) wear-resistant material as well as HP(TM).

PIAB Vacuum Products    Hingham, MA 02043
Nov 25, 2005 Silicone- and textile-free, hygienic Vacuum Conveying Systems prevent dust and fine particles from escaping into air and can also be used to collect residual powder that falls from part surface. Modular, flexible units are powered by pneumatically driven vacuum pumps and can transport up to 15 tons of material per hour. Made of AISI 316L SS, conveyors are available in diameters of 21, 33, and 56 cm and include filters capable of trapping particles down to 0.3 microns.

Pentalift Equipment Corp.    Buffalo, NY 14240 1510
Nov 23, 2005 Designed to position parts within reach of worker during unloading/loading of containers, Drive-On Ergonomic Bin Tilter offers platform sizes from 38 x 40 in. to 50 x 48 in. and tilt capability up to 85°. Beveled front edge on platform enables smooth entry and exit of manual pallet truck during positioning. Tilter is equipped with electro-hydraulic power unit, pre-wired NEMA 12 TENV motor, push-button controls, and lubricated-for-life bearings.

Colder Products Co.    St. Paul, MN 55114
Nov 22, 2005 Suited for use in food and liquid dispensing systems, Disposable Universal Dispensing Coupler (DUDC) bag-in-box fitment incorporates foil seal that protects product contents and provides evidence of possible tampering. IdentiQuik(TM) DUDC model, also available, incorporates RFID tag in closure. All models have thumb latch and audible click that indicates secure connection. This 38 mm DUDC fitment features silicone seals and 316 stainless steel springs.

Juki Automation Systems    Morrisville, NC 27560
Nov 22, 2005 Suited for SMT manufacturers, IFS-X system uses RFID technology as primary communication method between feeder and assembly machine to track components from initial receipt through placement. Traceability is conducted by intelligent feeders, which store component data such as part number, quantity, and lot number. Date and time board was assembled are also traced. Through automated part recognition, closed-loop system minimizes setup time and prevents human errors.

Powell Systems, Inc.    Fowler, IN 47944
Nov 22, 2005 Designed to eliminate potential injury from manual lifting and stacking of boxes onto shipping pallets, NO-LIFT comes with scissor-lift, transfer tables, and all necessary controls. Boxes from infeed conveyor are positioned on ball transfer table to form layer. Once layer is full, operator pushes button, and NO-LIFT neatly stacks boxes and lowers pallet for next layer. When full, pallet is removed via lift truck, and machine is ready to raise another pallet for loading.

Diamond Phoenix Corp.    Lewiston, ME 04241
Nov 22, 2005 Vectura Storage and Retrieval Machine (SRM), configurable to meet application requirements, can employs single- or double-masted cranes with ability to handle single, double, triple, or multi-deep storage, one or multiple loads at a time. Aisle-based system offers aisle transfer, tailored load handling, and cold storage capabilities as well as various I/O alternatives. Pallet conveyor systems, also available, are based on modular design.

Lista International Corp.    Holliston, MA 01746
Nov 21, 2005 Nexus(TM) Flow Rack uses gravity to deliver parts, components, and cartons for picking, kitting, or assembly in material handling applications. It accept any Nexus System accessory, including shelves, lights, power, and articulating arms. By adding worksurface and casters, Flow Rack becomes mobile workstation. Product measures 86¼ in. high x 48 in. deep and is available in 30, 36, 42, 48, and 60 in. widths.

Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 21, 2005 Measuring 4.25 x 4.25 x 1.25, Shallow 4-Inch Square Box is classified for 2 hr wall fire resistance and suited for masonry-furring strip style walls. Dual No. 8 screws facilitate RC1, RC2, or 4SBC mud ring installation, while 4 Auto/Clamps® eliminate need for separate cable clamps. Height Site alignment guide helps center device on reference mark. With 18 in.³ volume, product accepts 9 No. 14, 8 No. 12, or 7 No. 10 wires and can be used with ½ or 3/8 in. wallboard.

Carr Lane Manufacturing Co.    St. Louis, MO 63119
Nov 21, 2005 Made of steel or stainless steel, CL-200-LPA, CL-300-LPA, CL-400-LPA, and CL-500-LPA feature lock that automatically engages when clamp is closed and remains locked until manually disengaged by pressing lever before opening. This safety lock prevents latch clamp from being accidentally opened by bumping handle. Available in 4 sizes with holding capacities from 700-7,500 lb, all latch-action clamps have threaded U bolt for adjustability and matching latch plate.

Centricity    Girard, OH 44420
Nov 18, 2005 Suited for reciprocating (2-position) applications, OT Series provides open center for routing utilities or ancillary equipment, such as robots or pick and place devices. Unit can be supplied with electric or all-pneumatic drive and is insulated to isolate drive components from electrical transfer. Supplied completely assembled, wired, and tested, machine is offered with diameters from 24 in. to over 12 ft.

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 17, 2005 Primarily used with pneumatic or hydraulic cylinders, Metric Fork Heads (yokes) are available with clevis pin and circlip or clevis pin with snap-on securing collar. Fork body is manufactured from steel, with zinc-plated, blue passivated finish. Stainless steel versions are available upon request. Standard thread types are available in M4 x .7 through M20 x 2.5 thread sizes with pin diameters from 4-20 mm. Left-hand and fine-pitch thread types are also available.

Anver Corp. - Anver.Com    Hudson, MA 01749

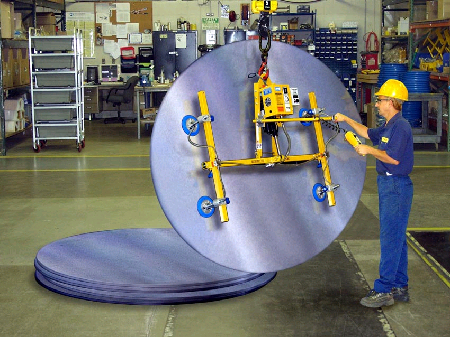

Nov 16, 2005 Featuring pear-shaped handle with ergonomic gripping area, ETC Series utilizes remote pendant control, which lets one person pickup and maneuver loads. Suited for gently handling awkward loads, unit is equipped with adjustable cross arms and vacuum suction pads with spring-loaded suspensions. Suction pads are offered in various shapes, sizes, and materials for lifting steel, plastic, fiberglass, and composite materials up to 500 lb.

Meese Orbitron Dunne Co. (MOD)    Saddle Brook, NJ 07662
Nov 16, 2005 Model 100P Bulk Linen Truck features tow hitch with recessed design that eliminates risk of injury due to contact with protruding hitch and prevents damage to walls, doors, and furnishings. Hitch, engineered with hole and pin design, enables bulk linen truck to be towed by variety of vehicles. Manufactured from powder-coated steel to withstand constant operation, it can be mounted on front and back of truck to permit moving several bulk trucks as a train.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Nov 16, 2005 Capable of reaching into deep cavities and machining challenging areas without compromising part accuracy or repeatability, powRgrip extensions are available in 120, 160, and 200 mm and allow use of tools from 2 mm to 3/8 in. Extensions feature holder, collet, and mini-press. With Swiss precision grinding TIR of less than 0.0001 in., system is compatible with REGO-FIX's PG 15 and PG 25 series holders offering PG 10 and PG 15 outputs.

Mimot - California, LLC    Irvine, CA 92618 2326
Nov 15, 2005 Based on positive displacement auger valve, Multi-Head Dispenser offers overall dispense capacity of 40,000 d/h. Ability to mount dispense needles with different diameters achieves variety of dot sizes; system chooses correct needle from information in component library. It uses program patterns from MIMOT placement system to create automatic dispense program and can dispense solder paste, adhesives, epoxy, or underfill for PCB production.

Dynamic Power Source, LLC    New Albany, IN 47150
Nov 15, 2005 Featuring 20 x 36 x 48 in. design, PowerBox(TM) 280MP utilizes 18 hp gasoline Kohler engine to power its 20 cfm Quincy compressor and 200 A/5,500 W generator/welder combination. Self-contained, hydraulically driven PowerBox 280HD, with similar characteristics as 280MP, suits vehicle applications that already utilize power take off system. Both models mount onto side pack of service body, into load space of pick-up or service body vehicle, or onto welder platform.

Henkel Loctite Corporation    Rocky Hill, CT 06067

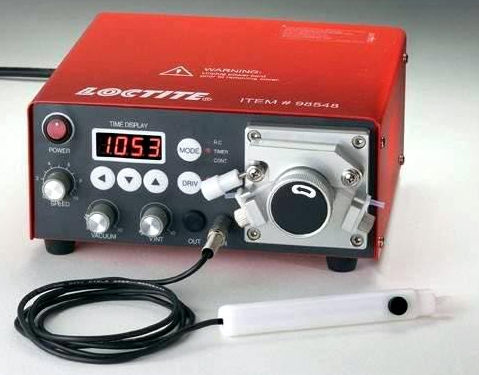

Nov 15, 2005 Electromechanically operated Loctite® Benchtop Peristaltic Dispenser uses pressure from mechanical rotor to move single-component adhesives or solvents with viscosities up to 5,000 cPs. Able to transfer adhesives directly from bottle to handheld dispense valve, volumetric dispense system suits applications that require dot to dot or continuous bead repeatability. System uses air-free dispensing method to produce drops as small as 0.001 ml or continuous bead at max rate of 6 ml/min.

Wieland Electric Inc.    Burgaw, NC 28425

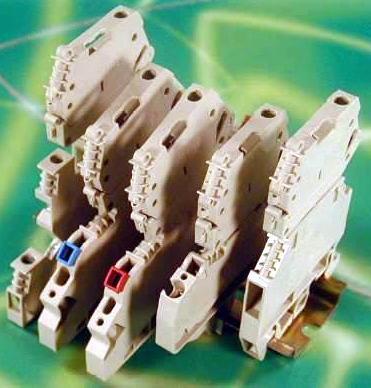

Nov 14, 2005 Suited for DIN Rail terminal blocks, 6 mm wide THSI series pluggable lever fuse holders provide 100% touch-proof protection in addition to spare fuse storage, ganging, and locking features. Products can be universally used with company's screw clamp, spring cage, and insulation displacement fuse blocks. Offered in 5 x 20 and 6.3 x 32 mm sizes, versions are available with or without blown fuse indicators for 12-250 V operations.
