Elma Electronic Inc.    Fremont, CA 94538

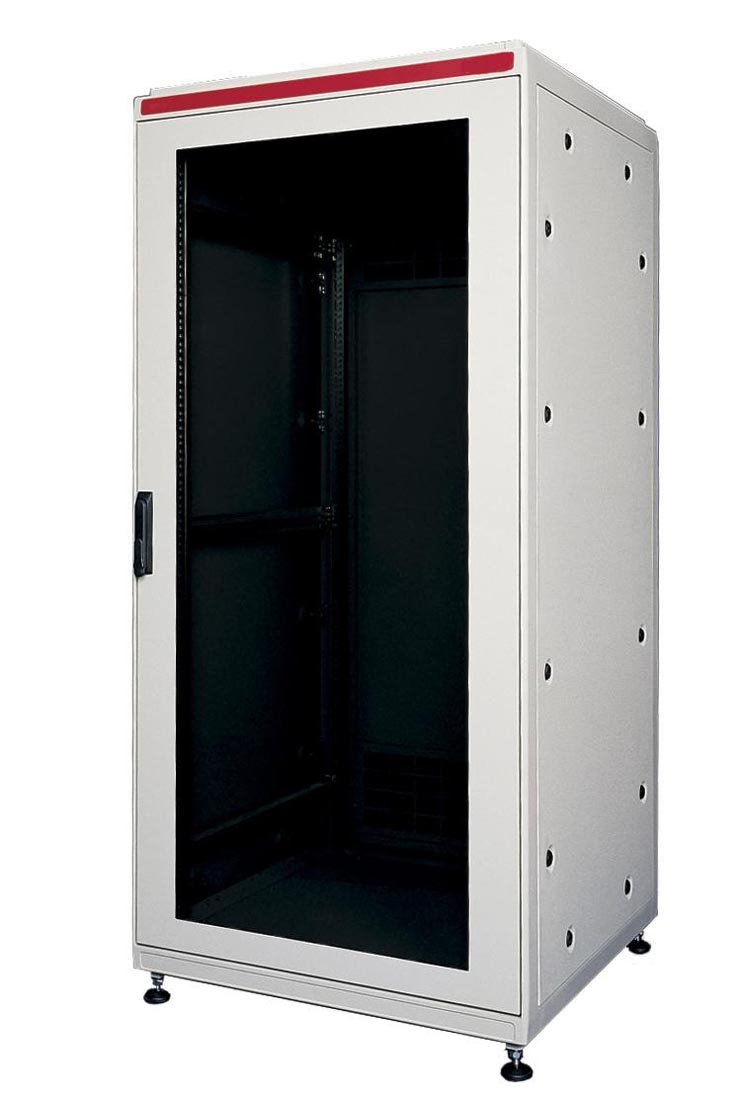

Nov 08, 2006 F-series Harsh Environment Cabinets feature EMI/RFI shielding and heavy-duty aluminum frame with integrated gasketing, corner castings, windstops, and key locking door. Reinforced doors are field-reversible and open 112°, with concealed hinges and multipoint locking for security and clean lines. Cabinets are offered in 19, 24, and 30 in. widths, up to 77 in. high, and are available in non-gasketed, NEMA12/UL-508, and Shielded EMC/NEMA styles.

Tharo Systems Inc.    Brunswick, OH 44212 0798

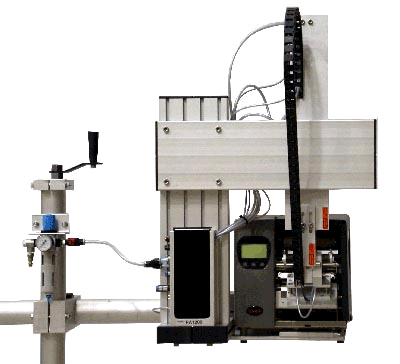

Nov 08, 2006 Multi-function Corner Wrap Model PA1200cw can print and apply label to front and side or front and top of product. After label is printed, it is stripped from liner and held by suction on tamp applicator pad. Tamp pad is mounted on swing arm that tamps label to front surface of carton. Roller completes procedure by wrapping label around corner of carton. Featuring all-metal construction, PA1200cw offers print width up to 4 in. and print length up to 13 in.

Conductix-Wampfler    Omaha, NE 68127

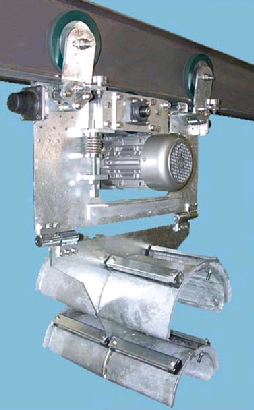

Nov 07, 2006 Optimizing cable life, Motorized Festoon Trolley can adapt to most any size and type of running beam. Drive system suspension is spring-loaded, which allows trolley to operate over uneven surfaces and follow less-than-perfectly aligned beams. Trolley is propelled by direct-drive gearbox, which minimizes routine maintenance, such as need to replace worn drive belts.

Rexam Cosmetic Packaging, Inc.    Torrington, CT 06790

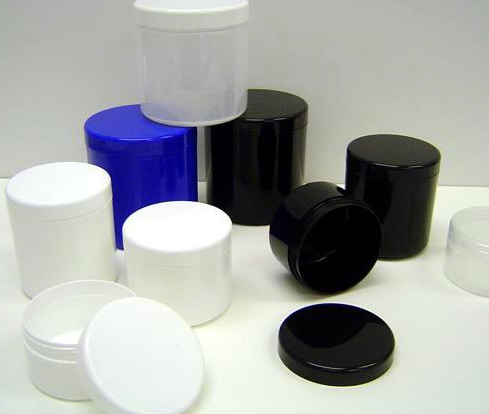

Nov 07, 2006 Available in 7 sizes and 2 diameters (71 and 87 mm), Expanded Jar series is produced via injection molding produces that results in tight-fitting closures, consistent wall thickness, optimal sheen, and sharp lines. PP jar walls are expanded outward so cap fits flush against jar. Along with customization options, jars are available with closures lined using any available lining material. Potential applications include powdered products, gels, and soup bases.

Lift Products, Inc.    Elm Grove, WI 53122 0349
Nov 07, 2006 Featuring all welded construction, Hybrid M-22 Lift Tables include heavy fabricated scissor arms, hard chrome plated hydraulics, and lifetime lubricated bearings as well as optimized cam rollers, pivot pins, and bearings. Tables are available in wide range of configurations with base model providing full 2,200 lb capacity.

Avery Dennison, Printer Systems    Philadelphia, PA 19111
Nov 07, 2006 With max speed of 30 m/min, Model ALS 206 applies preprinted product ID labels in widths up to 6.4 in. to items such as cartons and boxes. Unit has 15.6 x 19.6 in. footprint and accommodates up to 12 in. dia label rolls. Featuring die-cast, all-metal construction and corrosion-resistant cabinet, industrial-grade applicator can be optionally equipped to withstand direct water washdowns. Depending on requirements, unit can be mounted to apply labels to top, bottom, or sides of items.

Graco Inc.    Minneapolis, MN 55440
Nov 07, 2006 Designed to meter, mix, and dispense, Model PD44 is suited for epoxies, urethanes, polysulfides, silicones, and acrylates. Balanced inlet/outlet spool assemblies do not displace material while shifting from reload to dispense station, allowing pressure feeding of A and B components up to 1,200 psi during reloading while isolating materials from mixer inlet. Three drive options enable valve to dispense metered shots, multiple size amounts, or beads as small as 1 mm.

AeroGo, Inc.    Seattle, WA 98188 3909

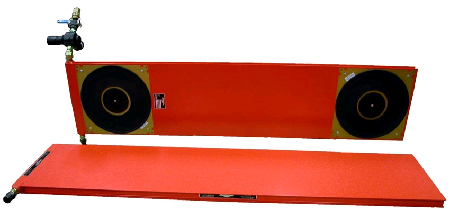

Nov 06, 2006 Using 0.005 in. of nearly frictionless air to lift loads, Aero-Planks offer flexible movement and can balance uneven loads with single air-pressure regulator. Units offer omnidirectional movement and can float loads down production lines as weights increase. Since they do not require permanent in-floor fixtures, travel paths can be changed as needed. Options such as operator handles, guide or no-load swivel wheels, and fixed roll chocks are available.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866

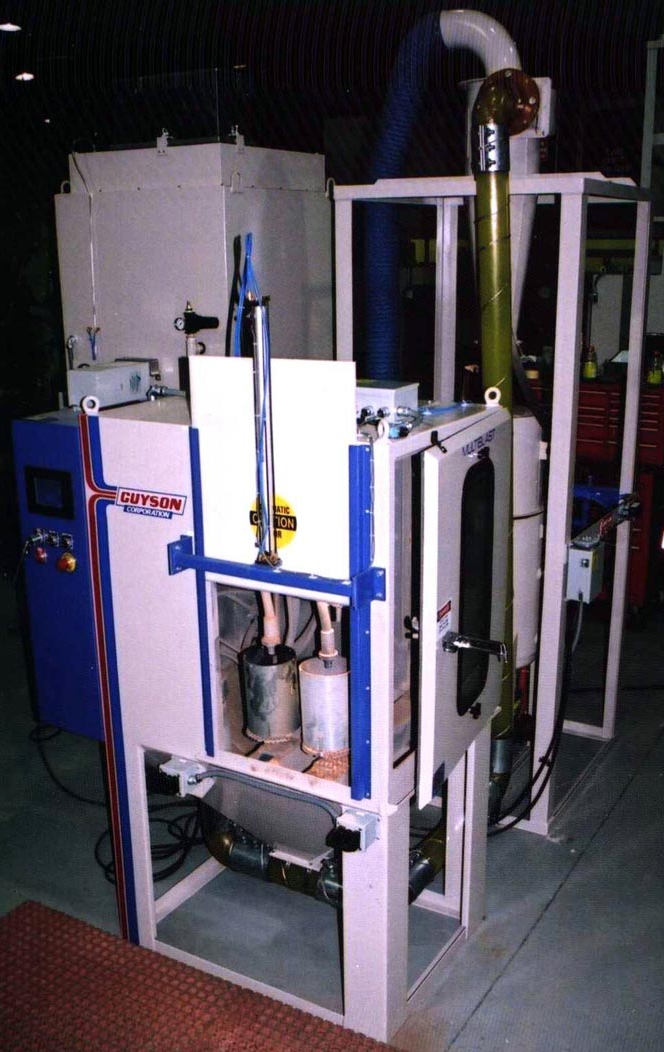

Nov 06, 2006 Measuring 42 x 30 x 75 in., twin spindle RSSA-6 blast cabinet employs 2 side-by-side spindles for pressure cleaning or surface preparation of IDs and ODs of cylindrical components. Each spindle is topped with mini-turntable fixture that secures component during processing, and 2 pressure-blast nozzles traverse vertically to provide thorough coverage of full part height. Programmed blasting routine is followed by automatic blow-off and media recharge cycles.

Colder Products Co.    St. Paul, MN 55114

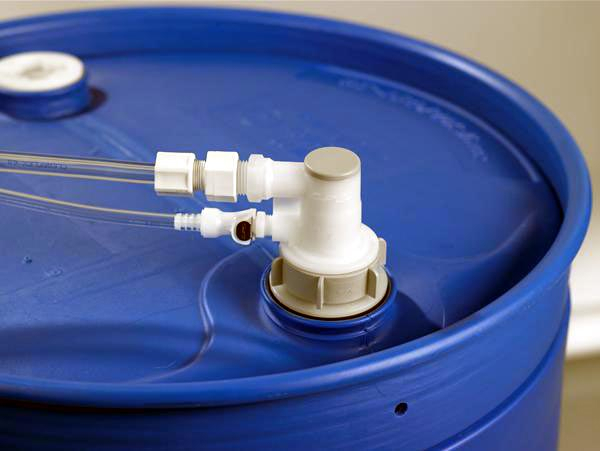

Nov 06, 2006 DrumQuik® PRO enables safe extraction of chemicals from drums, jerry cans, and other bulk transfer containers while reducing spills and enhancing workplace safety. Closed-system design combines recyclable bung closure and dip-tube with reusable quick disconnect coupler into one integrated unit, ensuring both sides are sealed from point-of-origin to point-of-use. Built-in vent port allows pressure feed connection, which accelerates chemical flow and prevents release of harmful vapors.

Elco Enterprises, Inc.    Jackson, MI 49201

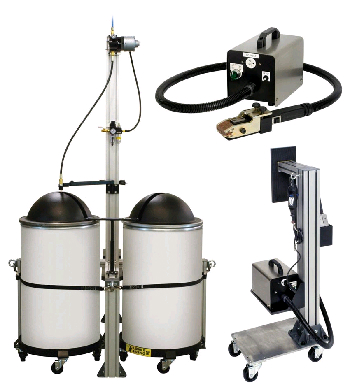

Nov 06, 2006 Constructed with heavy-duty extruded aluminum, Non-Stop(TM) Wire Dispensing System utilizes process that joins end wire from empty drum with start wire of next full drum. Smooth operating wire guide arm handles wire transfer during automatic change, with no manual operator action required. With Butt Welder, both butt welding and flash removal operation take seconds. System works with 1- or 2-station robotic cells and is available for 500 and 1,000 lb Accu-Pak drums.

Techno Sommer Automatic    New Hyde Park, NY 11040
Nov 03, 2006 Used in electronic and packing applications, MGP800 Series uses hardened steel flat guide to ensure optimal force and moment resistance. Magnetic sensors can be mounted to sense jaw position, allowing for positive feedback. Manifolding through bottom mounting surface eliminates need for air fittings and allows grippers to be mounted in close array. Series comes in 5 sizes, from 12 x 10 x 20 mm to 30 x 23 x 46 mm, and delivers up to 29 lb grip force.

TKF, Inc.    Cincinnati, OH 45203

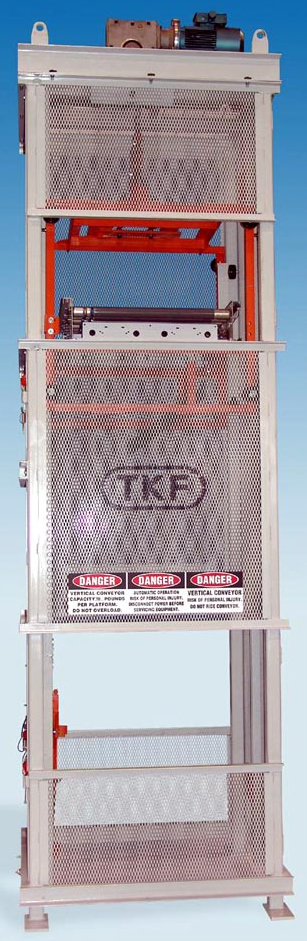

Nov 03, 2006 Driven by belt or chain, vertical reciprocating conveyors suit applications where items need to be moved between levels. Counterweighted lift mechanism minimizes hp and power requirements, while shaft-mounted drive reduces maintenance requirements. Load and unload points can be incorporated at any height and on any side, permitting Z, C, or right-angle flow. Load capacities are available to 6,000 lb, with vertical travel to 100 ft, and lift speeds range from 10-200 fpm.

Knaack Manufacturing Company    Crystal Lake, IL 60014
Nov 03, 2006 Featuring 16 gauge steel construction and 3/16 in. steel top mounting angles, WEATHER GUARD Van Solutions bulkheads fit Ford and Chevy vans. Bulkheads have 9 x 12 in. Dog Hatch(TM) in bottom for safe transportation of long-length material and include 14 in. wide steel shelving. Product's 57½ in. tapered high end panels allow closer installation to sidewall and provide additional cargo space in middle of both Sprinter and full-size vans.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965

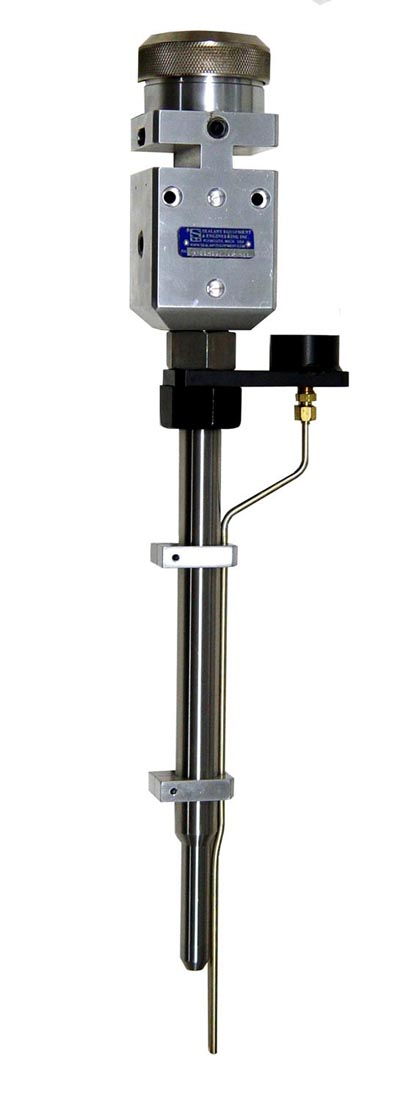

Nov 03, 2006 Designed for fluid control of level-seeking materials, Model 2600-001-006/7 Tip-Seal® dispense valve consists of double-acting actuator, 13.7 in. extension nozzle, and carbide Tip-Seal needle to prevent dripping at shut-off. For high-volume fluid transfer, valve can flow up to 6 gpm with 0.406 in. orifice nozzle. Along with 29:1 air-to-fluid power ratio for flow control, product has ¾ in. NPT fluid-inlet ports and is double-air-operated through ¼ in. NPT ports.

Hickory Hardware    Portland, TN 00000

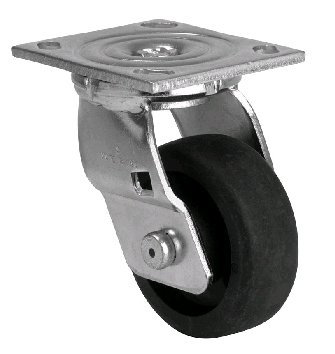

Nov 02, 2006 Designed for Faultless 400, 800, and 1400 standard and stainless steel casters, Faultless® Caster Reinforced Thermoplastic Wheel features 65D durometer rating and is resistant to water, chemical absorption, and steam cleaning. Waffle design of blended, reinforced thermoplastic materials allows standard operating temperatures from -20 to +250°F. High-temperature version operates up to +480°F. Delrin bushings, roller bearings, and sealed radial ball bearings are available.

Ampac Packaging, LLC    Cincinnati, OH 45246
Nov 02, 2006 Available in single/dual compartment configurations, UltraVOID(TM) 2 incorporates press-to-close and foldover sealing options for added security. Closure system is backed by visual void messaging when seals are breeched. Bag is made of thick gauge, 3-layer coextruded film blend, and uses ½ in. pouch seal on vertical sides for puncture and tamper resistance. Bag, receipt, and bottom pocket are coded with identical unique numbers.

Fellowes, Inc.    Itasca, IL 60143
Nov 02, 2006 Body Glove phone case for Motorola KRZR features Scuba material in black with silver trim. Rubberized, wetsuit material conforms to shape of Motorola KRZR for glove-like fit that helps prevent nicks and scratches. Product also features rapid release locking swivel clip for instant phone access, and removable knob which makes case easy to carry when clip is not being used.

RIDGID    Elyria, OH 44035
Nov 01, 2006 Measuring 11½ x 17½ in., JobMax(TM) Bag features double wall construction rated for all-weather use, and can hold close to 50 lb of weight. Six Neoprene® interior pockets hold fittings and various tools, while 3 large exterior pockets provide additional storage of tools and pressing jaws. Interior of bag is PVC-coated for water resistance, and bottom is abrasion-resistant. Additional features include drawstring closure and rubber grip handles.

Anver Corp. - Anver.Com    Hudson, MA 01749
Nov 01, 2006 Model 602.2 Hand Suction Cups have two 4¾ in. dia. pick-up heads that pivot to accommodate curved glass windshields as well as flat glass windows. Actuated by cam-style levers, pick-up heads have rubber grippers that create vacuum for secure attachment. Allowing users to put handle exactly where they need it, Anver Model 602.2 Hand Suction Cups should be used on surfaces that are free of oil, grease, or water, otherwise slipping could occur.
