Konecranes Americas, Inc.    Springfield, OH 45502
Nov 16, 2007 Suited for overhead lifting applications, CXT wire rope hazardous location hoists and cranes are designed to ensure optimal safety level required for explosive atmospheres. ATEX-certified and cCSAus-approved solutions cover range of lifting capacities, hoist duty groups, as well as bridge and trolley types for applications up to 80 tons. Customized for unique applications, products are available in single- and double-girder construction with profile or fabricated box girder design.

Brady Corp.    Milwaukee, WI 53201 2131
Nov 16, 2007 Injection-molded polypropylene Ready Access Storage Stations ensure lockout devices remain accessible and ready for use whenever needed in order to help meet OSHA guidelines, protect employee safety, and maintain productivity. Measuring 7 x 13 x 2.5 in., Ready Access Padlock Station holds padlocks, group lockout hasps, and tags. Ready Access Lockout Station, with 5 in. deep storage pocket and 4 detachable hanging hooks, offers flexible, organized storage for range of lockout devices.

Eastman Kodak Co. (Corporate Headquarters)    Rochester, NY 14650-0001
Nov 15, 2007 KODAK Cutting and Creasing Tables manipulate substrates used in mockup, comping, and prepress production stages of packaging design. Producing scored, cut carton in as little as 60 sec, they use tangential knives and 2- or 3-point creasing wheels. Substrate is kept in place with vacuum hold-down feature. Available sizes include A2 format at 25.6 x 17.72 in. and A1 format at 33.45 x 25.6 in.

Physik Instrumente (PI)    Auburn, MA 01501

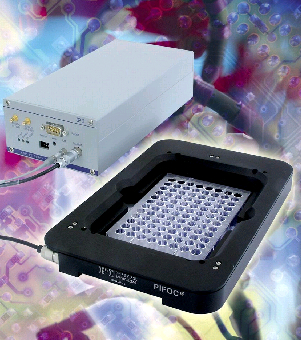

Nov 14, 2007 Designed for biotech research microscopes utilizing deconvolution and 3D imaging techniques, P-737 PIFOC® Piezo-Z Stage features up to 250 µm travel and nanometer precise motion under closed-loop control. Unit can be controlled through digital interfaces as well as by fast analog signals through high-speed 0-10 V input. Compatible with imaging acquisition packages, stage is suited for 3D imaging, Z-stack acquisition, autofocusing, scanning, and alignment tasks.

O.BERK Co.    Union, NJ 07083
Nov 14, 2007 Designed for use in laboratories, scientific/testing facilities, and non-critical healthcare situations such as in some outpatient services, Dosage or Dispensing Cups are offered 1, 3.5, and 5.5 oz sizes. Disposable cups are all natural LDPE and non-sterile.

LEWIS Bins+    Oconomowoc, WI 53066
Nov 14, 2007 Injection-molded in polypropylene plastic, Models PB1405-5, PB1808-9, PB1811-10, and PB1816-11 feature dimensions of 14 x 5 x 5 in., 18 x 8 x 9 in., 18 x 11 x 10 in., and 18 x 16 x 10 in., respectively. Offered in 6 primary colors, units include large front area for bar code placement or other identification label, as well as curved hopper front design for part retrieval. Wide stacking ridges with molded-in stops secure stacking and prevent slipping.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Nov 13, 2007 Combining unwinding, straightening, and feeding of coil stock, SpaceMaster Series 1 is available in 4 model sizes to process maximum coil widths of 12, 16, 20, or 24 in. Units can handle coil thicknesses to .125 in., coil ODs to 60 in., and max coil weight of 4,500 lb. Each system is mounted on common machine base, helping to maximize rigidity during feeding process. Overall footprint ranges from 12-15 ft.

Rittal Corporation    Springfield, OH 45504
Nov 13, 2007 Available in 3U and 6U versions with depth of 245 mm, Ripac Solid 19 in. subrack has torsion-resistant rails with double screw fastenings at both ends for applications involving shock and vibration. It has 2.5 mm thick aluminum side panels and extruded aluminum horizontal rails which are chromated to provide conductivity essential in EMC applications. Subracks are designed in accordance with IEC 60297-3-101, -102, -103, and comply with DIN EN/IEC 61587-1 and DIN EN 50155.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Nov 12, 2007 Robot Automation Dispensing Systems can apply 1- and 2-component adhesives, sealants, and lubricants onto manufacturer's products that require precision bonding, gasketing, potting, and sealing during assembly. Engineered, manufactured, and programmed to meet end-user specifications, systems include manual load-unload fixture, part tooling, safety components, system assembly and controls, robot, and EOA tooling. Other aspects of design cover dress-out and system integration.

PC Enclosures Inc    Lehighton, PA 18235-0276
Nov 12, 2007 Model WS-3050 flat panel LCD cabinet is custom-built, including color and size, for any LCD/HDTV ranging from 32-70 in. It is sealed, lockable, and secure, and can be used indoors and outdoors. Equipped with duel fan and filter system, it is also available with optional automatic temperature control.

FlexLink Systems, Inc.    Allentown, PA 18106
Nov 12, 2007 Enabling flexible routing of each product in process, Model X85 pallet system accepts RFID memory tags for communication between product, machine, line control, and MES solutions. Standard pallets come in 2 tolerance classes with positioning accuracy of ±0.12 mm and ±1 mm. Locating modules are available for indexing pallet in 1, 2, or 3 positions. For parallel processes, tunnel locating module allows users to lift pallet 240 mm to allow next pallet to pass below.

Habasit America (formerly Habasit Belting)    Suwanee, GA 30024
Nov 09, 2007 Suited for cooling crackers, chips, and tortillas, drying and draining fruits/vegetables, and breading meat/poultry, Model M1185 0.5 in. Flush Grid features Smart Fit rod design that provides maximum rod retention. It can be detected with common metal x-ray detectors used in food industry. Capable of transferring small product without damaging it, unit features open hinge design, large open area, and plastic construction.

John Deere    Research Triangle Park, NC 27709
Nov 09, 2007 With unified design suited for tight spaces, models 313 and 315 deliver 360° visibility as well as respective rated operating capacities of 1,300 and 1,500 lb. Standard machine width is 59 in. with 10 x 16.5 in. tires and reducible to 56 in. with 7 x 15 in. tires. Both models employ adjustment-free, heavy-duty drive chains; radial lift boom with 4-5 ft range; and integral, in-seat boom lock. Both machines are powered by PowerTech(TM) 4024T 4-cylinder, 2.4 L engine rated at 2,400 rpm.

Cogiscan, Inc.    Bromont, QC J2L 2N8  Canada
Nov 09, 2007 Designed to help reduce errors and improve traceability, Smart Reel uses RFID technology on reels of electronic components to complement use of traditional barcode labels during electronic manufacturing assembly. It eliminates manual scanning of reels by being automatically associated with feeders in machine, offline set-up area, or storage location. Solution can be used either with Smart Feeder system or independently.

Topper Industrial    Sturtevant, WI 53177
Nov 09, 2007 Equipped with air bag, Tilt-Cart(TM) enables workers to tilt container, partially unload contents, and return container back to upright position. Although cart was developed for partial unloading and return, it may also be used to completely empty all contents or fully load contents.

Schunk    Morrisville, NC 27560
Nov 08, 2007 KONTEC KSM allows several workpieces of same or different sizes to be held simultaneously. With vertical serration on inner side of 65 or 90 mm wide clamping rail, jaw modules can be positioned with one hand. To fix jaws, one screw has to be turned 180°. Design is resistant to contamination, and clamping method reduces vibrations while increasing workpiece stability during machining. Vise jaws, based on wedge-hook principle, allow safe clamping of workpieces.

Walls & Forms Inc.    Dallas, TX 75374
Nov 08, 2007 Featuring all-aluminum profile with precision-mitered corners, front-loading SekureFrame(TM) is suited for interior and exterior applications. Spring hinges can be removed or added as needed to create appropriate tension. Open back is standard, but backer option allows for presentation of permanent message when poster is not in place. Frame is offered in 9 standard sizes, including 8½ x 11, 11 x 14, 18 x 24, and 36 x 48 in., and can be custom made up to 46 x 94 in.

Metalfab, Inc.    Vernon, NJ 07462-0009

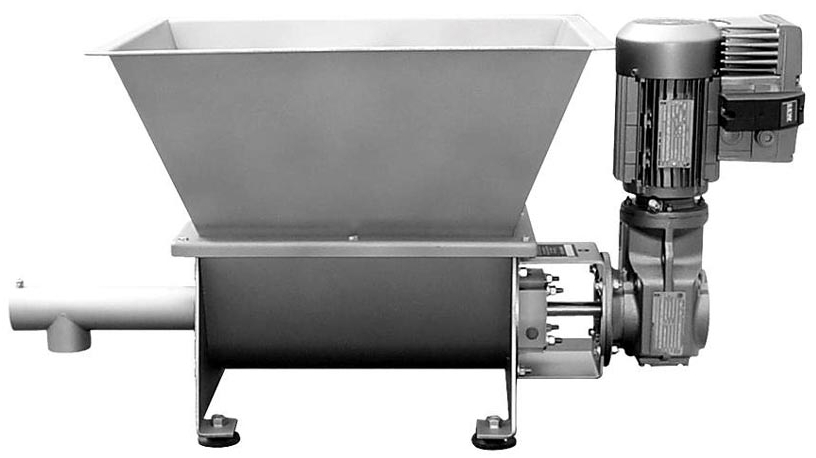

Nov 07, 2007 Designed to handle dry bulk materials, MetaTech Feeder is built with 2 moving parts - drive and screw - to optimize performance and minimize process downtime. O-ring sealed inline direct drive, Delrin® bushing, and agitator/conditioner screw help maintain consistent product density and completely fill feed screw for accurate (+1-1½%) feeding. Interchangeable screw/tube combinations are available in ½-6 in. sizes and permit feed rates from 0.05-550 ft³/hr.

Spiroflow Systems, Inc.    Monroe, NC 28110

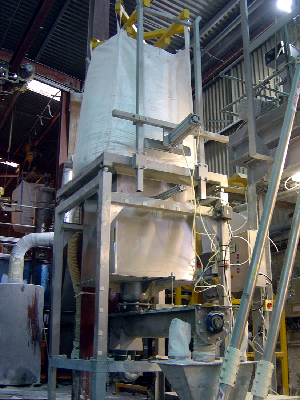

Nov 07, 2007 Designed to safely keep bag above floor level, Type 3 Loss-In-Weight Bulk Bag Discharger accurately dispenses from 22-3,300 lb batches by using electronic load cells directly below top bag holding frame. Dust and contamination free, operation can also remove partially discharged bulk bags. Product flows from chute into integral flexible screw discharge conveyor. Spout closure device lets operator untie bag through access door without releasing product until access door is closed.

Habasit America (formerly Habasit Belting)    Suwanee, GA 30024
Nov 07, 2007 Suited for light conveyor jobs in food applications, Habiblue thermoplastic round belt can be used in industries such as meat, cheese, pastries, and crackers. It features oil- and chemical-resistant composition TPU, polyurethane with resistance to hot water (belt does not absorb hot water and stretch), temperature resistance, and readily identifiable cobalt blue color.
