Biohit Inc.    Neptune, NJ 07753

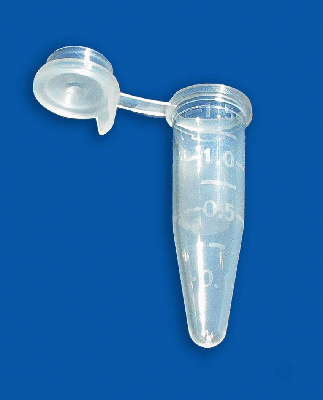

Jan 15, 2010 Available in 0.5, 1.5, and 2.0 ml sizes, ErgoTubes are RNase, DNase, and Pyrogen-free and suited for centrifugation, sample prep, boiling, and storage. All are packaged in tamper-evident re-sealable bags for user and sample protection. Made of virgin polypropylene, tubes have frosted area for marking on both cap and side of vial. They are available in clear as well as 8 colors.

IntelLiDrives Inc.    Philadelphia, PA 19152

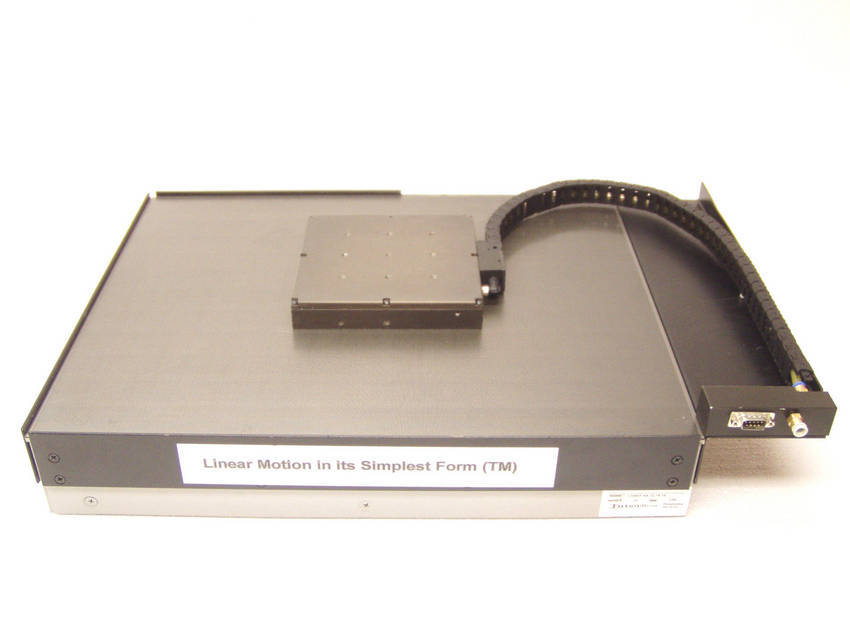

Jan 14, 2010 Utilizing planar linear motor technology, scalable forcer designed Cartesian system provides forces from 25-200 N, 1 micron motion repeatability, and travel length of 2 x 3 m. It is built with field replaceable cable track, enclosing electrical cable and air supply, as well as panel containing user electrical and air connectors for plug-and-play installation in less than 5 min. Direct drive single plane positioning stage consists of magnet-free stationary platen and dual axes moving forcer.

IntelLiDrives Inc.    Philadelphia, PA 19152

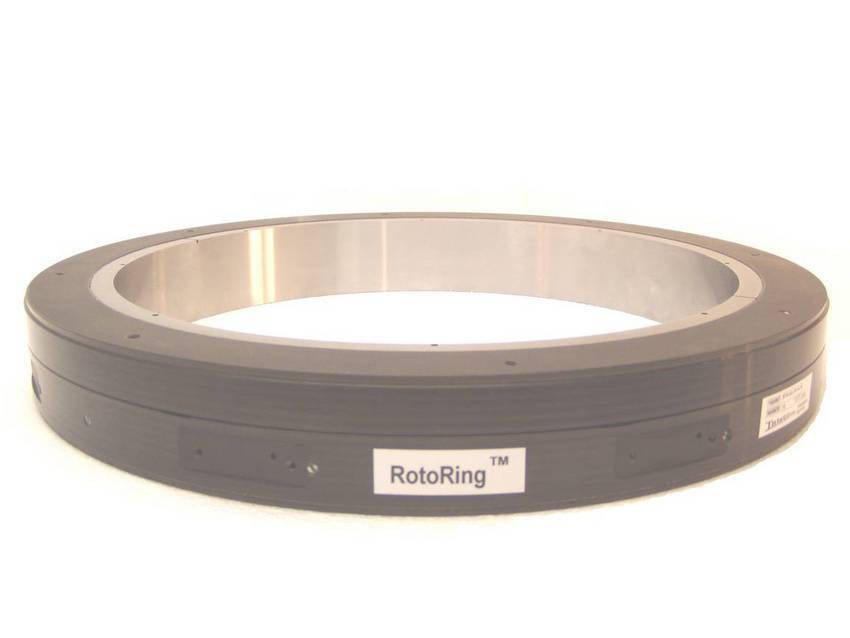

Jan 14, 2010 Direct drive rotary table, model RR-18-14 has height of 55 mm and delivers resolution of 1 arc-sec with torque of 32 Nm. Open center allows access to parts from inside and outside of table simultaneously. Unit eliminates backlash, friction and wear problems associated with worm, gear and belt drives. Combining axial brushless RotoLinear motoring modules and planar air bearings, model provides unlimited rotation with precise positioning and velocity controls.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Jan 13, 2010 Designed for challenging batch processing applications, Model T-50 features 40 x 50 in. blast cabinet with 30 in. dia x 15 in. deep basket that provides working capacity of 1 ft³ or 75 lb of components per batch. Rotation speed of basket is adjustable, so tumbling action of different components can be optimized. Fed by 3.5 ft³ capacity pressure vessel, 2 pressure-blast nozzles are mounted on adjustable brackets. Machine can be optionally provided with front discharge chute.

Akro-Mils, A Myers Industries Co.    Akron, OH 44301

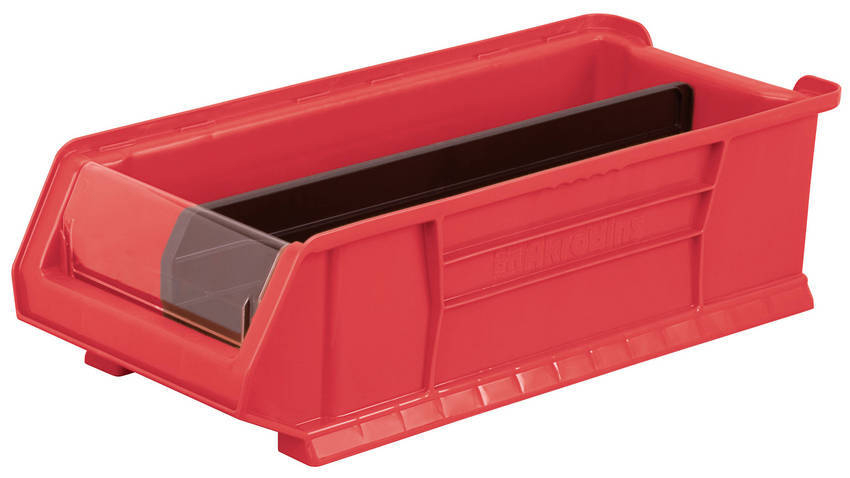

Jan 11, 2010 Available in 24 x 11 x 7 and 24 x 18.25 x 12 in. sizes, heavy-duty Super-Size AkroBins® are molded of polypropylene and are unaffected by weak acids or alkalis. They are water, rust, and corrosion-proof, are autoclavable up to 250°F, and come in red, yellow or blue colors. Reinforced side ribs prevent bowing when stacked, while anti-slide stop prevents stacked bins from shifting forward. Other features include large handle molded into back of bin and large label area on front.

Kardex Systems, Inc.    Marietta, OH 45750
Jan 11, 2010 Megamat Vertical Carousel is fully enclosed system of vertically arranged shelves that provides quick-access storage for class 1 to 100,000 clean room environments. Bar code scanning is available while picking, and integration of inventory management and control software enables vertical carousels to perform functions such as product segregation and labeling. Automated picking/order verification also provide quality assurance documentation.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Jan 08, 2010 Equipped with RFID warehouse navigation unit featuring Horizontal Positioning and Rack Height Select modules, ergonomic EKS 210/312 communicates with ground and WMS to identify position and automatically navigate to proper location in aisle. EKS 312, capable of lifting up to 1,200 kg loads, has 9,500 mm max lift height and 1,650 mm turning radius. With 1,000 kg payload capacity, EKS 210 has 6,000 mm lift height and 1,550 mm turning radius.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Jan 08, 2010 Powered by 2 maintenance-free, 12 V gel batteries, Model EME 114 achieves outputs up to 1,000 W for drive engine or 800 W for lifting engine. Pedestrian-controlled truck travels at speed of 5 kph with climbing gradients of 8% without load and 5% with load. Built-in charger can be plugged into any 230 V socket. In addition to externally visible charge status display, energy management system includes operating hour meter and feature that automatically blocks unintentional start-up.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Jan 08, 2010 In addition to multifunction tiller head and optional sideways battery removal, EJE series offers clearly arranged rocker switches with contactless electronics that ensure safe operation. Range 1 models EJE 116/118/120 have 494 mm front length to promote maneuverability and support loads to 2,000 kg. Range 2 models EJE 220/225 have 2,500 kg max capacity and are built to withstand continuous application with heavy loads as well as 3-shift operation under rough conditions.

Schunk    Morrisville, NC 27560
Jan 07, 2010 Based on electro-permanent magnets, MAGNOS Clamping Systems require short pulse of electricity to activate and deactivate magnetic field. Poles' quadratic geometry ensures uniform clamping force. Different pole sizes of 32, 50, 75, and 100 mm are available, enabling holding forces to be tailored to requirements. Acting as workpiece support, pole extensions allow user to position different workpieces rapidly and precisely, optimizing capacity of machine.

Schunk    Morrisville, NC 27560

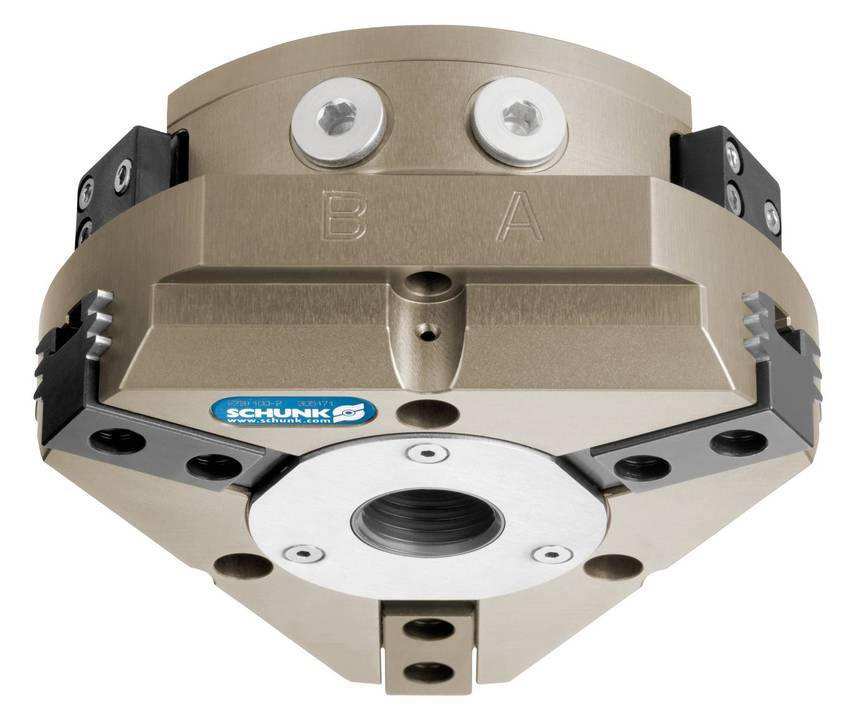

Jan 07, 2010 Available in 2 stroke length versions, PZB-plus 3-finger centric grippers include 6 sizes, from 64-200, fitted with multitooth guide. Devices feature central bore designed as sleeve that is equipped with female threads for add-ons and can be used to supply material or as ejector. Threads are integrated on upper face of gripper as well as on cover plate for mounting add-ons such as optional gripping force safety device, jaws, valves, and sensors.

J. W. Winco, Inc.    New Berlin, WI 53151
Jan 07, 2010 Made of C45 hardened steel with black oxide finish, RoHS compliant MN 140 series fastening clamps have maximum pressure of 10 bar and work pressure of 6 bar. Low-profile pneumatic clamps feature 2 arms, which exert outward force from center.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Suited for injection molded components and packaging, Belt Conveyors come in horizontal and vertical configurations. Ten different versions are available ranging from mini conveyor belts with construction height of 1½ in. to heavy-duty conveyors with capacity of 200 lb/ft. Measuring 50-2,600 mm, units allow for continuous material flow, and any combination of routes is possible. Conventional and proportional drive options are available.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Able to grip and release on command, Internal Diameter Gripper (IDG) is suited for use with parts that are heavy/fragile or have irregular shape. Design distributes force evenly over entire contact area, replaceable rubber strips ensure secure grip, and nose adapter can be customized for locating or part stabilization. Product offers alternative clamping method to bladder grippers and automated or magnetic clamps.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Employing rare earth magnets, GRM Magnetic Gripper is suited for lifting and moving steel sheets, blanks, stamped parts, and completed assemblies in automated press-to-press transfer, robotic pick-and-place, and manual/automated machine loading and unloading applications. Heavy-duty solution grasps odd-shaped or perforated parts and operates effectively in any orientation. Operating up to 140°F, gripper de-stacks without double-blanking when appropriate magnet is selected.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Featuring heavy-duty stainless steel fingers, Custom Robotic Bag Gripper Tool is capable of lifting 25-60 lb bags off roller conveyors. Tool requires one pivot point with one cylinder to rotate fingers, reaching in between rollers to secure bag underneath. Unit solves difficulty in securing bags that deform due to heavy contents, such as salt, food products, and dry concrete mixtures.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Adjustable using hand wheel, Adjustable Bag Gripper handles bag weights from 5-100 lb and bag sizes from 12 x 12 x 3 in. to 21 x 35 x 6 in. Unit uses 5/8 in. diameter stainless steel fingers to withstand harsh manufacturing environments. Automated deck plates center bags on conveyor and ensure accurate bag drops for tight packing on pallet. To accommodate mixed loads, gripper can be fitted with servo drive to automatically adjust while on-the-move.

Air Technical Industries    Mentor, OH 44060

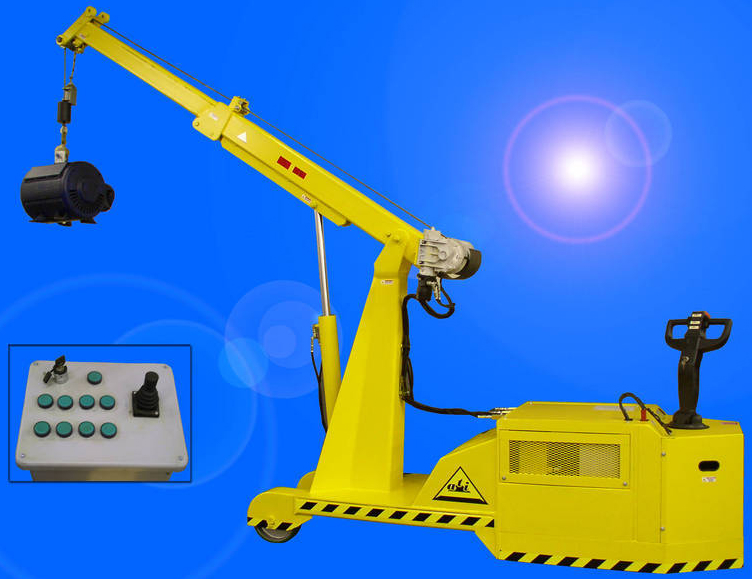

Jan 06, 2010 Operated via wireless remote or pendant control, Reversible Boom Crane safely lifts, handles, and transports heavy loads in narrow passageways. Available capacities range from 1,000-20,000 lb, with lifting heights of 24 ft and boom reach up to 18 ft. Powered by 24 or 48 Vdc battery, heavy-duty welded steel crane is mobile on bearing equipped non-marking polyurethane wheels for smooth, quiet operation. Most functions are hydraulically operated, propulsion is electro-mechanically driven.

Raymond Corporation, The    Greene, NY 13778 0130
Jan 06, 2010 Designed for smooth transport of products and stacking of pallets, 3-wheel, sit-down Model 4450 offers selectable travel speeds and short head length, which minimizes turning radius, making it suited for tight spaces in warehouses and loading docks. ACR System(TM) on both drive and lift systems provides consistent truck performance as battery discharges, while 4-cylinder mast eliminates center free lift cylinder so operators can clearly see load.

BinMaster    Lincoln, NE 68507

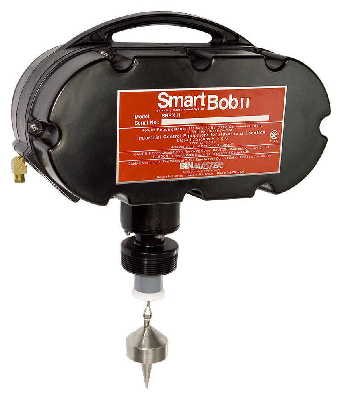

Jan 05, 2010 Enabling remote wireless inventory management of stored material, BinLink® consists of SmartBob2 and SmartBob-TS1 sensors mounted on bins, wireless or wired data communication network, gateway to provide connectivity to PC or IP network, and data collection software that can be viewed by authorized user via Internet connection. System features encryption and authentication functions for security, and can send email and cell phone alerts when bin conditions meet user-defined thresholds.
