Eriez Magnetics    Erie, PA 16506
Nov 26, 2012 Available in manually cleaned basket style with reusable liner, or fully automatic self-cleaning design for media-free filtration, Solids-from-Liquid Centrifuges remove metal chips and fines that collect in machine tool sumps and large central systems. Whether used on single machine, component, or as supplement to complete paper media filtration/recycling system, centrifuges can remove solids typically missed by barrier filtration and minimize or eliminate filter paper, bags, and cartridges.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Aug 13, 2012 Utilizing 1 L polypropylene bottles for sample security, Avanti J-26S features dual-system rotor recognition that automatically detects which rotor is installed and prevents it from being run above rated speed. Fixed-angle, swinging bucket, elutriation, continuous flow, and zonal rotors offer speeds up to 26,000 rpm and rcf up to 81,800 (x g). System can process up to 6 L of fermenter output, run 24 microplates simultaneously, and separate live-cell populations with centrifugal elutriation.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Jun 22, 2012 Operating at less than 47 dBa, Optima MAX-TL tabletop ultracentrifuge has 120,000 rpm max speed and 657,000 x g max rcf. Entry-level instrument lets users set multiple programs of up to 5 steps each using color LCD touchscreen, which is accessible in 9 languages and offers context-sensitive onscreen help. While speed can be controlled within ±50 rpm of set point, temperatures can be set from 0° to +40°C in 1°C increments and controlled within ±2°C of set point.

Munson Machinery Co., Inc.    Utica, NY 13503
Dec 26, 2011 With infinitely variable rotor speed from several hundred rpm to 5,400 rpm, 34 in. sanitary stainless steel model CIM-34-SS performs coarse to fine grinding (down to 400 mesh) of friable powders, flakes, and granules into controlled particle sizes. Desired particle size distribution is obtained by controlling rotor speed, and vertically orientated mill housing minimizes footprint while fostering access to all product contact surfaces for cleaning/inspection.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Sep 21, 2011 Offered in refrigerated or constant-temperature models, Allegra X-14 accepts variety of tubes and adapters to meet needs of range of applications. With fixed-angle rotor, max speed is 10,200 rpm and rcf is 11,400 X g, and with swinging-bucket rotor max speed is 4,300 rpm and rcf is 4,300 X g. Depending on rotor and labware, X-14 can process up to 148 tubes/cycle. Refrigerated model offers a temperature range of 2-40°C and constant-temperature model is pre-set to 20°C.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Aug 02, 2011 Used for general research and clinical sample preparation, 18 in. wide Allegra X-30 Series is available individually or packaged with appropriate rotors and labware. Unit accepts 13 different rotors and range of labware to accommodate variety of samples and run conditions. Available rotors include SX4400, 1.6 L swinging-bucket rotor and S6096 microplate rotor. Latter accommodates 3 x 2 microplates or 2 x 1 deep-well plates. UI aids programming and promotes visibility across lab.

Thermo Fisher Scientific    Waltham, MA 02454
May 19, 2011 Fiberlite LEX rotor series models include Fiberlite F10-4x1000 LEX with relative centrifugal force (RCF) up to 16,880 x g, and Fiberlite F12-6x500 LEX with RCF up to 24,515 x g. Suited for use in biomedical and microbiological laboratories, rotors are corrosion- and fatigue-resistant. They feature dual-locking lid that provides sample containment when rotor is transported to biocontainment hood and liquid containment to prevent biohazardous samples from escaping to surrounding environment if spilled.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
May 18, 2011 Optima MAX-XP Tabletop Ultracentrifuge integrates MLA-50 High-Capacity Rotor with 194 mL capacity that maximizes number of samples that can be processed per run. Aluminum rotor also accepts g-Max tubes to adapt small samples with no impact on G-force generated by it, as well as wide-neck OptiSeal tubes or Quick-Seal tubes. Centrifuge's customizable interface supports multiple users and offers context-sensitive on-board help, while 9 native languages are available via menu selection.

Thermo Fisher Scientific    Portsmouth, NH 03801
Dec 20, 2010 Able to spin at 8,500 rpm (15,860 x g) in as little as 9 min, Sorvall® RC BIOS centrifuge integrates 6 L Fiberlite carbon fiber rotor and true fit 1 L Nalgene bottles to optimize yields and processing time. Footprint and low noise level allow in-lab placement, and refrigeration system ensures sample quality and reduces lot-to-lot variability. Automated lid lock control protects users and samples while facilitating system opening/closing.

Thermo Fisher Scientific    Waltham, MA 02454
Nov 16, 2010 With max capacity of 12 L, Sorvall RC 12BP Plus can process up to 12 blood bag systems or six 2,000 mL Thermo Scientific Nalgene bio-bottles. Run-to-run reproducibility is ensured by Accumulated Centrifugal Effect(TM) function, which automatically compensates for variations in acceleration due to full or partial rotor loading. Precise control of acceleration and deceleration rates ensures that sample integrity is retained, even during delicate low-speed pelleting applications.

Tema Systems, Inc.    Cincinnati, OH 45249
Sep 01, 2009 Short Bowl Decanter sedimentation centrifuge for stage #1 lactose dewatering position features overhung bowl and scroll with bearing support at drive end only, allowing for simpified inspection after CIP cleaning by removing bolts on front cover to see discharge end of bowl and scroll. Removable inspection panels on housing allow for visual inspection of outside of bowl and shaft and seal area between back of bowl and product housing back partition.

Koehler Instrument Co., Inc.    Bohemia, NY 11716
Mar 05, 2009 Heated Oil Test Centrifuge incorporates LCD touchscreen control panel that can be used to govern centrifuge rotation speed, turn heat on/off, set duration of test, and choose type of rotor assembly and corresponding glassware to be used during test. Manufactured to meet Class 1, Division 2 explosion resistant rating, system conforms to range of Standard Test Methods and features top-opening lid that provides access to rotor and tube holders and features 18½ in. dia viewing window.

Almco, Inc.    Albert Lea, MN 56007 2751
Oct 01, 2008 Designed to automatically separate fine particulate from water-based solutions in metal parts deburring equipment, self-cleaning Centrifuge Recycling System produces waste in form of clay-type material that is environmentally safe and has no special removal or disposal restrictions. Single-stage SSC-40 handles small vibratory finishing applications, while dual-stage DSC-40 provides higher efficiency cleaning. Both process up to 40 gallons of incoming liquid/hr.

Thermo Fisher Scientific    Waltham, MA 02454
Sep 02, 2008 Super-speed Centrifuge Workflow Solution can be configured with 1 x 4L FIBERLite® carbon fiber rotor and Sorvall® RC-6 Plus or 1 x 6L FIBERLite carbon fiber rotor and Sorvall Evolution centrifuge. Use of Nalgene® 1L super-speed centrifuge bottles enable scientists to centrifuge up to 6 L of sample at speeds that create forces up to 15,810 x G. System is suited for pelleting and separating large volumes of cell harvests.

Thermo Fisher Scientific    Waltham, MA 02454
Jul 19, 2007 Suited for sample preparation processes, Heraeus® Multifuge® 3 Plus Centrifuge Series comes with 9 swinging-bucket rotor configurations and 7 fixed-angle rotors. Carbon fiber rotors allow for g-forces, delivering 14 x 50 mL conical tubes, 8 x 50 mL conical tubes at over 24,000 g, 6 x 250 mL bottles at 18,500 g, 48 x 1.5/2 mL at over 24,000 g, and 28 x 50 mL conical tubes. For blood tube processing, adapters deliver capacity of 108 x 5 or 7 mL and 84 x 10 mL collection tubes.

Thermo Electron Corp.    Waltham, MA 02454
Jan 08, 2007 Available in air-cooled and refrigerated versions, Heraeus® Megafuge® 11 Series offers rotors and accessories to support variety of sample preparation needs. Units accept up to 60 Vacutainer tubes, as well as 16 x 50 ml conical tubes, and microplates in sealed containers. Bucket sealing lids provide certified protection and ensure operator safety by keeping hazardous materials contained. AUTO-LOCK® rotor exchange system allows rotor to be locked in place.

Tema Systems, Inc.    Cincinnati, OH 45249
Apr 24, 2006 Used in chemical, dairy, food, coal, and other industries that require solids/liquid separation, SBD over-hung design centrifuge utilizes short bowl decanting section to settle high-density solids from their mother liquor. This style centrifuge is designed to replace dual bearing style units in applications where cleaning is critical to meet FDA and USDA cleaning standards.

EFD Inc.    East Providence, RI 02914-1342
Mar 28, 2006 Used with prepackaged or user-loaded syringes, ProcessMate(TM) 5000 purges medium- to high-viscosity fluids like epoxies, greases, and silicones of bubbles and air pockets that can affect shot-to-shot consistency in pneumatic dispensing processes. Unit purges up to four 3, 5, 10, or 30 cc syringes at a time. Centrifuge includes on-off switch, timer, tachometer, locking lid, and electric brake that quickly stops rotor before lid is opened.

Sanborn Technologies, North American Filtration of Massachusetts, Inc.    Walpole, MA 02081
Aug 24, 2005 Automatic solids discharging centrifuge, Turbo-Separator T40-2 cleans oils without use of filter media. Able to remove 1–10 micron particles generated in find grinding operations, system offers process rates up to 40 gpm with solids removal rate up to 44 lb/hr. Centrifuge system is PLC-controlled and includes digital interface and sensors for monitoring operating parameters. Automatic controls sequence process and allow unattended operation.

McQuay International    Minneapolis, MN 55440

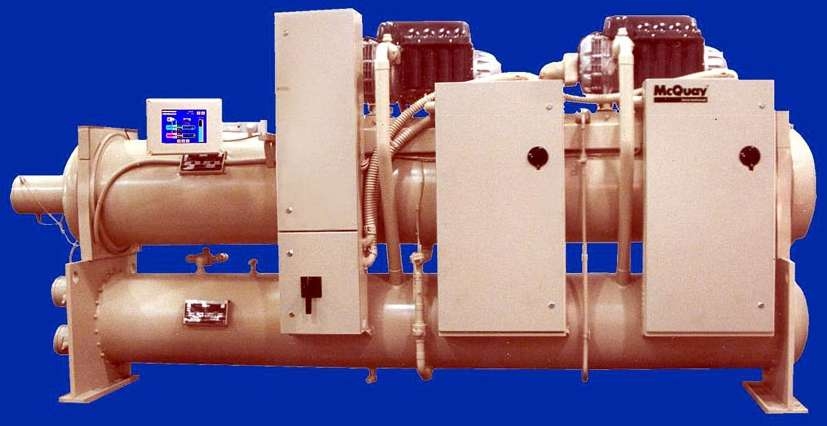

May 06, 2005 McQuay® frictionless centrifugal chiller utilizes oil-free, magnetic bearings in order to attain sound levels as low as 77 dBA. It operates from as low as 0.375 kW/ton IPLV and features full load performance as low as 0.62 kW/ton. Requiring less than 5 A to start, unit uses HFC-134a refrigerant and incorporates MicroTech IIâ„¢ controls with Protocol Selectabilityâ„¢ feature. Variable frequency drives unload chiller to 10% of full load.
