Olympus America, Inc.    Center Valley, PA 18034
Aug 10, 2011 Able to scan one slide in less than 2 min, Virtual slide (VS) model VS120 produces identical digital virtual slide. Semi-automatic and manual focusing modes facilitate work with challenging samples, while image clarity is enhanced via Sample Detection Mask for automatic slide scanning. Solution scans 15 x 15 mm area using 20x objective lens with pixel resolution of 0.345 µm in ~90 sec, while sample detail is enhanced and preserved via Olympus UIS2 optics and custom camera algorithms.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Aug 02, 2011 Used for general research and clinical sample preparation, 18 in. wide Allegra X-30 Series is available individually or packaged with appropriate rotors and labware. Unit accepts 13 different rotors and range of labware to accommodate variety of samples and run conditions. Available rotors include SX4400, 1.6 L swinging-bucket rotor and S6096 microplate rotor. Latter accommodates 3 x 2 microplates or 2 x 1 deep-well plates. UI aids programming and promotes visibility across lab.

Biohit Inc.    Neptune, NJ 07753
Aug 01, 2011 Featuring fully electronic air displacement pipetting operation, Roboline(TM) can pipette any combination of columns, rows, single wells, or entire plates. Closed environment protects reagents and samples from contamination. System is capable of forward/reverse pipetting, multiple dispensing, and diluting volumes from 5-200 µl using liquid level sensing. In addition, Roboline helps minimize repetitive strain injuries and exposure to harmful or toxic solutions.

Advanced Instruments, Inc.    Norwood, MA 02062
Jul 26, 2011 To enhance clinical laboratory productivity and workflow, A2O(TM) Advanced Automated Osmometer offers touchscreen interface, fully automated sample processing, as well as intelligent liquid handling. Multi-sample instrument, used for osmolality testing, incorporates software control package and multiple QC features. Other features include selectable system operation and access levels, positive sample identification, and customizable sample testing protocols.

Mettler Toledo, Inc.    Columbus, OH 43240
Jul 21, 2011 Via extended hinge projection that lets tube to be held, opened, and closed with one hand, FlipTube(TM) helps life scientists work faster while simultaneously reducing sample cross-contamination risk. RNase- and DNase-free product, manufactured in clean-room conditions from virgin polypropylene, is autoclavable at 121°C and can be stored at temperatures as low as -80°C without compromising tube seal integrity. Max volume is 1.5 ml, and graduated lines mark every 0.5 ml of volume.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346

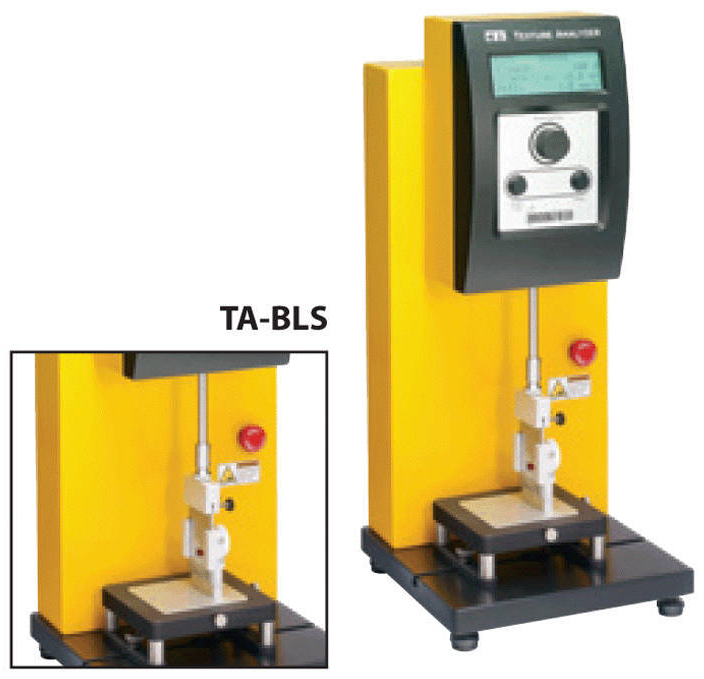

Jul 20, 2011 Used with CT3 Texture Analyzer to assess tablet integrity, Bilayer Tablet Shear Fixture enables measurement of separation properties of compressed bi-layer tablets. For operation, user inserts tablet into cavity in fixture so tablet layers lie in plane of guillotine-like blade. During test, blade exerts increasing force on tablet until component layers are sheared apart. Max shearing force indicates of adhesion strength between tablet components.

Magellan Biosciences    Chelmsford, MA 01824
Jul 19, 2011 Designed for use with all Sensititre dried plates, FDA-cleared TREK Diagnostic Systems Sensititre® AIM(TM) Automated Inoculation Delivery System doses microtitre plates. It eliminates skipped wells and repeat tests, streamlining laboratory workflow and accelerating results for clinicians. Suited for use on benchtop or under microbiology safety cabinet, system provides icon-driven touchscreen that facilitates selection of dosing volumes and patterns.

Olympus    Waltham, MA 02453
Jul 18, 2011 Utilizing confocal IR laser scanning microscope technology, 3DIR Metrology and Defect Review System measures post bond parameters of 3D stacked integrated circuits, such as overlay alignment accuracy, bonding interface thickness variations, and bonding interface quality. System measures alignment points at selected die of bonded wafers, stores images and data, and summarizes results. Correlation of overlay alignment offset data to electrical yield provides early indication of bonded wafer yield.

Sonoscan, Inc.    Elk Grove Village, IL 60007
Jul 15, 2011 Featuring inertially balanced linear motor scanner, Gen6(TM) C-SAM® system lets operator select most useful resolution from under 1 MP to 268 MP. It employs 500 MHz pulser and heated water and supports automatic as well as simultaneous imaging of sample at up to 200 different gates (horizontal slices). System also supports Virtual Rescanning Mode (VRM), Digital Image Analysis (DIA), Frequency Domain Imaging (FDI), and Time Domain Imaging (TDI).

Nova Measuring Instruments Inc.    Sunnyvale, CA 94085
Jul 14, 2011 Used to non-destructively measure and control vertical processes, Nova T600® is intended for process control of complex vertical structures for 22 nm technology node and beyond. Multi-channel oblique incidence spectroscopic reflectometry, combined with normal-incidence reflectometer, optimizes sensitivity on small features. Extracted SNR promote performance on full range of profile metrology applications, and concurrent optimization of information from multiple sources is fully supported.

Biochrom Ltd.    Cambridge CB4 0FJ  United Kingdom

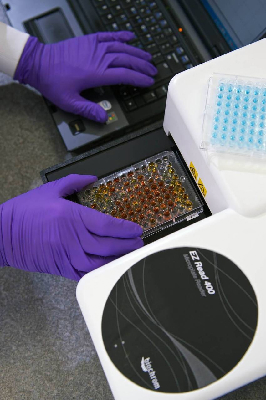

Jul 13, 2011 Designed to measure absorbance, EZ Read 400 Flexi Reader enables customer to select up to 4 filters from 400-750 nm, in addition to 4 ELISA filters of 405, 450, 492, and 620 nm. PC-controlled unit uses ADAP v2.0 software, which provides straightforward control for endpoint, kinetic, and multi-wavelength measurements, as well as export to Microsoft Excel. For more sophisticated applications, optional ADAP v2.0 Plus lets user design methods for data analysis using standard curves or cut-offs.

Mettler Toledo, Inc.    Columbus, OH 43240
Jul 11, 2011 Free of edges that could trap moisture and product matter, IND890 allows operators to obtain complex, multi-step weigh results via touchscreen interface. Self-explanatory icons and optimized operator guidance promote usability, and software can be customized to desired application. Along with ergonomic design and programmable softkeys, system offers ability to simultaneously display of up to 4 scales plus sum for comparison and subsequent correction of amounts and values.

Thermo Fisher Scientific    Waltham, MA 02454
Jul 06, 2011 STP 420ES enables fast turnaround times for same-day diagnosis. Dual-chamber design features rotational agitation, which optimizes flow of reagents to enable processing of up to 420 cassettes per run. First and second chambers hold 360 and 60 cassettes, respectively, and second chamber allows processing of STAT samples or special or difficult tissues without disrupting routine workflow. Processing time, with use of Fast Flex reagents, is 4.4 hr for 5 mm specimens and less than 1 hr for biopsies.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Jun 30, 2011 Designed to produce small batches directly in laboratory for R/D or clinical purposes, GKF 702 can fully simulate production parameters required later during production. Mini-Bowl filling station is suited for product batches between 100 and 300 mL, and slide-gate system is available for providing option of filling free-flowing granulates or pellets via powder station. Design includes industrial PC with 17 in. touchscreen as well as various interfaces (LAN, USB) and DVD burner.

Biohit Inc.    Neptune, NJ 07753
Jun 28, 2011 With range of 0.1-5 µl and Super Pipetting (SP) feature, single-channel eLINE Pipette accommodates demands of small volume applications. Rate of piston movement allows complete emptying of tip, and dispensing from air enables continuous work with same tip as there is no need for tip to touch vessel or liquid. With SP feature, it is possible to get dispensed volume inside microplate well despite problems such as electricity of microplate causing drop to stick to surface of well.

Physik Instrumente (PI)    Auburn, MA 01501
Jun 22, 2011 Available in XY and XYZ models with 200 µm travel/axis, PInano(TM) Superresolution Microscope Stages feature direct-measuring capacitive sensors, which offer long-term stability and minimal sensitivity to noise due to high-frequency measurement principle. Bottom mount slide allows full turret rotation while protecting objectives. Additional features include ceramic encapsulated piezo drives and 24-bit controller with USB, Ethernet, and RS-232 interfaces.

Coulbourn Instruments    Allentown, PA 18106
Jun 16, 2011 Available in single and multi-lane models, Small Animal Treadmills are suited for forced exercise training and muscle fatigue studies in rodents. Units feature both positive and negative incline capabilities, and can be adjusted manually on control unit or via software. Integrated shock grid is specially designed for minimal discomfort and uniform stimulation delivery. Included software displays belt speed, distance traveled, and number of shocks as well as accumulated shock duration.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Jun 16, 2011 ElectroPrep System can be used for running sample simultaneously into multiple molecular weight cut off (MWCO) fractions, in 3-10 min, for electro-dialysis, electro-elution, electro-filtration, electro-fractionation, or electro-concentration. Consuming 5-10 mA, products handle 50-1,500 µL volumes and can be joined with Union or one or 2 Link Chambers in different combinations and membranes. Uses include purification of proteins, nucleic acids, carbohydrates, and other biomolecules.

New Era Pump Systems, Inc.    Wantagh, NY 11793
Jun 15, 2011 Used in settings ranging from home-based businesses to factory floors, NE-9000 can integrate into existing production lines or be used as stand-alone device. Fully programmable solution, operated manually or with PC through via RS-232 communication port, supports flow rates from 0.041-904.4 ml/min with 3/16 ID tubing. Intended for dispensing, pump will fill numerous bottles, vials, etc. with fluids of all types. it features keypad interface and chassis with 7¾ x 5¼ in. footprint.

Thermo Fisher Scientific    Waltham, MA 02454

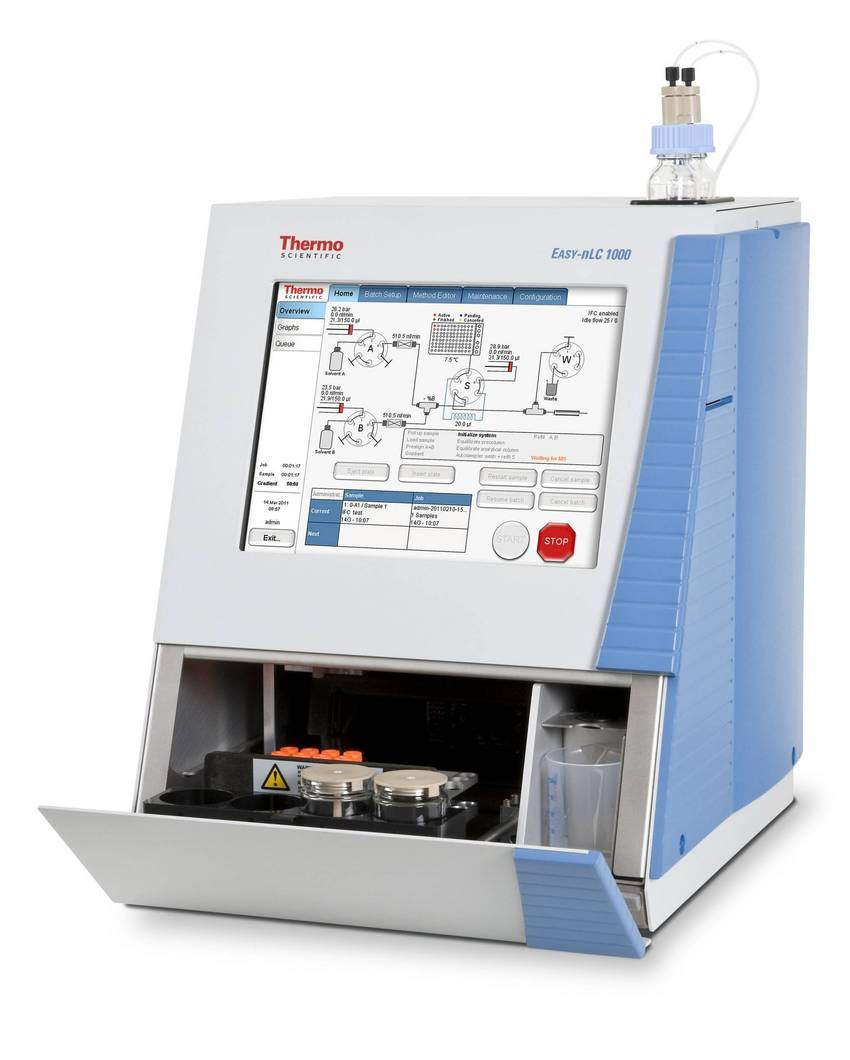

Jun 13, 2011 EASY-nLC 1000 UHPLC system for high-pressure LC-MS proteomics analysis facilitates separation of biomolecules, such as proteins and peptides, at high pressures. Using short gradients on 50 µm UHPLC columns with 1.9 µm beads, product delivers optimal separation capability. It enables retention-time reproducibility of below 0.4% RSD, and also allows for independent and simultaneous variations of bead size and column length. System operates on Xcalibur software platform.
