United Case, a UFP Technologies brand    Kissimmee, FL 34744
Jul 08, 2009 Designed for Pelican(TM) Product's 0450 Mobile Tool Chest, Case Fit(TM) Drawer Liner Kits include 6 shallow drawer foam sets containing ¾ in. thick black foam with pressure sensitive adhesive and ¼ in. thick foam. Deep drawer set contains 2 pieces of 7/8 in. thick black foam with pressure sensitive adhesive and ¼ in. foam. Case Fit DL 45 is made of closed-cell, oil repellent, cross-linked polyethylene foam, while Case Fit DL PE is made of non-cross-linked polyethylene foam.

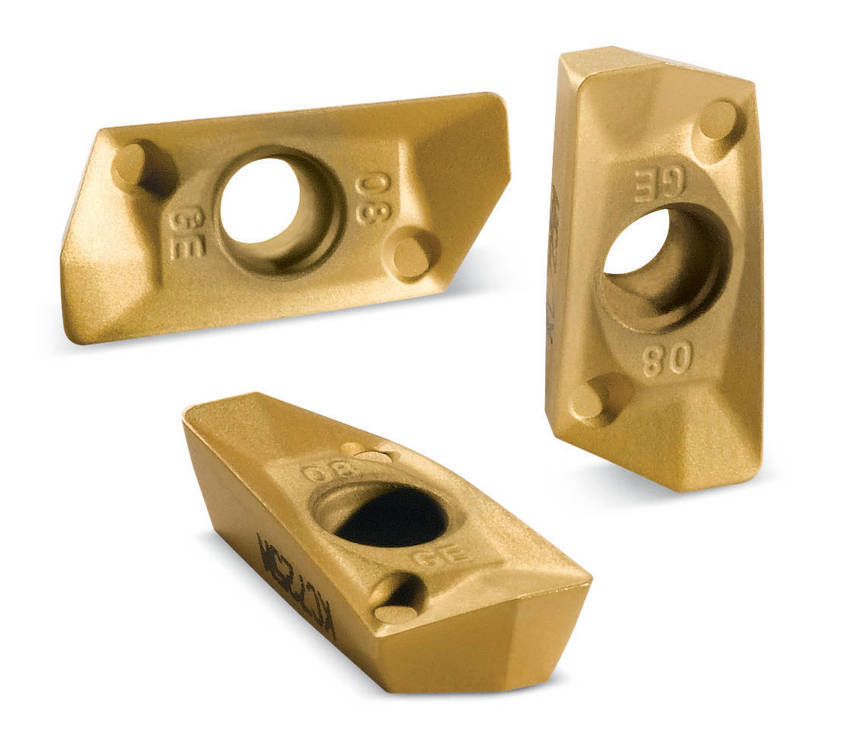

Kennametal, Inc.    Latrobe, PA 15650-0231
Jul 07, 2009 With micro-geometry features including 20° rake angle, negative T-land, and small hone, SGE inserts for Mill 1-14/18 platform are suited for applications such as face milling, shoulder milling, pocketing, contour milling, and full slotting. They are engineered for machining stainless steels, super alloys, and high-strength steels.

Murrelektronik, Inc.    Duluth, GA 30096
Jun 10, 2009 Able to be integrated into any type of Modlink MSDD dual mounting frame, from transparent plastic to metal to silver or black, Ground Fault Circuit Interrupter (GFCI) comes with integrated residual current protection and can compare outgoing current with returning current. Insert stops current flow for any discrepancy, and also identifies malfunctions such as leakage current of 4-6 mA. Reaction in less than single second helps reduce risk of fatal electric shock.

Kennametal, Inc.    Latrobe, PA 15650-0231
Jun 01, 2009 Models KC915M (KCK15) and KC935M (KCPK30) are available for machining steel, cast iron, and stainless steel workpiece materials. Dry-milling grade, KC915M (KCK15) is designed for all applications in grey cast iron and grey cast iron with nodular graphite, and can also be used to finish-mill low-alloyed steel. KC935M (KCPK30) suits applications in plain and alloyed steel, stainless steel, grey cast iron, grey cast iron with nodular graphite, and certain high-temperature alloys.

Quality Bearings & Components    New Hyde Park, NY 11042
May 18, 2009 Offered in many sizes to fit shafts ranging from ½-4 in. diameter, BBXINS Series includes set screw type models with 2 screws. Tightening set screws contacts shaft, which effectively locks shaft to bearing so both will turn as one. Available for .5512-1.5748 in. wide bearings, inserts are suitable for textile machinery, conveyor systems, and ventilators, as well as machines for food processing and packing.

Quality Bearings & Components    New Hyde Park, NY 11042
May 18, 2009 Set screw type and locking collar type, BBXINS series are available in various sizes to fit shafts ranging from ½ to 4 in. in dia. Set screw type bearing inserts have 2 set screws which contacts/locks shaft to bearing so that the two will turn as one. With widths ranging from 0.5512-1.5748 in., bearing inserts suit applications in textile machinery, conveyor systems, ventilators, as well as machines for food processing and packing.

Kennametal, Inc.    Latrobe, PA 15650-0231
Apr 27, 2009 Available in Beyond(TM) KCP10 and KCP25 grades for steel and KCU10, KCU25, and KU10 grades for stainless steels and high-temperature alloys, A4 GUP geometry extends tool life. Geometry eliminates bump in bottom of groove during groove/turning applications, optimizing productivity for makers of axles, bearings, valve bodies, and various automotive and aerospace components.

Kennametal, Inc.    Latrobe, PA 15650-0231
Apr 22, 2009 Beyond(TM) grade KCS10 is designed to optimize surface finish results and maximize tool life. It also optimizes chip control, resulting in minimal number of cuts per edge and maximized machine tool speeds. Medium Positive geometry grade is available in 6 styles for use with variety of standard toolholders.

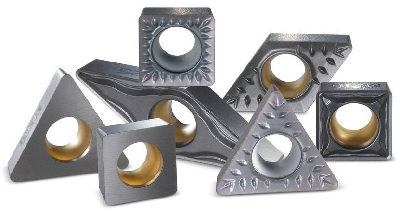

Kennametal, Inc.    Latrobe, PA 15650-0231
Apr 15, 2009 Designed to help increase number of parts per edge, Beyond(TM) screw-on positive insert chip breakers - FP (Finishing Positive), MP (Medium/Roughing Positive), MW (Flat Top) - include 11 grades optimized for steel, stainless steels, and cast-iron applications. All share features such as micro-polished edges that promote edge toughness, post-coat treatment that reduces depth-of-cut notching, and fine-grained alumina layer that enhances coating integrity at higher cutting speeds.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Mar 23, 2009 Featuring infinite radial and axial adjustments and quick lock and release action, M-Type Shaftloc® provides locking solution for rigidly mounting hubless gears, sprockets, pulleys, cams, or thin-walled components onto an inch or metric shaft. Asymmetric thread geometry of stainless steel unit produces radial clamping force when nut is tightened. Available from stock to fit .375, .500, and .625 in.; 10, 14, and 16 mm shafts, Shaftloc® system installs with standard tools and is reusable.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Mar 06, 2009 Combining heat resistance of fine grain cemented carbide with wear resistance of PVC coating, GC1115 Grade is suited for production systems where unstable conditions occur. Grade is designed for finishing to medium machining in stainless steel and medium to roughing in heat-resistant super alloys and titanium. It is available in wide selection of positive and negative basic-shape inserts, as well as full -M, -G, and -E tolerance range for different insert edge sharpness.

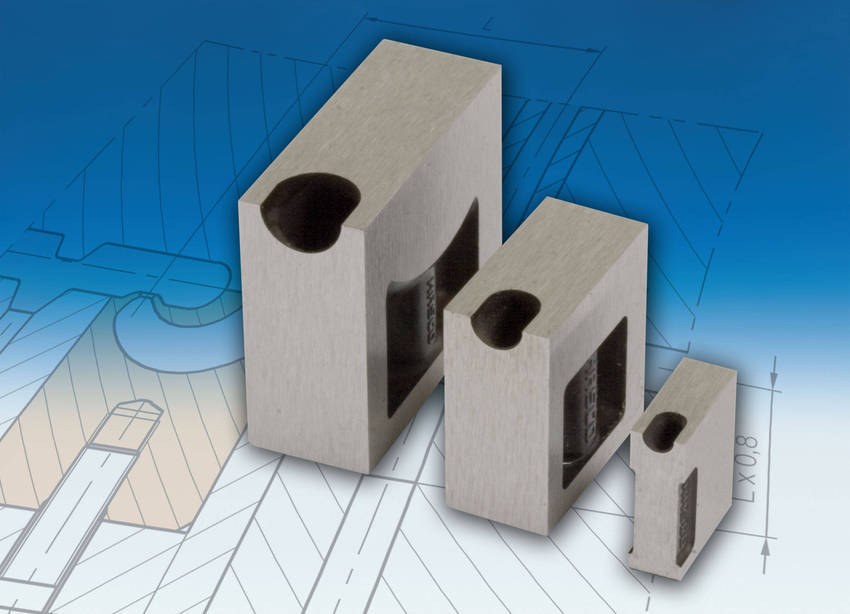

HASCO Hasenclever GmbH + Co KG    Ludenscheid D-58513  Germany
Jan 07, 2009 Designed for tunnel-type (submarine) gates, Z10650 gating inserts are provided with added stock, making them individually contourable, which allows direct adaptation to contours of mold. They leave no evidence of gate on upper side of molded part, and enable clean separation of sprue. Produced by MIM process and made of wear-resistant hot-work steel 1.3343, inserts are available in three sizes.

Kennametal, Inc.    Latrobe, PA 15650-0231
Dec 09, 2008 Comprised of 2000+ line items, CVD-coated Beyond(TM) grades feature post-coat surface treatment that optimizes depth-of-cut notch resistance and micro-polishes surface to minimize friction and workpiece sticking. They also feature fine-grained alumina layer to maximize productivity at high cutting temperatures. Product line consists of 5 grades and 22 geometries for steel, 3 grades and 10 geometries for cast iron, and 3 grades and 8 geometries for SS turning.

Kyocera Industrial Ceramics Corp., Industrial Ceramic Products Group    Mountain Home, NC 28758
Dec 05, 2008 Equipped with internal screw-clamp holder for optimal chip evacuation, SIGE Swiss Cutting Tool System uses GER-M type insert with 3D molded chipbreaker for chip control, and GER-A type insert with 8 mm cutting diameter and 2-edge design. PR1025 PVD coated carbide material provides stable machining and extends tool life. Cermet and other coated-carbide grades are also available.

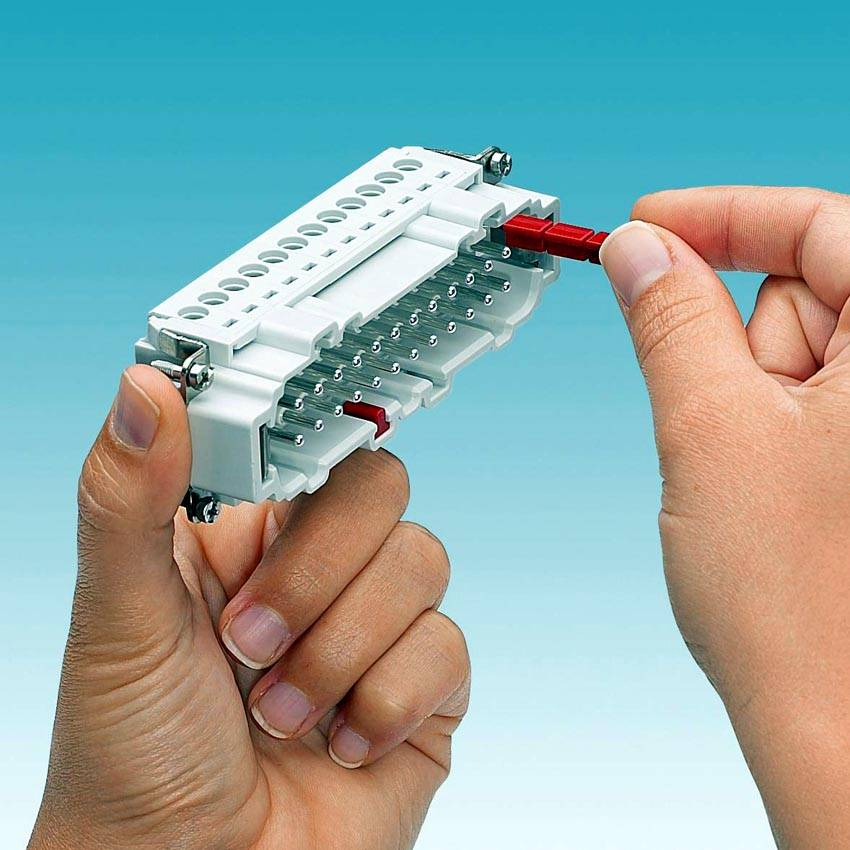

Phoenix Contact    Harrisburg, PA 17111 0100
Dec 01, 2008 Designed for Heavycon Series plug connectors, series B Push-In Contact Inserts allow flexible wires with ferrules or rigid wires to be connected directly without tools. Contact can be keyed by inserting plastic pins into contact coding slot. All fastening and connection screws are made of non-corrosive stainless steel. Inserts are available in 6, 10, 16, and 24 positions for 500 V or 16 A with wire size of AWG 20-14 for screw connection and AWG 20-12 for crimp connection.

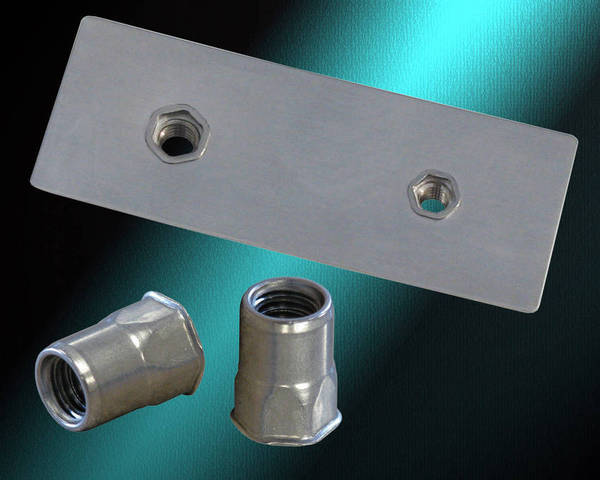

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Nov 28, 2008 Atlas® Spintite® SS half-hex shank threaded inserts are suited for blind attachment applications where one side of panel is accessible for assembly. Body design provides resistance to rotation and low-profile head minimizes protrusions. Units can be used in panels of any hardness as thin as .020 in. and can be installed utilizing hand-held portable spin-pull tool. Manufactured from 300 series SS, they are available in unified and metric thread sizes from #8-32 to 5/16-18 and M4-M8.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Sep 10, 2008 WMX wiper insert combines main radius with multiple complementary radii and integrates chip-breaker geometry. This design widens feed rate and chip-breaking ranges. Designed for broad variety of applications, insert enables high quality surface to be achieved in finishing operations.

Dapra Corporation    Bloomfield, CT 06002
Aug 25, 2008 Available in T or D variations, CNC-pressed Toroid inserts have shock-absorbing cutting edge designed to handle heavy chip loads. Products offer heat absorption capabilities and are designed to promote extended tool life. Positive top rake reduces cutting forces and torque. T-land offers reinforced cutting edge for steels, irons, and hard milling, while dished face provides high-positive cutting edge for stainless steels, high-temperature alloys, and gummy materials.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Aug 08, 2008 Featuring wear resistant properties, Polycrystalline Diamond Grade DA1000 excels in machining of non-ferrous materials, especially aluminum. It comes standard with NF style tip and is available in geometries for turning and milling applications.

CIMtek Group    Elgin, IL 60124
Aug 07, 2008 Combining PCD diamond tooling with 7-axis laser technology, TiroWave® 3D Chip Breakers are suitable for machining aluminum alloys, magnesium alloys, all non-ferrous materials, composites, reinforced plastics, and materials with abrasive binders. Chip breaker and cutting edge are laser-made, preventing cutting materials from adhering to tool edge. TiroWave® is available in all ANSI and ISO styles, including 80º, 55º, 30º, square, triangle, and round inserts.
