Spirol International Corp.    Danielson, CT 06239 1434
Mar 12, 2003 Dowel Bushings align mating components and provide ID clearance hole for bolt, eliminating need for separate dowel hole. Spring Dowels align mating components when bolt must be located in separate location. Both products protect bolts from shear loading that will cause premature failure of bolt. Sizes are available for use with 5/8 in., 3/4 in., 14 mm, and 16 mm bolt sizes. They are made of heat-treated, high-carbon spring steel.

Gerwah Drive Components    Forest Park, GA 30297
Feb 05, 2003 Series PSV 2001 is offered in sizes from 20-200 mm and 3/4-7 7/8 in. Unit provides backlash-free, 360° grip without use of keyways that cause frequent failures. Stainless steel and electroless nickel-plated assembly is corrosion resistant. Mechanism is self-releasing and non-self-centering. It is suited for reversing applications where keyways develop stress fractures, such as pulleys, bevel gears, sprockets, and sheaves.

EGS Electrical Group    Skokie, IL 60077

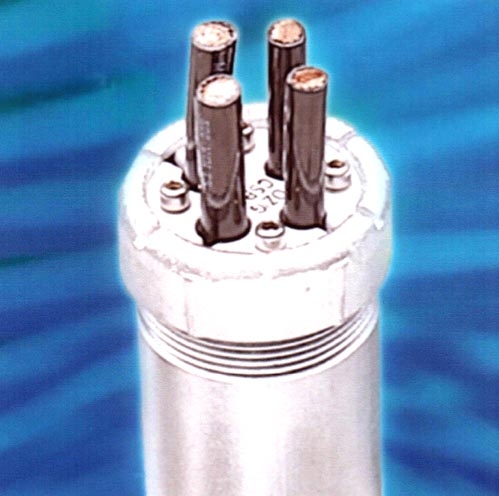

Sep 18, 2002 Conduit Sealing Bushings stop water, dust, or gas under pressures up to 100 psi from entering electrical enclosures. Compact bushing is made of two PVC coated metal discs with one-piece neoprene sealing ring positioned between. Discs and ring are compressed together by stainless steel screws. Zinc plated, malleable iron locking collar is optional. Bushings are available for Schedule 40 rigid conduit, mechanical pipe, cast iron pipe, and copper tubing.

Hardinge Workholding Division    Elmira, NY 14902
Aug 28, 2002 Headstock and sub-spindle collets are ground to precise size and TIR to meet precision machining requirements. Carbide-lined, Swiss guide bushings keep stock clean and unmarked, and extended-nose collets are suited for pick-off work or to compensate for tooling interference. Heat-treated to 40 Rockwell at head, they also serve as emergency collets.

Zero-Max, Inc.    Plymouth, MN 55441 5509

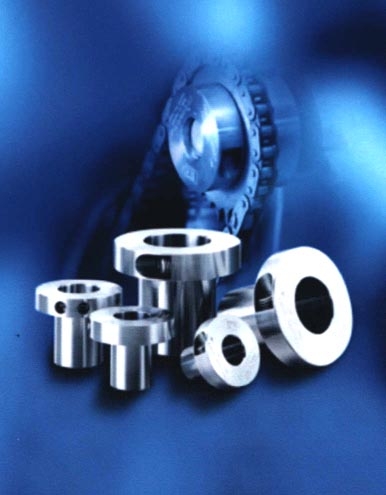

Jul 29, 2002 ETP Expressâ„¢ Model R stainless steel, keyless-shaft, locking bushings lock into positon gears, pulleys, sprockets, and other components on food processing and dairy machinery power transmission systems. Units are available in 15, 20, 25, 30, 35, 40, 45, and 50 mm shaft sizes and handle torque ranges from 40 to 1500 lb-ft. Sealed, clean lines resist debris collection. Radial adjusting screw provides mounting, repositioning, and phasing of components to shafts.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192

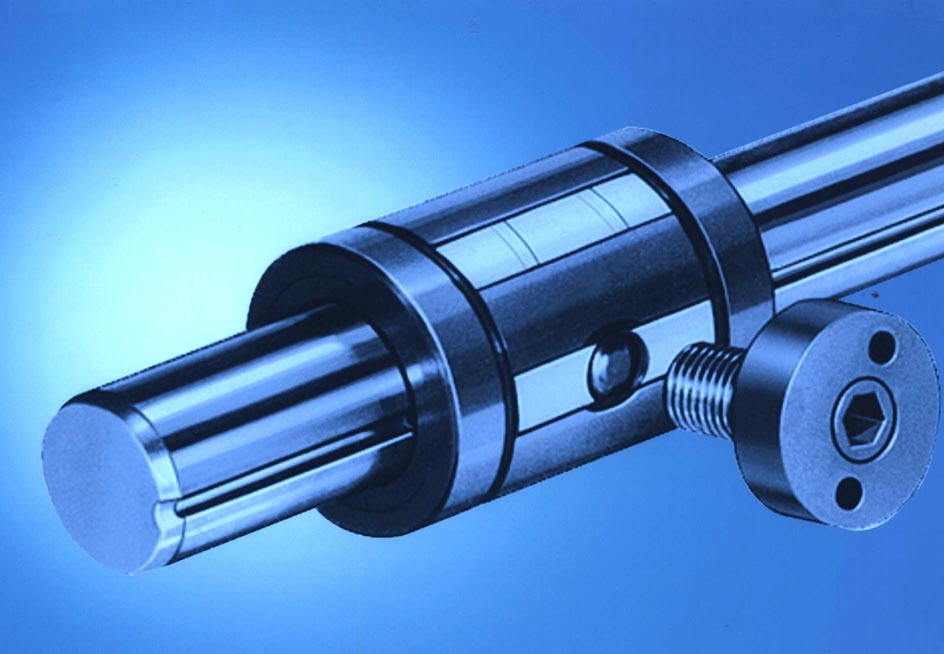

Apr 17, 2002 STAR Torque-Resistant Linear Bushings are suitable for applications requiring shaft guideway to transmit both linear motion and torque while remaining torsionally stiff, such as one-armed swivel grippers or robots. Bushings can be installed without parallel second shaft normally required in standard applications to resist cocking loads. They are available in rotationally symmetrical sleeved or flanged designs, with solid or tubular shafts.

Zero-Max, Inc.    Plymouth, MN 55441 5509

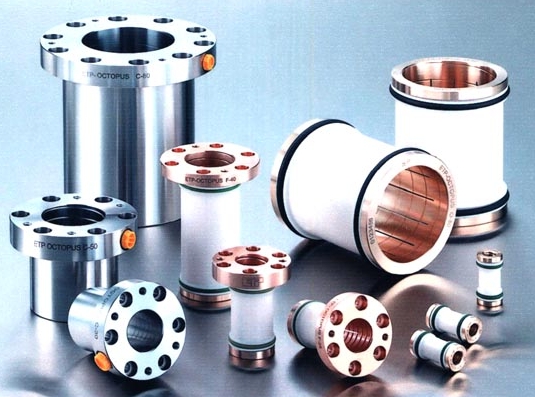

Mar 13, 2002 ETP-Octopus(TM) hydraulic shaft-locking bushings offer uniform and repeatable locking pressure, and can be set up for frequent locking/unlocking of linear slides from remote switching locations. Bushings are corrosion resistant with either bronze or steel sleeve bores. They are available in 3 models with pressure ranges to 6500 psi. Model C is available with bore sizes from 30 to 100 mm; Models O and F offer bore sizes from 10 to 100 mm.
