Quail Electronics    Livermore, CA 94550
Mar 11, 2013 Intended for sensitive electronics that require uninterruptible electrical continuity, IEC Auto-Lock™ internal retention mechanism hooks to pins of power supply inlets and resists any axial force until released manually. Locking mechanism on connector side facilitates fastening and unlocking of cord. After inserting connector end into device, connection remains secure. Product offers universal fit with any C14 or C20 inlet and comes in array of configurations.

Omega Engineering, Inc.    Stamford, CT 06907
Mar 07, 2013 Featuring integral cap, strain relief, and cable clamp, OSTW-CC series comprises round pin, standard size, 2-pole TC connectors. Products connect TC wire or temperature sensor instrumentation with temperature controller or process control HMI automation panel. Available with ANSI or IEC color codes, products also feature contact washers and accept stranded, solid, TWSH, overbraid, or RSC coil cord wire. Areas of use include food, automotive, plastic, manufacturing, and chemical industries.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Mar 04, 2013 Available for 0.4 mm pitch 128-pin QFP, Model SG-QFE-7011 operates at up to 10 GHz with less than 1 dB of insertion loss. Unit is designed for 14 x 14 x 1.6 mm package size with 16 x 16 mm lead tip to tip. Contact resistance is typically 20 mΩ per I/O. Mounted on PCB using supplied hardware with no soldering, socket incorporates swivel lid with compression screw, and floating compression plate that forces QFP leads down on to elastomer. Socket operates from -35 to +100°C and handles 2 A/pin.

API Technologies Corp.    South Plainfield, NJ 07080
Mar 01, 2013 Suited for aerospace applications with high differential pressure, hermetically sealed circular connectors meet MIL-DTL-38999 fine leak requirements and protect against changes in atmospheric pressure as well as exposure to humidity, grime, and chemicals. Receptacle has seal of 10-7 cm³ and comes in filtered and unfiltered versions. They can be utilized in applications where unfiltered custom mechanical variations or filtering are required with ruggedized seal.

Samtec, Inc.    New Albany, IN 47151 1147
Feb 28, 2013 Combining coax cable assembly and board level connector, FCF8/FCS8 System offers choice of 10, 20, or 30 total contacts on .0315 in. pitch, with outside contacts grounded to outer body shielding. Cable assembly features 38 AWG micro discrete wire coax cable, available in any length >3.00 in. Positive latching system, metal shielding for EMI protection, and standard weld tabs on surface mount connector make system suitable for harsh environments.

Mini-Circuits    Brooklyn, NY 11235
Feb 27, 2013 Featuring male N-type connector, Quick Lock QBLxSMQ-NM+ Test Cable Assemblies fill wide range of N-to-SMA connection needs from DC to 18 GHz, with max power rating of 270 W at 1 GHz and 47 W at 18 GHz. Assemblies offer optimal electrical performance through 20,000 tough Flex Test™ cycles and 20,000 Quick Lock push on/pull off connection cycles. Available in lengths of 2, 3, or 6 ft as well as 1 m, cables are suited for use with 50 Ω N-type network analyzers.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 27, 2013 Platinum Series USB and RJ45 communication interface ports are rugged panel connectors suited for industrial environments where mission-critical data transmission is necessary between machines, production lines, and control modules. While USB is available in A-to-A and A-to-B connections, RJ45 component is 10 Gigabit IEEE 802.3an-2006. Both products use OTS cables and are capped when not in use to maintain IP65 rating. Plastic materials are resistant to oils, solvents, and hydrocarbons.

WAGO Corp.    Germantown, WI 53022
Feb 25, 2013 Intended for PCB applications, picoMAX® employs dual-purpose spring design that applies force of one CAGE CLAMP®S contact spring for vibration-resistance up to 20 g and absolute connection integrity in temperatures up to 125°C. Dynamic contact force from Cr-Ni stainless steel spring clamps conductors and connects header pin. Offered in 2–12 pole configurations with 3.5, 5, or 7.5 mm pin spacing, picoMAX supports wire-to-wire, wire-to-board, board-to-wire, and panel feedthrough connections.

Mill-Max Mfg. Corp.    Oyster Bay, NY 11771
Feb 20, 2013 Suitable for board-to-board or device-to-board connections, single row Series 815-22-0XX-30-001101 is available in 2–32 positions, while double row Series 817-22-0XX-30-001101 comes in 4–72 positions. RoHS-compliant connectors feature mid-stroke travel of .012 in. and full stroke of .024 in. Spring-loaded pins, rated for 1 million cycles, have current rating of 2 A continuous and 3 A max. High-temperature plastic housing is suitable for all soldering processes.

Conec Corp.    Garner, NC 27529
Feb 18, 2013 Comprised of copper alloy shells, tin-plated brass hardware components, and die cast zinc brackets, Combination D-Subminiature Connectors are designed for medical imaging equipment. Units come in 21 standard pin configurations and can include signal, high power, or coaxial contacts, which are available in 50 or 75 Ω versions. Offered with 4-40 UNC or M3 threaded inserts, RoHS-compliant connectors feature power rating from 10–40 A and temperature range of -40 to +105°C.

Samtec, Inc.    New Albany, IN 47151 1147

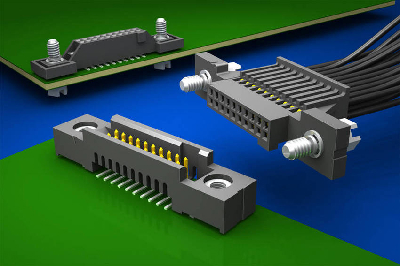

Feb 18, 2013 Featuring Beryllium copper contacts, Tiger Eye™ Interconnects offer screw-down option for both board-to-board and cable-to-board systems on .050 and .0787 in. pitch. Whether used in board stacking or cable applications, screw-down feature assures that connectors can only become unmated when intentionally de-mated by user. Interconnects are also available with metal latches, friction latches, shrouding, polarization, and keying.

Hirose Electric (USA) Inc.    Simi Valley, CA 93065 6235
Feb 13, 2013 Offered in straight, right angle, and in-line connection styles, DF60 Series features 5-point contact design with independent contact springs. Center lock with tactile click ensures secure mating and prevents half-locking and uneven side-locking, while guards designed into connector body prevent cable snaring. Wire conductor sizes range from AWG #8–12 and can handle up to 30 insertion/withdrawal cycles. Rated at 1,000 Vac/Vdc, RoHS-compliant connector can withstand 3,000 Vac for 1 min.

Parker Hannifin Corp., Tube Fittings Div.    Columbus, OH 43228
Feb 13, 2013 Comprised of one-piece crimp adapter with bite ring and internal sealing, Mechanical Crimp Connection (MCC) eliminates welding and ensures reliable, leak-free connection. Internal seals in MCC adapter ensure leak-free connection and protect against ingression. With working pressure capability of near 5,000 psi, MCC adapters are offered in carbon steel and achieve NPS pipe connections in common weld sizes from 1–2 in. Multiple end configurations are available.

Nicomatic    Warminster, PA 18974
Feb 08, 2013 Designed to enable 90° soldering on PCB, Male 90° SMT Headers have latch and triangular molded pegs which align and brace PCB tails for trouble-free assembly and use. Headers are set in variety of single row configurations with 100 in. centerline and 2.54 mm pitch. In standard series, contacts can be selected as tin plated, selective gold plated, or gold plated. Featuring contact resistance of 20 mΩ max with current rating of 3 A/contact, connectors deliver 500 operations with gold contacts.

FCI Electronics    Etters, PA 17319 9769
Feb 05, 2013 For applications that require SAS 2.1 (6 Gbps) and SAS 3.0 (12 Gbps) protocol signaling, internal Mini-SAS HD product offering includes board connectors and cable assemblies. Products satisfy hardware applications that would require either external I/O systems (with EMI provisions) or internal I/O systems. Internal board connectors are offered in 1x1, 1x2, and 1x4 configurations, and interface and latching features are fully compliant to SFF- 8643 standards.

FCI Electronics    Etters, PA 17319 9769
Feb 01, 2013 With compact form-factor and optimized PCB footprint, ExaMAX™ facilitates flexible user system design. Beam-on-beam contact structure at mating interface ensures 3 reliable points of contact and minimizes inherent electrical stub at contact interface, eliminating unwanted insertion loss resonances. Overmolded leadframe assembly locates balanced differential pairs within formed channels in complementary ground plane; optimized structure prevents additional ground-mode resonances.

HellermannTyton    Milwaukee, WI 53224
Jan 31, 2013 Keyed LC fiber connectivity solution increases network security and privacy by limiting chance of unauthorized network connections. Solution allows for physical separation of network segments in secure fiber cabling infrastructures with secondary benefit of limiting accessibility to networks via physically restrictive cross-connect system. Full solution includes secure keyed LC color-coded duplex adapter panels, jumpers and connectors, and pre-terminated fiber cassettes.

Amphenol Industrial Operations    Sidney, NY 13838
Jan 30, 2013 Used in large scale utility and commercial PV installations, H4 series adheres to UL requirements in US up to 1,000 V and meets IEC requirements for use up to 1,500 V in European Union, parts of Asia, India, and Middle East. RoHS-compliant connectors feature RADSOK technology for optimized current ratings and contact resistance, minimizing power losses and maximizing reliability. Products are offered in 4 gauges – 14, 12, 10, and 8 AWG – respectively rated at 32, 40, 44, and 65 A.

Mill-Max Mfg. Corp.    Oyster Bay, NY 11771

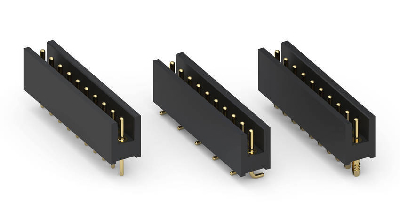

Jan 28, 2013 Available in up to 32 positions with through-hole and surface mount termination styles and .100 in. spacing pin-to-pin, Shrouded Male Connectors are suited for applications where secure connection is demanded, such as frequently mated interconnects and blind mate conditions. Shroud limits amount of misalignment between connectors during mating and de-mating. Molded from Ryton for thermal stability, RoHS-compliant connectors are chemical resistant with flammability rating of UL94 V-0.

Archtech Electronics Corp./NTW Group    Dayton, NJ 08810
Jan 25, 2013 Design of net-Lock RJ45 Universal Snagless facilitates installation when running through conduit, raceway, and other high density areas. Users gain security needed without cables catching during installation. Snagless net-Lock for EZRJ45™ integrates with field termination EZRJ45™ plugs while providing option to employ net-Lock security design. Both products help integrators and users deploy proactive solution against accidental and intentional disconnects.
