Component & Device Enclosures

Mechanical Components & Assemblies, Electronic Components & Devices

Miniature Housing optically isolates IR emitter, proximity sensor.

June 24, 2015

Fostering rapid prototyping, TSSP-HA provides optical isolation between 3 mm (T1) IR emitter and any Vishay TSSP-type presence or proximity sensor. Miniature plastic housing also aligns emitter and sensor leads on standard breadboard grids. Capable of withstanding wave soldering temperatures on opposite side of the PCB, RoHS-compliant product has cavity on each side of holder with recessed top edge for cover pieces. This simplifies designing of aperture for sensor or aiming tube for emitter. Read More

Electronic Components & Devices, Mounting & Attaching Products

Access Point Mount simplifies large area wireless installations.

June 16, 2015

Able to attach to pillar or wall, Model 1013-COVER secures wireless access points in such large spaces as auditoriums, conference rooms, and stadiums. This articulating WAP and antenna mount, compatible with various manufacturers' WAPs and directive (or patch) antennas, can be swiveled on 2 axes to provide desired down-tilt and azimuth coverage of directive antenna. Read More

Electronic Components & Devices

HDD/SSD Enclosures can add up to 8 drives to laptop/desktop.

March 5, 2015

Supporting 2.5 and 3.5 in. form factor HDDs and SSDs, 5-bay (SKU: S355BU33ERM) and 8-bay (SKU: S358BU33ERM) enclosures let IT professionals add data storage capacity to their computer or leverage external storage capacity to facilitate work with large files. Hot swap-capable products, which support SATA III and UASP, feature solid aluminum drive trays, cooling fan, and connection options for eSATA and USB (3.0/2.0/1.1). Enclosures work with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives. Read More

Electronic Components & Devices, Architectural and Civil Engineering Products

Self-Service Kiosks feature tablet-based design.

March 5, 2015

Designed for iPad, Android, and Windows tablets, Rev16 and Rev24 are made of lightweight aluminum with laser-cut steel base for stability. Rev16 will fit any 10–13 in.-class tablet, as well as Elotouch touchmonitors up to 17 in. in landscape mode and 24 in. in portrait mode. In addition to 15–18 in.-class tablets, Rev24 is made for Elotouch touchmonitors up to 22 in. in landscape mode and 32 in. in portrait mode. Both have large front panel for branding, call-to-action, and instructions. Read More

Electronic Components & Devices

Electronic Enclosure has vertical, DIN rail mount design.

March 3, 2015

Designed for mounting on DIN EN50022 Rail and compatible with HRFE/HMSA plug and socket connectors, Railbox features vertically sitting PCB to conserve space and optimize I/O connection density (17 poles per side on 5.00/5.08 mm pitch). Standard sizes include 17.5, 22.5, 35, and 45 mm, and enclosure is molded from UL94-V0 flame retardant material. Inserted between 2 halves of enclosure, expansion collar option allows additional space for cooling/mounting additional PCB. Read More

Plant Furnishings & Accessories, Electronic Components & Devices

NEMA 4X Plastic Enclosure suits outdoor applications.

February 16, 2015

Molded in light gray, UV-stabilized polycarbonate and UL Listed to 508A, Type 1, 2, 4, 4X, 12, and 13 specifications, 4.50 x 4.50 x 2.44 in. ML-44F houses electronics that may be subjected to harsh environmental conditions. Features include silicone gasket seal, UL94V-0 flame rating, molded on flanges, plastic PCB mounting bosses, and stainless steel screws. Along with clear cover option, available accessories include internal mounting panels and watertight cable glands. Read More

Plant Furnishings & Accessories, Electronic Components & Devices

DIN Rail Mounting Enclosures feature customizable design.

February 10, 2015

Manufactured using UL94 V0 flame retardant PC/ABS material and available from 2–12 modules wide, Modulbox XTS features 53 mm height and meets requirements of DIN standard 43880. Modulbox XTS Compact is similar to Modulbox XTS enclosure, but is 32 mm in height. Both come in 3 main types. Type A has 2-step shape, while Type B has 2 steps on one side of box and high side on opposing side. For increased internal volume, Type C features high sides on both sides of box. Read More

Electronic Components & Devices, Electrical Equipment & Systems

DIN-Rail Mount Circuit Breakers have 13 mm wide design.

February 6, 2015

Conserving space with high-density housing, DIN-rail mounted circuit breakers are available in 3 varieties. QZ supplemental protection or UL 1077 breakers come in 1-, 2-, and 3-pole versions rated from .5–50 A, while QL branch circuit or UL 489 circuit breakers come in 1- or 2-pole variants with ratings from .5–25 A. For DC applications, QY series is rated from 1–50 A at up to 80 Vdc and carries UL489 listing. Read More

Material Handling & Storage, Plant Furnishings & Accessories, Electronic Components & Devices

Rack Enclosure Cabinets features sideways-mounted design.

January 19, 2015

Offering 500 lb capacity, SmartRack® SRW12UHD and SRW18UHD save space by extending only 24 in. off wall. Locking front and rear doors plus side panel allow access to IT equipment while still keeping it secure. Dual-rail mounting design supports equipment mounting via square and 12-24 threaded holes. Fully vented top optimize air flow, cabinets accommodate all standard 19 in. rack equipment and are suited for network/wiring closets, back offices, and branch offices. Read More

Electronic Components & Devices, Optics & Photonics

Fiber Enclosures maximize scalability in data center.

December 10, 2014

Available in 1U, 2U, and 4U configurations, H+ Fiber Enclosures provide 72, 144, and 288 duplex LC ports, respectively. Units feature sliding trays, each housing 4 separate modules with 6 LC duplex ports. This functionality enables data center managers to take modular and scalable approach to designing cable infrastructures based on specific needs of organizations. Read More

Electrical Equipment & Systems, Electronic Components & Devices

IP Rated Electronic Enclosures support custom design options.

December 8, 2014

Intended for instances where PCB/application has already been designed, IP65 Sealed enclosures range in size from 80 x 80 x 60 mm to 360 x 360 x 158 mm. Other feature-based considerations include availability of hinged lid for regular access to electronics, optional transparent lid, cable gland knock outs, captive screws, and separate terminal wiring compartment. All electronic enclosures can be custom machined and/or printed to meet specific demands. Read More

Electronic Components & Devices

Enclosures for iPAD Air Tablets prevent damage and theft.

December 4, 2014

INTERFACE-TERMINAL multifunction electronic enclosure range includes iPAD Air front panels, available in matt anodized aluminum or UL 94 HB-rated ABS, that enable secure mounting to walls or desks for viewing and operating tablets in communal locations. Designed to fit Type I ABS (UL 94 HB) base section in modular INTERFACE-TERMINAL range, these customizable, tamperproof, IP40-rated housings can incline 20° and also be configured as handheld units. Read More

Electronic Components & Devices, Materials & Material Processing

LED Packaging is custom tailored to requirements.

November 24, 2014

Designed to specific customer requirements, LED Substrates and Submounts utilize variety of metallization technologies on alumina, AIN, and BeO ceramics, including PCTF® Plated Copper on Thick and Thin Film with 20–75 µm copper, AgENIG® Electroless Nickel and Immersion Gold over Silver, and DBC Direct Bond Copper with 125–250 µm copper. LED substrates for bond-pad down devices allow narrow gap capability for 50 µm wide gaps. Direct eutectic die-attach eliminates need for wire bonds. Read More

Electrical Equipment & Systems, Mechanical Power Transmission, Electronic Components & Devices

DIN Rail Mounting Enclosure houses Raspberry Pi B+.

November 20, 2014

Produced in UL94V-0 self-extinguishing material, Modulbox 4M RMB fosters use of Raspberry Pi B+ within industrial and process control applications. Enclosure features transparent top panel, body enclosure, and base, and DIN rail hook allows enclosure to be mounted on DIN Rail. Manufactured with openings for specific input and output requirements of Raspberry Pi B+ platform, enclosure can also be machined/printed to custom specifications for volumes from 50–100 minimum. Read More

Computer Hardware & Peripherals, Mechanical Components & Assemblies, Electronic Components & Devices

Thunderbolt-Compatible Enclosure enhances computing capacity.

November 12, 2014

Via attachment through Thunderbolt or PCIe connection, picoCUBE (pCUBE) enhances performance of any laptop or workstation and suits Mac Pro users who need to add one card, such as Black Magic Mini Recorder card, to their system. This acrylic expansion enclosure supports one PCIe x8 3.0 half-height, half-length expansion card up to 6.5 in. long and can be supplied with PCIe x1, x4, or x8 cable adapter or Thunderbolt 2 Option Card. Standard features include 36 W external power supply. Read More

Electronic Components & Devices

Configurable Electronics Enclosures are offered as complete sets.

November 10, 2014

Molded in ABS (UL 94 HB), INTERFACE-TERMINAL multifunction, ergonomic enclosures offer space for components, displays, and touchscreens. Modular construction allows 5 formats: mobile; with base or flat wall suspension element; desktop; desktop/wall mounting with latch lock; and flush-mounted in walls or control panels. Along with front panels of ABS, aluminum, and glass, choices include 7.48 x 5.31 in., 8.86 x 6.50 in., and 10.83 x 7.68 in. plan sizes. Read More

Computer Hardware & Peripherals, Mechanical Components & Assemblies, Electronic Components & Devices

Desktop Expansion Enclosures enhance Mac/PC capabilities.

November 3, 2014

Targeting users who need to add expansion to their PC or Mac Workstation, CUBE enclosures offer various slots, power, and connectivity packages. Thunderbolt™ 2 option supports direct interface with Mac Pro, affording access to pro audio, video capture and processing, and general I/O cards as well as storage devices. Also supporting attachment to computer via PCIe, enclosures support 1–8 PCIe cards of varying length and include all-black model as well as those with reinforced frames. Read More

Mechanical Components & Assemblies, Plant Furnishings & Accessories, Electronic Components & Devices

Plastic Electronics Enclosure offers NEMA 4X and IP66 ratings.

October 29, 2014

Measuring 4.63 x 4.63 x 2.36 in. and designed for outdoor applications, Model HD44 is available in both gray and black UV-stabilized polycarbonate with silicone gasket seal and UL94V-0 flame rating. Gasket protects internal components from dust, dirt, and water. Additional features include molded on surface-mounting flanges, plastic PCB mounting bosses, stainless steel screws for corrosion resistance, and brass inserts for cover on/off convenience. Read More

Material Handling & Storage, Plant Furnishings & Accessories, Electronic Components & Devices

Equipment Rack Enclosures feature 1,000 lb load capacity.

October 28, 2014

Featuring welded steel construction and black powder coat finish, Models EREN-18, EREN-27, and EREN-42E offer 18, 27, and 42 rack spaces, respectively. Portable units come with integrated cooling fans and lockable, removable side panels, allowing for organization of multiple electronic components while protecting against thermal issues, damage, and theft. Working with 19 in. rack equipment, enclosures have tempered glass front door, double swing steel rear door, and vented top and bottom. Read More

Electronic Components & Devices

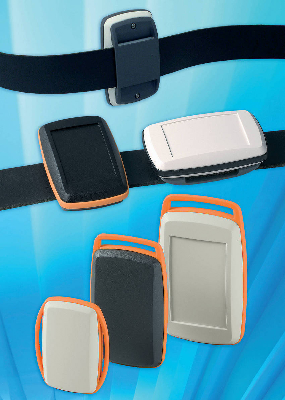

Handheld Enclosures feature integrated charging contacts.

October 20, 2014

Designed for mobile applications in harsh environments, DATEC-COMPACT Outdoor Enclosures include S, M, and L models measuring 5.35 x 2.91 x 1.26 in., 6.77 x 3.62 x 1.53 in., and 8.11 x 4.33 x 1.85 in., respectively. All 3 sizes can be specified with or without gold-plated integrated contacts (<15 A, 1-pole) for charging and data transfer. Versions with battery compartments provide slots for SD cards and USB connectors. Manufactured from UV-stable ASA+PC-FR, enclosures are rated to IP65/NEMA 4. Read More
