Select-Arc, Inc.    Fort Loramie, OH 45845-0259
Apr 06, 2011 Composed of nominal weld metal compositions of 30% chromium, 9% nickel, and 0.1% carbon, SelectAlloy 312 and SelectAlloy 312-C produce 2-phase weld metal with substantial ferrite in austenitic matrix. Flux-cored SelectAlloy 312 welds dissimilar metals such as carbon steels to stainless steels high in nickel, while metal-cored SelectAlloy 312-C welds dissimilar metals at elevated speeds. Both gas-shielded electrodes are available in .045 in. and 1/16 in. diameters.

Linear Technology Corp.    Milpitas, CA 95035
Apr 06, 2011 Supplied in thermally enhanced 10-lead MSOP, MP-grade LTC4441 delivers 6 A peak output current and increases DC/DC controller output power and efficiency. This enables driving of high-power N-channel MOSFETs or multiple MOSFETs in parallel. Along with adjustable 5-8 V onboard linear regulator for gate drive voltage and IC power, features include 5-25 V input supply, adjustable leading edge blanking, and TTL/CMOS-compatible input that can be driven below ground or above driver supply.

Teseq, Inc.    Edison, NJ 08837
Apr 06, 2011 Controlled by NSG 3000 Series of EMC test generators, Model VAR 3005 regulates test voltage and generates variable voltage for dips and drops testing of EUTs. Microprocessor-based, plug-and-play unit has several self-test features, including self-check, AC power volt check, and phase rotation check, as well as ability to inform users or stop test if test conditions are not correct. EUT supply input voltage range is 10-240 Vac, while output voltage is adjustable from 0-265 Vac.

Dialight Corp.    Farmingdale, NJ 07727
Apr 06, 2011 Delivering up to 75 lumens/W at 80 W total power consumption, DuroSite(TM) LED Low Bay Fixture comes in cool white and neutral white versions with low-glare optics and power factor of greater than .95 for energy efficiency, even on standby. Unit is available with variable dimmer or motion detector/occupancy sensor for further energy savings. Featuring all-aluminum housing with scratch-resistant polycarbonate lens, luminaire withstands risk of vandalism and damage in low-clearance environments.

Harwin Plc    Portsmouth Hampshir PO6 1RT  United Kingdom

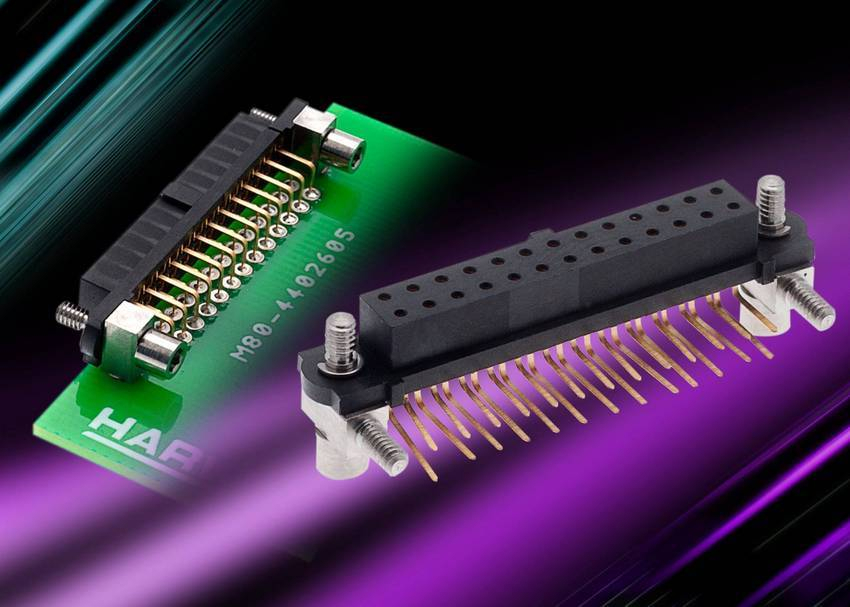

Apr 05, 2011 Datamate 2 mm interconnection system includes horizontal female version that enables boards to be connected in parallel or side-by-side. Dual-row connectors are available in 6, 12, 14, 20, 26, and 34 positions with 3 mm PC tail. Product suits military, aerospace, data communications, medical, and industrial controls applications.

Crystek Corp.    Fort Myers, FL 33907

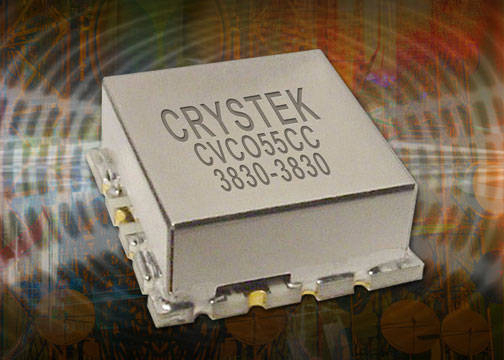

Apr 04, 2011 Model CVCO55CC-3830-3830 VCO features control voltage range of 0.5-4.5 V, while input voltage is 8 V and maximum current consumption is 35 mA. Typical phase noise is -108 dBc/Hz at 10 kHz offset and unit's output power is +7 dBm. It also has second harmonic suppression of -15 dBc, and pulling is minimized to 1.0 MHz and pushing is down to 0.2 MHz/V. Integrated in 0.5 x 0.5 in. SMD package, VCO can be used in digital radio equipment, satellite communications systems, and base stations.

Supertex Inc.    Sunnyvale, CA 94619

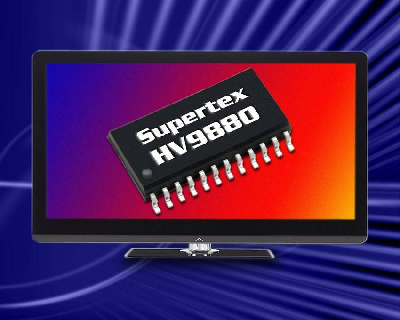

Apr 04, 2011 Housed in 24-lead SOW package, 2-channel Model HV9880 enables separate LED strings to be operated at different PWM duty cycles for color mixing in LCD TV and backlighting applications. RoHS-compliant IC includes LED wiring fault detection, which protects LEDs from harmful high currents when connecting wire accidentally gets shorted to ground during manufacturing. Peak mode current control scheme controls output current within ±3% accuracy over all line and load conditions.

Gennum    Burlington, ON L7L5M4
Apr 04, 2011 Used at each end of Thunderbolt(TM) active copper cables as in-connector transceiver chip, GN2033 allows reliable, error-free transmission of high-speed data. Thunderbolt utilizes dual bi-directional channels operating at 10 Gbps per port to concurrently support data and display over single electrical cable. Copper cables enabled by GN2033 will provide path to utilizing performance and flexibility of Thunderbolt technology for cable manufacturers.

Fujitsu Semiconductor Europe    Dreieich-Buchschlag D-63303  Germany
Apr 01, 2011 Based on ARM® Cortex(TM)-A9 core, Emerald-L MB86R11 features 4 video input ports that enable simultaneous processing of different video images. Intended for automotive sector, chip supports wrap-around view technology for driver's visual assistance. Images are taken by 4 cameras, combined to appear as if taken from bird's eye view, and projected onto virtual 3D curved surface. Images are then converted into those seen from any desired point-of-view using 3D virtual projection.

STMicroelectronics    Lexington, MA 02421
Apr 01, 2011 Combining SOI (Silicon-on-Insulator) substrate technology with 0.16 micron lithography, next-generation variation of BCD (Bipolar-CMOS-DMOS) smart power semiconductor technology aims to reduce power consumption of electronic systems. It will enable chip designers to combine high-density logic circuitry (1.8 and 3.3 V CMOS) with full dielectric isolation and component portfolio, including power MOSFET transistors that can operate up to 300 V, low-noise devices, and high-value resistors.

Larson Electronics, LLC    Kemp, TX 75143
Apr 01, 2011 Model TX-500VA-4XAO provides .50 kVA and converts primary 120 Vac or 240 Vac electrical input into 12 or 24 Vdc and Vac output. It can also provide 12-24 Vdc or 12-24 Vac via secondary output equipped with four I-520 sockets that accept twist lock plugs. Adjustable voltage switch, which compensates for losses with long extension cords, and 2 GFCI protected outlets are included. Unit also has elevated base platform for protection against standing water as well as weatherproof construction.

Fujitsu Semiconductor Europe    Dreieich-Buchschlag D-63303  Germany
Mar 31, 2011 Model MB86R12 Emerald-P graphic SoC combines ARM® Cortex(TM)-A9 processor core, image processor, and APIX®2 interface that is high-speed link for video and control. Programmable shader graphics processor supports OpenGL ES 2.0 and can run parallel 2D- and 3D operations. Featuring 4 video inputs that run in parallel, unit can map frames of 4 video cameras onto 3D mesh, enabling 360° views. It also includes 3 independent display controllers and up to 1 GB of memory.

HBM, Inc.    Marlborough, MA 01752 3014
Mar 31, 2011 Able to work with large number of different sensors, 16-channel MX1601 ensures flexibility in applications with mainly active sensors or acceleration transducers. All physical measurands measured via standardized voltages or currents can be acquired, and current-fed, piezoelectric transducers can also be connected. While sensor connection is facilitated via push-in technology, TEDS support enables connected sensors to be automatically identified and configured.

Bomar Interconnect Products    Ledgewood, NJ 07852

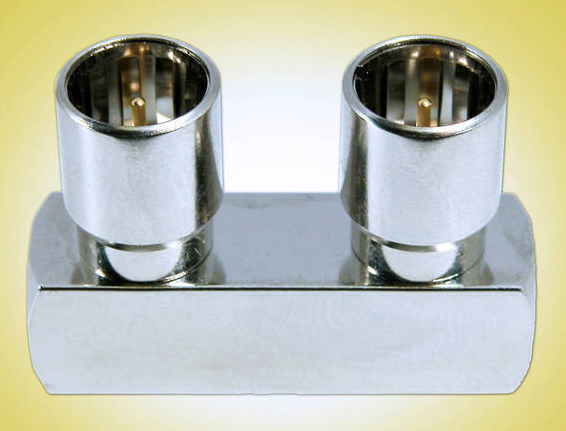

Mar 31, 2011 Eliminator(TM) Series coaxial F U Connector is engineered to eliminate cable assemblies in board-to-board applications or eliminate panel jumpers to same panel. Designed for video applications where equally spaced rows of female F connectors need be jumped horizontally or vertically, connector/adapter is true 75 ohm device is manufactured of brass, features gold-plated contacts, and is optimized for return loss and insertion/withdrawal characteristics as well as RF performance.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Mar 31, 2011 Supporting ultra fine pitches down to 0.3 mm, LC Series Clip Type Socket features specially designed contacts that carry out micro wiping action, ensuring stable, low contact resistance. Elevator stage prevents FPC pads from being damaged or scratched while simultaneously protecting contacts during FPC load/unload operation. As output options, customer can choose discrete wiring, MIL Std., or FPC connector.

Dialight Corp.    Farmingdale, NJ 07727
Mar 31, 2011 Using low-voltage LEDs that operate at 20 W, Vigilant(TM) Series CL-864/L-864 LED Red Obstruction Beacon is qualified by NAV CANADA for ultra-low EMI in communication tower applications. Unit also features patented optics technology for minimal ground scatter and community-friendly operation. With small flash head, beacon minimizes wind loading, while LED technology delivers at least 10 years of maintenance-free operation.

Z-Communications, Inc.    San Diego, CA 92126
Mar 30, 2011 Operating from 2,184-2,238 MHz with tuning voltage range of 0.5-4.5 Vdc, model CRO2211B-LF features typical phase noise of -110 dBc/Hz @ 10 KHz offset and typical tuning sensitivity of 22 MHz/V. VCO delivers typical output power of 3 dBm at 5 Vdc supply while drawing 22 mA (typ) over -40 to +85º C and offers typical second harmonic suppression of -16 dBc. Supplied in 0.5 in. x 0.5 in. x 0.22 in. MINI-16-SM package, product is suited for automated SMT assembly and reflow.

Larson Electronics, LLC    Kemp, TX 75143
Mar 30, 2011 Supplied on explosion-proof reel, EPL-FL1524-LED-50-HR Class 1 Division 1 and Class 2 Division 1 rated LED drop light offers alternative to incandescent and fluorescent trouble lights. Entire lighting solution can be installed and used in hazardous location areas. It features 15 W LED bulb and 50 ft SOOW cord as standard, 100 ft SOOW cord is also available. Product suits applications with areas requiring UL Class 1 and Class 2 lighting.

Murata Power Solutions, Inc.    Mansfield, MA 02048

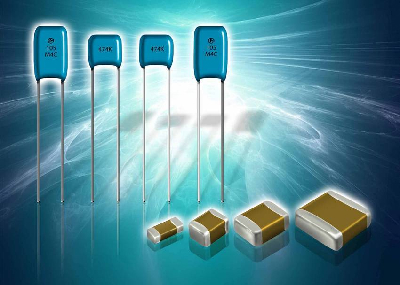

Mar 29, 2011 Incorporated in LED lighting circuits immediately following bridge rectification stage, GR3 and RDE Series provide DC smoothing and acoustic noise reduction. GR3 Series, for reflow soldering use, provides capacitance from 10-1,000 nF for 250 Vdc range, 560 nF for 450 Vdc, and 270 nF for 630 Vdc. For radial leaded insertion production, RDE Series features capacitances of 10 nF to 2.2 µF for 250 Vdc part, 1.2 µF for 450 Vdc, and 560 nF for 630 Vdc component.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Mar 29, 2011 Model CBT-BGA-6014 is suited for testing 13 x 13 mm BGA with 1 mm pitch and 144 pins. It features stamped spring pin contactor with 19 g actuation force/ball and inductance of 0.93 nH, insertion loss of less than 1 dB at 23.2 GHz, and contact resistance of less than 16 mW. Current capacity of each contactor is 8 A at 80°C temperature rise, and socket temperature range is -55 to +180°C. Integrated floating guide enables precise ball-to-pin alignment.
