Valve Connector offers direct Fieldbus connection.
B & R Industrial Automation Corp.
Roswell, GA 30076
Mar 09, 2005
Enabling integration of pneumatic valves from most manufacturers, XV Connection provides up to 24 digital outputs for up to 24 valves in compact DSUB housing. Unit makes it possible to add valve manifolds from Buerkart, Festo, Bosch Rexroth, Norgren, SMC, and others to already networked environment with minimal configuration. Connection is made directly using 25-pin connector.
Hardware/Software Development System scales to 20 channels.
Upper Saddle River, NJ 07458
Mar 09, 2005 RTS2503 Development Platform consists of hardware and software bundles, supported by set of board and system-level development tools targeted for real-time data acquisition, signal processing, and recording. It includes 1 GHz G4 PowerPC processor, 2 Virtex-II and 2 Virtex-II Pro FPGAs delivering 18M gates of programmable logic, and on-board 215 MHz 12-bit A/D converters. Model 4990 SystemFlow API and libraries allow developers to customize already functioning starter RTS platform.
Chip Resistors exhibit stability in circuit applications.
Austin, TX 78730
Mar 09, 2005 Ultra Precision Thin Film (UPTF) Chip Resistors feature temperature coefficient of resistance (TCR) as low as 5 ppm and tolerance as low as ±0.01% for sizes 0402â€“1206. With operating temperature range of -55 to +150°C, products are suited for flow and re-flow soldering. Resistance range of 10 ohm to 500 kohm includes 0402s with values up to 100 kohm, 0603s with values up to 150 kohm, and 0805 and 1206 sizes with values up to 500 kohm.
HDMI Receiver IC is suited for use in design of HDTVs.
Philips Electronics North America Corporation / Philips Comp
San Jose, CA 95134
Mar 09, 2005 High-definition multimedia interface (HDMI) TDA9775A IC allows TV manufacturers to combine uncompressed HD video and multi-channel audio through one digital interface and connector. Implemented in reference design, TDA9975A features triple 10-bit ADC input interface, dual-input HDMI receiver, and High-bandwidth Digital Content Protection decryption keys on one chip. When connected to 17 in., HD-ready LCD TV, it displays resolutions from 480p/576p to 720p/1080i.
Blue LEDs maximize light extraction efficiency.
Latham, NY 12110
Mar 08, 2005
Utilizing InGaN/SiC technology, 465 nm TBL Blue Series incorporates current distribution layer that requires single wire bond. Vertically structured chips are approximately 115 microns in height with luminous intensities up to 12,000 mcd. Units come in 5 mm round and elliptical packages with 15, 30, 60 x 35, and 110 x 50° viewing angles. Applications include decorative lighting, full color video screens, mobile appliance lighting, and automotive illumination.
Termination features welded silver ribbon lead.
International Manufacturing Services, Inc. (IMS)
Portsmouth, RI 02871
Mar 08, 2005 Measuring 250 x .250 x .040 in., Aluminum Nitride 50 Ohm Termination, Model AlN2291 features return loss of 25 db on input and output. It provides CW power handling to 150 W, operating to frequency of 4 GHz. Available in lead-free metals, termination is suited for high power RF/microwave amplifier and transmitter applications.
Video Pixel Decoders are suited for set-top boxes and PVRs.
Zurich CH-8005 Switzerland
Mar 08, 2005 Video acquisition ICs in VPX 322xF series preserve high-resolution ADC sampling for entire luminance and chrominance line processing before downsampling to required resolution. Decoder detects Macrovison® v7.1 anti-taping technology, including color stripe support; features adaptive 4H comb filter; and offers access of closed-caption and CGMS data via I˛C bus. Model VPX 3228F complements Composite Video and S-Video interfaces with analog component video input.
Product mechanically amplifies linear force.
Colorado Springs, CO 80921
Mar 08, 2005 PowerCylinderâ„˘ uses encapsulated hydraulic circuitry to amplify linear force. It adds hydraulic boost to hand and power tools, robots, or any other piece of industrial equipment. Driven by hand or motor, unit offers speed and heft of hydraulics in small spaces. It incorporates automatic resistance regulated transmission. Unit weighs 16 oz, and 50 lb squeeze of handle delivers 1˝ tons.
Synchro/Resolver Amplifier includes locked rotor protection.
Control Sciences, Inc.
Chatsworth, CA 91311 4141
Mar 08, 2005 Measuring 2.62 x 3.12 x 0.8 in., Series 175A600 is intended for PC board mounting. Module delivers full 5 VA making it capable of driving virtually all 400 Hz size 8 and size 11 passive or active synchro/resolver loads. Featuring current limit protection and thermal protection, unit maintains ±4 arc min accuracy from no-load to full load. Integral aluminum top plate provides all necessary heat-sinking. Unit requires ± 15 V power supplies.
Quick Connection System eliminates threaded coupling.
Mar 07, 2005
Quick Connection System, Model M12-QCS, only requires push mating to secure and seal connector. With push mating, connection is made, locking is guaranteed, and features of IP 65/67 are fulfilled. System is vibration-proof and backwards compatible with other M12 technologies.

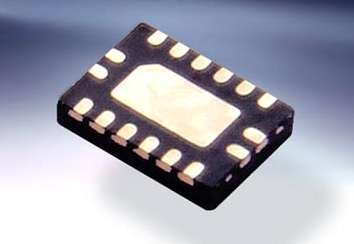

Dual Analog Switch exceeds USB 2.0 requirements.
Fairchild Semiconductor Corp.
South Portland, ME 04106
Mar 04, 2005
Featuring less than 1 µA power, bandwidth greater than 720 MHz, and DQFN package, Model FSUSB22 is suited for high-speed USB switching in portable design applications. It is configurable either as dual DPDT switch or 4-channel 2:1 multiplexer/de-multiplexer for USB 2.0 connector sharing or port isolation. Less than 15 A max quiescent current consumption contributes to extended battery life, while low On Resistance of 5 ohms minimizes noise level.

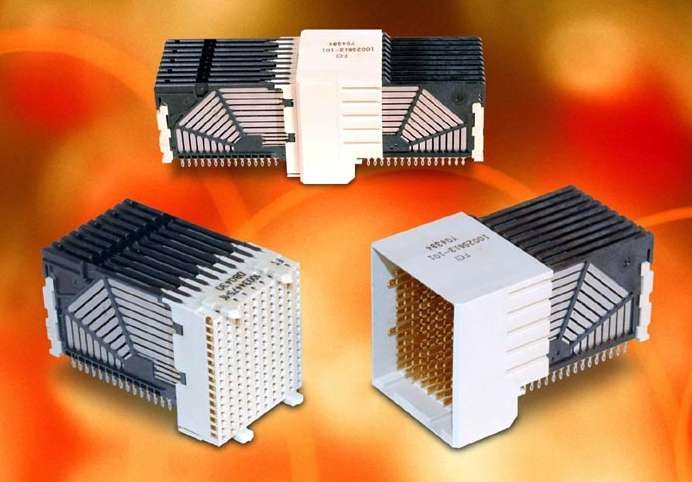

Backplane Connector System uses co-planar connectors.
Etters, PA 17319 9769
Mar 04, 2005 AirMax VS® uses air as dielectric between adjacent conductors. Insert Molded Leadframe Assembly enables same connector to be used for differential pair signals, single ended signals, or power. AirMax VS allows for any allocation of signals within one connector so systems can grow from 2.5â€“25 Gb/s without requiring redesign. Two-piece header-receptacle is available in 150- and 120-position configurations for 1.0 and 0.8 in. slot pitch applications, respectively.
Silicon/IP Solutions enable field upgradeability.
San Jose, CA 95124 3400
Mar 04, 2005
Based on Virtex-4(TM) multi-platform FPGA family, wireless base station reference designs and IP cores help implement bug fixes, deploy new services, and tune system performance via remote software download. Radio Module, Baseband Module, and Transport Module support changing and differentiated traffic requirements of wireless service providers. Virtex-4 FPGAs feature up to 256 billion multiply and accumulate operations/sec.
IGBTs target TIG welder applications.
Advanced Power Technology
Bend, OR 97702
Mar 04, 2005 Models APT200GN60J and APT200GN60JDQ4 insulated gate bipolar transistors use Field Stop Trench Gate Technology and are offered in industry standard SOT-227 package. Units operate up to 30 kHz hard-switched and are 10 µs short circuit rated. In addition to being used in output inverter of aluminum TIG welders, devices can be used in any application requiring low conduction losses at high currents and 0â€“30 kHz switching speed.

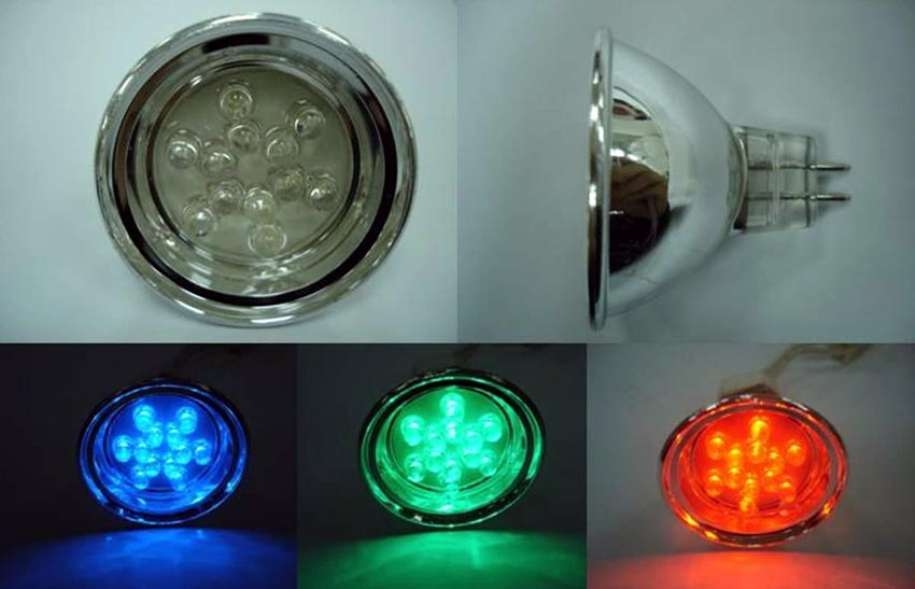

LED Lamps suit architectural and display applications.
Para Light Corp.
Walnut, CA 91789
Mar 03, 2005 With average life exceeding 100,000 hr, 512 (12-LED) and 521 (21-LED) series lamps are supplied in standard MR16 format for use as incandescent and fluorescent lighting replacements. Products are specified for 12 V ac/dc operation, contain no hazardous materials, and come in red, green, and blue with outputs of 4.6, 16.5, and 3.5 lumens, respectively. Socket drop-in 2-pin lamps have GX5.3 base and measure 38 mm long, with front-lens diameter of 50 mm.
Retimer Chips are designed for optimal integration.
Mountain View, CA 94043
Mar 03, 2005
Incorporating 10GbE transceiver technology, MY3128 and MY3129 come in 12 x 12 mm 196-pin BGA package and use 62.5 MHz oscillator. Model MY3128, suited for 10GBase-CX4 applications, employs Channel Swap capability that allows user to maintain all high-speed signals on one PC layer. Suited for 10GBase-LX4 applications, MY3129 integrates MSA registers, digital optical monitoring capabilities, and real-time signal quality indicator.
Base Station Chips enable video phone services.
San Jose, CA 95124 3400
Mar 03, 2005 Utilizing FPGA technology, chips let service providers enable features such as video on next generation 3G mobile phones. Built into tens of thousands of wireless base stations world-wide, products can be reprogrammed to enable upgrades from remote location, letting users change features and functions on-the-fly with Internet Reconfigurable Logic. Functionality aids in adapting to new standards and reconfiguring hardware for specific applications.
System-On-Chip targets wireless infrastructure equipment.
Lexington, MA 02421
Mar 03, 2005
GreenSIDE combines 2 quad-MAC 600 MHz DSP cores and ARM926 300 MHz RISC core providing 29,000 Mops, 7,500 Mips, and 4,800 MMacs/s. It includes 16 Mb embedded SRAM, dedicated Turbo Decoding Engine for data error correction, and Convolutional Decoding Engine for voice error correction for 2.5G and 3G standards. Fabricated using 130 nm CMOS technology, chip offers modular architecture that can be customized with addition or removal of peripherals or logic blocks.
Backplane Receptacle Connectors support speeds of 3 Gbps.
Etters, PA 17319 9769
Mar 02, 2005 Vertical, 29-position Connectors enable implementation of Serial Attached SCSI hard disk drive interface. Staggered contact lengths provide sequential mating of contacts to enable hot plugging. Molded guide posts feature angled lead-in to compensate for connector misalignment, allowing device plug and backplane receptacle to self align during mating process. Options are available for through-hole solder, press fit, surface-mount, or hybrid termination.
Display Driver IC features integrated controller.
Leadis Technology, Inc.
Sunnyvale, CA 94085-4117
Mar 02, 2005 Area Color Organic LED display driver IC, Model LDS518 includes 16 Kbit display RAM, on-chip oscillator, and frame frequency adjustment. With max resolution of 128 x 64 and 4-gray scale color, unit offers programmable display features such as divided area display including flashing function per divided area and 2 screen saver modes. Device is suited for small electronic devices such as MP3, fax machines, printers, and main and sub-displays for mobile phones.
