Macro Sensors    Pennsauken, NJ 08110 1334
Jun 13, 2011 Combining spring-loaded, AC-operated LVDT position sensors with EAZY-CAL(TM) Mini-Module LVDT Signal Conditioner, EAZY-GAGE Bundle provides fully calibrated and complete linear position gaging system ready for immediate operation. Package can be specified with variety of GHSA/R 750 Series position sensors with stroke ranges from 0.10-4.00 in. Operating on nominal 15-30 Vdc power input, DIN rail-mount signal conditioner provides 0-10 Vdc or 4-20 mA output and can be remotely located by up to 100+ ft.

Mini-Circuits    Brooklyn, NY 11235
Jun 13, 2011 Measuring 0.75 x 0.74 x 0.46 in., 5-20 GHz Model ZX60-24+ features internal compensating circuitry for high gain, flat response of 24 dB ±1.3 dB typical. Two-stage unit, designed for 50 W SMA coax systems, comes in gold-plated package with nickel-plated brass cover and unibody construction. Operating on 5 Vdc, coaxial amplifier is suited for applications ranging from microwave radio and radar to military communications, satellite communications, and countermeasures.

FasTest, Inc.    Roseville, MN 55113-1317
Jun 13, 2011 Able to be attached quickly, CalMate flange connectors provide temporary calibration connections for gauges, transmitters, and other devices equipped with sanitary, tri-clamp style fittings. Product can be adjusted to work in applications with different gasket and flange thicknesses and is rated up to 300 psi. Offered in sizes for applications with ½-2 in. tubes, connectors feature stainless steel construction and deliver safe, repeatable connections.

VPT, Inc.    Blacksburg, VA 24063
Jun 13, 2011 Designed for use in military and avionics power systems, DVPL0520S non-isolated, synchronous, regulated buck converter steps down power at point of use with up to 90% efficiency. Hermetic package measures 1.075 x 1.075 x 0.270 in. and weighs 16 g max. Offering user-adjustable output voltage from 0.8-3.4 V and output inhibit control, product operates from 5 V nominal input and has fault tolerant design with magnetic feedback. It can be used alone or with multiple POL DC-DC converters.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Jun 13, 2011 Covering frequency range of 50-4,000 MHz, RFSA2013 voltage controlled attenuators (VCAs) operate from 5 V power supply, while RFSA2023 units require 3 V supply. Monolithic VCAs also feature third order intercept point of greater than 50 dBm over 30 dB gain control range. Internal temperature compensation allows for stable attenuation profile over operating temperatures from -40 to +85°C. Units are available in 3 x 3 mm QFN packages.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 10, 2011 Supplied in 40-pin thermally enhanced LLP, LM3435 drives 3 common anode RGB high-brightness LEDs sequentially with one inductor. LEDs are powered one after another at 60 Hz and above to match operation requirements of liquid crystal on silicone (LCoS) or digital light processing (DLP) image devices. Along with I²C control interface, this switching-mode constant current regulator integrates all active components and accepts 2.7-5.5 V input.

Linear Technology Corp.    Milpitas, CA 95035
Jun 10, 2011 To address high-density footprints of multimode 4G RRH (Remote Radio Head) MIMO receivers, LTC5569 offers 26.8 dBm IIP3 and operating frequency range of 300 MHz to 4 GHz. IC comes in 4 x 4 mm QFN package and can be configured to operate on any cellular band from 700 MHz to 2.7 GHz. It also features conversion gain of 2 dB and noise figure of 11.7 dB as well as inputs that can withstand strong in-band blocking interference signals without significantly degrading noise figure.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Jun 10, 2011 Available in surface mount QFN package, P2P Radio Chipsets combine multiple RF/microwave radio front end components. Integrated up-converters include LO amplifier, IQ mixer, VVA, and driver amplifier in single package. Utilizing 0.15 µm GaAs technology, integrated down-converters deliver optimum IIP3 and noise figure performance. In addition, MMIC VCOs exhibit optimal phase noise performance coupled with flat output power over frequency tuning bandwidth.

Rubyquartz, LLC.,    Aventura, FL 33160
Jun 09, 2011 Measuring 5.0 x 3.2 x 1.2 mm, surface mount Model CWSMF243 offers frequency choices between limits of 1.0-60.0 MHz, such as T-1/E1, 1.544 MHz and 2.048 MHz and T-3/E3, 34.368 MHz and 44.736 MHz. RoHS-compliant device features frequency stability of ±100 ppm at operating voltage of 3.3 V at 30 Ma within temperature range of -10 to +70°C. Peak jitter is 70 pc.

Aeroflex    Irvine, CA 92618
Jun 09, 2011 SGA Signal Generator with Option 6 offers internal generation of waveforms required for testing avionics functions. Option includes waveforms for Instrument Landing Systems (ILS), VHF Omni-directional Radio (VOR), marker beacons, and COM ID tones for airport identification. Digitally generated modulating waveforms ensure accurate and stable performance under all operating conditions. Respective operating frequency ranges for SGA Models 3 and 6 are 100 kHz to 3 GHz and 100 kHz to 6 GHz.

RIA Connect    Tinton Falls, NJ 07112
Jun 09, 2011 Available in 3.5, 5.0 and 5.08 mm centerlines, Models ASP063, ASP065, and ASP066 utilize spring clamp technology, allowing for wire and push-button actuation in same plane. Versions with finger-friendly pushbuttons are available, eliminating need for screwdriver. Thru-hole Reflow compatible headers, for pin and paste assembly, as well as versions with mounting latches are also available.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 09, 2011 Integrating 70 V, 1.5 A N-channel MOSFET and featuring input range of 6-70 V, Model LM3466 uses 1 resistor and 1 capacitor to drive LED string from any AC/DC constant-current power supply. Dynamic current equalizing control scheme enables communication between each LED driver to divide current amongst multiple active LED strings. During open string state, each LM3466 automatically equalizes current throughout remaining strings to maintain relatively constant output power.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jun 09, 2011 With Model TMP006, manufacturers can accurately measure case temperature of mobile devices, such as smartphones, tablets, and notebooks. Sensor can also measure temperature outside device, extending features and user apps. Housed in 1.6 x 1.6 mm package, chip integrates MEMS thermopile sensor, signal conditioning, 16-bit ADC, local temperature sensor, and voltage references. Device supports temperature range of -40 to +125°C, while using 240 µA quiescent current and 1 µA in shutdown mode.

PT    Rochester, NY 14626
Jun 09, 2011 Providing foundation for next-generation network communications and services applications, Monterey open-standards application-ready platform comes complete with pre-integrated hardware, middleware, and software, as well as processing and I/O options. MicroTCA.4 shelf features intelligent, redundant, and serviceable power and cooling, while backplane supports 40 GbE to each slot. In addition to MicroTCA.4 double-wide form factor, Monterey also supports single width AMC(TM) modules.

ROHM Semiconductor USA LLC    San Diego, CA 92121
Jun 09, 2011 Intended for electronic devices, BU21023/BU21024 series enable multi-touch operation and gesture-based controls, such as pinching, spreading, and rotating, without additional input devices. Design also permits operation with fingernails or while wearing gloves. Both IC series integrate dedicated analog circuit and CPU for 2-point coordinate and gesture detection. Also included, calibration function minimizes effects of panel variations.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Jun 09, 2011 Suited for LCD backlighting in tablet computers, Model AAT1451 drives up to 4 LED strings at up to 93% efficiency. Device uses 32 kHz PWM operating frequency to ensure silent operation and has switching frequency of 600 kHz to 1 MHz. To ensure accurate backlight color temperature and uniform brightness, driver has 4 current sinks that are programmable up to 30 mA per string at ±2% accuracy with ±1.5% matching between strings to drive up to 48 white LEDs at 120 mA output current.

Kaben Wireless, Inc    Ontario   Canada
Jun 09, 2011 Featuring programmable output frequency from 10 MHz to 1 GHz in steps of 10 Hz, Model KWS430 delivers 0.35 ps RMS jitter in 12 kHz to 20 MHz integration bandwidth. Device operates from 25-40 MHz clock or XTAL reference frequency, performs clock cleaning on jittered clock up to 1,330 MHz, and can derive clean clock from accepting NRZ data inputs directly, at data rates up to 1.33 Gbps. Programmable via I2C or SPI interface, unit includes Auto Calibration feature that prevents band changes.

Crystek Corp.    Fort Myers, FL 33907
Jun 08, 2011 Supplied in ruggedized SMA housing, CBPFS Series is designed for test equipment or general lab use and is comprised of 6 models with center frequency ranges from 836.5-1,960.0 MHz. Band pass width is rated at 25, 26, or 60 MHz, depending on model, and all filters have -40 to +85°C operating range as well as 50 ohm SMA connectors and optimized out-of-band rejection.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

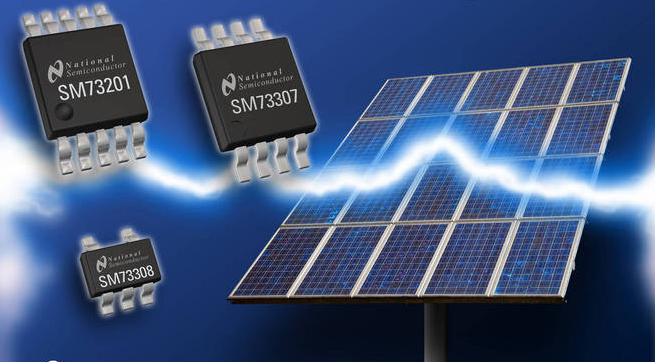

Jun 08, 2011 SolarMagic(TM) arc detection reference design features analog ICs that include SM73201MM 16-bit, 50-250 kSPS, differential input A/D converter; SM73308MG low noise, RRO operational amplifier; and SM73307MM, 17 MHz, CMOS input amplifier. Multi-band dynamic filtering firmware is also included, which offers abstracted pattern recognition approach to detecting faults. Complete chipset provides alert to shutdown system power when arc faults are found in PV systems, extinguishing arc.

STMicroelectronics    Lexington, MA 02421
Jun 08, 2011 Rad-Hard Power MOSFETs are available in five N- and P-channel devices: models STRH100N10, STRH8N10, and STRH40P10, rated to 100 V, and STRH100N6 and STRH40N6 rated to 60 V. P-channel device (100 V) has current rating of 34A. Hermetically sealed package withstands 70/100 krad Total Ionizing Dose. Featuring low gate charge, MOSFETs can be used in DC motor controllers, linear regulators, and line switches and e-fuses for current limiting, as well as on-board satellites and launchers.
