Atmel Corp.    San Jose, CA 95131
Nov 06, 2006 Combining ATA5756 and ATA5757 RF transmitters with ATmega AVR 8-bit Flash microcontroller, Model ATA6285 and ATA6286 ICs control and transmit data gained from capacitive pressure and motion sensors. Operating from -40 to 125ºC, single-package devices feature temperature sensor with shut-down mode, and 90 kHz slow-oscillation mode for timer wake-up in sleep mode. Devices consume 0.5 µA in sleep mode, 200 µA during sensor measurement, and 8.5 mA at 6 dBm in transmission mode.

KineticSystems Co., LLC    Lockport, IL 60441-2200
Nov 03, 2006 NEXUS Wireless Testing Systems provide all signal generation/analysis hardware and software required for complete testing of 802.11 a, b, g, j, and n wireless devices. They are capable of generating complex 802.11 testing signals for up-conversion and transmission as well as acquiring and analyzing received and down-converted 802.11 signals. With Master/Slave Multi-CompuScope digitizer architecture, systems offer true simultaneous conversion clocking and triggering on all channels.

ITT Industries, Cannon    Santa Ana, CA 92705-5612

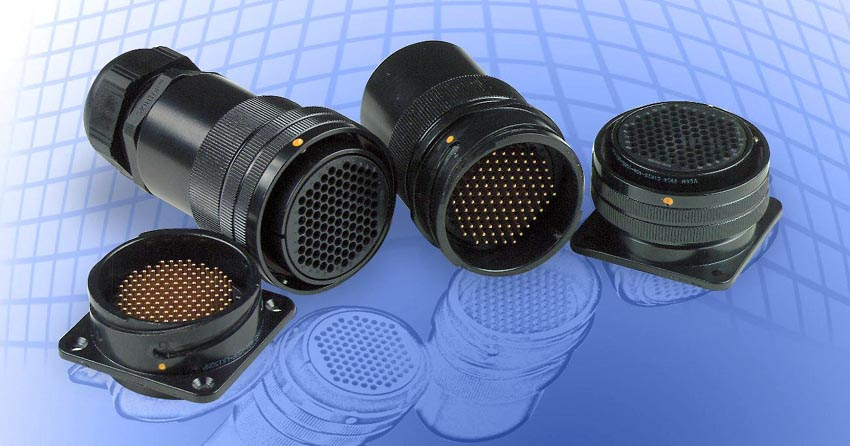

Nov 03, 2006 Developed for coax, fiber, and HV applications, VEAM CIR Series connectors can function as electrical, optical, or pneumatic connectors. Coaxial CIR connectors accept most popular RG cables, while fiber styles come with single- or multiple-fiber termini. Other connector configurations include high voltage, twin- or tri-axial with size 4 or 8 contacts, and RFI/EMI in which grounding fingers on plug connectors provide 360º plug-to-receptacle shield integrity.

Fiso Technologies Inc.    Quebec, QC G2E 5R9  Canada
Nov 03, 2006 Designed to measure 2 parameters simultaneously, Model FPI-HR-OEM Signal Conditioner targets markets such as scientific, energy, and oil and gas. Based on White-Light Interferometry technology, FO signal conditioner features optional smart connector for accuracy, and automatic sensor identification without need for entering gage factor numbers manually. Built-in temperature compensation system protects accuracy when temperature test environment varies.

Atmel Corp.    San Jose, CA 95131
Nov 02, 2006 Manufactured in high-voltage 0.8-µm BCD technology, Model ATA6264 provides measures against undervoltage conditions and battery cable loss, power sequencing, integrated watchdog, and other diagnostic/monitoring functions. Unit handles voltage supply with programmable voltage levels and communication with microcontroller is carried out via 16-bit SPI. Voltage supply section of monolithically-integrated product consists of boost converter, 2 buck converters, and linear regulator.

Atmel Corp.    San Jose, CA 95131
Nov 02, 2006 Models ATA6824, ATA6827, and ATA6832 feature high-voltage SMARTIS(TM) technology that enables high chip temperatures of up to 200°C and ambient temperatures up to 150°C. They provide over-temperature shutdown, overload, and over-voltage protection, as well as protection against short circuits. Devices meet strict automotive qualification demands (protection against conducted interference, EMC, and ESD protection) and can withstand transients as specified in ISO/TR 7637.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Nov 02, 2006 Designed for vehicle dashboard applications, Model MB86297 supports 2D and 3D functions as well as fogging and lighting for 3D effects. Max power consumption is less than 2.3 W and 2 digital RGB display output channels have resolutions ranging from 320 x 240 to 1,280 x 1,024. Including 64-bit DDR memory bus rated at 266 Mbps, unit is capable of drawing up to 10 mil polygons/sec and can render 250 mil pixels/sec. MB86297 also includes PC166 host interface.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Nov 02, 2006 Designed for advanced automotive applications, Models MB91F464AA, MB91F465KA, and MB91F467RA incorporate Controller Area Network (CAN) interfaces. MB91F465KA and MB91F464AA serve door, seat, air conditioning, and other vehicle body controls, and include CAN channel, 32 CAN message buffers, and 5 UART channels that comply with Local Interconnect Network (LIN) standard. MB91F467RA includes 2 CAN channels, 32/64 CAN message buffers, and 7 LIN-compliant UART channels.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Nov 02, 2006 Models TPD4104K, TPD4111K, and TPD4112K drivers feature 3-phase full-bridge distribution circuit with level-shift type high-side driver and low-side driver, output IGBT, and FRD. Intended for DC brushless motors, air conditioner fans, and pump motors, 250 and 500 V single chip drivers include protective functions for overcurrent, overheating, and power supply voltage drop. Lead-free and RoHS-compatible, ICs are available in HZIP23 packages measuring 31.5 x 16.1 x 5.1 mm.

Xilinx, Inc.    San Jose, CA 95124 3400
Nov 02, 2006 Delivering hard-coded PCI Express® Endpoint and Tri-mode Ethernet Media Access Controller (MAC) blocks, Virtex(TM)-5 LXT platform suits serial connectivity applications ranging from 100 Mbps to 3.2 Gbps. Domain optimized, platform features up to 24 RocketIO(TM) transceivers typically consuming less than 100 mW per transceiver/receiver pair, 8 programmable levels of transmit pre-emphasis, 4 programmable levels of receive equalization, and Chipscope(TM) Pro software toolset.

Performance Motion Devices, Inc.    Lincoln, MA 01773

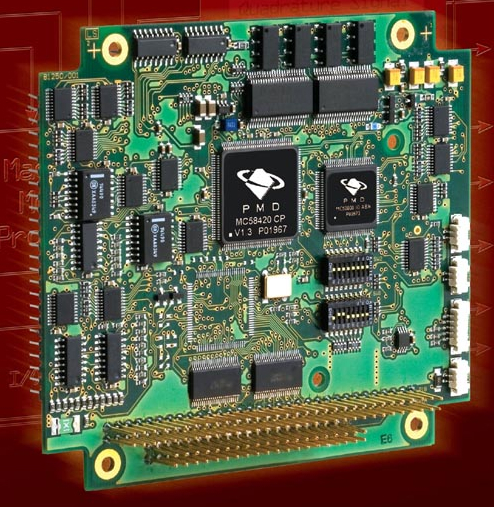

Nov 01, 2006 Prodigy(TM)-PC/104 use high density logic circuitry to offer advanced motion control functions programmed in C/C++ or Visual Basic language for dc brush, brushless dc, step, and microstepping motors. It features servo loop rates to 50 µsec/Axis, 8 Mcount/sec quadrature encoder input rate, and pulse and direction output to 5 Mpulses/sec. Motion control features include trajectory generation, motor output signal generation, performance trace, on-the-fly changes, and commutation.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

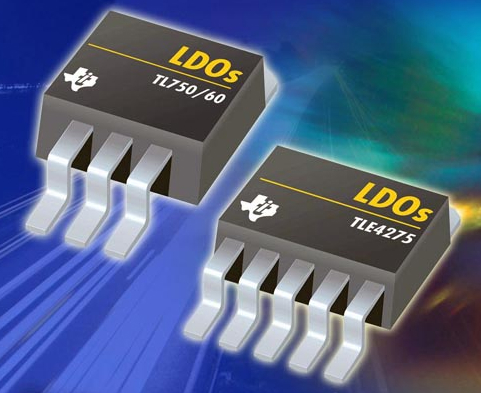

Oct 31, 2006 With input voltage range of up to 45 V, LDO linear regulators offer transient protection for applications such as automotive body controllers and instrument clusters. Models TLE4275QKTTRQ1, TL750M05QKTTRQ1, and TL760M33QKTTRQ1 provide direct connection to vehicle battery with ability to withstand load-dump transient conditions. Available in 3.3, 5, and 8 V fixed-output-voltage versions, units feature 450-750 mA maximum rated output currents, and offer thermal shutdown, and over-voltage protection.

Micrel Semiconductor Inc.    San Jose, CA 95131
Oct 31, 2006 Housed in 5 x 5 mm QFN package, KSZ8041NL consumes 150 mW with ESD ratings of 6 kV. Fast Ethernet transceiver chip is suited for applications with space constraints, where low power is important, or where stringent ESD conditions apply such as in Industrial Ethernet environments.

Mercury Computer Systems, Inc.    Chelmsford, MA 01824
Oct 31, 2006 Featuring protocol translation, dual-channel multi-threaded DMA engine, and PCI Express-to-RapidIO mapping table, Serial RapidIO®-to-PCIe Bridge IP Core offers mailbox message queueing, PCIe MSI/MSI-X interrupt controller, and RapidIO-to-PCIe atomic transaction encapsulation. It bridges 4X serial RapidIO port operating at 3.125 GHz to 8X PCI Express port operating at 2.5 GHz. Unit suits various applications in wireless infrastructure, storage, and embedded systems.

Texas Instruments Inc. / Tiris Division    Dallas, TX 75243
Oct 30, 2006 FlatLink(TM)3G ICs transmit true 24-bit RGB color data for video content in handheld electronics such as clamshell phones, multimedia players, and digital cameras. Transmitter Model SN65LVDS303 and receiver Model SN65LVDS304 support LCD resolutions of QVGA and HVGA over one subLVDS serial link or VGA over two links, while SN65LVDS305 and SN65LVDS306 transmitter and receiver pair offer QVGA and HVGA resolutions over one single link.

TriAccess Technologies    Santa Rosa, CA 95407
Oct 30, 2006 Designed to amplify incoming signals in fiber-to-the-home analog video networking applications, TAT6254 Single Family Unit Video Receiver/Amplifier integrates trans-impedance amplification and post amplification on single chip and operates on single 12 V supply. It delivers automatic gain control to maintain constant 21 dBmV/channel output from -8 to +2 dBm. Unit features high gain levels over 32 dB and low equivalent input noise of less than 3.5 pA/rtHz.

Berkeley Nucleonics Corp.    San Rafael, CA 94901
Oct 30, 2006 With optical outputs, Model 565 can trigger, delay, gate, and sync multiple devices in high EMI and RFI environments. Users can select timing references for each channel, control both delay and width of each channel, and sum timing of various channels onto any other channel. Generator also offers properties such as divide by N, independent channel gating, and independent channel amplitudes and polarities. Optical and electrical outputs can be combined in pairs.

Strategic Test Corporation    Woburn, MA 01801-1915
Oct 30, 2006 Suited for RADAR and I and Q signal generation, Arbitrary Waveform Generator (AWG) Cards are supplied with 64 MS of signal memory standard. Model UF2-6110 has 2 synchronous 125 MS/s output channels, while Model UF2-6111 offers 4 channels on single PCI card. Each channel contains 8-bit DAC and 3 Butterworth reconstruction filters with bandwidths of 25 MHz, 5 MHz, or 500 kHz. Cards employ 66 MHz/32-bit PCI-X interface that can stream data continuously from host PC at rates up to 225 MS/s.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Oct 27, 2006 Offered in 3-pin SOT-89, SOT-23, and TO-92 packages, MCP1702 Low Dropout Regulator (LDO) suits applications requiring extended battery run-times and tolerance for input-voltage variations. It features quiescent current down to 2 µA, input voltage up to 13.2 V, over-voltage protection, and thermal shutdown on single chip. With output-voltage regulation, including ±2% over-temperature accuracy, this 250 mA LDO helps ensure smooth, reliable system operation.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Oct 27, 2006 Targeting multi-channel point-of-load applications, Model TMS320F28044 manages up to 16 dc/dc converter channels using single programmable controller with 100 MIPS of DSP performance. It implements up to 16 channels of HRPWM technology, each with 150 ps resolution and is based on fully programmable TMS320C28x(TM) 32-bit DSP core. Controller includes 12-bit ADC, 128 KB flash memory, and multiple communication ports with support for PMBus(TM) interface.
