Murata Power Solutions, Inc.    Mansfield, MA 02048
Jun 30, 2011 Series 2700 and 2700T are designed for use in consumer electronic device applications where low profile is crucial. Measuring 9.0 x 7.7 x 1.65 mm, 2700 series offers inductance from 4.7-1,000 µH and device-dependent max DC current up to 1.6 A. DC resistance is 0.1-14 ohm for 1 mH part. Offering inductance values from 1-330 µH, slightly smaller 2700T series has max operating current up to 2.0 A. DC resistance is 80 mohm for 1 µH part and 15 ohm for 330 µH inductor.

Cissoid    Mont Saint Guibert 1435  Belgium
Jun 29, 2011 Housed in hermetically sealed metal can TO-18 package, CHT-GANYMEDE includes 2 diodes connected in series that can sustain reverse voltage of 80 V, have max forward current of 300 mA at 225°C, and are suitable for operation from -55 to +225°C. Diodes also feature small junction capacitance of 8.5 pF at 25 V reverse voltage and low leakage current of 8.9 µA at 80 V reverse voltage and 225°C. General-purpose component is suited for clamping as well as low-current rectification and sensing.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jun 29, 2011 Featuring current feedback architecture that offers 15 MHz (G=1) bandwidth and 22 V/µs slew rate, Model AD8429 measures extremely small signals in noisy industrial environments. Device operates across extended industrial temperature range of -40 to 125°C with 1-nV/√Hz input noise and 45-nV/√Hz output noise. Housed in 4 x 5 mm SOIC_N package, Model AD8429 has 90 dB CMRR when operating in dc mode and 80 dB CMRR in ac mode, which prevents unwanted signals from corrupting smaller signal acquisition.

FZLED    New Taipei City   Taiwan
Jun 29, 2011 Compatible with electronic transformers that don't have LED drivers, MR16-03 series can fit GU5.3, GU10, E11, E14, E17, E26, E27, and B22 sockets and takes AC input voltages of 100-240 V; GU5.3 version also accepts 12 V AC/DC power source. Spotlights use 3 W of power and emit 120 or 160 lm. Depending on CCT of 3000K or 6000K, products have CRI higher than 80 or 75. Available beam angles include choice of 10°, 15°, 25°, 40°, or 60°, and lifetime ratings exceed 35,000 hr.

Electro-Matic Products, Inc.    Farmington Hills, MI 48335
Jun 28, 2011 By bringing power and data out of control cabinets, EMRP6005 lets users safely access controllers without opening panel door. It has 120 Vac outlet protected by 3 A circuit breaker and RJ45 female to female feed through connector that allows communication/programming of devices inside control panel while keeping operator away from high voltage. Supplied in standard size 16 housing, product has screw terminal wiring for incoming power and IP67 rating when closed.

Crystek Corp.    Fort Myers, FL 33907
Jun 27, 2011 Supplied in rugged SMA housing, CPDETLS-4000 is designed for RF power monitoring in general lab environments. This zero-bias Schottky diode, intended for use as large-signal (greater than -10 dBm) power detector has frequency range of 10 MHz to 4 GHz. Input signal is rated at +30 dBm max, and video capacitance is 100 pF. Respectively, operating and storage temperature ranges are -20 to +70°C and -40 to +85°C.

Infinite Power Solutions    Littleton, CO 80127
Jun 27, 2011 Designed for autonomous wireless sensors and other sub-100 mW applications, IPS-EVAL-EH-01 enables design engineers to develop and evaluate self-sustaining green power supply solutions. Kit features THINENERGY® MEC101 4 V/0.7 mAh solid state, rechargeable, micro-energy cell and MAX17710 PMIC from Maxim Integrated Products. Amorphous silicon photovoltaic solar array recharges MEC101 to 100% state of charge in 30 min in full sun and about 8 hr in typical office lighting.

SOURIAU    York, PA 17402
Jun 24, 2011 Replacing cadmium surface coating with electrolytic Zinc Nickel plating, micro38999 Series meets military standards and is RoHS-compliant. Coating provides electrical continuity and resistance to salt spray. It is applied using established electrolytic process that enables control of homogeneity and quality. Based on ASTM standard, coating is 100% metallic and contains no fluorinated substances that could be banned under EPA restrictions.

Touchstone Semiconductor    Milpitas, CA 95035
Jun 24, 2011 Supplied in 5-pin SC70 packages, TS9001-1 and -2 single-supply analog comparators incorporate +1.252 V reference with 1% initial accuracy and respectively offer push-pull and open-drain output stages. Both operate from +1.6-5.5 V supply while consuming less than 0.65 µA supply current. Input voltage range extends 200 mV outside-the-rails, and there is no phase reversal for overdriven inputs. Other features include crowbar-current-free switching and internal hysteresis for clean switching.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 23, 2011 Models 482C27 and 483C28 are designed for use with various sensor types, including differential MEMS, single-ended MEMS, bridge, and ICP®. Model 482C27 is 4-channel benchtop unit with front panel, RS-232, and Ethernet control, while Model 483C28 is 8-channel, 19 in. rack-mounted unit with Ethernet control. Both models offer features such as fine gain, AC/DC coupling, auto zero and balance, and constant current or DC voltage supplies. Control software is included for setup.

Mill-Max Mfg. Corp.    Oyster Bay, NY 11771
Jun 23, 2011 Providing connection between wires and PCBs, batteries, or other cable assemblies in test and field applications, Series 824/826 features spring-loaded pins rated 3 A max and high-temperature Nylon 46 insulators. Each spring pin provides .0275 in. of mid-stroke compression and is rated for 1 million cycles. Headers are available from 2-64 positions single row and 4-64 double row. Sized to accommodate up to 22 AWG wire, solder cup facilitates soldering of cable or discrete wires to spring pins.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 23, 2011 Optimized for use with enhancement-mode GaN power FETs in high-voltage power converters, 100 V Model LM5113 regulates high side floating bootstrap capacitor voltage at approximately 5.25 V. Device features independent sink and source outputs for flexibility of turn-on strength with respect to turn-off strength. Low impedance pull down path of 0.5 W provides reliable turn-off mechanism. Housed in 4 x 4 mm LLP package, IC includes independent logic inputs for high-side and low-side drivers.

Stackpole Electronics Inc.    Raleigh, NC 27604
Jun 23, 2011 Offering two 0201 size resistors in single chip array package, Model RAVF052D is available in values ranging from 3 W to 1 MW, with 5% tolerance. Device features power rating of 0.063 W at 70°C, maximum working voltage of 12.5 V, and maximum overload voltage of 25 V. Applications include memory modules, handheld scanners and barcode readers, base stations, wireless network equipment, and Bluetooth cordless devices.

Crystek Corp.    Fort Myers, FL 33907

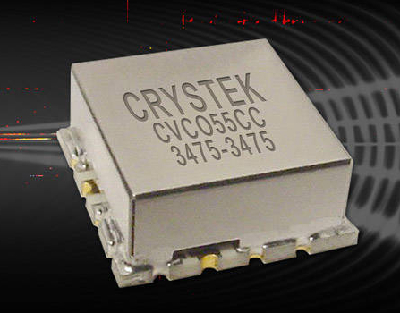

Jun 22, 2011 Housed in 0.5 x 0.5 in. SMD package, Model CVCO55CC-3475-3475 features control voltage of 0.5-4.5 V, typical output power of +7 dBm, and typical phase noise of -115 dBc/Hz at 10 KHz offset. Input voltage is 8 V with max current consumption of 35 mA. Pulling and Pushing are minimized to 0.2 MHz and 0.2 MHz/V, respectively. Featuring second harmonic suppression of -15 dBc typical, VCO is suited for digital radio equipment, fixed wireless access, and satellite communications systems.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482

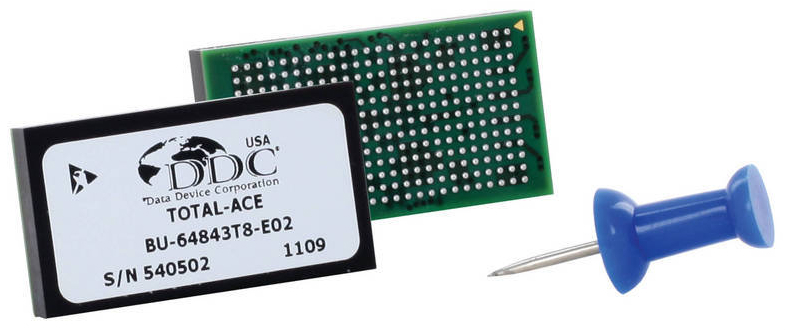

Jun 22, 2011 Total-ACE® consolidates protocol, memory, dual transceivers, and dual transformers within one plastic BGA package to simplify MIL-STD-1553 fabrication. Design collateral, provided to assist users in designing and developing their systems, includes ORCAD schematic symbol, thermal and IBIS models, and BGA user guide. Additional features for this DO-254 Certifiable product include SDK for Windows®, Linux®, and VxWorks® as well as BusTrACEr® software support for one-click C code generation.

ViXS Systems Inc.    Toronto M2J 1R3  Canada
Jun 22, 2011 Featuring integrated MoCA® Multimedia over Coax Alliance technology, XCode® 5195 SoC enables whole home distribution of premium content to any device while maintaining digital rights protection, quality, and connectivity. Processor supports real-time HD to HD transcoding, trans-wrapping, and transcryption of up to 4 simultaneous HD streams to serve multiple IP-based devices. ViXS Xtensiv(TM) Software Stack accelerates time-to-market and minimizes required engineering resources.

Qualcomm, Inc.    San Diego, CA 92121
Jun 22, 2011 As Wi-Fi® system-in-package (SIP) intended for MCU-based designs, FCC-Certified AR4100 is based on 802.11b/g/n single-stream Qualcomm Atheros Align® technology and targets those implementing M2M communications in smart home/building/grid markets. Solution integrates all Wi-Fi functionality into low-profile, 8.3 x 9.2 mm LGA package and is optimized for client applications hosted by low-resource MCUs that send infrequent data packets over network.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 21, 2011 Supplied in 10-pin, 4 x 4 mm LLP, LM5113 high- and low-side GaN FET driver lends to density of power brick and communications infrastructure equipment. This 100 V bridge driver IC regulates high side floating bootstrap capacitor voltage at ~5.25 V to drive enhancement-mode Gallium-Nitride (GaN) power FETs without exceeding max gate-source voltage rating. Other features include independent sink and source outputs, low impedance pull down path of 0.5 Ohms, and high-side bootstrap diode.

Maxim Integrated Products    Sunnyvale, CA 94086
Jun 21, 2011 Compatible with energy harvesting sources with output levels from 1 µW to 100 mW, MAX17710 integrates all power management functions for ambient energy harvesting as well as charging and protecting micro-energy cells (MECs). IC incorporates programmable input boost regulator and does not require any external components to charge MEC with energy sources as low as 0.8 V. Also, adjustable LDO with selectable voltages of 3.3, 2.3, or 1.8 V allows IC to adapt to various loads.

Maxwell Technologies, Inc.    San Diego, CA 92123
Jun 21, 2011 Intended for commercial trucks and other heavy vehicles, using 12 V Ultracapacitor Module avoids starting problems in cold weather or when batteries are drained by repetitive starting or climate control functions. Device enables reliable starting for diesel engines up to 15 L at temperatures down to -40°C. Fully compatible with existing battery systems, module uses green technology with no heavy metals or toxic substances. Built-in quick charging system enables charging in 15 min or less.
