Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 13, 2011 Providing 1-way RF link, Sub-1 GHz RF Value Line includes CC115L transmitter, CC113L receiver, and CC110L transceiver. Units offer fast startup with 0.24 ms from power down to RX or TX and 0.2 µA sleep current. With programmable data rate from 0.6-600 kbps and support for 300-348, 387-464, and 779-928 MHz frequency bands, ICs enable wireless connectivity for remote controls, security systems, and building automation. Line is pin-, register-, and code-compatible with existing sub-1 GHz systems.

GE Co.    Southfield, MI 48034
Jul 12, 2011 Measuring 34 x 24 mm, ADEPT3000 is designed for detection, surveillance, and tracking of still or moving objects in environments in which size, weight, and power are highly constrained. Device supports standard definition analog video, and, once target has been acquired, resulting signal is passed to sophisticated algorithm for track path analysis. Consuming ~1 W, ADEPT3000 is suited for unmanned vehicles and man-portable devices, as well as integration directly into gimbal.

Zentrum Mikroelektronik Dresden AG    Melville, NY 11747
Jul 12, 2011 Equipped with 1 digital and 2 analog outputs, Model ZSSC3008 is suited for resistive bridge sensor systems that do not require temperature compensation because they have intrinsically low TC. Device offers variety of on-board diagnostics and protection features such as EEPROM signature, bridge connection checks, bridge input-short and open-bridge detection, and power loss detection. Housed in SOP8 package, IC features standard supply voltage of 2.7-5.5 V, or up to 30 V with external JFET.

Power Sources Unlimited, Inc.    Wrentham, MA 02093-2210
Jul 11, 2011 Featuring conversion efficiency up to 96.5%, Eltek Valere Flatpack2 HE Series can deliver 24 Vdc @ 75 A, 48 Vdc @ 40 A, and 48 Vdc @ 60 A. Series has AC input range of 85-300 Vac, 1U form factor, and horizontal airflow. All models are CE-, UL-, and NEBS-Certified and hot-swappable. They are used in EltekValere DC Power Systems: Trilogy, Modular, and Flatpack2 Wall Box with power ranges from 2-192 kW.

Supertex Inc.    Sunnyvale, CA 94619

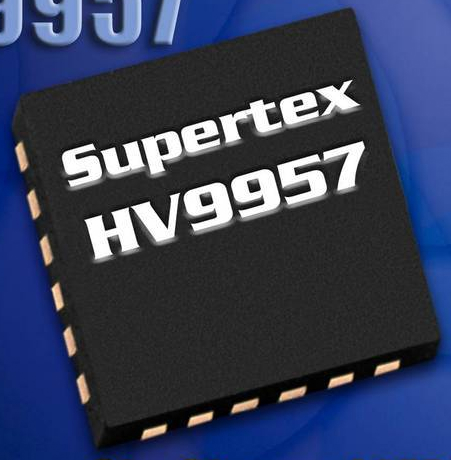

Jul 08, 2011 Providing protection from faulty LED strings, HV9957 combines switch-mode boost converter and 6 low dropout, linear current regulators to deliver efficiency and precise current control. Temperature-triggered fault protection and outlier approach are used to identify faulty strings, which are turned off only when absolutely necessary. Remaining strings continue normal operation. RoHS-compliant IC can drive up to 6 strings of LEDs at 30 mA each.

Spectrum Advanced Specialty Products    Fairview, PA 16415
Jul 08, 2011 Able to connect to USB 2.0 or 1.1 ports, ruggedly constructed Type A right-angle mounted USB connector carries 1.5 A current rating and offers up to 30 mW contact resistance. RoHS-compliant product operates over -40 to +105°C range and meets seal requirements of IEC-60529, Code IP67 on PCB side, as well as immersion requirements per MIL-STD-810F Method 512.4 to 20 m (unmated).

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jul 07, 2011 Available in 0603 and 0805 sizes, GCE Series covers all nominal working voltages from 50-100 V with capacitance values of 10, 22, 47, and 100 nF. Monolithic ceramic capacitors utilize conductive resin for terminations, helping to eliminate cracking of body caused by mechanical stress induced by board flexing or wide variation of temperature. By using multi-layer serial capacitor approach to construction, capacitors will not easily short-circuit either.

Crystek Corp.    Fort Myers, FL 33907
Jul 07, 2011 Operating from 2,700-3,400 MHz, CVCOT8BE-2700-3400 has typ phase noise of -85 dBc/Hz @ 10 kHz offset and tuning sensitivity of 120 MHz/V. Pulling and pushing are minimized to 25.0 MHz and 10.0 MHz/V, respectively, and second harmonic suppression is -12 dBc typ. Supplied in hermetically sealed TO-8 package, VCO features metal-can construction with gold-plated pins with no internal wire bonds for optimized signal integrity. Tuning voltage range is 1.0-10 V, with 11 V input.

Kemet Electronics Corp.    Greenville, SC 29606
Jul 07, 2011 Supplied in EIA 0402 case size with C0G dielectric, High Temperature 200°C Series MLCCs feature voltage range of 10-100 Vdc and capacitance of 0.5-1,500 pF. Non-polar devices produce no piezoelectric noise, have no capacitance change with respect to applied rated DC voltage, and no capacitance decay over time. Applications include high temperature environments present in down-hole exploration equipment, aerospace engine compartments, and geophysical probes.

Acromag, Inc.    Wixom, MI 48393 7037
Jul 06, 2011 Mounted in DIN Form B sensor heads or on DIN rail, Model ST133 converts sensor input signals from 8 thermocouple types or ±100 mV range and outputs proportional 4-20 mA process control signal. Addition of 1,500 V isolation between input and output circuit shields equipment from high-voltage surges and transient signals and breaks up ground loops. Operating from -40 to 80°C, USB-configured transmitter includes signal linearization, cold-junction compensation, and response time of 30 msec.

Seiko Instruments GmbH    Neu-Isenburg   Germany
Jul 06, 2011 Developed in CMOS technology, 1-wire Model S-5855A changes duty cycle of frequency, preset with single capacitor, according to ambient temperature. Temperature at which sensor will start to modulate its output signal is determined at time of order and may be selected from 40-80°C in 10°C increments. Housed in SNT-4A and SOT-23-5 packages with current consumption of 50 µA, IC is suited for over-temperature protection of LED lighting used in flat screen TVs and computer LCDs.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Jul 06, 2011 P-channel MOSFET power switches of AAT4616 SmartSwitch(TM) series offer precision-current-limit capability as tight as ±5% or 10%, allowing products such as HDTVs, STBs, and tablet computers to maximize power usage from USB or other supply rails and buses. Designed for high side load switching applications, products offer 2.4-5.5 V input range, 130 mW typ RDS(ON), programmable over-current limit from 300 mA to 1.6 A, and quiescent current ratings of 10 µA (enabled) and 1 µA (switch off).

Radiall    Chandler, AZ 85226
Jul 06, 2011 With 2-piece design that facilitates crimping on cable, composite 75 ohm BNC HDTV connector accommodates studio-quality broadcast production to video conferencing equipment applications. It handles data rates to 3 Gbps or higher while meeting/exceeding SMPTE 292M and 424M standards. Gold plated center and outer contacts promote electrical performance with frequency range up to 6 GHz and return loss of -32 dB at 3 GHz. In-field durability is assured via 1,000 min mating cycle rating.

Atmel Corporation    San Jose, CA 95131
Jul 05, 2011 Intelligent multi-string LED drivers use efficiency optimizer (EO) technology to decrease power consumption to lowest practical level. Capabilities enable LCD TVs to achieve 10M:1 dynamic contrast and minimal motion-blur. ICs also provide over 10,000:1 PWM dimming range for PC monitors and industrial displays. In solid state lighting applications, ICs and MCUs allow dynamic white-point setting, color-mixing, and networked lighting with Zigbee, DALI, and other standards.

Power Technology, Inc.    Little Rock, AR 72219 1117
Jul 01, 2011 Rated at 20 mW, IQ Instrument Quality Green Laser Diode Module is designed to address needs of high-end OEM applications requiring stable wavelength and output power. Unit offers active temperature control, adjustable focus, and choice of beam circularization and modulated versions. Applications include laser-induced fluorescence, spectroscopy, data storage, flow cytometry, cancer detection, remote optical sensing, holography, and illumination.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Jul 01, 2011 Suited for hand test and temperature characterization as well as debugging in femtocell development, Model CBT-BGA-6015 has stamped spring pin contactor with 19 g actuation force per ball and cycle life of 500,000 insertions. Contactor features self inductance of 0.93 nH, insertion loss of less than 1 dB at 23.2 GHz, and contact resistance of less than 16 mW. Specific configuration of package to be tested in socket is BGA, 52.5 x 52.5 mm, 1 mm pitch, 2097 position, 51 x 51 ball array.

Mini-Circuits    Brooklyn, NY 11235
Jul 01, 2011 Measuring 0.2 x 0.2 x 0.2 in., TRS1-23-75+ balanced-to-unbalanced 75 ohm transmission line transformer has wire welded, rectangular core design rated for up to 0.5 W max power. Additional characteristics include 0.3 dB typ amplitude unbalance and 20 dB typ return loss. Supplied in aqueous washable case, product is suitable for RoHS and tin/lead solder systems. Bandwidth covers CATV (forward and return), medical wireless and D2A/A2D, and other communications applications.

Evatronix SA    Bielsko Biala   Poland
Jul 01, 2011 USBHS-PHY provides complete, mixed-signal transceiver macro-cell that implements USB 2.0 physical layer for host and device applications. Compliant with UTMI+ specification, solution features built-in self test, self calibration termination, and pull-up resistors for seamless operation. Compliant with all relevant layers of USB specification for High, Full, and Low Speeds, PHY also supports 3.3 V analog and 1.8 V digital core supplies, both with 10% of voltage tolerance.

Amplitude Technical Sales    Doylestown, PA 18901
Jul 01, 2011 American Technical Ceramics' 506WLC Series offers inductance values from 2.0-11 µH, insertion loss from 0.4-0.6 dB, and flat frequency response. With powdered iron (ferrite) core and gold plated terminations, products are engineered for performance through 40+ GHz. Areas of use include circuit-level and system-level RF and microwave applications, including high-speed optical data systems, trans-impedance amplifiers, and broadband test equipment.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 30, 2011 Featuring on-chip PMBus support, Models LM5066 and LM5064 operate over input voltage ranges of 10-80 V and -9 to -80 V, respectively. Integrated system protection and management blocks precisely measure, control, and manage electrical operating conditions in systems such as routers, switches, and base stations. Both models have selectable 25 mV/50 mV current limit thresholds for addressing wide range of intermediate bus voltages and load currents.
