austriamicrosystems AG    Schloss Premstaetten A 8141  Austria
Jul 22, 2011 Available in 0.5 mm pitch QFN and 0.8 mm pitch LQFP packages, 16-channel AS3820 and 12-channel AS3821 offer ±0.2% channel-to-channel accuracy for optimal light uniformity and picture quality. ICs can be used for driving external power MOSFETs or, due to base current error compensation, low beta bipolar transistors. Products are programmable via SPI port and provide built-in safety features, including thermal shutdown and open and short LED detection.

NIC Components Corp.    Melville, NY 11747
Jul 22, 2011 Available in case sizes from 5 x 11 to 16 x 35.5 mm, NRE-JL Series of radial leaded aluminum electrolytic capacitors covers voltage ratings from 6.3-100 Vdc with capacitance rating of 0.47-15,000 µF and operating temperature of -40 to +105°C. Capacitors utilize low-resistance electrolyte and separator paper to minimize ESR-Z and maximize ripple current ratings. Applications include DC-DC power supply filtering, general circuit use, lighting, and telecommunication equipment.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 21, 2011 To minimize number of discrete components, Model MAX98089 features integrated jack detection, which detects insertion and removal of accessories as well as button presses. FlexSound(TM) audio technology optimizes signal level and frequency response while limiting maximum distortion and power at output. With GUI, user can evaluate and optimize 5-band parametric EQ, automatic level control, speaker excursion limiter, speaker power limiter, and speaker distortion limiter.

OSRAM Opto Semiconductor    San Jose, CA 95134

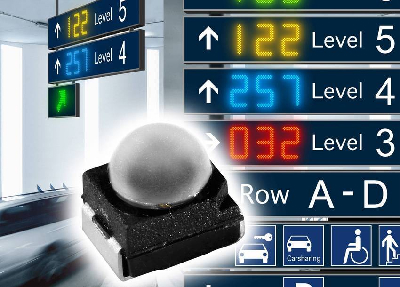

Jul 21, 2011 Featuring integrated lenses in black packages that minimize reflection, TopLED Black Series includes red, yellow, blue, green, and orange models in both 60° and 30° beam angles. Green LED in 30° version offers 7 cd luminance at operating current of 20 mA. SMT LEDs are suitable for monochromatic and multicolor displays used in variable message signs, such as electronic traffic management road signs, travel information displays, parking control systems, and gas price signs.

Vaunix Technology Corporation    Haverhill, MA 01835
Jul 21, 2011 Measuring 4.90 x 3.14 x 1.59 in., Lab Brick® Models LMS-203 and LMS-163 operate from 10-20 GHz and 8-16 GHz, respectively. Both feature 100 ms switching and 100 Hz frequency resolution as well as phase-continuous linear frequency sweeping, optional internal/external pulse modulation, and selectable internal/external 10 MHz reference. Connected to host computer via USB and controlled via GUI, devices deliver +10 dBm output power and can be adjusted over 40 dB dynamic range with 0.5 dB resolution.

Atmel Corporation    San Jose, CA 95131

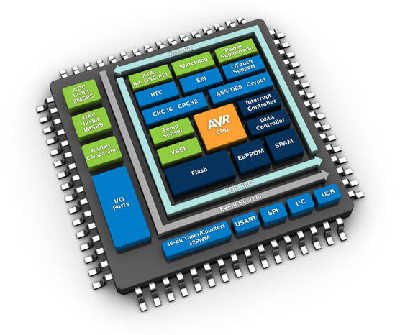

Jul 20, 2011 Consuming 100 nA power with 5 µsec wake-up time, 8/16-bit AVR® XMEGA® Series includes two 12-bit ADCs with programmable gain stages that remove need for external amplifiers. ADCs operate down to 1.6 V and have combined sample rate up to 4 MS/sec. Utilizing Direct Memory Access controller, peripherals and communications modules can move data so CPU can perform other tasks. Event System enables direct inter-peripheral signaling for 100% predictable response time without interrupt and CPU usage.

Lumex Inc.    Palatine, IL 60067
Jul 20, 2011 Housed in TO-46 package with glass lens and through-hole format, QuasarBrite(TM) UV LEDs provide uniform beam pattern with 80° viewing angle and operating temperature range of -40 to 100°C. RoHS-compliant units do not use hazardous mercury material found in CCFL technology. With lifespan of over 50,000 hours, UV LEDs are suited for air/water purifiers, forensic analysis of bodily fluids, and counterfeit detection for currency, passports, and other travel documents.

Multigig, Inc.    Scotts Valley, CA 95066
Jul 20, 2011 Suited for high-speed telecommunication applications, Model MPS14 offers 0.2-0.45 ps jitter and advanced clocking functions through external FPGA logic. Dual PLLs independently generate output frequencies from 12-938 MHz with precision better than 0.1 ppb. Operating from fundamental mode crystal in range of 22-54 MHz, Model MPS14 eliminates need for poorly available SAW, inverted-mesa, and third overtone quartz technologies. IC supports any combination of LVPECL, LVDS, HCSL, and CMOS on 4 outputs.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jul 20, 2011 Supporting -65 to +200°C range, small signal PNP and NPN silicon epitaxial switching transistors are fully qualified in accordance with MIL-PRF-19500 and MIL-STD-750 standards for discrete semiconductors used in military and aerospace equipment. Products are on U.S. Defense Logistics Agency (DLA) Land and Maritime Qualified Products List (QPL). They come in hermetically sealed metal can packages and are available in versions that meet JAN, JANTX, and JANTXV quality levels.

Z-Communications, Inc.    San Diego, CA 92126
Jul 19, 2011 Operating at 1,265-1,465 MHz with tuning voltage of 0.5-4.5 Vdc, Model SMV1365C-LF features typical phase noise of -98 dBc/Hz at 10 kHz offset and tuning sensitivity of 113 MHz/V. Device delivers typical output power of 8 dBm at 5 Vdc supply while drawing 21 mA over temperature range of -40 to 85°C. Housed in SUB-L package measuring 0.3 x 0.3 x 0.008 in., RoHS-compliant VCO features typical second harmonic suppression of -15 dBc.

Qualcomm, Inc.    San Diego, CA 92121
Jul 19, 2011 Integrated 1 Gigabit Ethernet (GE) passive optical networking (EPON) chip, QCA8829, is optimized to enable next-generation optical broadband access to homes and businesses. It will help advance FTTH development by supporting multiple standards, including those in North America, China, and worldwide. Power consumption is less than 200 mW for grid applications with GE PHY sleep mode enabled and less than 600 mW when running full 1 Gbps throughput with GE PHY enabled.

Renusol America    Atlanta, GA 30363
Jul 19, 2011 Made of high molecular weight polyethylene, Renusol CS60 is designed for flat roof applications and requires no roof penetration with addition of ballast. Unit evenly spreads point load weight across roof surface, and only one CS60 is needed for every PV module. Renusol VS, intended for pitched roofs, includes pre-assembled clamps, fastener-free splice connectors, and slide-free L-feet. One-size-fits-all mounting solution has height adjustable end clamps and snap-in-place mid clamps.

Solectria Renewables, LLC    Lawrence, MA 01843
Jul 19, 2011 Available with 8 or 16 fused inputs, rated at NEMA 4X or 24 fused inputs, rated at NEMA 4, STRCOM String Combiner Box offers optional DC disconnect, which allows installers, maintenance crews, and first responders to turn off solar system at source. Load-break rated switch is capable of breaking circuit with sufficient speed to eliminate arc formation. It is tested to UL508, listed by CSA, and compliant with UL 1741/IEEE 1547 as well as 2011 NEC.

Saelig Co., Inc.    Pittsford, NY 14534
Jul 18, 2011 Available in frequency range of 40-200 MHz with 2.5 or 3.3 V supply, Series HCK5361 and HCK5761 offer 200 fsec integrated phase jitter performance with ultra-low phase noise of -138 dB/Hz at 10 kHz offset. HCK5361 models are housed in 5 x 3.2 x 1.2 mm 6-pad surface mount packages, while HCK5761 parts feature 7 x 5 x 1.8 mm housings. Both differential, high-speed current steering logic (HCSL) oscillators operate from -40 to +85°C with less than ±3 ppm/year aging at 25°C.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jul 18, 2011 Designed to mount on various DIN rails, GPA Series handles wire sizes from 2/0 to 500 MCM with rated voltage of 1,000 V and current handling capacity up to 415 A. Panel mount Model GPA/FIX allows for direct mounting to equipment with use of 2 mounting flanges, while Model GPA.70 can accept center jumper for connecting circuits together. In addition, threaded locking rod can be inserted though terminal blocks to hold them together.

Tripp Lite    Chicago, IL 60609
Jul 18, 2011 Designed to protect equipment from harmful environmental conditions, model SR42UBEIS heavy-duty 42U SmartRack Industrial Rack Enclosure features sealed and locked cabinet, torsion-resistant construction, as well as dust- and drip-resistant ports. Louvered front and rear doors with sealing gaskets allow ample airflow while keeping out dripping and splashing water. Along with built-in, removable dust filters, features include 12 air pulling fans in rear door and 6 self-sealing cable ports.

Edmund Optics    Barrington, NJ 08007
Jul 18, 2011 With 25 mm diameter and center wavelengths of 2.7-5.3 µm, Infrared OD 4 Bandpass Filters feature single substrate dielectric construction, which eases maintenance and allows use in harsh environments. Units selectively transmit narrow range of wavelengths while blocking out all other wavelengths. Filters are suited for use in instrumentation as well as clinical chemistry, environmental testing, elemental and laser line separation, fluorescence, and immunoassays.

KOA Speer Electronics Inc.    Bradford, PA 16701
Jul 15, 2011 Featuring power rating of 0.125 W, 0402-size Models SG73P and SG73S provide pulse and surge handling, respectively, with resistance range from 1 W to 10 MW. Current resistors also feature T.C.R of ±100 ppm/K, with tolerances of ±0.5%, ±1%, ±2%, and ±5%. Also available in sizes from 0603-1210, devices are suited for power supplies, telecommunications, motor controls, and circuit protection devices.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jul 14, 2011 Consisting of five 12-bit ADCs, ADC12Dxx00RF Series enables system designers to eliminate multiple IF down-conversion stages, including amplifiers, mixers, and filters. Units directly sample RF signals beyond 2.7 GHz, with third-order intermodulation distortion up to -71 dBc and sampling at up to 3.6 GS/s. Single device replaces entire radio signal path subsystems in 3G/4G wireless basestations as well as microwave backhaul, military, and wideband software-defined radio applications.

Mini-Circuits    Brooklyn, NY 11235
Jul 14, 2011 Measuring 1.20 x .75 x .46 in., Model ZX95-2600+ operates from 1,650-2,600 MHz and is built using rigid unibody construction, which integrates RF connectors with case body to shield against unwanted signals and noise. RF/IF microwave oscillator offers immunity against noisy DC lines and optimizes output frequency stability vs. variations in supply voltage. Each internal component is bonded to substrate, providing immunity to microphonics and minimized phase hit.
