Quantum3D Inc.    San Jose, CA 95119
Sep 26, 2007 Sentiris® 4110 Models CD13 (conduction cooled) and CV10 (convection cooled) provide 2D/3D graphics video capture and display capabilities for embedded visual computing applications. Compliant with IEEE 1386.1, Mil-Std-810F, and Mil-Std-461E, solutions utilize NVIDIA® Quadro® Mobile GPU technology and support dual, independent analog and digital outputs. They also support concurrent analog video output in NTSC, PAL, RS-170/A, and S-Video formats as well as analog video capture.

Fairchild Semiconductor    San Jose, CA 95134
Sep 26, 2007 Eliminating need for high-current sense resistor, FGB3040CS minimizes power dissipation and reduces heat in automotive applications. It also eliminates gate-to-emitter input resistor, simplifying IGBT gate control. EcoSPARK® technology enables die size small enough to fit into D-Pak, and Kelvin ground promotes current sense accuracy. Also available, ignition IGBTs FGD2N40L and ISL9V2540S3S respectively suit small-engine applications and designs requiring 250 mj of SCIS capability.

Pericom Semiconductor Corp.    San Jose, CA 95131
Sep 26, 2007 Merging latest Display Port video graphics to legacy DVI/HDMI monitor connectors, PI3VDP411LS electrical Display Port-to-DVI/HDMI Bridge addresses next generation HD video interfaces for digital video market. It converts 4-differential low-swing ac-coupled inputs to HDMI rev 1.3-compliant outputs, enabling translation within PC or externally between PC and display unit. Features include 5-3.3 V DDC and HPD level shifter as well as HDMI level shifting operation up to 2.5 Gbps per lane.

Maxwell Technologies, Inc.    San Diego, CA 92123
Sep 26, 2007 Based on 3,000 Farad energy cell, scaleable 75 V BOOSTCAP® ultracapacitor module meets backup power and power quality requirements of wind turbines and other renewable energy generation and industrial equipment. Module can be arrayed in series or parallel configurations and comes in IP54 enclosure designed to ensure operation in harsh temperature, humidity, and vibration conditions. Temperature sensor, integrated within BMOD0094 EO75 B02 75 V module, enables remote monitoring.

TURCK, Inc.    Plymouth, MN 55441
Sep 25, 2007 Overmolded with polyurethane, right angle RJ45 Connector is available with internal or external tabs. Cables are available with or without shielding in 4- or 8-wire configurations and stranded conductors. Complimenting Ethernet cabinet adapter, cordset is suited for connections in tight spaces and Ethernet panel builders.

Endicott Research Group, Inc.    Endicott, NY 13761
Sep 24, 2007 SFDL Series Smart Force(TM) board provides 180 mA max current to LED rails used in LCDs up to 12.1 in. diagonal, with on-board PWM dimming ratio of 1000:1 and external PWM dimming to 5000:1. Designed for high-power HBLED backlight rails used in LCDs up to 20.1 in. diagonal SFDC Series provides 1,000 mA max current and features internal/external dimming ratios of 1,000:1/20,000:1, respectively. Thermal management keeps junction temperature at or below recommended operating temperature.

Microsemi    Irvine, CA 92614
Sep 24, 2007 Designed for motor control applications, power modules feature 3-phase IGBT bridge using NPT IGBTs for 20-50 kHz frequency applications and Trench Field Stop IGBTs for 5-20 kHz applications. Current ratings are in range of 30-50 A for 600 V and 15-25 A for 1,200 V NPT IGBTs and 20-75 A for 600 V and 25-35 A for 1,200 V Trench Field Stop IGBTs. Units have 12 mm profile and 40.8 x 73.4 mm footprint, and feature integrated sensors to monitor module case temperature.

Micrel Semiconductor Inc.    San Jose, CA 95131
Sep 24, 2007 Supplied in 4-pin 1.2 x 1.6 mm MLF® and Teeny(TM) SC-70-6 packages, MIC94070/1/2/3 operate with inputs from 1.7-5.5 V and can be driven by 1.5 V of logic due to built-in level shift circuitry. Operating current of 2 µA and shutdown current of under 1 µA extend battery life in handheld devices. While MIC94070/1 have rapid turn-on, MIC94072/3 provide slew rate controlled soft-start turn-on of 800 microns typ. Also, MIC94071/3 provide active load discharge circuit.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

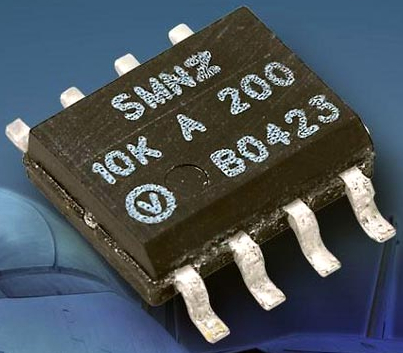

Sep 21, 2007 Offering rise time of 1 ns without ringing, SMNZ ultra-high-precision Z-Foil 4-resistor network has non-inductive, non-hot-spot design. It combines 4 independent Bulk Metal® Z-Foil resistors in one surface-mount JEDEC MS-012 package with 50 mil lead pitch. Power rating is 0.4 W @ 70°C, and load-life stability is ±0.005% for 2,000 hr @ 70°C. Used independently or as divider pairs, product offers absolute TCR values from ±0.05 to ±0.2 ppm/°C and PCR tracking of 5 ppm.

Harting KGaA      Germany

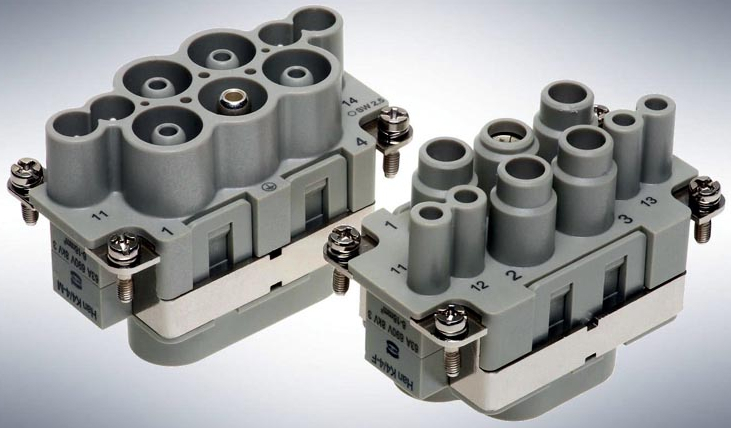

Sep 21, 2007 Supplied in size Han® 10 B compact housing, Han® K 4/4 combines 4 power contacts for 63 A and separate PE contact for wire gauges up to 22 mm² with 4 signal contacts for 16 A. Cable termination is achieved without any special tools, allowing connectors to be terminated in field, making them applicable for various applications. Compact design and finger safety of female and male sides make this product suited as alternative to round CEE plugs.

Surf Communication Solutions, Inc.    Arlington, MA 02474-8401
Sep 21, 2007 Combining audio, video, fax, and modem conversion engines, SurfWare-Media(TM) v5.0 is supplied with AMC and PCI Express resource boards, PTMC DSP farm board, PCI card, and DSP chip-level solutions. Text Overlay supports display of dynamic text using TrueType fonts on video images, while Network Smoothing maintains constant bit rate for video streams for each type of network data interface. Speech Time Scaler supports voice file streaming at speeds 50-200% of original recorded rate.

Quellan, Inc.    Santa Clara, CA 95051
Sep 21, 2007 Based on CSP Noise Canceling Technology, QNx220 RF Noise Canceller cancels interference by inverting and electronically subtracting emulated local noise signals from receiver input signal. Gain and phase of cancellation signal are continuously adjusted for optimum performance. Featuring digital control interface for direct connection to SPI baseband processors as well as dual-stage LNA, CMOS IC is available in Chip Scale Package or QFN package.

Timbercon, Inc.    Lake Oswego, OR 97035
Sep 21, 2007 Dual wavelength attenuated Armadillo loopback provides wavelength-independent signal loss simulation across multiple applications. While uniform attenuation technology enables same precision optical loss at 1,310 and 1,550 nm, overall product design eliminates problems with ferrule alignment, fiber breakage, and performance degradation. Solution is available with any level of attenuation from 0-20 dB, with range of ruggedization and customization options.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 21, 2007 Built on VIP50 BiCMOS process, LMP7731 (single) and LMP7732 (dual) precision op amps provide input voltage noise of 2.9 nV/sqrt Hz with 1/f noise corner of 3 Hz. They also feature 0-10 Hz peak-to-peak noise voltage of 78 nVpp, ensuring accurate signal conditioning while minimizing distortion in low-frequency sensor applications. Bipolar input stages with input bias cancellation circuitry lowers input current to 1.5 nA. Technology supports DAQ systems of 16 bits or greater.

Maxim Integrated Products    Sunnyvale, CA 94086
Sep 21, 2007 Available in 3 x 5 mm 14-pin TDFN package, Model DS2784 estimates available capacity of batteries based on coulomb count, discharge rate, temperature, and cell characteristics. It combines analog front-end for measuring current and voltage with embedded fuel-gauge algorithm. On-chip temperature measurements eliminate need for thermistor in battery pack. One-cell Li+ (lithium-ion) protector monitors cell overvoltage, undervoltage, overcurrent, and short-circuit conditions.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
Sep 20, 2007 Housed in 2512 package, LR Series features copper conductor element on alumina substrate with wraparound copper terminations and protective overcoat. Units are also available in 1206 and 2010 sizes rated at .5 W and 1 W, respectively. They provide resistance range from 0.002-1 W, with tolerances to ±1%, TCR to ±100ppm/°C, and dielectric withstanding voltage of 200 V. Operating temperature range is -55 to +150°C.

Sauer-Danfoss    Ames, IA 50010
Sep 20, 2007 Endurance-tested to NFPA standards, hydraulic integrated circuits (HICs) provide off-highway mobile machinery OEMs and distributors with 4 types of standardized, ready-to-mount solutions designed to fit 7 Sauer-Danfoss low-speed, high-torque (LSHT) motors. Functionality covers counterbalance, cross-port relief, by-pass solenoid, and dual shock valve with anti-cavitation. Appropriate HIC mounts to specified orbital motor using O-rings and bolts included in prepackaged kits.

Oxford Lasers, Inc.    Shirley, MA 01464
Sep 20, 2007 Using combination of diode laser and camera techniques, VisiWeld air-cooled imaging system eliminates light from arc to let engineers see through fireball created during welding process and capture clear, close-up images. System is suited for use in field or laboratory and accommodates field of view down to 10 x 10 mm. It captures transient effects of events as little as 1 ms while allowing users to work in complete safety by watching monitor screen.

Broadcom Corp.    San Jose, CA 95110
Sep 20, 2007 Housed in 10 x 10 mm package, Model BCM4312 integrates 802.11 MAC, baseband processor, and dual-band radio onto single silicon die. Chip leverages low-power WLAN architecture, and adds Wi-Fi to variety of devices, including notebook PCs, broadband gateways, and gaming platforms. Providing PC manufacturers with additional wireless connectivity options, BCM94312MCGB reference design integrates BCM4312 WLAN chip with BCM2046 Bluetooth chip onto single PCIe mini-card.

Electrotech Sales Group, LLC.    Colmar, PA 18915
Sep 20, 2007 Using combination of Insulation Displacement technology and pluggable terminal blocks, Flexible Connectivity System (FCS) provides rapid connections and expandability for power and data buses in industrial and commercial applications. Power buses handle up to 70 A in flat cables with 2-7 conductors, and data bus cables are available as shielded and unshielded for 2- and 4-wire field bus applications, which include CAN, LON, and EIB.
