Allegro MicroSystems Inc.    Worcester, MA 01615
Sep 06, 2007 Housed in TO-3P package, Models STD01N/P and STD02N/P are designed specifically for home and professional audio amplifier markets. Units provide built-in thermal compensation diode on same die, eliminating any delay for thermal compensation operation and any delay between thermal sensing at heat source and response at compensation area.

Amimon Inc.    Santa Clara, CA 95054
Sep 06, 2007 Based on video modem approach, WHDI(TM) Wireless High-Definition Interface Chipset supports delivery of uncompressed 1,080 p in 40 MHz channel, in 5 GHz unlicensed band, in compliance with FCC regulations. Chipset makes it possible for wireless HD video connectivity net that allows devices to share HD content through entire home, up to 100 ft through walls. It can be embedded into CE devices such as LCD and plasma HDTVs, multimedia projectors, A/V receivers, and set-top boxes.

Crystek Corp.    Fort Myers, FL 33913
Sep 06, 2007 Suited for applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations, Model CVCO55CW-0100-0200 VCO features typical phase noise of -108 dBc/Hz at 10 kHz offset and 5.0 V input voltage with max current consumption of 25 mA. Pulling and Pushing are minimized to 2.0 MHz and 2.0 MHz/V, respectively, while second harmonic suppression is -10 dBc typical. Unit comes in 0.5 x 0.5 in. SMD package.

BI Technologies Corp.    Fullerton, CA 92835-1051

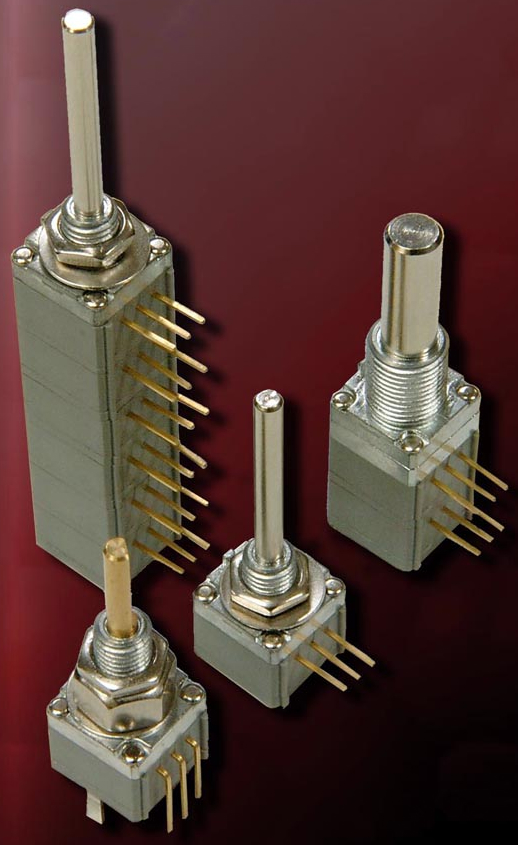

Sep 05, 2007 Available with linear and audio tapers, RoHS-compliant Model P260 is sealed for use in dusty or contaminated environments and features conductive plastic element with up to 6 gangs. Square 12.7 mm potentiometer, with 0.5 W power rating, has IP66 ingress protection and is offered with various detent and rotary switch options. Besides resistance from 500 W to 1 MW, characteristics include tolerance to ±10%, max input voltage of 350 Vac, and dielectric strength of 1,500 Vac.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Sep 05, 2007 Built on 90 nm process technology, MB86H52 compresses full HD (1,920 x 1,080) MPEG-2 video data to H.264 data, less than half its original size. This enables transmission of full HD video over narrow bandwidths while maintaining video quality. Suited for high-volume consumer products, transcoder operates at 216 MHz internal frequency and incorporates DDR2 memory with 324 MHz interface. Power requirements are 2 W, with 1.2 V typ during HD transcoding.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Sep 05, 2007 Available in 3 x 3 mm TDFN package, Model AAT1112 supplies up to 1.5 A output current from 2.4-5.5 V input, while Model AAT1145 supplies up to 1.2 A. Both constant frequency, current-mode units convert Li-Ion battery input to 3.3 V output at full rated current and require no external compensation components. Output voltage can be regulated from 0.6 V to V(IN). Devices help extend battery life by running at 100% duty cycle for low dropout operation.

Anadigics, Inc.    Warren, NJ 07059
Sep 05, 2007 Targeting WiFi-enabled smartphones and consumer electronics products, Models AWL9230, 9231, and 9232 each incorporate power amplifier, low-noise amplifier, Bluetooth path, and RF antenna switch in package measuring 3 x 3 x 0.55 mm. Model AWL9230 achieves 3.5% EVM and draws 140 mA at output power of +19 dBm, while AWL9231 achieves 3.5% EVM and draws 135 mA at +18 dBm. For higher-power applications, AWL9232 achieves 3.5% EVM and draws 175 mA at output power of +21 dBm.

Spreadtrum Communications Corp.    Sunnyvale, CA 94085
Sep 05, 2007 Supplied in 257-ball LFBGA package, SC6600R GSM/GPRS mobile baseband IC is based on single-chip technology. Integrated multimedia functions include support for 2-megapixel digital camera and video camera, CD-quality music playback, stereo sound output, 30 fps MPEG4 playback, and Bluetooth interface. Low-power design features 3 V for I/O, 1.8 V for core, and GPRS Multi-Slot Class 10.

Spreadtrum Communications Corp.    Sunnyvale, CA 94085
Sep 05, 2007 Optimized for music-enabled mobile phones, SC6600H is supplied in 240-ball LFBGA package and enables music playback functions with CD-sound quality. This GSM/GPRS multimedia baseband chip includes optimizing functions such as support for half rate, full rate, enhanced full rate, and adaptive multi-rate voice codec. Simultaneously, SC6600H also supports GPRS multi-slot Class 10 voice recording and Bluetooth interface. Low-power design offers 3 V for I/O and 1.8 V for core.

Allegro MicroSystems Inc.    Worcester, MA 01615
Sep 05, 2007 Featuring on-chip oscillator, A6281 3-channel constant-current LED driver controls brightness via 10-bit PWM per channel, complemented by 7-bit analog current control per channel to adjust color balance. It drives up to 150 mA per channel and operates from supply voltage of up to 17 V. Clock, serial data, latch, and output enable control signals are buffered on chip to drive next pixel in daisy-chained cascade. Pixel spacing can range up to 10 ft.

Telegartner, Inc.    Franklin Park, IL 60131
Sep 04, 2007 Providing transmission rates of up to 40 Gb, STX connectors resist dust, moisture, and chemicals as well as mechanical and electromechanical loads. Gigabit-capable devices meet standardized IEC 61076-3-106 specification and are in full compliance with IP 67 requirements for environmental protection.

Altera Corporation    San Jose, CA 95134
Sep 04, 2007 Featuring 150K logic elements, EP3SL150 is 65 nm Stratix® III FPGA that complies with JEDEC DDR3 SDRAM standard, including read and write leveling to DIMMs as well as devices. I/O blocks are embedded with all timing-critical circuits, and Programmable Power Technology enables every programmable logic array block, DSP block, and memory block to operate independently at high-speed or low-power mode, automatically controlled via PowerPlay feature in Quartus II software.

Atmel Corp.    San Jose, CA 95131
Sep 04, 2007 Supplied in 3 x 3 mm QFN open packages, ATR1841 and ATR1842 are designed for use in optical pick-up units of slim and ultra-slim HD-DVD and Blu-ray drives. Devices support all wavelengths used in CD, DVD, and HD-DVD/Blu-ray drives and have serial interface that allows manufacturers, using firmware, to change between 3 gain modes as well as adjust gain by ±6 dB in each mode. Products offer channel bandwidth over 160 MHz while maintaining noise level of less than -80 dBm.

Fibox Enclosures    Glen Burnie, MD 21061
Sep 04, 2007 Made from injection molded polycarbonate, ARCA enclosures are available in interior sizes ranging from 6.00 x 6.00 x 4.00 in. up to 14.00 x 12.00 x 7.00 in. NEMA 4X rated enclosures come with screw cover, hinged screw cover, or hinged enclosure with several latch options. Covers feature overlapping design that protects formed-in-place polyurethane gasket. Mounting plates and fixed and hinged inner panels are offered in metal/non-metallic versions.

Intersil Corporation    Milpitas, CA 95035
Sep 04, 2007 Offered as single-chip, 6 x 9.9 mm QSOP solution, Model ISL28470 quad instrumentation amplifier delivers offset voltage of ±150 µV and typical CMMR (common mode rejection ratio) of 110 dB. It is optimized for low 2.4-5 V single supplies and is capable of swinging above positive supply rail and to 10 mV below negative supply. Unit simplifies designs for applications that require precise and simultaneous monitoring of multiple variables.

SRS Labs, Inc.    Santa Ana, CA 92705
Sep 04, 2007 Suited for variety of mobile devices including mobile phones, PDAs, and portable media players, SRS Mobile EQ(TM) software-based graphic equalizer features adjustable frequency band controls and minimizes interband interference. Available for ARM 9-based processors and Windows Mobile OS, it provides ±12 dB per band on small-sized speakers. Product offers low MIPS/channel and high audio control, allowing users to craft and save their preferred sound styles.

Spectrum Sensors & Controls    St. Marys, PA 15857
Aug 31, 2007 Powered by Micro M6 motor, 0.906 in. dia motorized rotary potentiometer uses passivated stainless steel shaft and has turret-type, side-located, gold-plated terminals. Clutch module housing is anodized aluminum, and product utilizes co-molded conductive plastic element. Along with 100,000-cycle (min) rotational life, characteristics include electrical angle of 340° absolute, output smoothness of 0.1% max, and absolute linearity of ±0.5 at center tap.

Keystone Electronics Corp.    Astoria, NY 11105
Aug 31, 2007 Designed to accept standard and low profile mini-size fuses and hold them in place after multiple insertions, PC Auto Blade Fuse Holder assures secure positioning during wave soldering. Thru-hole mountable holder has voltage rating of 500 Vac and 20 A current, and features fully insulated clips to protect fuses and reduce assembly time. Insulators are made of UL 94 V-O nylon, while 0.016 tin-nickel-plated brass is used for contacts to withstand shock and vibration.

WAGO Corp.    Germantown, WI 53022
Aug 31, 2007 Designed to meet NEC 410.73(G), CEC 30-308(4), and CSA/UL Standard 2459 for Insulated Multi-Pole Splicing Wire Connectors, 2-pole LUMI-NUTS(TM) 873 Series can daisy-chain power from one ballast to another, eliminating additional connectors. Integral locking latch prevents accidental disconnection of mating halves, while touchproof design eliminates need to disconnect power. Unit features color-coded molding and on-unit markings that reduce risk of wiring errors.

Microsemi Corp.    Scottsdale, AZ 85251

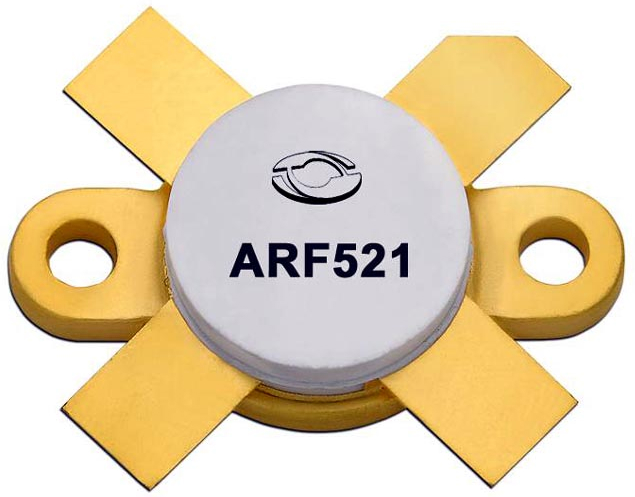

Aug 30, 2007 Comprised of single die in ruggedized SOE package, ARF521 is capable of 150 W output power at up to 81 MHz. Wafer fabrication process maximizes Safe Operating Area, load mismatch tolerance, and thermal stability in addition to promoting Class AB operation capability. Capable of up to 150 MHz operation, product facilitates combining DC power supply and RF power amp into integrated assembly. Applications include CO2 lasers, RF plasma generators, and HF/VHF communications equipment.
