Octava    Norcross, GA 30071
Apr 18, 2008 Designed for home theaters and public HD display kiosks, 3x4 HDMI V1.3 Switch and Splitter Distribution Amplifier distributes full 1080p video streams to 4 HD displays simultaneously via HDMI. RS-232 serial port provides integration with 3rd party control systems, while 3x1 HDMI switching allows up to 3 separate HD sources to be selected. Unit processes HDMI data and outputs audio via Toslink Audio while leaving HDMI signals (both audio/video) available to both HDMI outputs.

Instruments For Industry, Inc.    Ronkonkoma, NY 11779
Apr 17, 2008 PT186-2KWR military ruggedized pulse amplifier is designed for outdoor mobile and fixed applications. Compact unit is 6.5-18.0 GHz, 1.5 kW peak power amplifier for up to 6% duty cycles. CW/Pulse version, as well as other frequency ranges, are available to meet application requirements.

Crystek Corporation    Ft. Myers, FL 33913
Apr 15, 2008 Supplied in 0.5. x 0.5 in. SMD package, CVCO55CC-1260-1400 operates from 1,260-1,400 MHz with control voltage range of 0.5-12 V. It features typical phase noise of -115 dBc/Hz @ 10 kHz offset and input voltage of 8.0 V, with max current consumption of 35 mA. Pulling and Pushing are minimized to 0.20 MHz and 0.20 MHz/V, respectively, and second harmonic suppression is -20 dBc typical. Areas of use include various communications applications.

LEDtronics, Inc.    Torrance, CA 90505
Apr 15, 2008 With ability to run for 4,728 hr in twin 6 Vdc battery-powered flashing road light unit, BRA304 Series LED lamp has Quick Disconnect type T 3¼ 9 mm single-contact bayonet base that mounts directly into hazard roadside flashing light socket. Unit can light up at 4.2 Vdc with optimal light output at 6 Vdc. It is made of four 5 mm, 595 nn peek wave yellow LEDs that are positioned to work with reflectivity prismatic lens in standard hazard roadside flashing light.

Horizon Semiconductors Ltd.    Herzliya   Israel
Apr 15, 2008 Suited for professional and consumer applications, multi-channel, multi-standard Model Hz4010 enables real-time transcoding of HD or multiple SD video streams, as well as faster than real-time transcoding of HD to SD or lower resolution video. Stand-alone, programmable unit supports AVC, MPEG-2, and VC-1 video compression standards. It features video pre/post-processor supporting spatial linear and non-linear noise reduction, motion-compensated temporal filtering, and frame rate conversion.

Photonic Products, Ltd.    Huntington Beach, CA 92647
Apr 15, 2008 Available in 35 and 60 mW versions, 405 nm Photon Laser Diode Modules produce elliptical output beam of 3.5 x 2 mm with added advantage of TTL modulation input, which accepts signals from DC up to 1 kHz max and can be used to enable, inhibit, or modulate laser. Glass AR-coated aspherical lens may be adjusted to produce collimated beam or focused spot. Beam divergence is typically less than 0.6 x 0.3 mrad. Measuring 12 x 43 mm, modules operate from -10 to +50°C.

Symwave, Inc.    San Diego, CA 92121
Apr 15, 2008 With ability to transfer 1,000, four megapixel digital pictures in under 5 sec, FirePHY-1600 complies with IEEE 1394b S1600 standard enabling data transfer rates up to 1.6 Gbps. Housed in 64-pin 8 x 8 mm QFN package, device is backwards compatible with all prior generations of FireWire/1394. Based on SERDES technology, it is suitable interface technology for Mac and PC platforms, computer peripheral devices, and consumer and industrial applications.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Apr 14, 2008 Available in 5 x 5 mm 32-pin LLP® package, Model LMH1982 clock generator with genlock delivers HD clock output jitter of 40 ps peak-to-peak, and offers reference clocks for video ADCs, DACs, and FPGA transceivers. It provides 2 LVDS output clocks with selectable frequencies for SD (27 or 67.5 MHz) and HD (74.25, 74.25/1.001, 148.5, or 148.5/1.001 MHz) resolutions. Unit operates from 3.3 and 2.5 V supplies and supports NTSC/525i, PAL/625i, 525p, 625p, 720p, 1080i, and 1080p video timing.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 14, 2008 Supporting multiple output configurations, 20 W Class-D Model TAS5601 includes PWM interface to video or audio processor. Unit is more than 90% efficient and requires only 3.3 V and 10-26 V rail. Operation up to +26 V allows LCD-TV manufacturers to power device off existing +24 backlight rail, eliminating need for dedicated audio power rail. In addition, TAS5601 includes over-voltage, under-voltage, over-temperature, and short circuit protection.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Apr 14, 2008 Housed in 5 x 5 mm QFN package, RF205x Series generates local oscillator signal range from 300 MHz to 2.4 GHz and operates over RF/IF range of 100 MHz to 2.5 GHz. Local oscillator, which consists of VCO and PLL, has adjustable loop bandwidth that is set by passive or active loop filter. On-chip op-amp eliminates need for external amplifier in active loop configurations. Mixer linearity is programmable up to +18 dBm, at which mixer, PLL, and VCO consume 72 mA from 3 V supply.

Xilinx, Inc.    San Jose, CA 95124 3400
Apr 14, 2008 Designed for space applications, Virtex®-4QV FPGAs offer multiple platforms optimized to meet processing needs of video, audio, radar streams, and packet processing functions. Reprogrammable devices incorporate high-performance logic, DSP, and embedded processing in single chip. They provide up to 200,000 logic cells, 10 Mbit of RAM/FIFO, 2 PowerPC® processor blocks with auxiliary processing unit controller, 512 DSP slices, and 4 Ethernet MAC blocks.

Atmel Corporation    San Jose, CA 95131
Apr 11, 2008 Combining AT77C104 FingerChip® fingerprint sensor and AT91SAM7FP105 FingerChip Security Processor, FingerChip Security Chipset provides all biometric processing on-chip, ensuring user's fingerprint image and template remain private. Any transfer of data is encrypted and subjected to challenge/response algorithms for protection from all methods of attack. SPI and UART interfaces, combined with API and command set, enable biometric authentication to be added to embedded applications.

Micrel Inc.    San Jose, CA 95131
Apr 11, 2008 Housed in 2 x 2 mm Thin MLF® package, dual-channel MIC5331/32/33 Series integrates two 300 mA LDO regulators and up to 2 Power On Reset circuits with adjustable delay time. Units consume only 40 µA total while both outputs are enabled. Available in fixed output voltages, family offers full protection circuitry including current limit and thermal shutdown protections, with operating junction temperature of -40 to 125°C.

STMicroelectronics    Lexington, MA 02421
Apr 11, 2008 With 36 V output, 30 mA Model LED7706 and 85mA Model LED7707 enable single-chip solution for LCD panels as large as 17 in. External synchronization pin allows connection of extra devices for larger screen sizes. Offering complete notebook and Ultra-Mobile PC power management solution, Model PM6600 accepts input voltages from 4.5-28 V and provides six 36 V constant-current channels of 30 mA. All 3 monolithic step-up converters include on-chip MOSFETs and operate up to 1 MHz.

Symwave, Inc.    San Diego, CA 92121
Apr 11, 2008 Targeted at high volume consumer applications, FirePHY-800 S800 Physical Layer (PHY) device enables 800 Mbps data transfer between Apple Mac or Windows PCs and external storage devices. Featuring mixed-signal SERDES design, it includes 3 standards-compliant bilingual ports, and supports peer-to-peer networking. Available in 64-pin 8 x 8 mm QFN package, unit also enables up to 45 W of power to be carried over 1394 cable, eliminating need for extra power supply.

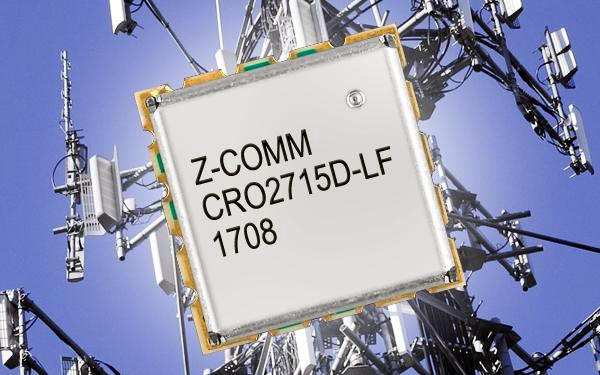

Z-Communications, Inc.    San Diego, CA 92126
Apr 10, 2008 RoHS compliant Model CRO2715D-LF coaxial resonator oscillator in S-band offers phase noise performance of -108 dBc/Hz @ 10 kHz offset. Design offers linear tuning sensitivity of 34 MHz/V (typ) and covers band between 0.5-4.5 V. Delivering 5 dBm output power at 5 Vdc supply while drawing 18 mA over extended operating temperature range of -40º to 85ºC, device comes in MINI package measuring 0.50 x 0.50 x 0.22 in. and is suited for automated surface mount assembly and reflow.

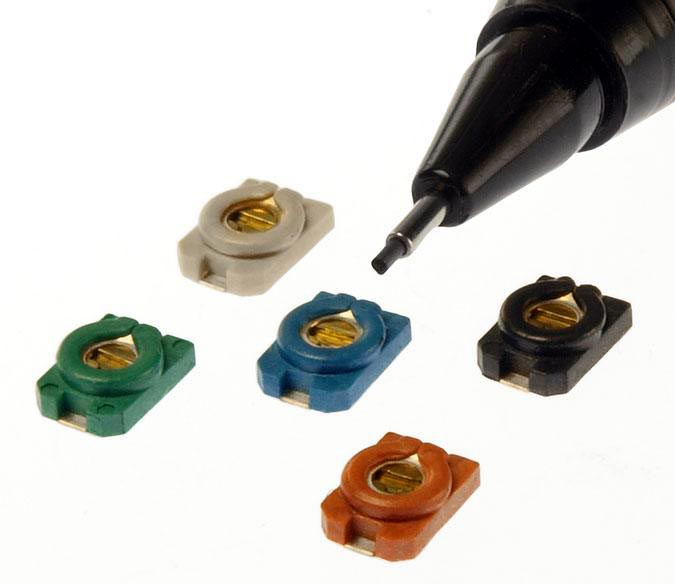

Sprague-Goodman Electronics, Inc.    Westbury, NY 11590
Apr 10, 2008 Measuring 0.177 x 0.126 x 0.059 in., SGC3S Series surface-mounted devices are constructed with high-temperature liquid-crystal polymer housings that resist penetration by dust and flux. Housings are also colored to identify 5 available capacitance ranges from 1.2-3.0 pF to 8.0-30.0 pF. Designed for reflow soldering, RoHS-compliant units are suited for designs requiring minimal capacitance drift over operating temperature range of -25 to +85°C.

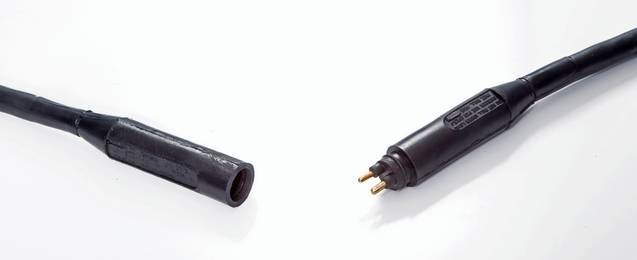

Duraline Div., J.B. Nottingham & Co., Inc.    Islandia, NY 11749
Apr 10, 2008 Rated at 15 A and 600 V, Models FTP-2 and MTP-2 consist of 2-wire polarized plugs, connectors, and receptacles with IP68 rating for water and dust. Units are submersible to 6 ft of water when caped or mated and can be molded to multi-conductor type SOOW 600 V cable. Available with 16, 14, 12, and 10 AWG wire cable sizes, connectors are suitable for broad range of power applications.

Fox Electronics    Fort Myers, FL 33905 5022
Apr 10, 2008 Suited for telecom network applications, RoHS-compliant FOX331 series is designed to comply with Telcordia GR 1244 specification. These HCMOS TCXOs/VCTCXOs, available in frequencies of 10-20 MHz, offer overall frequency stability of ±4.6 ppm as well as ±0.28 ppm over -20 to +70ºF range and ±0.37 ppm over -40 to +85ºF range. Products measure 7.0 x 5.0 x 2.0 mm and operate from 3.3 V supply. Phase noise is -120 dBc/Hz at offset of 100 Hz, -140 dBc/Hz at 1 kHz, and -148 dBc/Hz at 10 kHz.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Apr 10, 2008 Built to charge 4.2 V Li-ion/Polymer battery cells from either AC or USB inputs, Model AAT3783 is 1 A linear battery charger IC with integrated over-voltage protection switch to offer protection up to 28 V. It integrates charging device, reverse blocking diode, and current sensing circuitry in same die. Qualified across -40 to +85°C temperature range, IC operates off 4.0-7.5 V input range and supplies programmable current from 100 mA to 1 A.
