Connor-Winfield Corp., The    Aurora, IL 60505
Oct 12, 2009 Capable of holding sub 1 ppm stabilities over -30° to 85°C temperature range, D53G Series sub-miniature precision TCXOs suit Stratum 3, GPS receivers, instrumentation, Femtocell, FTTH, and FTTC applications. Available in 5 x 3.2 mm surface mount package, units feature 3.3 Vdc operational voltage, frequency stability at ±0.50 ppm, and less than 1 pS RMS jitter. TCXOs are RoHS compliant, and come in tape and reel packaging.

Z-Communications, Inc.    San Diego, CA 92126
Oct 12, 2009 Along with tuning voltage range of 0-24 Vdc, V600ME14-LF features typical phase noise of -89 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 110 MHz/V. RoHS-compliant VCO delivers typical output power of 10 dBm @ 5 Vdc supply while drawing 35 mA (typ) over -40 to +85°C range. Featuring typical second harmonic suppression of -15 dBc, product comes in 0.5 x 0.5 x 0.16 in. MINI-16-LOW package. Areas of use include satellite communication and test and measurement applications.

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Oct 12, 2009 Model WM8320 power management IC (PMIC) features 4 DC-DC synchronous regulators, 2 of which are 1.2 A regulators that incorporate BuckWise(TM) technology, which allows PMICs to adapt to shifts in power requirements as functions are switched on/off by user. Measuring 7 x 7 mm, it integrates 10 LDOs and two 1 A regulators that can be grouped together for combined 1.6 A output. Unit's EEPROM interface lets product designers override one-time programmable memory as many times as desired.

General Machine Products Co.    Trevose, PA 19053
Oct 09, 2009 Corner Cable Blocks are constructed with either 45° and 90° radiuses that ensure damage-free travel of fiber optic cable, coaxial cable, and innerduct around tight corners and bends. Roller assemblies provide snag-free gliding motion to simplify installation and 2 cable retaining rollers prevent cable from slipping off main roller. Accepting up to 1 3/8 in. dia cable/innerduct on 23 in. bending radius, 45° version weighs 8 lb 14 oz and 90° model weighs 13 lb 12 oz.

Cissoid    Mont Saint Guibert 1435  Belgium
Oct 09, 2009 MAGMA, available in ceramic DIL28 package, targets DC-DC converters and switching mode power supplies, where it brings maximum efficiency above 90% throughout -55 to +225°C range. Operating from 6-30 V input, it delivers PWM signal at constant frequency and duty cycles up to 90%. Chip can be forced to stand-by mode, with typ power consumption under 150 µA at 225°C. Threshold for power good signal can be adjusted, and sync pin can be driven by external clock.

Del City    Menomonee Falls, WI 53051
Oct 09, 2009 Compact LED Mini Combination Clearance Marker Lamps help users to keep vehicle illumination up to SAE DOT P2PC standards. They feature 3 SMD LEDs enclosed in sealed acrylic housing, with attached rubber grommet that fits into ¾ in. hole and is pre-wired with 6 in. jacketed leads.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Oct 09, 2009 Housed in 36-pin 6 x 6 mm QFN package, 8-channel Model TX810 addresses designers' need to build portable ultrasound systems. Switch integrates protection diode bridge and clamp diodes for each channel to prevent high-voltage pulses of transmitter from damaging receive electronics of ultrasound system. Optimized insertion loss maintains integrity of input/output signal at 400 W load with 0.9 dB at 7 mA bias current and 1.3 dB at 1 mA bias current.

Audium Semiconductor Ltd    Bristol   United Kingdom
Oct 09, 2009 Housed in single 64QFN package and operating directly from 0.8-1.8 V supply, Model AS1001 enables battery-powered amplified speakers to run 3 hours per day for 10 months. IC uses patented techniques to minimize both fixed power losses and output-dependent variable power losses. With power rail switching, amplifier operates efficiently from low voltage rail, with DC-DC boost converter driving higher voltage transistors on extreme audio peaks.

Freescale Semiconductor    AUSTIN, TX 78735-8598
Oct 09, 2009 Used in single-ended or push-pull configuration, 50 V Model MRF6V3090N is designed for TV transmitters employing analog and digital modulation formats. Unit delivers 90 W peak power at P1dB with greater than 40% efficiency through UHF broadcast frequency band. As linear driver, device achieves 21 dB power gain and drain efficiency of 12% with average output power of 4.5 W, based on DVB-T OFDM signal. Adjacent-channel power ratio at 4 MHz offset is -68 dBc over 4 kHz integration bandwidth.

Pacific Aerospace & Electronic    Wenatchee, WA 98801
Oct 09, 2009 Designed for 25-pin configuration, microComp Hermetic Receptacle provides insulation resistance of greater than 5,000 MW at 500 Vdc when tested in IAW MIL-STD 1344, Method 3003. Kryoflex® polycrystalline ceramic sealed unit has leak rate of less than 1 x 10^-9 cc/sec helium at one atmospheric differential pressure. Operating from -55 to +170°C, receptacle is built with beryllium copper alloy contacts that are finished in nickel/gold.

AVX Corp.    Myrtle Beach, SC 29578
Oct 08, 2009 Integrating dry polypropylene dielectric technology for extended operating life, FFVS Series are designed for applications that require greater than 100 kHz of frequency ripple DC filtering for induction heating and inductance of less than 10 nH. Suited for medical applications, series includes voltage ranges from 600 V (with available capacitance ratings of 22, 90, 140, and 195 µF) to 1,900 V (with available capacitance ratings of 14, 22 and 32 µF).

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Oct 08, 2009 Suited for space restricted applications, micro-miniature PCB Terminal Blocks are available in fixed position or modular 2 and 3 position settings that can be consolidated into any number of positions. Each block is made from UL94V0 plastic and has nickel-plated copper body with rising cage clamp design for easy re-termination. Capable of handling 10 A at 300 V, terminal blocks can be used with 30-16 AWG wire range.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Oct 08, 2009 With 0.5 mm pitch and height of 2 mm, series HF601 has cover that can be opened widely and accepts insertion of standard flexible flat cable (FFC). This zero insertion force (ZIF) connector can contact FFC with or without positioning part, but positioning part ensures increased safety against extraction. Design promotes plug security, and cover locks with audible click when closed. Pin counts - 10, 20, 26, 30, 40, 45, 50, and 60 - provide application flexibility.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Oct 08, 2009 Comprised of 200 mA LDOs, TPS727xx series employs auto low-power mode that combines quiescent current of less than 8 µA with transient response of ±50 mV while maintaining low noise (32 µVRMS) and high power supply rejection ratio (PSRR) of 70dB @ 1 kHz. LDOs automatically switch to and from low power depending on load current, and auto low-power mode also eliminates need for GPIO pin, overhead firmware, and modification of software drivers to control mode pin.

AVX Corp.    Myrtle Beach, SC 29578
Oct 07, 2009 Rated at 18 V, UltraGuard Multilayer Ceramic Varistors feature non-linear, bi-directional voltage-current characteristics similar to back-to-back zener diodes with EMC capacitor in parallel. Zinc Oxide-based units offer multi-strike capabilities and will survive 1,000 strikes at 15 kV contact ESD. Available in low and high capacitance versions ranging from 40-3,000 pF, varistors are suited for transient protection applications where extended battery life is required.

Calex Mfg. Co., Inc.    Concord, CA 94520

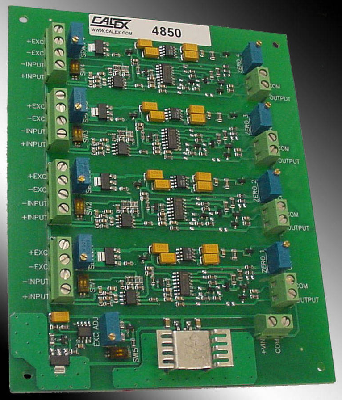

Oct 07, 2009 Designed for load cell, strain gage, or single-ended use, DC-powered Model 4850 offers 4 individual amplifier channels. Each channel contains precision instrumentation amplifier with individual Zero and Span adjustments as well as filtered 0-10 Vdc output. Input range of 0-30 mV is compatible with most strain gage-based load cell or pressure transducer outputs. Built-in excitation supply, capable of driving four 350 ohm bridges, is adjustable from 5-10 Vdc.

Altair Semiconductor    Hod Hasharon 45240  Israel
Oct 07, 2009 FourGee(TM)-3100 LTE baseband chip is LTE CAT-3 baseband processor that incorporates L1 and protocol stack, which includes PHY, MAC, RLC, PDCP, RRC, and NAS layers. Based on Altair signal processing engine, it features 2 x 20 MHz MIMO receive chains and 1 transmit chain as well as high-speed, programmable interface to standard HSPA/EVDO baseband and applications processors. It supports CAT3 throughputs of 100 and 50 Mbps for DL and UL, respectively.

Tecate Industries    Poway, CA 92064

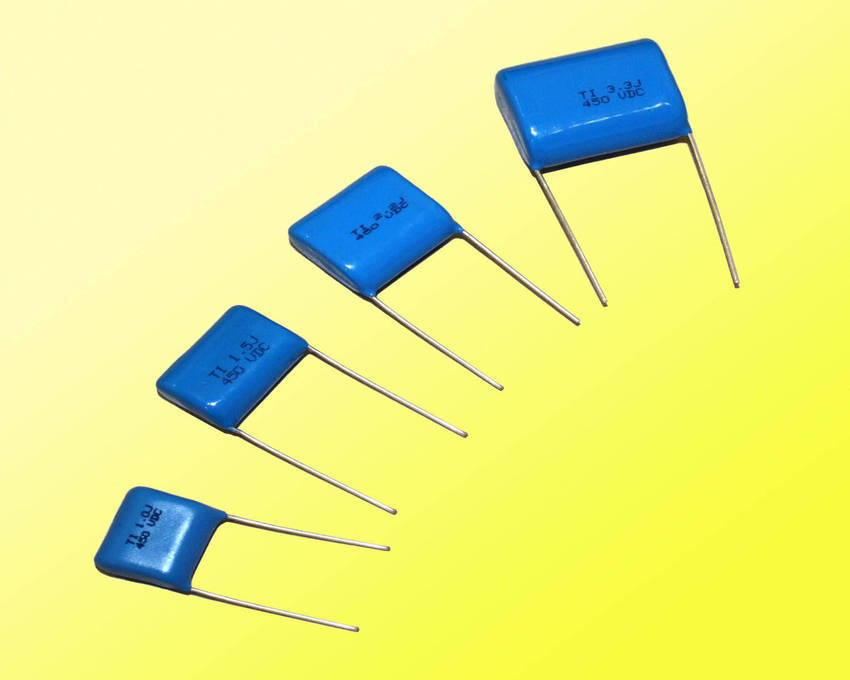

Oct 06, 2009 With 17 capacitance options from 0.1-10 µF and voltage options of 250 or 450 Vdc, polyester (PET) TYPE 9114 come in sizes of 12.5 x 5.5 x 9.0 mm up to 31.0 x 17.5 x 26.5 mm. Polypropylene (PP) TYPE 9014 versions are offered in 11 capacitance options from 0.15-3.3 µF, with 450/220 Vac, in sizes of 18.0 x 5.5 x 9.5 mm, up to 31.0 x 16.0 x 24.0 mm. Units feature RoHS-compliant, non-inductive, flame-retardant epoxy resin coated parts with high self-healing properties.

VTI Instruments Corporation    Irvine, CA 92614
Oct 06, 2009 Incorporating common switch, measure, and control modules, as well as common programming interfaces, EX1268 Mainframe offers 6.5-digit DMM and can accept up to 16 signal switching and I/O modules in compact 3U footprint. Built-in web interface provides out-of-the-box operation without additional software or programming, while embedded scanning engine enables test sequencing capabilities to minimize latencies and optimize test efficiency.

Linear Technology Corp.    Milpitas, CA 95035
Oct 05, 2009 Model LTC3553 multifunction power management IC measures 3 x 3 mm and features PowerPath(TM) manager that delivers up to 400 mA battery charge current from USB port or 5 V wall adapter input. Integrated synchronous buck regulator delivers up to 200 mA output current with output voltage adjustable down to 0.8 V. Unit also includes LDO regulator providing up to 150 mA output, pushbutton controller, and battery charger. Pin-selectable standby mode reduces battery drain current to 12 µA.
