Fischer Elektronik GmbH und Co. KG    Lüdenscheid   Germany

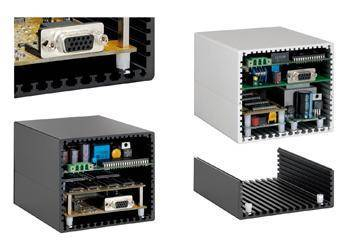

Sep 08, 2010 Using cover sheets as front cover, Combination Cases consist of 2 half shells made from aluminum profiles, which are assembled with each other and with other profile versions to form tube. Guide slot provided in profile permits insertion of 100 mm Euro cards. Versions for EMC and IP classes of protection are achieved by means of flat seals and cord packing. Customer-specific versions, mechanical processing, various surface finishes and prints are available on request.

Fox Electronics    Fort Myers, FL 33905 5022
Sep 08, 2010 Supplied in 7 x 5 mm package, XpressO series includes 125.00, 156.25, and 312.50 MHz models designed to meet needs of 3.3 V Gigabit Ethernet (GbE) and 10 GbE applications. HCMOS, LVPECL, and LVDS outputs are available on 125.00 MHz and 156.25 MHz models, while LVPECL and LVDS outputs are available on 312.50 MHz model. Each offers tri-state enable/disable feature and ±50 ppm frequency stability. At 12 kHz to 20 MHz, typ phase jitter ranges from 0.75-0.86 depending on model.

Harting KGaA      Germany

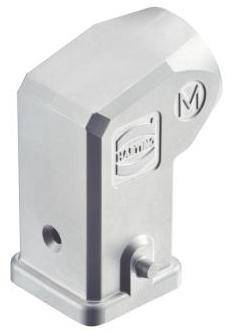

Sep 08, 2010 Han-INOX® connectors include Han® 3 A size with angled hoods, bulkhead mount housings, and surface mount housings. They also include protective caps for bulkhead mount housings and hoods, which ensure IP 65/67 protection for service interfaces at all times, regardless of whether or not they are in use. Suited for outdoor applications, units also target applications in process technology and in food and beverages industries.

Mitsubishi Electric Automation, Div.    Vernon Hills, IL 60061

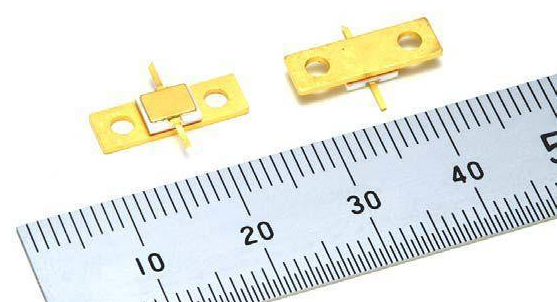

Sep 08, 2010 Supplied in 4.4 x 14.0 mm package, MGF084xG series includes 3 models of gallium nitride (GaN) high electron mobility transistors (HEMTs) with 10, 20, and 40 W outputs. In addition to power efficiencies from 46%-50% at P3dB and 2.6 GHz, characteristics include 47 V operating voltage, 12-14 dB gain, and quiescent drain current from 90-340 mA. Uses include base stations for mobile phones, very small aperture terminals, and other transmission equipment.

Calex Mfg. Co., Inc.    Concord, CA 94520
Sep 08, 2010 Offering solution for multiple channel PLC I/O systems, Model 8505 is designed to operate into common 24 V, 7 mA PLC discrete counter input. Converter provides 1-5 kHz output frequency for 4 µA per Hz resolution. Output is linear to 0.01% with accuracy of better than 0.1%. Housed in 3.78 x 1.06 x 1.65 in. plastic case with built-in DIN rail-mounting foot, device features isolated floating optocoupler that provides DC isolation from input and DC power.

OKW Enclosures, Inc    Bridgeville, PA 15017
Sep 08, 2010 Featuring all-aluminum design for RFI/EMI protection, TEKAM Enclosures each consist of extruded case body with internal guide rails for PCBs and 2 die cast end panels that are assembled by self-tapping screws. Customers can specify cases with flat end panels for handheld or portable use, or end panels with integrated wall mounting ears. Available in 9 sizes from 2.75 x 2.36 x 1.22 to 6.89 x 4.17 x 1.81 in., cases include 2 molded rubber gaskets for sealing.

Crystek Corp.    Fort Myers, FL 33907

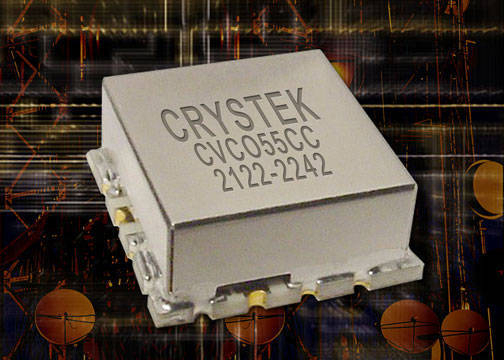

Sep 08, 2010 Packaged in 0.5 x 0.5 in. SMD package, Model CVCO55CC-2122-2242 VCO operates from 2,122-2,242 MHz with control voltage range of 0.5-4.5V. Phase noise is -105 dBc/Hz at 10 kHz offset and output power is +7 dBm typ. Device has input voltage of 5 V and max current consumption of 40 mA. Pulling and pushing are minimized to 1.5 MHz and 1.5 MHz/V, respectively, and second harmonic suppression is -15 dBc typ. Product suits utility in digital radio equipment, fixed wireless access, and base stations.

Trident Microsystems, Inc.    Santa Clara, CA 95051
Sep 08, 2010 As fully integrated digital TV SoC, HiDTV Pro-SXL(TM) features Connected-TV and worldwide digital television standards support. Included enhanced Super Resolution (ESR) technology optimizes picture quality by minimizing noise while maintaining detail. In addition to providing access to Web services such as video-on-demand, audio-on-demand, news, and sports, SoC delivers connectivity functionality with DLNA, widgets, and internet portals.

Trident Microsystems, Inc.    Santa Clara, CA 95051
Sep 08, 2010 Integrating LVDS interfaces and memory controller for external SDRAM, FRC-V converts 50 and 60 Hz material directly to 200/240 Hz systems to enable higher refresh rates needed for 3D display. Single-chip frame rate converter (FRC) also includes motion estimation and motion compensation (MEMC) technology, which eliminates movie judder, motion blur, and halos to optimize picture sharpness and clarity. Product is optimized to meet needs of HD broadcast content and blu-ray players.

Harting KGaA      Germany
Sep 08, 2010 Replacing card edge with gold pads for AdvancedMC and MCH modules, AdvancedMC Plug Connector creates 2-piece plug-in connection, mounts onto basic side of AdvancedMC module, and supports wave soldering. Instead of card edge, connector defines interface and therefore allows selection of PCBs with thickness beyond specified range. Also available, plug-in connector for MCH modules to MTCA.0 can be used to transmit signals from one PCB via 2 vertically stacked insertion tongues.

Intersil Corporation    Milpitas, CA 95035
Sep 08, 2010 Single-phase controller of ISL6265C powers Northbridge portion of CPU, while 2 remaining controller channels can be configured for 2-phase or individual single-phase outputs. For uniplane CPU applications, product is configured as 2-phase buck converter. It can also act as single-phase controllers, powering VDD0 and VDD1, for dual-plane processors. Along with embedded gate drivers, features include R3 Technology(TM) modulator, Serial VID Interface, and unity-gain differential amplifier.

Intersil Corporation    Milpitas, CA 95035
Sep 08, 2010 Supplied in 4 x 3 x 1 mm (max) 12-lead DFN package, ISL8022 dual synchronous step-down DC/DC regulator delivers up to 2 A/1.7 A continuous output current per channel and operates from 2.8-5.5 V. Channels are 180° out-of-phase for input RMS current and EMI reduction, and each is optimized for generating output voltage as low as 0.6 V. Operating at 2.25 MHz switching frequency, regulator has current mode control architecture and offers forced PWM mode or PFM/PWM mode.

Epcos, Inc.    Iselin, NJ 08830
Sep 08, 2010 Splitter transformers for separating DSL and telephone signals are available in 8 inductance values ranging from 1-10 mH and with resistance of 0.8-20 W, stray inductance of 0.7-13 µH, self-capacitance of 33-45 pF, and test voltage of 800-1,500 V. Measuring 9.6 x 7.8 x 10.9 mm³, units include EP7 cores and are RoHS-compatible.

Epcos, Inc.    Iselin, NJ 08830
Sep 08, 2010 EPCOS PhaseCap® Compact series capacitors are available in types for voltages from 415, 440, 480, and 525 Vac. They also cover capacitance range of between 3 x 27 µF and 3 x 251 µF at 50 Hz, and compensate reactive powers ranging from 5-33 kvar depending on type. Designed for continuous operating temperature of 65°C and service life of up to 180,000 hr, capacitors can withstand inrush current of up to 300 times rated current and include overpressure disconnector.

Murata Electronics North America, Inc.    Smyrna, GA 30080
Sep 07, 2010 Supplied in 1.25 x 1.0 mm 0504 chip package, DLP11TB series reduces undesirable radiation noise in electronic equipment. Film inductor forming technology is used to boost cut-off frequency to 8 GHz or more, minimizing effects of noise on signals to enable quality USB 3.0 SuperSpeed transmission. Suited to mobile devices, products have common mode impedance of 80 Ohms at 100 MHz and match characteristic impedance of 90 Ohms from USB 3.0 standard.

Atmel Corporation    San Jose, CA 95131
Sep 07, 2010 Addressing operating frequencies up to 790 MHz, ATR4253 also covers regional broadcast systems including DMB in Korea, DVB-T in Europe and US, as well as ISDB-T in Japan. It integrates automatic gain control, supply voltage regulator with overvoltage protection, and antenna sensor in 3 x 3 mm footprint. Due to noise performance, IC can also be designed as pre-amplifier for car radios or navigation applications that require FM-RDS information. Ambient temperature capability is up to 115°C.

Cree, Inc.    Durham, NC 27703
Sep 07, 2010 Specifically designed to meet needs of OEMs, LMR 4 LED Modules with EasyWhite(TM) technology integrate driver electronics, optics, and primary thermal management. Units offer 2,700, 3,500, and 4,000 k color temperatures at 80 CRI. Designed to last 35,000 hours while consuming 12 W of power, LED modules are suited for applications ranging from general illumination to restaurant and museum lighting.

Cree, Inc.    Durham, NC 27703
Sep 07, 2010 XLamp® MP-L and MC-E EasyWhite(TM) LEDs have single two-step MacAdams ellipse bin per color temperature that is optimized to achieve incandescent-like color consistency. EasyWhite binning, located at intersection of black body locus and standard warm/neutral CCT points, enables customers to specify color temperature and lumen output, simplifying LED system design. Units are offered in 2,700, 3,000 K, 3,500 K, and 4,000 K.

Diodes, Inc.    Westlake Village, CA 91362
Sep 07, 2010 Designed to handle high pulse current needed to generate tip and ring linefeeds and to withstand avalanche energy induced during switching, 60 V DMN60xx Series meets stringent requirements of primary switch position in transformer based Subscriber Line Interface Circuit DC/DC converters. Device gate charge and on-resistance have been balanced to deliver requisite figure of merit for VoIP applications, including cable and DSL modems, analog terminal adaptors, and private branch exchanges.

Crystek Corp.    Fort Myers, FL 33907
Sep 06, 2010 Packaged in 0.5 x 0.5 in. SMD package, CVCO55CC-1490-1550 VCO features control voltage range of 1.0-10 V, typical phase noise of -115 dBc/Hz at 10 kHz offset, and output power of +5 dBm. Input voltage is 8 V, with max current consumption of 35 mA. Pulling and pushing are 2.5 MHz and 1.5 MHz/V, respectively, and second harmonic suppression is at -15 dBc typ. Applications include digital radio equipment, fixed wireless access, and satellite communications systems.
