Xilinx, Inc.    Sunnyvale, CA 94085
Nov 17, 2010 Virtex®-6 HXT FPGAs support 40 and 100 Gbps line cards with flexible port configurations including 1x40, 4x10, 1x100, and 10x10 Gbps. They interface to SFP+, XFP, and CFP optical modules at line rates up to 11.18 Gbps and offer low jitter performance, eliminating need for external conditioning circuitry. Featuring 6.6 Gbps GTX transceivers and 11.18 Gbps GTH transceivers, units also have package with 40 dB of isolation between Tx and Rx and 30 dB of isolation between channels.

Linear Technology Corp.    Milpitas, CA 95035
Nov 16, 2010 Featuring 2 MHz bandwidth, Model LT1999 monitors currents in H-bridge motor controls, switching power supplies, and battery chargers. Bidirectional unit guarantees more than 80 dB common-mode rejection at 100 kHz, and features buffered output with fixed-gain options for 10, 20, and 50 V/V. Gain error is less than 0.5% and input offset voltage is less than 1.5 mV over full temperature range of -40 to 125°C. Operating with 5 V supply, IC draws 1.5 mA while active and 10 µA in shutdown mode.

Ophir-Spiricon Inc.    Logan, UT 84321
Nov 16, 2010 Designed to measure temporal pulse shape of lasers or other light sources, FPS-1 Fast Photodetector consists of photodiode sensor that handles wavelengths from 190-1,100 nm. Unit's 50 W load measures ns high peak power pulses, while 10 KW load measures longer and lower peak power pulses. Input can be direct beam or from fiber connection. Operating off battery or wall cube power supply, detector is available with optional ND filters.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Nov 16, 2010 Models RFSA2614 and RFSA2624 digital step attenuators feature 6-bit design with serial or parallel mode programming and cover frequency range from 50-4,000 MHz. Radio designers can use it to adjust gain of high-linearity receive and transmit channels over 31.5 dB range with 0.5 dB step resolution. Attenuators also feature settling time of 200 nsec, as well as 1 dB compression point of 27 dBm and 3rd-order intercept point of +48 dBm. They operate with cellular, WiMAX, wireless backhaul sytems.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 16, 2010 Built as wireless data engine, Model TMS320TCI6616 is based on TMS320C66x DSP using KeyStone multicore architecture, which processes both fixed- and floating-point math. System on Chip is equipped with PHY coprocessors for every 3G and 4G standard, including WCDMA chip rate and LTE bit rate, facilitating 3G to 4G migration. Autonomous packet processing manages packets from core and radio networks, offloading packet processing and freeing cycles for algorithms that optimize spectral efficiency.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Nov 16, 2010 Supplied in UL94VO housing, 5 mm right-angled modular PCB terminal blocks are available in versions with 2-3 positions. Modular interlocking housing facilitates creation of necessary circuit number. Carrying UL rating of 16 A @ 300 V, products can terminate wires from 24-12 AWG.

Sullins Electronics Corp.    San Marcos, CA 92079-0189
Nov 15, 2010 Engineered to facilitate board-to-board extensions, Dual Edge Connectors feature 0.100 in. pitch, accept 0.062 in. thick PCB in both slots, and are available with 5-60 contacts/row. Parts ensure PCBs are aligned at centerline to enable uniform signal path. Units provide minimum voltage rating of 750 Vac, current rating of 3 A/contact, and contact resistance of 30 mW. Supplied in straddle mount terminations, connectors support operating temperature of -65 to +150°C.

Bourns, Inc.    Riverside, CA 92507 2129
Nov 15, 2010 Available on Models 3547, 3548, and 3549, slip clutch option is designed as safety feature that helps prevent damage to potentiometer in applications where full travel is used. Internal design does not alter physical dimensions of component and allows potentiometer to idle at extreme clockwise or counter-clockwise ends without damage to stops. Potentiometers with slip clutch offer solution for mechanized or machine-to-machine applications such as linear actuators and mechanical position sensors.

Tecate Group    San Diego, CA 92108-4400
Nov 11, 2010 Available in sizes from 10 x 20 mm to 18 x 45 mm, PowerBurst® TPLE Series offers 7 capacitance values ranging from 5-100 F with capacitance tolerance of -0% to +40%. Electrochemical double-layer capacitors provide pulse and hold-up power in handheld and portable devices using microprocessors. Compliant with RoHS, cylindrical, radial-leaded ultracapacitors are suited for RAID storage, smart grid, portable data terminals, PDAs, pagers, and remote monitoring equipment.

Spreadtrum Communications Corp.    Sunnyvale, CA 94085
Nov 11, 2010 Integrating processor engine and controller, SC6600L6 allows up to 4 GSM SIM cards to be run simultaneously in single mobile handset. It supports different multi-SIM options - dual SIM, triple SIM, and Quad-SIM - in single set of baseband and RF chip, promoting flexibility for handset designers to meets need of users from different regions. Users can freely switch among different GSM SIM cards. Solution also comes with graphical user interface for Quad-SIM.

Broadcom Corp.    San Jose, CA 95110
Nov 11, 2010 Integrating features and functionality of entire line card into one chip, Broadcom® BCM88600 series enables creation of scalable and modular switching platforms with capacity from 100 Gbps to 100 Tbps. Multiple chassis of different sizes can be interconnected via 2-stage fabric element organization, delivering 10,000+ wire-speed ports of 10 GbE or 40/100 GbE equivalent. Single stream of 100 GbE can be processed at Layer 2-4 with integrated traffic management capabilities.

Cree, Inc.    Durham, NC 27703
Nov 10, 2010 Available with 80, 85, and 90 color rendering index, XLamp® XP-G and XP-E are suitable for applications that require high color accuracy to properly render object colors, including retail, medical, and architectural lighting. XLamp® XP-G provides luminous flux up to 107 lumens at 350 mA in 3,000 K warm white, delivering efficacy of 102 lumens/W. Both high-CRI models have LM-80 data approved by ENERGY STAR® and are UL-recognized components under UL 8750.

Cree, Inc.    Durham, NC 27703
Nov 10, 2010 At 350 mA, XLamp® XP-E Color LEDs deliver minimum light output of 500 mW for Royal Blue, 39.8 lm for Blue, 107 lm for Green, 73.9 lm for Red-Orange, and 62.0 lm for Red. Also available, XLamp XP-C Color LEDs deliver minimum light output of 350 mW for Royal Blue, 23.5 lm for Blue, 62 lm for Red-Orange, and 51.7 lm for Red - all at 350 mA. Above options offer designers flexibility in applications such as architectural, emergency vehicle, transportation, and decorative lighting.

GAO Instruments Inc.,    Toronto   Canada
Nov 10, 2010 Supplied with SDK and API, Model A0200002 uses DDS circuit to produce corresponding DAC refreshing clock and can be integrated into auto-measuring systems. Waveform generator/frequency counter reads waveform data files produced by Tektronix oscilloscopes or waveform editor software and displays waveform. It provides 1 channel of arbitrary waveform output, 8-bit output, synchronized signal output and 2 input channels for counter/frequency measurement, 8-bit input, and external trigger input.

Celesco Transducer Products, Inc.    Chatsworth, CA 91311
Nov 09, 2010 Featuring measurement range of 4.75-50 in., SP3 sensor operates from 12-32 Vdc and provides user-selectable 4-20 mA or 0-10 Vdc output signal. Desired output signal is selected by connecting appropriate signal wires, and water-resistant polycarbonate body is designed for tight spaces. Able to accommodate measuring cable misalignment, sensor features free release tolerance and is offered with stroke ranges of 0-4.75, 0-12.5, 0-25, and 0-50 in.

Celesco Transducer Products, Inc.    Chatsworth, CA 91311
Nov 09, 2010 Featuring ruggedized measuring cable designed for demands of flight and automotive crash tests, MT3A is offered with 3, 9, 15, and 30 in. stroke ranges and has 3 cable tension options for tests up to 90 G. Linear position test sensor, built to withstand outdoor conditions and operate from -40 to +250°F, is available with rugged aluminum sensor cover option and incorporates o-ring seals. Included 2-axis, 360° rotating mounting bracket facilitates installation in challenging locations.

Advanced Interconnections Corp.    West Warwick, RI 02893

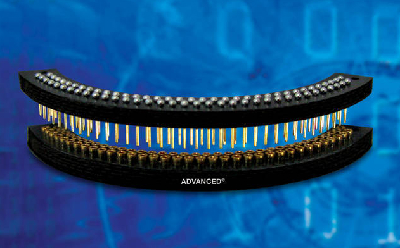

Nov 05, 2010 Created from FR-4 insulators, SMT Perimeter Connectors incorporate screw-machined, solder ball terminals, down to 0.50 mm pitch, on both male header and mating female connector. Semi-circle design maximizes space when stacking circular PCBs and includes integrated keying/polarization feature. Typical applications include military and medical equipment where reliability and ability to provide custom designs in low volumes are required.

Samtec, Inc.    New Albany, IN 47151 1147

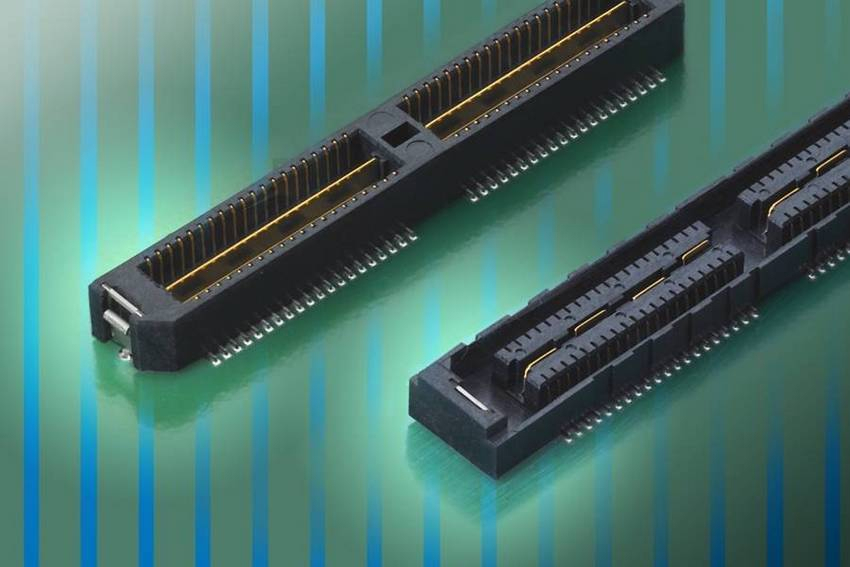

Nov 05, 2010 QTE/QSE Series High Speed Q Strip® Header and Socket System is available with optional metal latching system that creates audible click when properly mated. With metal plane for power or ground rated to 10.1 A at 95°C, .0315 in. pitch units also offer retention pin as alternative to latch. Signaling can be routed single-ended with performance to 9 GHz, or differentially with performance to 8.5 GHz at -3 dB insertion loss. Standard stack heights are from 5-25 mm; custom heights are available.

STMicroelectronics    Lexington, MA 02421
Nov 05, 2010 Single-chip S-Touch® FingerTip controller supports unlimited simultaneous touches, multitouch actions such as pinch-to-zoom, and stylus operations. Widescreen capacitive touchscreen controller utilizes noise cancellation to support on-cell LCD technology without requiring ground shielding layer between display and touch sensor. Offered in QFN 56, 7 x 7 mm or flip-chip CSP 49, 3 x 3 mm packages, it offers 8 kV HBM ESD protection as well as auto-tuning and self-calibration.

Linear Technology Corp.    Milpitas, CA 95035

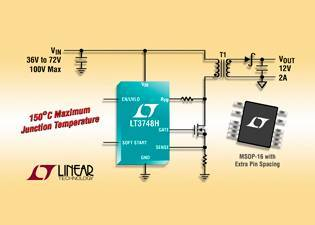

Nov 05, 2010 With input range of 5-100 V, Model LT3748H operates in boundary mode, current-mode control switching scheme, resulting in ±5% typical regulation over full line, load, and temperature range. Device facilitates design of isolated DC/DC converter since there is no requirement for opto-isolator, third winding, or signal transformer for feedback. Housed in MSOP-16 package, IC drives external N-channel power MOSFET, making it suited for automotive, industrial, telecom, and datacom applications.
