Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 23, 2012 Constructed with self-passivating tantalum nitride resistor film on high-purity alumina or ceramic substrate, NOMCA Series features low absolute TCR of ±25 ppm/°C, TCR tracking of 5 ppm/°C, tight ratio tolerances to ±0.05 %, and long-term ratio stability of 0.05% after 1,000 hours at +125°C. Dual in-line networks offer 7 or 8 isolated resistors of equal value in 14- or 16- pin SOIC packages. Each offers resistance range of 1-50 kW and typical power rating of 100 mW.

STMicroelectronics    Lexington, MA 02421
Apr 23, 2012 Supplied in 4-bump flip-chip package with 1.14 mm² footprint, DIP1524 enables handsets to connect receivers for GPS/GLONASS satellites, Bluetooth, Wi-Fi, and LTE band 7 from same antenna. IC can deliver high signal strength to several RF receivers simultaneously, accelerating GPS startup time while providing position detection accuracy and location-based service reliability. Diplexer utilizes Integrated Passive Device technology, fabricated on glass substrate, that minimizes insertion losses.

Symmetricom Inc.    San Jose, CA 95131
Apr 23, 2012 GPS Disciplined Oscillator (GPSDO) Modules and High-Frequency Source Modules provide time and frequency reference signals with same long-term accuracy as GPS signal. To maintain system synchronization during GPS reception outages, Quantum(TM) SA.45s Chip Scale Atomic Clock (CSAC) provides holdover for GPS-2700 and GPS-2750 versions. Options include standard and extended temperature ratings and 10 or 100 MHz OCXO-, DOCXO-, or CSAC-based design.

Measurement Specialties, Inc.    Hampton, VA 23666
Apr 23, 2012 Manufactured under ISO9001 quality system, XS-B Linear Variable Differential Transformer (LVDT) has 3/16 in. dia, with custom design capability to diameters of 1/8 in., that allows grouping for high-density surface profile measurements in space-restricted applications. This position sensor, supplied in stainless steel housing, features electromagnetic shielding and resistance to shock and vibration. Standard operating temperature range is -67 to +302°F, with 430°F optional.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
Apr 20, 2012 Featuring 1 DisplayPort(TM) input and 2 DVI outputs, DualHead2Go Digital SE enables addition of 2 external DVI displays to desktop and laptop PCs. Adapter supports max resolution of 3,840 x 1,200 across 2 DVI displays on compatible systems. Included Matrox PowerDesk software helps users organize and manage desktop space by deciding where applications should open up and run. With HDCP compliance, DualHead2Go Digital SE allows users to view copy-protected content on HDCP-enabled displays.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
Apr 20, 2012 Connecting to Thunderbolt(TM) port or Mini DisplayPort(TM) video output of Mac notebooks or desktops, DualHead2Go® Digital ME drives 2 external DVI displays, each at max resolution of 1,920 x 1,200. Adapter comes with Matrox PowerDesk desktop management software, which lets users configure multi-display setups and maximize application per screen. With Desktop Divider feature, users can further customize desktop space and optimize workflow by allowing displays to be divided into smaller sections.

Bomar Interconnect Products    Ledgewood, NJ 07852
Apr 19, 2012 Developed for employment with PCMICA cards in wireless applications, 50 ohm BNC E-Snap(TM) conectors have small protrusions within slot to allow devices to snap firmly into solder-pasted holes as they are slid onto PCB. Construction promotes board retention and RF performance without use of adhesives. Suited for dense packaging arrangements, miniature connectors have gold-plated contacts, come in male or female versions, and offer repeatable performance to 18 GHz standard or 20 GHz optional.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 19, 2012 Non-inductive LPS1100 provides resistance range from 1 W to 1.3 kW and offers offers power rating of 1,100 W at heat sink temperature of 25°C. Thermal resistance at rated power of 25°C is 0.039 °C/W junction-to-case. Device features temperature coefficient of ±150 ppm/°C, tolerances from ±1 to ±10%, and operating temperature from -55 to +200°C. Dielectric strength is 12 kVRMS, making it suitable for power supply, inverter, converter, and HEV-EV battery management applications.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 19, 2012 Supplied in 57 x 60 x 25 mm package, LPS1100 offers power rating of 1,100 W at heat sink temperature of +25°C. Non-inductive (less than 0.1 µH) solution, providing resistance range of 1 ohm to 1.3 kohm, features dielectric strength to 12 kVRMS and overload capability of up to 2,200 W for 10 sec. Operating from -55 to +200°C, RoHS Directive 2011/65/EU-compliant product exhibits thermal resistance at rated power and +25°C of 0.039°C/W junction-to-case.

Connor-Winfield Corp., The    Aurora, IL 60505
Apr 18, 2012 SFX-525G frequency translator and 20 Hz jitter attenuator translates an input between 8 kHz to 100 MHz to output frequencies between 8-250 MHz. It provides jitter filtered, wander following output signal synchronization to superior GPS, Stratum or peer input reference signal and supports FEC rates such as 15/14 and 255/237. IC is designed for use in line and service termination cards to provide phase-locked synchronization for network equipment.

Microsemi    Irvine, CA 92614
Apr 18, 2012 Operating over -55 to +125°C range, SmartFusion® customizable system-on-chip (cSoC) devices provide military and avionics systems designers with reprogrammable, non-volatile logic integration solution. Products integrate ARM® Cortex(TM)-M3-based processor and are based on secure flash technology. Addressing SWaP (Size, Weight and Power) concerns, cSOCs let designers combine analog and digital components. Products come with 500K and 60K equivalent gates and support up to 204 I/Os.

Hammond Power Solutions, Inc.    Baraboo, WI 53912
Apr 17, 2012 Suitable for primary and secondary connections from 50-3,000 VA or 30 A or coil face terminations over 3,000 VA or 30 A, HPS Fusion is enclosed in rugged TYPE 1 enclosure, allowing for easy mounting and installation via 4 mounting slots and 2 keyhole slots. Access to primary and secondary wiring compartment is facilitated by removable covers. Product is designed specifically for applications such as adjusting supply voltage to match load requirement or supplying motor control circuits.

Crystek Corp.    Fort Myers, FL 33907

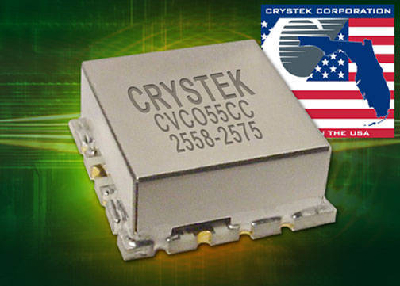

Apr 17, 2012 Operating from 2,558-2,575 MHz with control voltage range of 0.3-4.7 V, Model CVCO55CC-2558-2575 features typical phase noise of -120 dBc/Hz at 10 kHz offset. Input voltage is 8 V, with max current consumption of 29 mA. Pulling and Pushing are minimized to 2.0 MHz and 0.2 MHz/V, respectively. Housed in 0.5 x 0.5 in. SMD package, USA-made VCO is suited for digital radio equipment, fixed wireless access, satellite communications systems, and base stations.

AVX Corp.    Raleigh, NC 27604
Apr 16, 2012 With volumetric efficiency approaching 50%, TACmicrochip® Series includes High CV 15 µF/4 V, 10 µF/6 V TLC products that suit miniature applications. Designed to meet reliability requirements for military and other applications that must not fail, TBC Series is available to 3 specifications: CWR15, ranging from 0.47-68 µF; COTS-Plus devices, which can be supplied tested to customized parameters; and SRC9000 devices, dedicated to satellites and space systems.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 16, 2012 Intended for portable biopotential measurement applications, ADS1298 Series offers 16- and 24-bit resolution with 1 or 2 channels. Devices integrate low-noise PGAs, test signals, right leg drive amplifier, oscillator, voltage reference, and lead-off detection function. With power consumption to 335 µW/channel, AFEs feature input-referred noise below 8 µVpp to support AAMI and IEC end-equipment performance requirements. Typical applications include Holter and fitness heart-rate monitors.

Cree, Inc.    Durham, NC 27703
Apr 13, 2012 Featuring TrueWhite® Technology, which maintains color consistency over rated lifetime of product, LMH2 Series delivers 82 lm/W system efficacy combined with CRI greater than 90 in all available color temperatures of 2,700, 3,000, 3,500, and 4,000 K. Modules separate light source and power supply to enable wide selection of mounting and wiring options. Available with Digital Addressable Lighting Interface and DALI touch dimming, LEDs offer 50,000 hours of operation and are dimmable to 5%.

Scintera Networks Inc.    San Jose, CA 95129
Apr 13, 2012 Supplied in 64-pin, 9 x 9 mm QFN package, SC1889-00B11 RF Power Amplifier Linearizer (RFPAL) with integrated dual-RMS power measurement unit (PMU) lets designers reduce size, power, and design cycles in 3G and 4G RF cellular infrastructure systems. PMU provides data as digital codes for export, and simultaneous dual-RMS power detector provides typical absolute accuracy of ±0.1 dB over first 20 dB of input range and ±0.5 dB over last 10 dB of input range for PA lineup input and output.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 13, 2012 Designed to cut switching noise by 99%, 1 A QuietSupply(TM) TPS54120 helps maximize performance of data converters and amplifiers and sensitive clock distribution circuits. Unit features low noise output of 17 µVRMS at 100 Hz to 1 MHz and power supply rejection ratio of 83 db at 10 kHz and 70 dB at 100 kHz. Operating from input voltage of 4.5-17 V, switching power supply delivers adjustable output of 0.8-6.0 V and is synchronizable to external clock from 200 kHz to 1.2 MHz.

Fox Electronics    Fort Myers, FL 33905 5022
Apr 13, 2012 Supplied in 3.2 x 2.5 x 1.0 mm package with industry-standard pin-out, XpressO configurable crystal oscillator series FXO-HC33 includes delivers stabilities down to ±50 ppm and offers versions rated -20 to +70°C and -40 to +85°C. These 3.3 V HCMOS oscillators, with 0.75-250 MHz frequency range and phase jitter down to 0.8 pS RMS, feature RoHS- and REACH-compliant components that use gold over nickel termination finish.

Mill-Max Mfg. Corp.    Oyster Bay, NY 11771
Apr 12, 2012 Available in through-hole and surface mount styles, Shrouded Male Connectors are dual row with .100 in. spacing pin-to-pin and row-to-row. Units have molded Ryton body offering thermal stability, chemical resistance, and flammability rating of UL94 V-0. Shroud extends above pins for full protection during handling, assembly, connecting, and disconnecting. Featuring .030 in. D x .142 in. L gold-plated leads, connectors are suited for frequently mated interconnects and blind mate conditions.
