SJE-Rhombus    Detroit Lakes, MN 56502

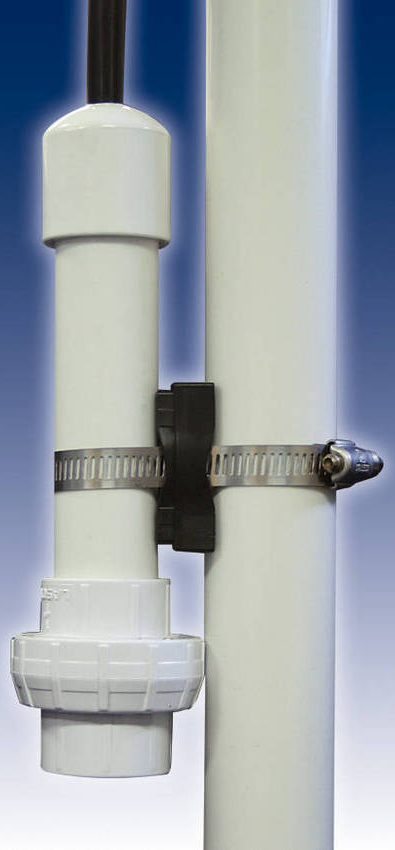

Apr 07, 2011 Installer Friendly Series® Three Phase Demand/TD and Capacitor Start/Run models offer support for C-Level(TM) floatless technology. This supported sensor converts water pressure in tank into low-voltage electrical signal and sends it to IFS panel, which displays level in inches or centimeters to facilitate system monitoring. Pump activation and alarm levels can be adjusted using panel touch pad, eliminating need in-tank manual adjustments.

Castell Interlocks, Inc.    Chicago, IL 60601

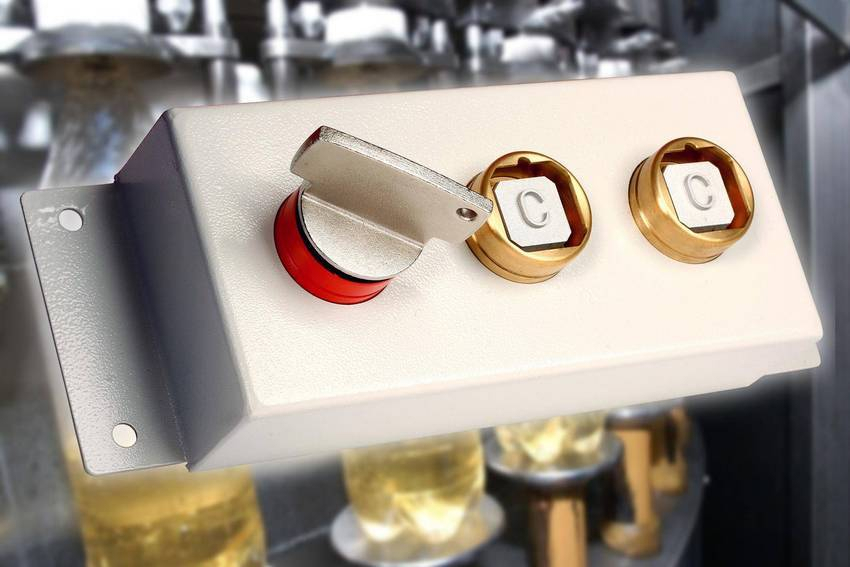

Apr 07, 2011 Ergonomic, X-type key exchange unit is configured to trap and release keys in pre-determined sequence, depending on operating requirements of safety interlocking system. Able to have multiple keys entering and/or withdrawing, unit is available in one key to release 3 or 6 keys, 6 keys to release 4, or any other combination. Enclosure is fully welded for optimal rigidity, while locks are located to be rear-mounted and have no visible fixing holes, keeping out dirt or food.

Teseq, Inc.    Edison, NJ 08837
Apr 06, 2011 Controlled by NSG 3000 Series of EMC test generators, Model VAR 3005 regulates test voltage and generates variable voltage for dips and drops testing of EUTs. Microprocessor-based, plug-and-play unit has several self-test features, including self-check, AC power volt check, and phase rotation check, as well as ability to inform users or stop test if test conditions are not correct. EUT supply input voltage range is 10-240 Vac, while output voltage is adjustable from 0-265 Vac.

WEG Electric Corp.    Duluth, GA 30097
Apr 05, 2011 Available with 400-2,500 hp control unit, CFW11-M Inverter is supplied with all electrical and fiber optic connecting cables, panel rails, and fuses installed. Controls provide 3-phase, 380-690 Vac induction motor control with IPS1 interface card. To help prevent heat buildup, drive includes monitoring and protection functions, including IGBT overload protection feature, which monitors junction temperature and generates failures or alarms.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044
Apr 05, 2011 Monitoring and evaluating signals of machine safety applications, eloProg enables user to program function of machine inputs using icon-based software to create specific logic to control safety outputs. Base module can be extended to up to 72 safety inputs with total of 8 output signal switching device outputs. Multiple I/O modules include 8 inputs and 2 transistor outputs on main module and expansion modules. Operating from 24 VDC ±20%, unit conforms to SIL 3, SILCL 3, PL e, and Cat 4.

Accuride    Santa Fe Springs, CA 90670
Apr 05, 2011 Consisting of heavy-duty slide with rod-based interlock system, Model 3641 helps prevent tipping of multi-drawer cabinets and enables integration of central- or gang-locking actuators to secure cabinet contents. Cut-to-length aluminum connecting rods allow for varying drawer heights within same cabinet. Carrying loads up to 180 lb and drawers to 42 in. wide, Model 3641 is suited for toolboxes, mobile carts, metal furniture, storage cabinets, and lateral files.

Reach Technology Inc.    Fremont, CA 94538
Apr 04, 2011 Equipped with 266 MHz 32-bit ARM9 processor, Model SLCD5+ supports SVGA 800 x 600 resolution for variety of medical and industrial embedded touch screen applications. Board includes 64 MB RAM memory and 28 MB flash memory with SD memory card slot for storage and upgrades. Operating from 5-12 V, board drives variety of backlight inverters and provides ESD protection for touch screen.

Fast Heat Element Manufacturing Co., Inc.    Elmhurst, IL 60126

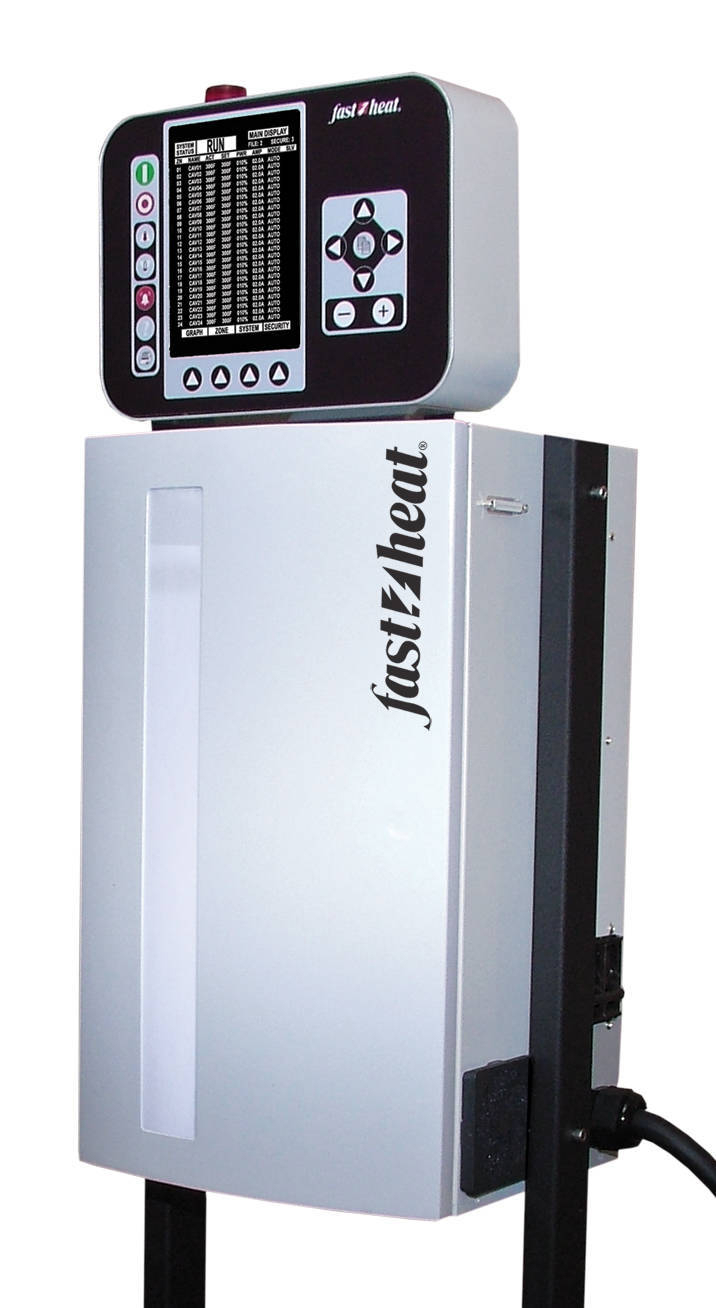

Apr 01, 2011 Ion Series is designed to control up to 24 zones, and includes operator interface that enables access to main screen from any part of interface. Device also includes PID software that takes temperature readings 30 times/sec. When thermocouple in one zone fails, unit allows control of that zone to be automatically or manually switched to another. It also offers self-correcting temperature control, which minimizes scrap due to flashing, stringing, and other molding irregularities.

Magnetek    Menomonee Falls, WI 53051
Mar 31, 2011 Intended for situations subject to RF jamming restrictions or when proportional control is needed but RF is not, IP66-rated Enrange(TM) Flex Pro Tethered offers proportional control and adjustable speed control. Ergonomically designed and contoured case, along with one-handed operation, facilitate use in applications where user must assist in machine operation. Product is available with 8 or 12 buttons, which may be configured as proportional, on/off, or combination of both.

Intellian Technologies USA, Inc.    Irvine, CA 92618
Mar 31, 2011 With operating voltage of 110 and 220 V, Dual VSAT Mediator can communicate with 2 antenna control units simultaneously. Unit offers uninterrupted broadband service at sea by automatically switching to secondary antenna if primary antenna is offline, blocked in signal shadow, or under maintenance. Switching between 2 antenna systems takes place within 60 msec, ensuring uninterrupted service. It supports OpenAMIP, Console, and RS232 and RS244 modem interfaces.

Videx, Inc.    Corvallis, OR 97330

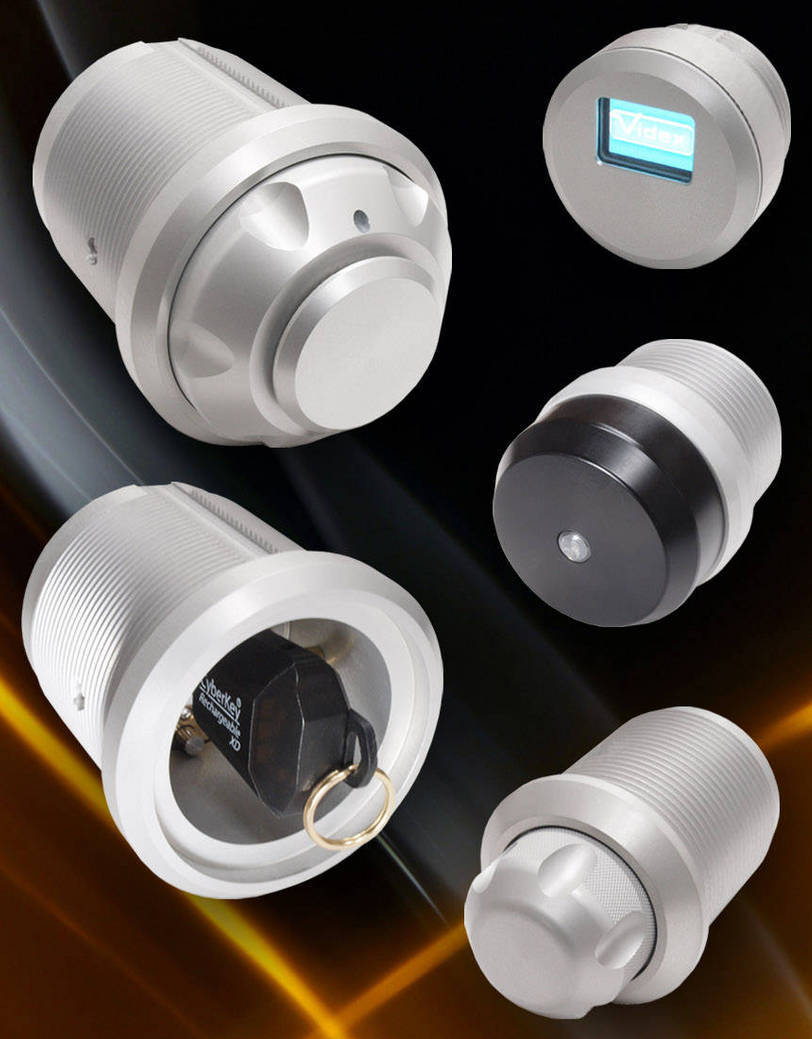

Mar 30, 2011 CyberLock Flex System(TM) access modules work with key-centric CyberLock solution to bring smart padlocks, electronic locks and keys, and hardwired door control system together under one access management structure. Behind scenes, software manages components as single access management solution. While weatherized key vaults allow electronic keys to be stored at points of entry and other indoor/outdoor locations, selection of reader, input, and display modules accommodate diverse needs.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
Mar 30, 2011 GCS900 Grade Control System v12.0 now offers CB460 Control Box with 7 in. display of 3D profile information, grade guidance, and warnings, which also operates in 2D mode. SNM940 Connected Site Gateway communications device integrates other grade control systems with telematics and asset tracking systems to connect people with construction data in real-time. Other options offered are software for wireless transfer of data between machine and office, GNSS smart antenna, and heading sensor.

LVD Group    GULLEGEM 8560  Belgium
Mar 29, 2011 Touch-L graphical interface uses icons and visual indicators to display and control functions such as: lens and nozzle selection, download of NC file to machine memory, file searching and editing, preview of part/nesting, and to provide real-time reproduction of cutting path. Interface lets operators change cutting quality, position and type of lead-in, and add or relocate micro joints. Supporting multiple extensions, including DXF/NC, it can also be used with USB memory and network drives.

Crestron Electronics, Inc.    Rockleigh, NJ 07647

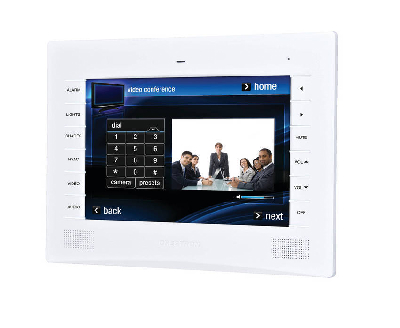

Mar 29, 2011 Equipped with 9 in. widescreen, Core 3 OS-ready Model TPMC-9L supports high-definition streaming video for IP/Web security cameras. Gestures navigation with intelligent velocity facilitates finger swipe control of theater systems, lighting, AV networks, thermostats, and security cameras. Twelve programmable hard-key pushbuttons, positioned along both edges of touch screen faceplate, align onscreen text and graphics to support context-sensitive menu functions.

Sprint Electric Ltd    Arundel East Susse BN18 0BE  United Kingdom
Mar 29, 2011 Consisting of Ethernet port and processor that takes information dynamically from drive and makes it available over Ethernet network, drive.web Distributed Control System includes interfaces to AC drives and remote I/O modules. Graphical tools provide diagnostics and configurability of all drives on network, either locally or remotely via Internet. Running on Java operating system, software delivers documentation tools for AC and DC drives and dynamic access to machine information.

Finesse Solutions, LLC    Santa Clara, CA 95054
Mar 24, 2011 Supporting bioreactors ranging from 25-2,000 L in size, T700(TM) upstream processing platform incorporates TruViu G3 hardware with utility tower, pump tower, and gas manifold. System is optimized for use with single-use vessels and has TruBio v4.0 software, which enables high-quality graphics, database management, calibration, reporting, and OPC-interconnectivity with off-line analyzers. Two systems can mount to cart with NEMA 4X HMI, while single unit mounts on bioreactor skid.

Baldor Electric Company    Fort Smith, AR 72901
Mar 22, 2011 Compact KPD202-501 operator panel includes 6 programmable function keys, 15 keys for input of numeric values, and 4 pairs of keys suited for functions such as jogging individual machine axes. Backlit, 4-line x 20 char LCD is also integrated. Requiring 24 Vdc power feed, unit has CANopen port, which offers choice of D-type and RJ45 plug-in connectors, and user-selectable RS232/485 serial port. Device is programmed via motion controller using Mint programming language.

Physik Instrumente (PI)    Auburn, MA 01501

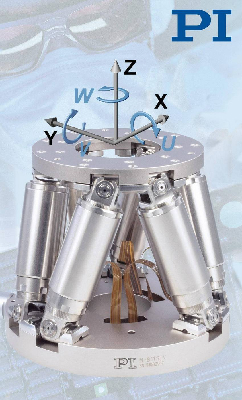

Mar 18, 2011 Measuring 130 mm dia x 115 mm high, M-811 Miniature Hexapod can handle loads to 11 lb and position them in all 6° of freedom with 0.04 µm actuator resolution and ±0.5 µm repeatability. Unit features XYZ travels of 35/35/13 mm and velocities to 10 mm/sec. Positioner comes bundled with software and digital controller with high-speed Ethernet connectivity. Unlike rotation stages which come with fixed center of rotation, Hexapod lets user set and change pivot any time via software.

Hitachi America Ltd.    Brisbane, CA 94005
Mar 18, 2011 Configurable via front keypad or ProDrive software, L700 Series incorporates sensorless vector control algorithm that lets inverter develop 150% torque at 0.5 Hz. EzSQ programming function provides PLC functionality, with program developed on PC and downloaded to inverter. Along with micro-surge voltage suppression and trip avoidance functions, features include configurable sink/source logic on digital inputs, dynamic braking circuit in models to 30 hp, and EMC filter in models to 200 hp.

Schmersal Inc.    Tarrytown, NY 10591

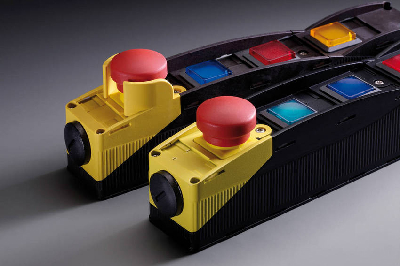

Mar 17, 2011 Using Series BDF, operators and maintenance personnel can E-stop, control start up, reset, and select appropriate mode of machine operation in single housing. Units feature slim 40 mm design, permitting mounting on machine door frame. Each station has up to 4 positions for variety of controls including E-stop buttons, pushbuttons, mushroom buttons, LED indicator lights, and selector/key selector switches with latched or spring return actuation.
