B & R Industrial Automation Corp.    Roswell, GA 30076
Apr 11, 2005 Providing users with control solution combined with remote I/O system, X20 System provides universal solution for any automation task in machine and system manufacturing. Applications for control, visualization, and drive technology are created using B&R Automation Studio with minimal required programming. Composed of bus module, electronic module, and terminal block, product features remote X2X Link backplane and component density of up to 12 I/O channels per system module.

Dart Controls, Inc.    Zionsville, IN 46077

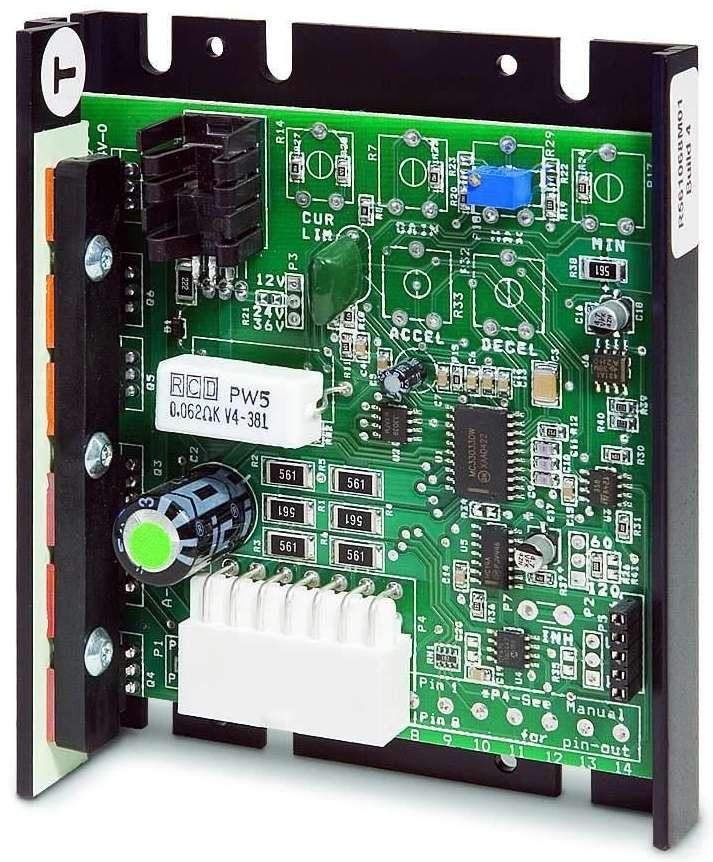

Apr 08, 2005 Closed-loop, microprocessor-based 703BDC-PA is available with accel/decel and current limit settings fixed to user specifications or with adjustable trim-pots. Wig-wag feature, also available, allows bi-directional control with speed pot. Offered with pluggable connector, product utilizes surface mount manufacturing technology for clean, space-efficient design.

Siemens AG    Munich D-80333  Germany
Apr 08, 2005 Simatic WinAC RTX 2005 software-based PLC reduces PC CPU load, enabling users to integrate controllers in compact PCs while also performing automation control tasks. Combination of software PLC, Windows XP Embedded, and Simatic Microbox PC 420 ensures system availability, and Ethernet interface can be operated independently of Windows. Unit can be configured and programmed with Step 7, either on same PC or over Ethernet and Profibus, from any point in network.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Charlotte, NC 28273
Apr 07, 2005 Model AGK uses ball screw in rigid aluminum housing to drive motion at speeds up to 96 m/min, even in extreme environments. Available in ball screw accuracy classes 5, 7, and 9, and in sizes 20, 32, and 40 x, unit is suited for high-speed machines where clearance or environmental conditions require compact, protected drive system. Model AGK comes as ready-to-install unit in lengths up to 6,000 mm, with optional integrated motor mounts for end- or side-mounted motors.

Sprint Electric Ltd    Arundel East Susse BN18 0BE  United Kingdom

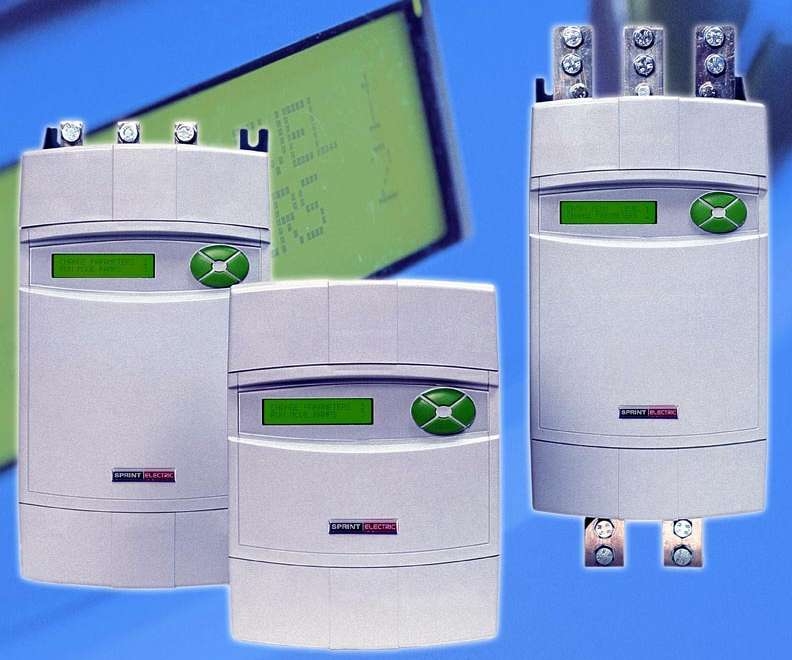

Apr 07, 2005 Available in 2- and 4-quadrant versions, PLX 3-phase DC drive has 40-character, backlit display and variety of digital and analog I/O. Programming menu structure is navigated via 4 keys, and built-in peripheral software blocks include spindle orientation, comparators, and 3 user-programmable complete drive configurations. Functions include PID controllers, reel diameter and taper tension calculators, multi-function signal processors, and batch counter.

Siemens AG    Munich D-80333  Germany

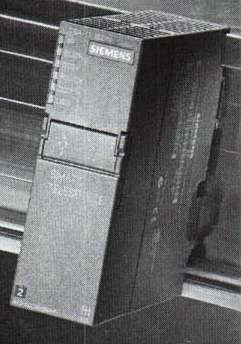

Apr 07, 2005 With 40 mm format of Simatic-S7-300 module, Teleservice Adapter II mounts on DIN rail or S7 channel and incorporates analog or ISDN modem. It lets users perform diagnostics, set values, and transfer programs and data over telephone lines from anywhere in world. Linked to Simatic programmable controller over MPI, PPI, or Profibus-DP interface, product is assigned parameters and programmed over USB interface.

Siemens AG    Munich D-80333  Germany
Apr 07, 2005 HMI Controls VS 720 display and process images from Simatic VS 720 vision sensors. Along with central operation, they enable visualization of live images, analysis of faulty test objects, display of image analyses, and archiving of results. Products utilize MS DCOM and ActiveX technologies and can sequentially display images from up to 4 vision sensors, differentiated according to good or fault. Up to 20 values can be displayed per vision sensor.

Selco Products Co.    Reno, NV 89521-5908

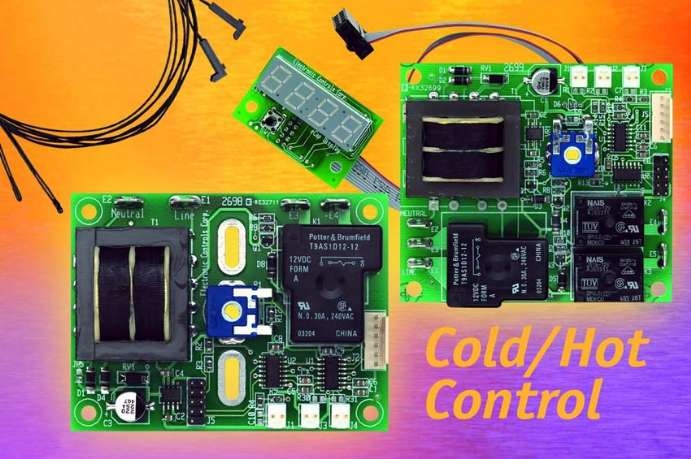

Apr 07, 2005 Series 2698 and 2699 Controllers offer sensing and control of heating, cooling, and humidity. Units include 2- or 4-digit push-button display panel, bi-color LED indication, and user adjustable differential. Model 2698 suits on/off cooling control for -40° to +50°F temperature range, while Model 2699 provides on/off temperature and humidity control and features up to 3 outputs with multiple relays to drive fan, lights, defrost heater, or damper.

Linear Technology Corp.    Milpitas, CA 95035
Apr 06, 2005 Using constant frequency, current mode architecture, synchronous buck regulator Model LTC3418 provides up to 8 A of continuous output current at voltages as low as 0.8 V from 5 x 7 mm QFN package. With efficiency up to 95%, unit operates from input voltage of 2.25-5.5 V, making it suited for single-cell Li-Ion or NiMH applications, as well as fixed rail systems. Switching frequency of 4 MHz allows utilization of tiny capacitors and inductors with less than 1.5 mm profile.

Sauer-Danfoss    Ames, IA 50010
Apr 06, 2005 With displacements of 147 and 165 cc/rev, Series H1 servo-controlled, hydrostatic pumps are available with electronic sensors to track speed, temperature, angle, and pressure. Electrohydraulic proportional valves, Series PVG 100 offers working pressures to 5076 psi, and provides equitable flow under all load and supply conditions. Using DSP technology and CAN communication, PLUS 1(TM) communications network provides connectivity and enables users to customize mobile machinery control.

Siemens AG    Munich D-80333  Germany
Apr 05, 2005 Simatic CPU 317F-2 PN/DP fail-safe controller features Profibus and Profinet interfaces, while modular ET 200pro I/O system with IP65/67 protection includes fail-safe Profinet I/Os. Automation solutions for standard and safety-relevant tasks can be generated via Profinet and Profibus using Simatic S7 distributed safety engineering software. Solutions comply with IEC 61508, EN 954, and NFPA 79 standards as well as IEC 62061 sector standard.

Siemens AG    Munich D-80333  Germany
Apr 05, 2005 Simatic ET 200pro features IP65/67 protection and safety-relevant Industrial Ethernet communication using Profisafe profile. Actuators and sensors are connected via fail-safe I/O modules. With interface module, standard and fail-safe modules can be optionally integrated in Profibus or Profinet networks, where standard and fail-safe communication is carried out in parallel on one cable. ET 200pro solves automation tasks with safety requirements up to SIL 3 or Category 4.

Divelbiss Corp.    Fredericktown, OH 43019

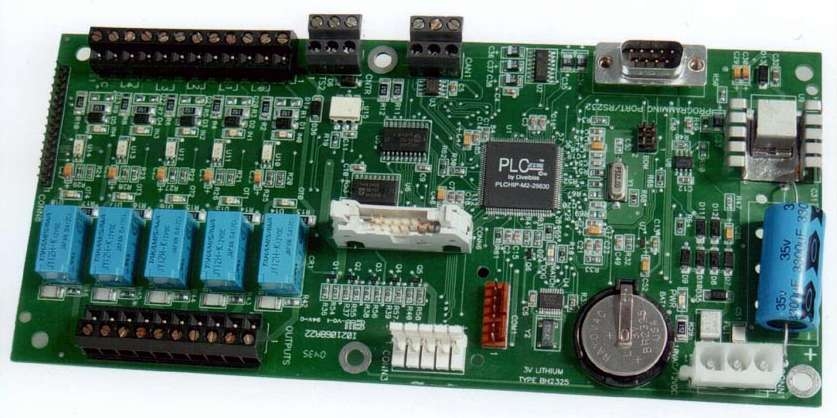

Apr 05, 2005 Programmed using Divelbiss EZ Ladder software via dedicated communication port, ENHANCED Baby Bear PLC incorporates real-time clock, counter that operates up to 500 kHz, and 5 digital inputs and 5 relay outputs, expandable to 250 I/O. Optional ports include second communication port (RS-232/422/485) and 1 Mbit CAN port. Program with 75 rungs and 25 function blocks has scan time of approximately 1 ms, using 1873 bytes of 64K program memory.

C & D Technologies    Mansfield, MA 02048-1151

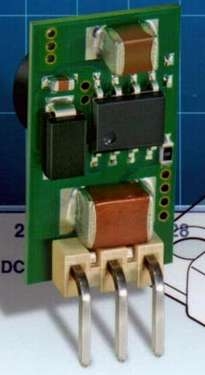

Apr 04, 2005 Supplied in TO-220 SIP packaging, step-down Series 78SR is pin- and size-compatible with LM78xx devices. Three models offer outputs of +5 V/0.5 A, +12 V/0.4 A, and +3.3 V/0.5 A. Switching frequency of 260 kHz produces efficiencies as high as 95% for 12 V part and 85% for 3.3 and 5 V regulators. Offering full load operation from 9, 12, 24, 28, or 36 V supplies, at ambient temperatures as high as 70°C, units require no heats sinks, forced air cooling, or temperature derating.

Clark-Reliance Corp., The    Strongsville, OH 44136
Apr 04, 2005 Series EA-100 Levalarm with upgrade kit replaces original float mechanism and micro switch with conductivity probe and detection relay, eliminating all moving parts. Relay provides 2 independent dry Form C switch contacts. Kit requires no welding, re-work of piping, or adjustments, and takes minutes to install.

United Control Systems, Inc.    Princeton, NJ 08540
Apr 04, 2005 Suited for weight based process control applications, F159 Plug-In Weigh Module provides direct connectivity to Omron CJ1 series PLC. Connectivity helps simplify setup of operation, reduce wiring and interfacing cables, and reduce system configuration and programming time. Offering data processing speed of 500 times/sec, unit can handle up to four 350 ohm load cells while providing up to 1/40,000 division resolution.

Linear Technology Corp.    Milpitas, CA 95035
Apr 01, 2005 Low voltage Model LTC4216 allows safe insertion and removal of boards from live backplane. Together with analog current limit amplifier, electronic circuit breaker with adjustable response time provides dual level overcurrent protection. Adjustable soft-start circuitry limits rate of change of inrush at start-up. Offered in 10-lead MSOP and 12-lead DNF packages, Model LTC4216 meets demands of microprocessor systems with low voltage implementations.

Walchem Corp.    Holliston, MA 01746 1460
Mar 31, 2005 Suited for water and wastewater treatment industry, WebMaster One connects with USB, Ethernet, modem, or cell modem using digital technologies such as CDMA, GPRS, and GSM. Users can monitor conductivity, pH, and ORP as well as any 4–20 mA and digital inputs such as liquid level, corrosion, inhibitor concentration, temperature, and pressure. Utilizing Internet and ShoulderTap Connectivity-on-Demand technology, control and monitoring can be done securely from anywhere.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005 3900
Mar 30, 2005 Featuring interchangeable architecture, SINAMICS® G and S series scalable ac drives let users select, start up, and configure appropriate drive for any application, at any power range from 120 W to 1+ MW using same software for every drive. Models in G series offer power from 1/6–1,100 hp for stand-alone applications. For applications requiring coordinated drives with servo functions, models in S series offer max power from 125–1,500 hp.

DigiTec    Newell, WV 26050
Mar 30, 2005 Featuring NEMA 4X front and aluminum housing, 3820 series 1/8 DIN controller offers selectable alternating function for pump-up or pump-down applications. Unit incorporates ON-Delay for second pump after power failure condition and can retransmit analog signals to establish direct connection to multiple devices. Controller offers 30-point linearization for non-linear signals, programmable front keys, and flow readings using linear and square root extraction.
