Omron Electronics, LLC    Schaumburg, IL 60173
Mar 24, 2009 Utilizing high-speed motion control network, PLC-based CJ position controller can be paired with micro CP1H controller for small machine applications or combined with CJ1, CJ2, or CS1 devices for production line applications. Parameters are stored in module for optimized network access, and controller and servo drives are programmed using CX-One automation software. Motion control bus enables GN Servo drives to link to unit via single cable in daisy-chain configuration.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Mar 24, 2009 With suport for multi-protocal including ISO 18000-6C (EPC Gen 2) and ISO 18000-6B, UHF RFID access control reader DL910 is designed for vehicle or personal access applications, especially in gated communities and parking access control. Features include reading speed of less than 10 ms per 64 bits, customizable operating frequency between 860-960 MHz, and self-detecting ability to ensure that cars with authorized tags can be recognized without any interruption.

Ingersoll-Rand Co., Air Compressor Group    Davidson, NC 28036
Mar 24, 2009 Ingersoll Rand X-Series System Automation eliminates inefficiencies of operating multiple compressor systems by managing up to 12 positive displacement compressors simultaneously. Managing compressors of different capacities and types in any combination/configuration, it offers several methods to optimize efficiency. Automation features include energy control capability, measuring of pressure change to add capacity when required, and visualization tools for system/equipment monitoring.

Melexis Inc.    Concord, NH 03301
Mar 24, 2009 Model MLX81200 incorporates TruSense technology, which combines reluctance measurement with BEMF sensing for detection and tracking of the rotor position. SineDrive motor control allows shaping motor current to optimize efficiency and torque ripple for each motor, making it suited for applications like engine cooling fans and HVAC blowers. Features include 16 bit microcontroller, 30 Kb of flash program memory, 2 Kb SRAM, voltage regulator, and on chip RC oscillator.

Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379
Mar 23, 2009 Featuring coordinated one-line drive control, DS-eTPC delivers temperature control of up to 8 barrel heating/cooling zones per extruder. With Historian option, touch-panel controller can be connected to any PC running Internet Explorer® so that temperature profiles, drive conditions, and pressure conditions can be saved in report format for future analysis. REACT System enables conditions at customer's plant to be viewed remotely during production run via secure, high-speed Internet connection.

S.I.E. Computing Solutions, Inc.    Brockton, MA 02301
Mar 20, 2009 Housed in 45 mm wide package with DIN rail clip, RSHL Smart Softstarter controls and protects 3-phase induction motors rated up to 5 hp at 220 Vac, 10 hp at 480 Vac, and 15 hp at 600 Vac. Soft starting and stopping can be achieved with 9 customizable voltage ramping profiles. Built-in, manually adjustable, electronic overload can be set for Class 10 or Class 20 trip characteristic and for manual or automatic reset. Unit can also monitor motors for overheating, phase loss, sequence, and imbalance.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 19, 2009 Providing TFT color displays, Simatic Basic touch panels come in 10 in. model with function keys and 15 in. XVGA resolution model. Compact 4 in. model TP 177B supports 480 x 272 pixel widescreen resolution and includes 4 configurable function keys and built-in Profinet/Ethernet and Profibus/MPI communication ports. Designed on Windows CE operating system, MP 177B 6 in. multipurpose HMI can run Simatic WinAC PC-based control software along with standard WinCC HMI panel software.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 18, 2009 Series RPV (Reducing Pressure Valve) comes in ½-2 in. cast iron and ½-1 in. stainless steel versions, respectively rated to 200 psig at 400°F and 300 psig at 420°F. Intended to satisfy fundamental requirements for pressure reduction from 3-140 psi, this steam/water/gas regulator can be used where space limitations are of primary concern. Along with integral stainless steel strainer, series has spherical seating surface on floating stainless steel disc that promotes tight shutoff.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Mar 18, 2009 Designed for Daniel® oil and gas fiscal flow metering system, DanPac(TM) process acquisition controller system delivers predictive and diagnostic information. Open-standards software has built-in redundancy and comes with pre-configured control hardware. Logic controller delivers real-time diagnostics and alarms from skid-mounted PlantWeb digital components, while S600 flow computer offers accurate fiscal measurement, giving access to metering performance and measurement analysis reports.

Seco-Larm    Irvine, CA 92606-5012

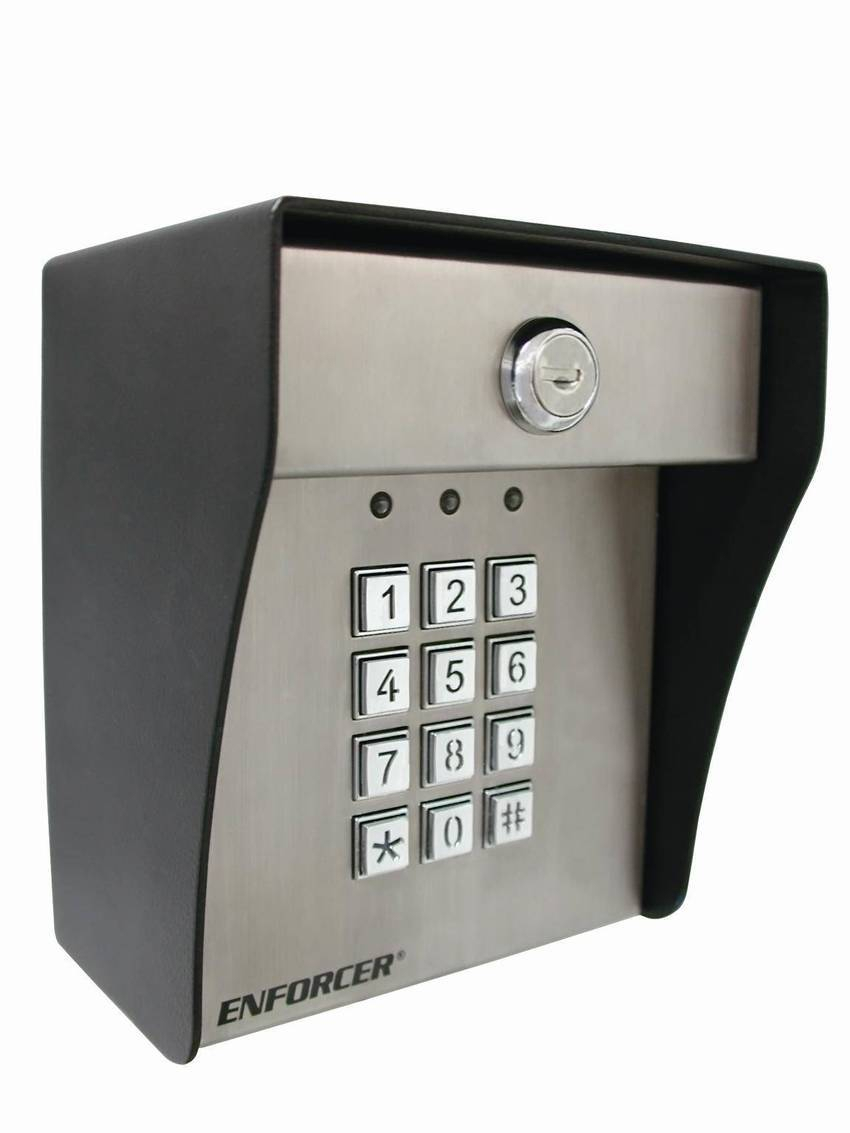

Mar 17, 2009 Constructed from heavy-duty steel and aluminum, outdoor stand-alone keypad ENFORCER SK-3023-SQ allows up to 500 user codes to be programmed and each code can be 2-8 digits in length. Two separate 5 A relays can be programmed to control fail-safe or fail-secure locking devices. Unit features 12-24 Vac/dc dual voltage operation and door-forced-open and door-propped-open alarm outputs. Entire keypad is illuminated and individual keys are backlit for nighttime use.

Bison Gear & Engineering Corp.    St. Charles, IL 60174
Mar 17, 2009 Compact, variable speed SCR drive TightDrive(TM) attaches directly to permanent magnet DC electric motors and gearmotors up to 1/6 hp and offers 20:1 speed range with maximum output of 90 V. It is housed in durable aluminum extrusion that offers NEMA 1 (IP 30) protection and heat dissipation, while speed is controlled with combination on/off switch and speed potentiometer. Designed for 115 V 50/60 Hz operation, unit comes complete with 3 ft power cord and NEMA 5-15P plug.

Mass-Vac, Inc.    North Billerica, MA 01862 0359
Mar 16, 2009 Capable of performing measurements ranging from atmosphere to hard vacuum, MAS-200LED-V Vacuum Gauge measures vacuum from 0.001-760 Torr and features 531 type thermocouple vacuum gauge tube that senses vacuum and displays results on large LED readout. Unit is packaged in rugged case, and can output readings to optional RS232 serial connection. It can also be used as vacuum transmitter to PLC or similar device.

Mensor Corp.    San Marcos, TX 78666
Mar 16, 2009 Utilizing regulator to achieve stable control in less than 3 sec, CPC3000 High Speed Pressure Controller/Calibrator offers accuracy of 0.025% of full scale. Unit includes color touch screen and intuitive menu structure. Remote operation can be accomplished via IEEE-488, USB, or Ethernet communication interfaces.

Bodine Electric Company    Northfield, IL 60093
Mar 16, 2009 Available in 24A and 33A frame motor sizes, 12 V PMDC Gearmotors and Motors can be built in combination with parallel shaft, hollow shaft, or right-angle gearheads with gearmotor output speeds from 5.6-660 rpm. Units range from 1/50-1/8 hp and can generate up to 310 lb-in. torque. Pulse-width-modulated Type WPM-12 Vdc Speed Control is suited for battery-powered, solar-powered, and other low-voltage applications that require basic, single-direction speed control.

Bodine Electric Company    Northfield, IL 60093
Mar 16, 2009 Unfiltered type UPM DC motor speed controls target PMDC gearmotors/motors operate from 115/230 Vac and offer output voltages from 0-90 Vdc at 115 Vac and 0-180 Vdc at 230 Vac, at 50/60 Hz input voltage. Offering PWM control, filtered type WPM DC motor speed controls operate from 115 Vac at 50/60 Hz line and provide output of 0-130 Vdc. Both feature 8 DIP switches and ¼ in. quick connect tabs or plug-in terminal connections.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Mar 13, 2009 Designed to track and manage vehicle in parking areas or gated communities, RFID parking access control system includes RFID windshield tags in both adhesive and clipping formats, RFID reader DL910, and software. Reader provides read range of up to 15 m, fast reading speed, and multi-port interfaces for vehicle tracking. Unit also identifes and records authorized vehicle movement, as well as charge payment status.

Deschner Corporation    Santa Ana, CA 92704-3917
Mar 12, 2009 Configured for tube or clevis drilling, Skipchek® delivers controlled feed, followed by fast skip, and returns to controlled feed. Skip distance is not adjustable and engineered to meet application demands. Able to be configured to drill through more than 2 walls, leak-proof product is available in ½, 1, 2, 3, 4, and 6 in. stroke lengths with max capacity of 1,200 lb. It eliminates need to use 2 drill motors drilling on opposite sides of tube, producing perfectly aligned holes.

Deschner Corporation    Santa Ana, CA 92704-3917

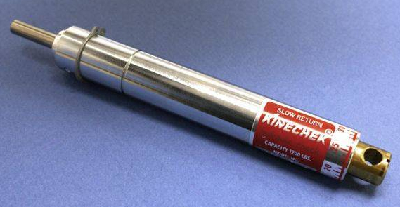

Mar 12, 2009 Useful when automatic extension of plunger rod will interfere with second operation, Slow Return Kinechek® controls speed of load pushing on plunger rod with smooth, constant rate. Slow Return feature slows automatic extension of plunger rod via fixed restricting orifice built into unit's internal flow passages. Time required for plunger rod to extend can range from 6-22 sec/in. of stroke. Leak-proof solution comes in ½, 1, 2, and 3 in. versions, with max capacity of 1,200 lb.

National Instruments Corp.    Austin, TX 78759-3504
Mar 12, 2009 Featuring 3U form factor, Model PXI-8110 is equipped with 2.26 GHz Q9100 Intel® Core(TM)2 Quad processor, up to 4 GB 800 MHz DDR2 RAM, and 7,200 rpm drive. Embedded controller can process up to 215,000 1K Fast Fourier Transforms/sec. It is also available in version that supports NI LabVIEW Real-Time and LabWindows(TM)/CVI Real-Time modules to deliver platform for deterministic and real-time measurement and control.

Teledyne Hastings Instruments    Hampton, VA 23661
Mar 12, 2009 Designed for use with DV-6 and DV-4 series thermocouple gauge tubes, Digital CVT (DCVT) digital vacuum gauge tube controller features dual setpoint control relays, analog output, and RS232 communication. It also features display that can be configured for torr, mbar, or pascal operation.
