EXAIR Corporation    Cincinnati, OH 45249-1621
Apr 12, 2005 Rated at 2,800 btu/hr, Cabinet Coolers mount to NEMA 12, 4, or 4X enclosures through standard electrical knockout to protect electronics from harsh environments. Vortex tube cools ordinary compressed air to 20°F, while automatic drain filter separator ensures no moisture passes to inside of enclosure. Thermostat control minimizes compressed air use and keeps enclosure at ±2ºF of temperature setting. All models are UL Listed to US and Canadian standards.

Caterpillar, Inc.    Peoria, IL 61629
Apr 12, 2005 MorElectric System provides electrically powered heating, ventilating, and air-conditioning system, allowing all HVAC components to be removed from engine compartment. Electric power comes from 7,300 W generator that replaces alternator. When coupled with Auxiliary Power Unit, system provides driver with comfortable cab environment when main engine is off. Using Shore Power, truck is plugged into pedestal at truck stop, providing low emission idling solution.

SCHMIDT Technology GmbH    St. Georgen D-78112  Germany

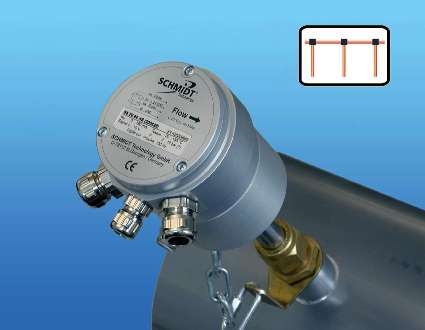

Apr 11, 2005 Thermal Insertion Sensor, Model SS 20.400, measures flow velocity of air and gas in both directions with ranges of 1, 2.5, 10, and 20 m/s. Measuring 9 mm in dia, stainless steel tube contains microprocessor-based electronics, and aerodynamic chamber prevents stress on sensor element. Offering reaction times down to 10 ms, sensor provides 1 analog output and 2 digital outputs for indication of flow direction and limit value. Serial interface allows on-site programming via PC.

SCHMIDT Technology GmbH    St. Georgen D-78112  Germany
Apr 11, 2005 Model SS 20.60 offers measuring range up to 160 m/s and delivers values in Kg/hr or m³/min. Fieldbus interface makes it suited for large installations with high number of sensors. Bus cabling is fed through screwed cable glands and is wired internally via screw terminals. Applications include combustion-air control in gas, coal or oil burners; volume flow measurements in nitrogen or other passivation gases; and compressed-air consumption measurements.

All-Star Products Inc    Memphis, TN 38138

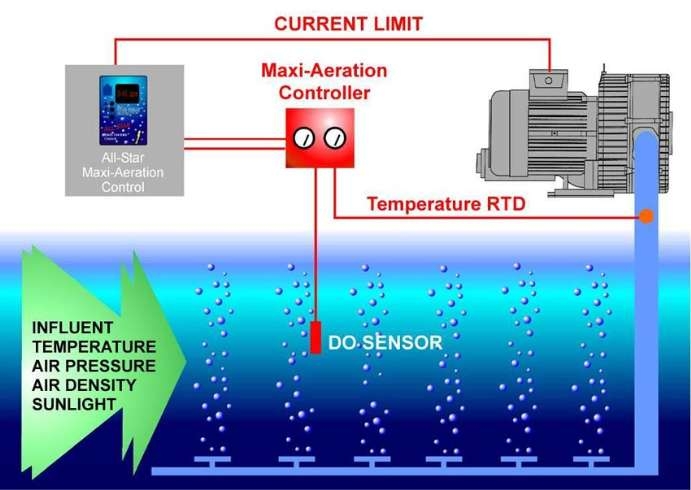

Apr 08, 2005 Maxi-Aeration DO System optimizes aeration process by maintaining set-point dissolved oxygen rate in aeration basins. VFD continuously monitors DO levels to provide optimum oxygen level for bacterial growth. Unit is rated for applications up to 1,450 scfm, 11.5 psi, and 150 hp.

Siemens Building Technologies, Inc.    Buffalo Grove, IL 60089
Apr 08, 2005 RWD Series non-communicating, electronic HVAC devices have LCD display to view setpoint, temperature, and output characteristics. Pre-programmed applications facilitate set-up of parameters. Able to use 1,000 ohm nickel, 1,000 ohm platinum, or 0-10 Vdc input sensor, series includes 120/24 Vdc power transformer with LED indicator and integral self-resetting primary fuse. Plug-in terminals simplify wire terminations for powering controller and optional time clock.

The NorthWest Group    Livonia, MI 48150

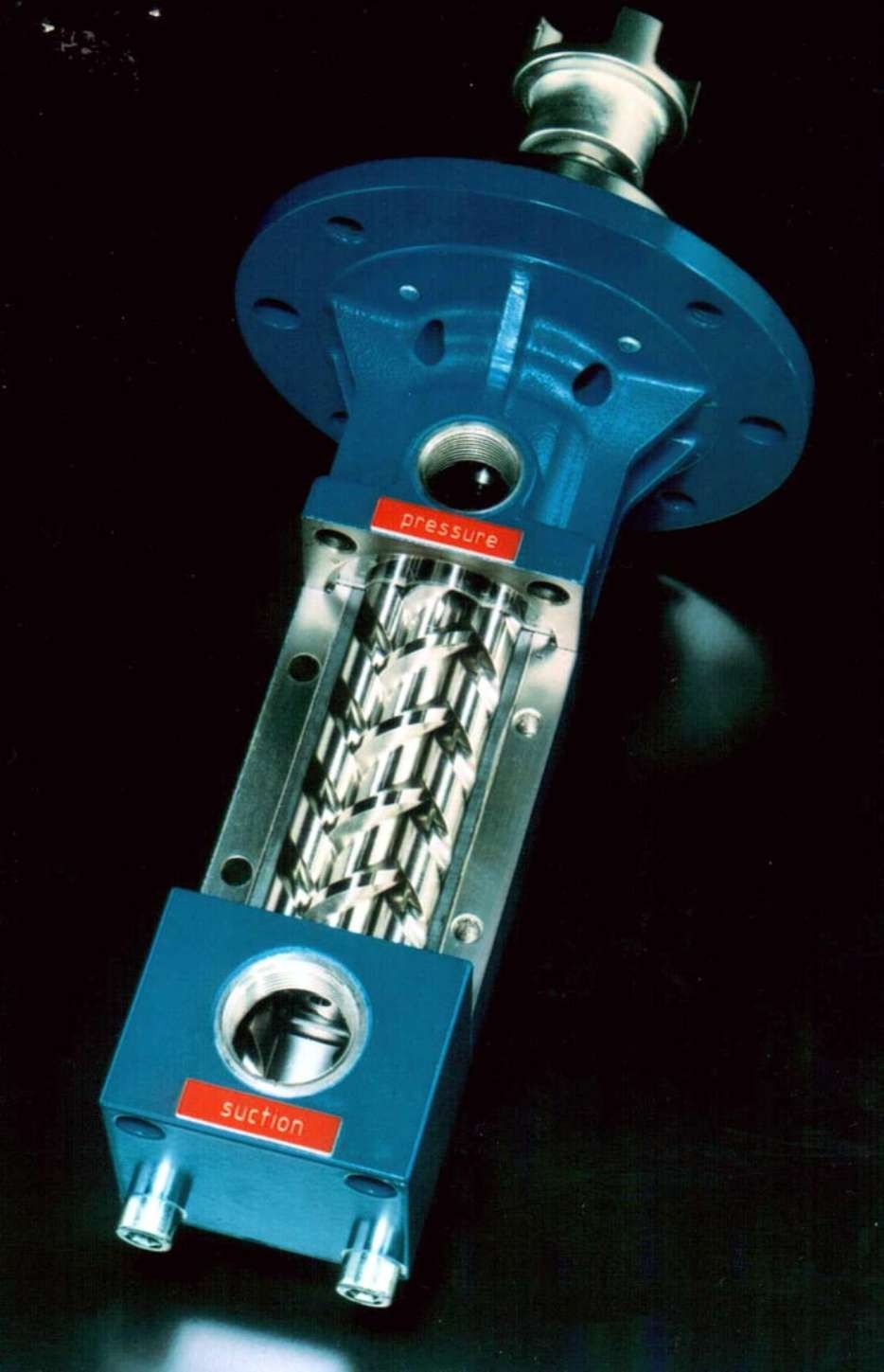

Apr 07, 2005 Available in 6 sizes, Knoll triple screw pump is capable of volumes up to 180 gpm and pressures to 1,750 psi. Pump is available as pump/motor package or as complete high pressure system including control valves, reservoir tank, and integral automatic filter.

Trion, Inc.    Sanford, NC 27331
Apr 07, 2005 Air Boss One-Man Portable HEPA Air Cleaner assists in eliminating smoke, dust, powders, and other dry process pollutants from breathing and work zones. Contaminants enter unit through slotted nozzle and 10 ft hose. Polluted air is filtered through 3-stage filtration system before it is re-circulated into work area. Unit includes 2 direct-drive fans and motors, signal light to indicate when to replace filters, and 15 ft cord and plug that fit 120 Vac outlet.

Trion, Inc.    Sanford, NC 27331

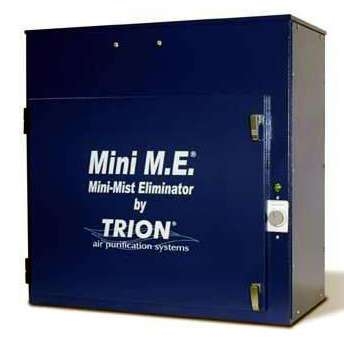

Apr 07, 2005 Utilizing electrostatic precipitation, Mini M.E. cleans and recirculates indoor air with up to 95% efficiency rate on 0.3 micron particles. Unit integrates into pre-existing machine tool systems and can be mounted on platform, on ceiling, or onto machine itself. Helping to comply with OSHA standards, Mini ME is suited for screw machines, surface and centerless grinders, CNC machining centers, turning lathes, and parts cleaning systems.

Clark-Reliance Corp., The    Strongsville, OH 44136
Apr 04, 2005 Series EA-100 Levalarm with upgrade kit replaces original float mechanism and micro switch with conductivity probe and detection relay, eliminating all moving parts. Relay provides 2 independent dry Form C switch contacts. Kit requires no welding, re-work of piping, or adjustments, and takes minutes to install.

ifm efector, Inc.    Exton, PA 19341
Apr 04, 2005 Used to continuously monitor compressed air systems, efector Metris divides plant into zones based on number of fittings and potential leakage points in any area. Sensor can be mounted in supply pipe to monitor one machine or in plant zone to monitor several machines, sensing compressed air levels when equipment is on or off. Micro DC, PNP sensor models SD6001 and SD8001 have respective measuring ranges of 0-44 and 0-132 scfm.

Chromalox    Pittsburgh, PA 15238
Apr 01, 2005 Corrosion-resistant Model HD3D provides comfort heating and freeze prevention in harsh, corrosive, dirty, and wet environments. With stainless steel brackets, hose-down unit can be directly mounted to wall or ceiling. NEMA 4X control box is located on front of heater. Wiring connector provides watertight seal in event of replacement of motor, limit control, or elements. Heater is suited for wastewater treatment plants, steel mills, ships, car washes, and foundries.

AMETEK Technical & Industrial Products    Kent, OH 44240
Mar 30, 2005 Offered as drop-in replacement for DR 707 regenerative blower, DR757 features compact construction and is powered by 4 hp motor that draws less than 7 A. Design, based on sound attenuation method, utilizes noise cancellation technology; further reductions are achievable through use of sound enclosures.

Leonard Valve Co.    Cranston, RI 02910
Mar 29, 2005 Models TM-420, TM-520, TM-820, TM-920, TM-1520A, and TM-2020A adjust to varying flow requirements for tempered water in industrial facilities. They feature DURA-trol® solid bimetal elements, integral supply checkstops, wall supports, cast lever handles, and locked temperature regulators. Products are offered from ¾ in. inlet with 1 in. outlet and flow rates from 1.0–35 gpm to 2 in. inlet with 2 in. outlet and flow rates from 1.0–190 gpm.

Chicago Blower Corp.    Glendale Heights, IL 60139
Mar 29, 2005 Design 5120 features modified airfoil wheel that combines deep spun inlet cone and hyperbolic wheel cone to minimize sound levels. Formed steel component parts are permanently bonded using aircraft grade fasteners. Available in wheel sizes from 135–807, fans offer capacities to 190,000 cfm and pressures to 18 in. w.g.

Mi-T-M Corporation    Peosta, IA 52068
Mar 25, 2005 Portable, single-stage Model AC1-HE02-05M1 is constructed with aluminum oil-lubricated crankcase and aluminum head with cast iron cylinder. It features 5.0 gal twin tank design, powder-coated steel frame, rubber isolators, and protective pump-motor housing. With rubber handle for cushioned grip, hand-carry compressor includes quick connect fittings, stainless steel braided discharge hose, and thermal relief motor protection.

Scientific Dust Collectors    Alsip, IL 60803
Mar 25, 2005 Dust collector helps eliminate contamination problems by utilizing proprietary cleaning system. Design, available with anti-static, explosion vents, secondary filters, and bag-in/bag-out options, prolongs equipment life and minimizes cartridge changes. Suited for tablet pressing, packing, silo-venting, weighing, mixing, and conveying applications in pharmaceutical industry,

Airguard Industries, Inc.    Louisville, KY 40218
Mar 24, 2005 Stackguard® overspray media offers 99% efficiency for wide range of paints, coatings, and glazes. It incorporates fiber glass media for high paint holding capacity and polyester backing for high particulate efficiency. Media holds 35 times its weight in paint particulate overspray, and has tensile strength three times higher than paper-backed medias as per ASTM #D-1682. The 2 in. unit has clean resistance to airflow of .02 at 100 fpm or .30 at 500 fpm.

Cypher International Ltd    Winnipeg R3N 1B6  Canada
Mar 24, 2005 Available in powder form, Dust Stop successfully eliminates fugitive dust from unpaved roads, while being fully safe to use in and around areas of environmental concern. It is approved by US Bureau of Land Management.

Meyer Industries, Inc.    San Antonio, TX 78201
Mar 23, 2005 Polychiller utilizes agitation and product movement technology to perform rapid chilling of hot-filled pouches and other containers. Air and water flushes gently agitate pouches in cold water bath, allowing maximum heat transfer during chilling process. Systems can be supplied with surface drying units and laning/orienting systems to increase packaging line efficiency.
