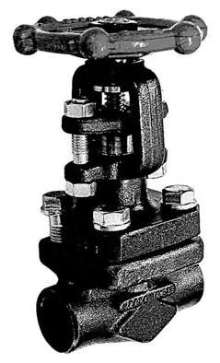

Bellows Seal Globe Valve is designed for steam service.
November 10, 2004 -
Compact BE3L features zero leak, triple seal construction, where bellows, gland packing, and stem seal act as impermeable barrier between fluid and environment. Forged steel construction and stainless steel bellows are tested to withstand 10,000 cycles, and tight shutoff is accomplished via stellite hardened surfaces on valve plug and seat. Available in ½-2 in. sizes in screwed, socket weld, and 300 lb RF, design is rated to 710 psig and 752°F.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
TLV Corporation
13901 South Lakes Drive
Charlotte, NC, 28273
USA
TLV'S BE3L Bellows Seal Globe Valve
TLV CORPORATION is pleased to announce the high reliability BE3L bellows seal globe valve for steam service. The BE3L compact globe valve is an excellent choice for steam, hot water, and heat transfer fluid applications.
Significant advantages of the BE3L include:
Zero Leak, Triple Seal Construction
o Bellows, gland packing, and stem seal act as an impermeable barrier between the fluid and environment
Long Service Life
o Durable forged steel construction and stainless steel bellows (tested to withstand 10,000 cycles)
Tight, Reliable Shutoff
o Stellite hardened surfaces on valve plug and valve seat
Low Maintenance Operation
o Tightening or replacing gland seal packing is not needed
Versatile Design
o Compact design rated to 710 psig and 752°F, allows the BE3L to be used in a wide range of applications
TLV's BE3L is tested for valve leakage according to API598, and is available with EN 10204 (3.1B) certification (upon request). This exceptional valve is available in ½" to 2" sizes, in screwed, socket weld, and 300# RF, and is in stock and ready for shipment.
|
|
|
|
|
|
|
|
