Valve Controller withstands harsh operating environments.
Press Release Summary:
Designed to control 2 proportional or on/off solenoid valves, Model AX022000 features 1 universal signal input and two 3 A outputs. Unit can accept voltage, current, resistive, digital, frequency, or PWM input. Housed in aluminum enclosure with integral 12-pin connector, IP67-rated controller includes +5 V reference to power sensor, 1 CAN port, and user programming for application-specific control logic via CAN-based Electronic Assistant®, which runs on any PC with Windows® 2000 or higher.
Original Press Release:
Dual Output CAN Valve Controller - 1 Universal Input to 2-3A Outputs with CAN (SAE J1939) with Electronic Assistant®
February 10, 2009 - Mississauga, Ontario, Canada

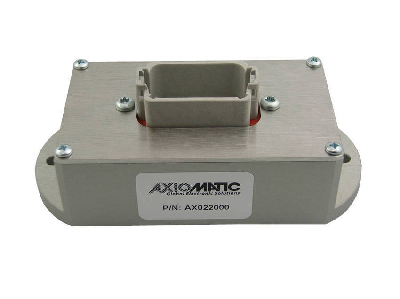

Axiomatic announces the release of a new multi-purpose Valve Controller with 1 universal signal input to 2-3A outputs, part number AX022000. This controller is part of a growing line of compact rugged valve controllers packaged for harsh operating environments.
The Dual Output CAN Valve Controller is designed to control two proportional or on/off solenoid valves, with the ability to accept a voltage, current, resistive, digital, frequency or PWM input. This Valve Controller offers the end user a high value/cost ratio. With superior processing technology, the AX022000 controller is an economical solution to meet the complex control requirements in today's off-highway equipment. This small device is a useful extension on a wide variety of machine applications.
Features:
o 1 universal signal input
o 2 proportional or on/off outputs up to 3A
o User programmable functionality
o 6...60VDC (12V, 24V or 48VDC nominal)
o +5V reference to power a sensor
o 1 CAN (SAE J1939) port
o Aluminum enclosure with integral 12-pin connector
o IP67
o Electronic Assistant® together with an Axiomatic USB-CAN converter links the PC to the CAN bus for user configuration.
o Flexible user programming for application-specific control logic via the CAN based Electronic Assistant. The controller's internal functional blocks for inputs, outputs and signal conversion or hydraulic control can be mapped to a control structure that suits the application.
Electronic Assistant®
The Electronic Assistant® (EA) runs on any modern PC with the Microsoft Windows® 2000 operating system or higher. It comes with a royalty-free license for use.
With connection to the bus, the EA finds all the devices on the bus, and recognizes the Axiomatic controls. The user can quickly configure an Axiomatic control for its desired performance over a wide variety of applications. An Axiomatic CAN Assistant - Scope and Visual is also offered to monitor CAN messages in a text format. The CAN tools are useful PC-based diagnostic and debugging tools for J1939 or CANopen networked devices.
Axiomatic is a provider of electronic machine controls, components, and systems to the off-highway, military, power generation, material handling and industrial OEM markets. We provide efficient, innovative solutions that focus on adding value for our customers. We emphasize service and partnership with our customers, suppliers, and employees to build long term relationships and mutual trust.
Contact: Amanda Wilkins, Marketing Manager. TEL: 1-905-602-9270 x224 amanda.wilkins@axiomatic.com
Come and visit us at INTERMAT in Paris, France on April 20-25, 2009 at Stand 5A G 020!
