Test Port Connection Adapter minimizes wear on connector interface.

Press Release Summary:

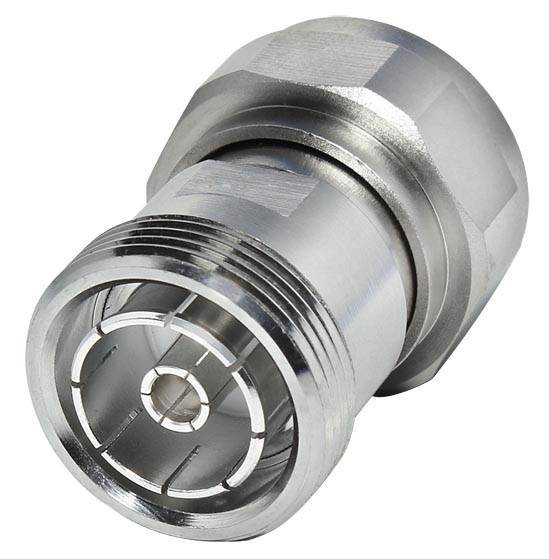

Used when testing 7-16 DIN connectors and assemblies, P2RFD-1660-SS Conector Saver adapter allows hundreds of tests, even PIM testing, to be performed before wear dictates replacement of test port adapter. It installs on test port and is machined to exacting specifications with white bronze plated body and stainless steel coupling nut. Also, any misaligned matings will damage connector saver and not test port.



Original Press Release:



"Connector Saver" with Stainless Steel Coupling Nut Reduces Testing Expense



7-16 DIN CONNECTORS are large format 50 ohm interfaces designed for high power wireless telecommunications applications such as antennas, base stations, and satellite communications.

Test ports are subject to minimal wear each time the connector interface is coupled and de-coupled. Contact pins and dielectrics can be damaged if connectors are misaligned during coupling. It is far more cost effective to introduce a "connector saver" adapter as the adapter mated directly to the test port adapter. One mating cycle on the test port to five hundred or more on the connector saver increases the testing life of the test port. Any misaligned matings will damage the connector saver, not the test port interface.

The P2RFD-1660-SS low loss, low VSWR, precision adapter performs this function when testing 7-16 DIN connectors and assemblies. After carefully installing the P2RFA-1660-SS on the test port, hundreds of tests, even PIM testing (requiring greater torque per test to insure proper ground) can be performed before wear requires replacement. The P2RFD-1660-SS adapter is machined to exacting specifications with a white bronze plated body and stainless steel coupling nut for tarnish free service.

Available from RF Connectors Distributors throughout the US, Canada and Mexico. For additional information call 800-233-1728 or 858-549-6340. You can also e-mail: rfi@rfindustries.com or visit our web site at www.rfindustries.com. RF Connectors is a division of RF Industries (NASDAQ RFIL), a leading supplier of connecting solutions provided through its operating divisions: RF Connectors, RF Cable Assembly, Aviel Electronics, RF Neulink, RadioMobile, OddCables.com and Cables Unlimited.
