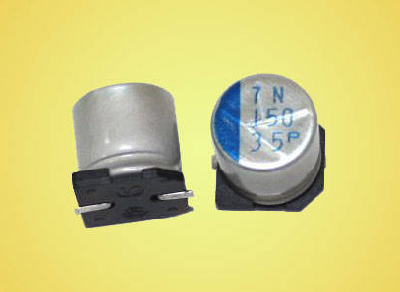

SMD Aluminum-Polymer Hybrid Capacitors operate up to +135°C.

Press Release Summary:




Housed in case sizes of 8 mm D x 10.5 mm L and 10 x 10.5 mm, MXCPB Series offers 9 capacitance values from 22-560 µF with voltage options of 6.3, 10, and 16 Vdc. MXCPT Series, available in 4 case sizes from 6.3 mm D x 7.7 mm L to 10 x 12.5 mm, provides 15 capacitance values from 10-330 µF with voltages of 25, 35, 40, 50, and 63 Vdc. Capacitance tolerance is ±20% for both. Available in Pb-free and RoHS-compliant versions, devices are suited for consumer, industrial, and automotive electronics.



Original Press Release:



Tecate's New SMD Hybrid Aluminum-Polymer Capacitors Feature Extremely Low ESR and Wide Temperature Range to +135 Degrees C



Highly Reliable Parts Offered in Voltages from 6.3 to 63VDC And in Capacitances from 10 to 560µF

San Diego, CA, - Tecate Group, a leading global supplier of capacitors and ultracapacitors, today announced the release of the MXCPB and MXCPT Series of aluminum-polymer hybrid construction capacitors. The new SMD series combines the super-low ESR (equivalent series resistance) advantages of polymer capacitors with the low leakage current characteristics of aluminum electrolytic capacitor technology. Highly stable when exposed to temperature fluctuations, most components notably feature operating temperatures from -55 degrees C to +135 degrees C, and load life ratings to 2,000 hours. Devices are offered in voltage options ranging from 6.3 VDC to 63 VDC, and with capacitance values from 10 µF to 560 µF. To further optimize engineers' design flexibility in applications where space is at a premium, the capacitors range in size from 6.3 mm diameter x 7.7 mm long to 10 mm x 12.5 mm.

The solvent-resistant MXCPB and MXCPT Series of SMD hybrid aluminum-polymer capacitors' super-low ESR and high capacitance values enable low impedance at high frequencies to support excellent noise suppression and ripple absorption in a wide range of such consumer, industrial and automotive electronics as PC servers, networking equipment, flat-panel TVs, power supplies and inverters. In automotive applications, parts are used to boost energy efficiency in engine-management and electronic fuel-injection systems, gearbox controllers, steering aids, and in motors for windshield wipers and fans, along with oil, or water pumps.

Tecate's new MXCPB Series is available in nine capacitance values ranging from 22 µF to 560 µF and voltage options of 6.3 VDC, 10 VDC and 16 VDC. They are provided in 8 mm diameter x 10.5 mm long and 10 mm x 10.5 mm case sizes, with operating temperatures from -55 degrees C to +125 degrees C. Load life is 2,000 hours at +125 degrees C. Uniquely boasting an operating temperature range of -55 degrees C to +135 degrees C, capacitors in the MXCPT Series are offered in fifteen capacitance values ranging from 10 µF to 330 µF and in voltages of 25 VDC, 35 VDC, 40 VDC, 50 VDC and 63 VDC. These components may be ordered in 4 case sizes ranging from 6.3 mm diameter x 7.7 mm long to 10 mm x 12.5 mm. At +135 degrees C, 6.3 mm x 7.7 mm parts' load life is 1,000 hours. All other components in this series feature a 2,000 hour load life. Both series' capacitance tolerance is +/-20%. Devices are available in Pb-free and RoHS-compliant versions and supplied tape and reel.

For additional information, visit, www.tecategroup.com/capacitors/datasheets/smd/conductive_polymer/MXCPB.pdf#search="mxcpb" and http://www.tecategroup.com/capacitors/datasheets/smd/conductive_polymer/MXCPT.pdf#search="MXCPT".

Depending on customers' specifications, per piece pricing for Tecate's MXCPB Series of SMD hybrid aluminum-polymer capacitors ranges from approximately $0.35 to $0.45, and from $0.55 to $0.95 for the MXCPT Series. Delivery is 8 to 10 weeks. Samples are available upon request.

About Tecate Group

Headquartered in San Diego, CA, Tecate Group (www.tecategroup.com), is a global leader in the design, sales, and distribution of capacitors and ultracapacitors, as well as audio and multimedia components and service. The Company specializes in supplying high-quality ceramic high voltage, tantalum, aluminum electrolytic and film capacitors, together with ultracapacitor cells, to the world's leading OEMs, assemblers, and end users in markets spanning consumer electronics, telecommunications, industrial, military, medical, automotive, transportation and utilities. Founded in 1963, Tecate Group has long maintained its commitment to provide unparalleled levels of customer service and support, along with state-of-the-industry design and engineering resources. The Company additionally takes pride in offering customers virtually unlimited customization capabilities for unique applications, and maintains a vast global network of sales representatives www.tecategroup.com/sales/salesreps.php and distributors www.tecategroup.com/sales/distributors.php .
