Parts Cleaning System features U-bend design.

Press Release Summary:

Featuring all stainless steel design, Model PWRBD24-96E-U includes wash, rinse, second rinse, blow-off, and drying functions in space-saving U-bend design. Variable-speed, 24 in. continuous belt feeds parts through all functional chambers and delivers them to end of system. Designed to remove oil and grease, system has multiple nozzles on 96 in. wash section that are adjustable for direction onto parts and into places where special attention is required.

Original Press Release:

Multiple-Function Parts Cleaning System Offers Superior Features, Performance

U-Bend Design from ALMCO Permits Numerous Cleaning Operations to Be Accomplished in Minimum Space

ALBERT LEA, Minnesota - A five-stage, all stainless steel washer/dryer system with uncommon features for exceptional cleaning, speed and ease of operation is among standard-line units from ALMCO, Inc., for a wide range of industrial applications.

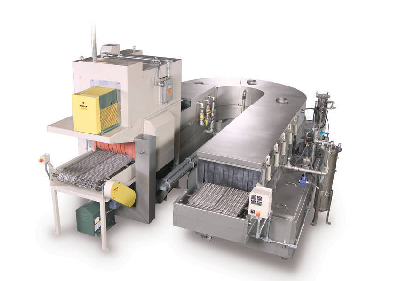

The Model PWRBD24-96E-U system, initially custom-developed for an individual customer of the company, includes wash, rinse, second rinse, blow-off and drying functions in a space-saving U-bend design. Its variable-speed, 24"-wide continuous belt feeds parts through all functional chambers and delivers them to the end of the system, where they can be removed by hand or fall into a container or onto a belt for further processing.

Contaminants of oil or grease are removed by powerful compound/water spray rinses. Multiple nozzles of the 96-inch wash section are adjustable for direction onto the parts and into places where special attention is required.

Known for its custom-design capabilities, ALMCO offers the highest quality and durability in all components of its five-stage cleaning system. Included are two stainless steel bag filtration units, large-capacity insulated tanks for wash and rinse functions, a 15-hp regenerative blower, forced air electric dryer, remote conveyor controls, removable chip basket, automatic solution make-up systems and other features.

Other parts washer/dryer designs from ALMCO include in-line conveyors and rotary, cabinet and drum units, in standard or custom models. The manufacturer offers more than five decades of experience and exceptional engineering skills to recommend and develop cleaning systems that are perfectly suited to individual needs.

For further information on the multi-stage system or other parts cleaning equipment, contact ALMCO, Inc., 507 West Front Street, Albert Lea, Minnesota 56007, phone 1-800-521-2740. In addition to its washer/dryer line, the company is the world's largest manufacturer and an international marketer of machines for metal parts deburring and finishing, whose products are sold through an extensive network of independent distributors, sales representatives and region managers.
