Heat Sinks perform in low airflow velocity conditions.

Press Release Summary:

Featuring spread fin array that maximizes surface area for effective convection cooling, maxiFLOW(TM) heat sinks cool ICs and other hot components in narrow packaging and low airflow velocity conditions. Standard heights are as low as 9.5 mm, and extruded aluminum fabrication minimizes thermal resistance from base to fins. Pre-assembled with ATS maxiGRIP(TM) mounting hardware, sinks meet requirements for Telcordia GR-63-Core, ETSI 300 019, and MIL-STD-810.

Original Press Release:

Low Profile Heat Sinks Cool Hot Components in Constricted Packages

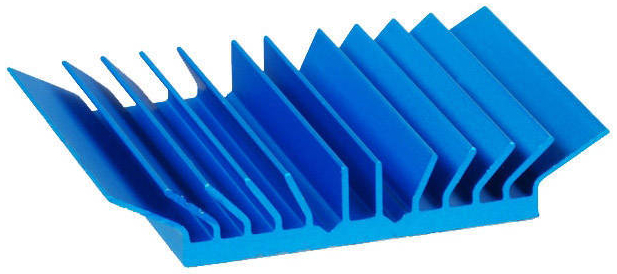

Norwood, MA - Advanced Thermal Solutions, Inc. has introduced a line of lower height maxiFLOW(TM) heat sinks for cooling ICs and other hot components in narrow packaging and low airflow velocity conditions. The maxiFLOW heat sinks feature a spread fin array that maximizes surface area for more effective convection (air) cooling. Standard sink heights are as low as 9.5 mm.

The heat sinks are fabricated from extruded aluminum which minimizes thermal resistance from the base to the fins and minimizes weight. Tests on maxiFLOW heat sinks using an airflow rate of just 100 lfm (linear feet per minute) show that device junction temperatures (Tj) can be reduced by more than 40 percent below the temperatures achieved using other heat sinks.

Low profile maxiFLOW heat sinks are provided pre-assembled with ATS maxiGRIP(TM) mounting hardware. This attachment system includes a plastic frame clip that snaps securely around the component. A stainless steel spring clip runs through the fin field and fastens to the frame. The result is steady, even mounting pressure with no holes in the PCB. These assemblies meet Telcordia GR-63-Core; ETSI 300 019; and MIL-STD-810 shock and vibration testing standards. A thermally conductive, phase-change interface pad maximizes the heat transfer from component to the cooling solution.

Pricing for ATS low profile maxiFLOW heat sinks starts at less than $10.00 each, which includes the mounting hardware and phase change thermal interface material. The heat sinks are also available without the mounting system. More information on low profile maxiFLOW heat sinks and the maxiGRIP mounting system is on the Advanced Thermal Solutions website, Qats.com, or is available by calling 1-781-769-2800.

Advanced Thermal Solutions is a leading engineering and manufacturing company supplying complete thermal and mechanical packaging solutions from analysis and testing to final production. ATS provides a wide range of heat sinks and laboratory-quality thermal instrumentation, along with thermal design consulting services and training.
