HBT MMIC Amplifiers cover frequencies up to 3,300 MHz.
Press Release Summary:
Covering frequency bands from 50-2,000 MHz, MAAM-007865-0P1R00 HBT MMIC amplifier has 20 dB gain with ±1.2 dB flatness across frequency band, with P1dB level of 18 dBm and output IP3 of 29 dBm. Model MAAM-007866 2-stage device covers 50-3,300 MHz range, and is designed to have 27 dB gain with ±1.2 dB flatness, with P1dB level of 22.5 dBm and output IP3 of 34 dBm. Both models have on-chip active bias network, and require single bias supply of +5 V.
Original Press Release:
M/A-Com Expands Broadband Driver Amplfier Line
New HBT MMIC Amplifiers Feature Broadband Frequency Performance With A Single Application Circuit
LOWELL, Mass., Jan. 9, 2007 - M/A-COM, a business unit of Tyco Electronics and a leading provider of wireless radio frequency (RF), microwave and millimeter wave components, today introduced two new HBT MMIC amplifiers. The MAAM-007865-0P1R00 and the MAAM-007866-0P1R00 exhibit exceptional broadband frequency performance using only a single application circuit to cover frequency bands from 50 MHz to 2000 MHz, and 50 MHz to 3300 MHz, respectively.
The MAAM-007865-0P1R00 is designed to have 20 dB gain with +/- 1.2 dB flatness across the frequency band. The P1dB level is 18 dBm and output IP3 is 29 dBm. The MAAM-007866 is a 2 stage device designed to have 27 dB gain with +/- 1.2 dB flatness across the frequency band. The P1dB level is 22.5 dBm and ouput IP3 is 34 dBm.

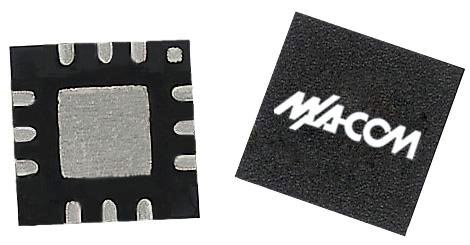

The design of M/A-COM's MAAM-007865-0P1R00 and MAAM-007866-0P1R00 incorporates an on-chip active bias network, reducing the number of off-board components thus easing application implementation. Both amplifiers require a single bias supply of +5 volts, with a +5 volt reference pin for power-down and power control capability. Each model is available in a 3mm 12 lead PQFN package and assemblies are RoHS compliant.
Pricing and Availability
M/A-COM's MAAM-007865-0P1R00 is available from stock and is priced at $1.56 in quantities of 10,000. M/A-COM's MAAM-007866-0P1R00 is available from stock and is priced at $1.84 in quantities of 10,000. Contact M/A-COM's domestic and international sales and distribution channels for exact price and delivery quotes. Datasheets and supporting technical documents are available online at www.macom.com.
M/A-COM, Inc., a business unit of Tyco Electronics, is an established industry leader in the design, development and manufacture of radio frequency (RF), microwave and millimeter wave semiconductors, components and technologies for the wireless telecommunications, automotive, aerospace and military industries. Holding hundreds of patents in the field, M/A-COM is internationally known as an innovator and integrator whose technologies are found in some of today's most advanced signal intelligence and defense systems, as well as in leading automotive navigation, safety, and communications solutions. M/A-COM is also a major supplier of critical communications systems and equipment for public safety, utility, federal and select commercial markets. Headquartered in Lowell, MA, M/A-COM has offices and manufacturing facilities worldwide. Information about M/A-COM can be found on the Web at www.macom.com, a complete, updated listing of all of M/A-COM's RoHs compliant parts is available on the Web at www.macom.com/rohs.
About Tyco Electronics
Tyco Electronics is a leading global provider of engineered electronic components, network solutions and wireless systems, with 2006 sales of $12.7 billion to customers in 150 countries. We design, manufacture and market products for customers in industries from automotive, appliances and aerospace and defense to telecommunications, computers and consumer electronics. With over 8,000 engineers and worldwide manufacturing, sales and customer service capabilities, Tyco Electronics' commitment is our customers' advantage.
