Ethernet Switch suits space sensitive applications.

Press Release Summary:

DIN-rail-mount, 10/100 Base-TX DIOSWITCH MINI is 22.5 mm wide with 6 ports, 2 of which are pluggable clamps. Unit features IP20-rated plastic housing and all Ethernet functions, including auto-negotiation, auto-crossing, and auto-polarity. Three-pin pluggable spring cage terminal for power supply is rated 19.2-30 V with max ripple of 10%. Diagnostic indicators are provided on front panel. Switch supports address aging and 1,536 byte data transfer for VLAN traffic.

Original Press Release:

10/100 Base-TX-Switch with 6 Ports for Industrial Applications

Compact size for cost and space sensitive applications

For Immediate Release
Contact:Timur Oezer
Lutze, Inc.

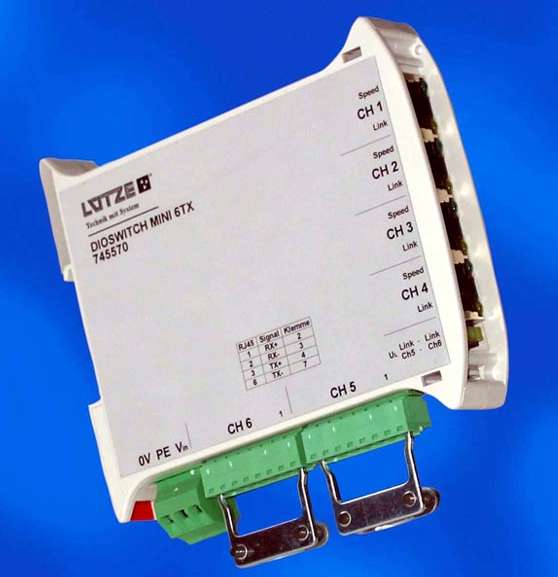

Charlotte, NC-- Monday, November 01, 2004 - The new DIN rail mountable Lutze, Inc. Ethernet-Switch DIOSWITCH MINI has 6 ports and was developed for industrial applications. One of the most remarkable facts of the new Ethernet-Switch DIOSWITCH MINI from Lutze, Inc. is the small width of 22.5 mm. Lutze's target was to develop a compact 10/100 Base-TX-Switch which is economical but yet a high quality product.

The plastic housing comes with IP20 protection and all Ethernet functions, like Auto-Negotiation, Auto-Crossing, and Auto-Polarity, were implemented.

In order to make the installation for engineers quicker and easier 2 of the 6 ports are pluggable clamps. In industry applications it is often the case that RJ45 connectors are not useful. With the pluggable clamps it is not necessary to invest in a patch panel. Another installation advantage is the 3 pin pluggable spring cage terminal for the power supply, which is between 19.2 and 30 Volt incl. a ripple of maximum 10 percent.
To improve the ease of usage and monitor the internal functions the new DIOSWITCH MINI 10/100 Base-TX-Switch has status information on its front panel, like Link status for each channel, 10/100 Mbit and logic power supply, for diagnosis and operation.

Technical Data:
- Ports:
o6x10/100 Base-TX
- Features:
o 10/100 Auto-Negotiation
o Auto-Crossing
o Auto-Polarity
o IEEE802.3
o IEEE802.3u
o IEEE802.3x compliant
o Store and Forward Switching Mode
o Twp level hashing algorithm
o Supports address aging
o Broadcast storm protection
o Full line speed capability of 148800 packets/sec (100M)
o Supports 1536 byte data transfer for VLAN traffic
o Supports base VLAN
o Supports CoS
- Power Supply:
o DC 19.2 - 30V
o Ripple max. 10%
o Current consumption on DC 24V is max. 200mA
o Connection: 3pin pluggable spring cage terminal
- Diagnostic Indicators:
o Logic Power Supply (UL), LED green
o Link status for each channel (LINK), LED yellow
o 10/100M (SPEED), LED green
- Potential Isolation:
o AC 1500V Ethernet and power supply
- General Technical Data:
o Dimensions (w x h x d): 22.5mm x 101mm x 121mm
o Weight: 120g
o Type of protection: IP20
o DIN rail mounting
o Operating temperature: 0 - 60 C
o Storage temperature: -40 C to 85 C
