Double Block and Bleed Valves offer low-torque operation.

Press Release Summary:




Rated for use with working pressures from 10,000 or 15,000 psi, IPT Double Block and Bleed Valves feature Trunnion Ball design, are available with clamp-hub type ends to meet API 17D specifications, and can be constructed to satisfy NACE MR-01-75 for corrosion protection. Units have body and end flanges made from SS, duplex steel, and super duplex, while seals feature PEEK seats and Viton O-rings to enable reliable operation in temperatures ranging from 0-400°F.




Original Press Release:



New IPT High Pressure Double Block & Bleed Valves Deliver Significant Cost, Space and Weight Savings Compared with Conventional DB&B Options

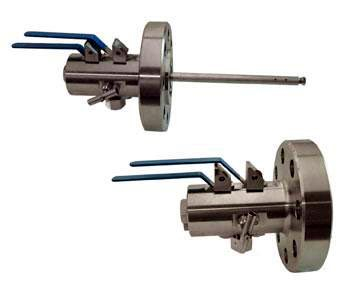

ERIE, PA - Innovative Pressure Technologies (IPT) introduces IPT Double Block and Bleed Valves. IPT Double Block and Bleed Valves are rated for use with working pressures from 10,000 or 15,000 psi (690 or 1035 bar) and feature a unique Trunnion Ball Design for maximized performance and smooth, low-torque operation. They provide complete traceability of materials, and a blow-out proof stem for increased safety. They are available with clamp-hub type ends to satisfy API 17D specifications, and can be constructed to satisfy NACE MR-01-75 for corrosion protection.

"In the conventional assembly of pressure instruments, both the piping and instrument departments are involved in ordering and stocking separate valves, gasket and other fittings. Assembling so many components can be expensive, particularly if joint welding is required, and produces up to 8 potential leak points, while also taking up working space and producing a large bending moment. The higher mass can also induce vibration stress failures," says Wade Brandon, Vice President, Sales & Marketing. "Our unique approach for High Pressure Applications delivers a low-cost, out-of-the-box solution, with reduced installation costs, lower weight and height, fewer leakage points, that requires no mounting brackets and that is largely unaffected by system vibration," he says.

IPT Double Block and Bleed Valves are 100% tested to ensure quick start-up and reliable operation out of the box. They meet both instrument and piping engineers' specifications and deliver significant savings on space, weight and cost when compared with conventional double block and bleed valves. As a result, they are well suited for use in critical applications such as primary isolation, double block and bleed, pressure instrumentation devices, chemical injection, sampling, pressure equalization and venting, among others.

IPT Double Block and Bleed Valves are available in a variety of materials of construction to satisfy specific application requirements. Body and end flanges are available in stainless steel, duplex steel and super duplex. Seals feature PEEK seats for excellent resistance to chemicals, heat and wear, and Viton O-rings enable reliable operation in temperatures ranging from 0°F to 400°F (-17.8°C to 204°C). Additional materials are available for high temperature service.

About Innovative Pressure Technologies

Innovative Pressure Technologies specializes in the design and manufacture of precision machined valves, fittings and other fluid control devices, and related components and accessories. With over 30 years of manufacturing experience and millions of completed assemblies and individual components delivered, IPT is recognized as a leading provider of specialty valve and fitting technologies in applications requiring specialized machining and/or material requirements. Primary markets served include oil and gas, aerospace and defense, automotive, pharmaceutical, laboratory research, power generation, water and wastewater, and general industry, among others.

Innovative Pressure Technologies, 4922 Pittsburgh Avenue, Erie, PA 16509-6207; 1-814-833-5200; fax: 1-814-836-1824; sales@inpressure.com; www.inpressure.com
